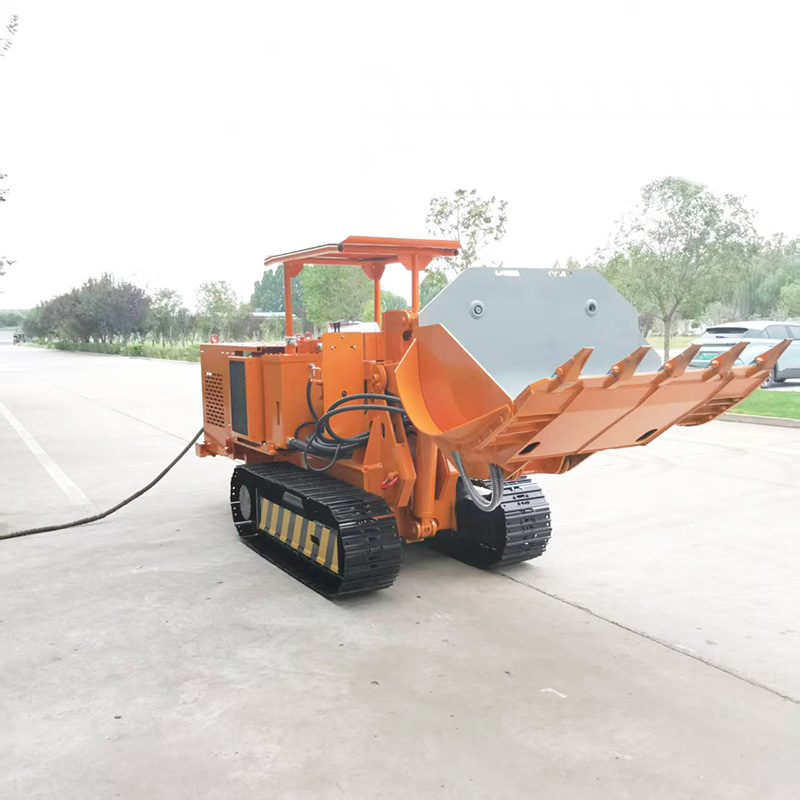

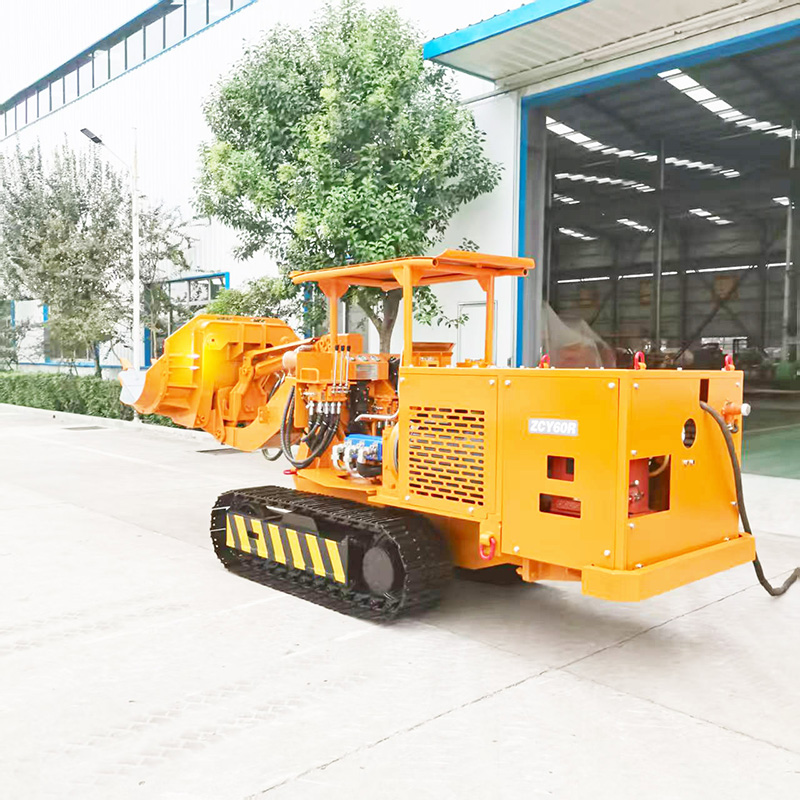

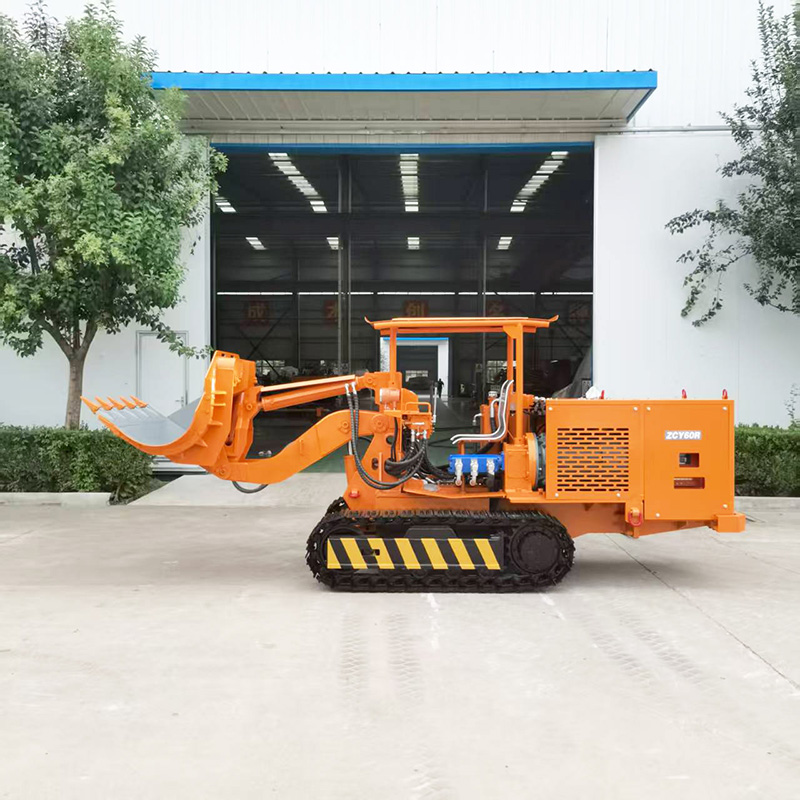

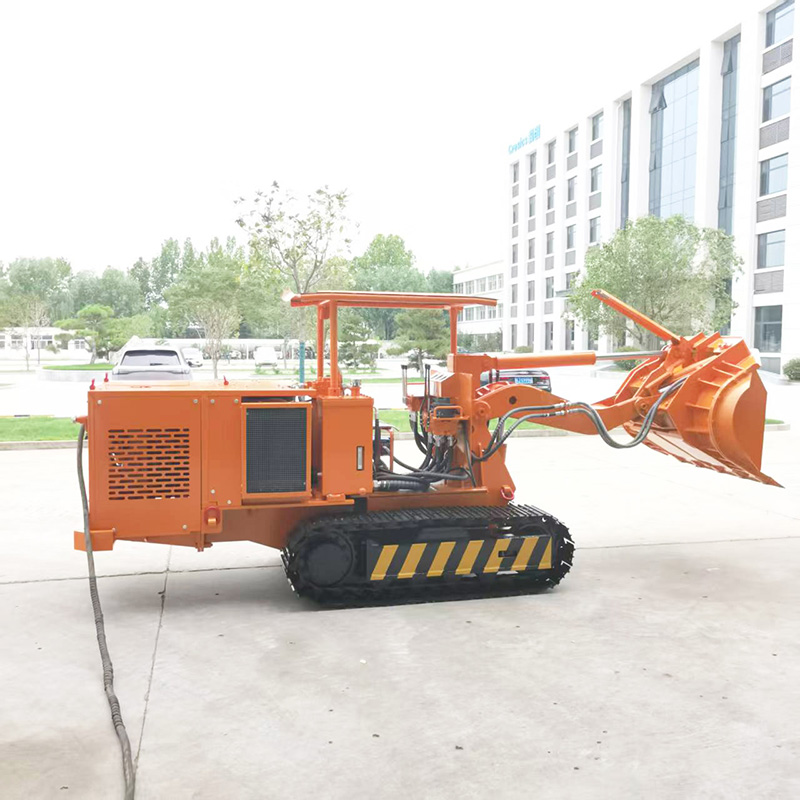

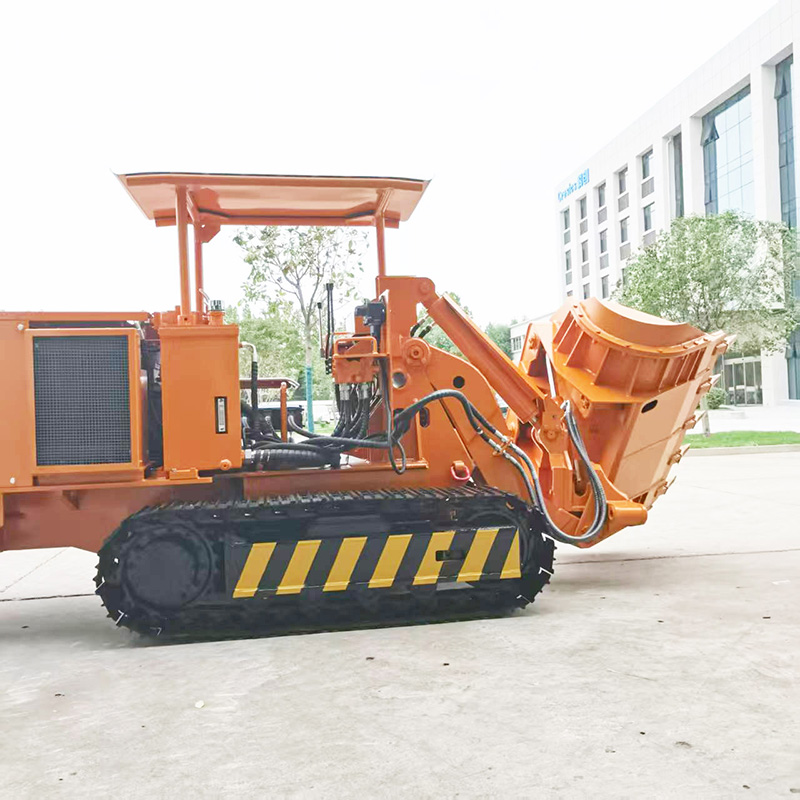

Mining Side Unloading Rock Loader
1. Efficient loading expert
The high-torque crawler drive generates strong insertion force to ensure rapid material transfer across all cross-sections. It performs well in the construction of large tunnels and intersections, and has significant efficiency improvements.
2. Dynamic integration work group
It can establish real-time collaboration with mobile drilling rigs, continuous transportation systems, etc., and perform well in variable-section construction.
3. Work model innovator
Its core advantages are reflected in: the bucket has the dual functions of lifting heavy materials and short-distance transportation; the deformable platform design meets the dynamic management needs of the roof; the hydraulic power output interface supports the operation of equipment such as anchor drills; the revolutionary cleaning technology realizes 100% mechanization of the loading process for the first time, promoting the transformation of work towards intelligentization.
As a new generation of crawler trackless loading equipment in the mining field, side discharge rock loaders bring new opportunities to mining. It mainly serves the loading of coal, rock and ore in tunnels of coal mines and other mines. It can also easily handle rock loading in small-section full-rock tunnels. This equipment has outstanding features, strong insertion force, and can quickly cut into materials for efficient loading; it has good maneuverability and can move and turn flexibly in complex tunnels; it can realize full-section operations, expand the scope of operations, and improve work efficiency; it is safe and provides reliable safety protection for operators; and it has the characteristics of a multi-purpose machine.
It can not only complete loading tasks, but also provide power support for hydraulic drilling tools, serve as a working platform during support operations, and complete short-distance transportation, undercover work, and gang cleaning on the working surface. If a breaker is installed, it can crush large rocks and coal, speed up the excavation process, and create good economic benefits. It consists of key parts such as side-mounted shovel mechanism, crawler traveling assembly, frame assembly, hydraulic operating system, driving control system, and electrical system. All parts work together to ensure stable operation of the equipment. Users can select appropriate equipment based on the actual cross-section size of the tunnel and loading efficiency requirements.

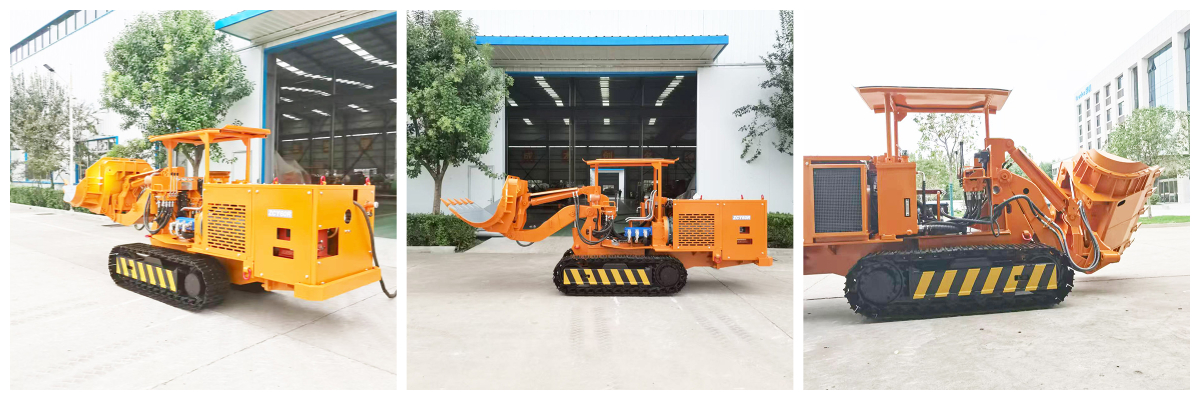

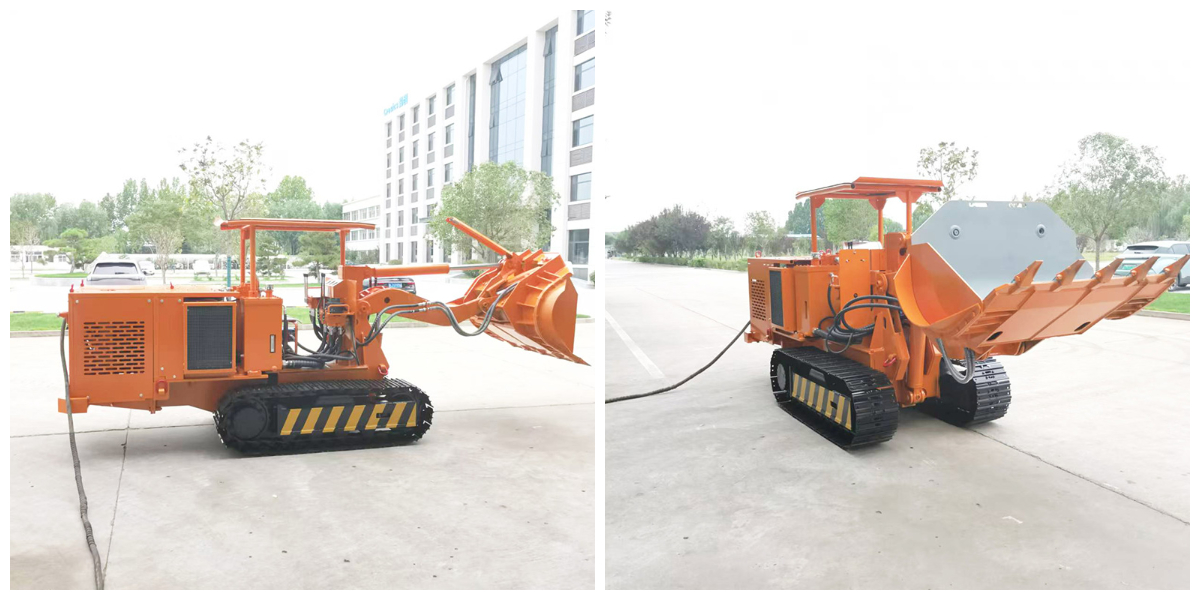

Product Details
Parameters
Product Model | ZCY45R | ZCY60R | ZCY80R | ZCY100R | ZCY120R | |
Technical Bucket Capacity (m³) | 0.45 | 0.60 | 0.80 | 1.00 | 1.2 | |
Main Motor Power (kW) | 30 | 45 | 55 | |||
Voltage (V) | 660/1140 | 660/1140 | ||||
Bucket Width (mm) | 1370 | 1520 | 1696 | 1696 | 1876 | |
Maximum Dumping Height (mm) | ≥1460 | ≥1320 | ≥1600 | ≥1900 | ≥2000 | |
Maximum Digging Depth (mm) | ≥400 | ≥400 | ≥400 | ≥500 | ≥500 | |
Gradeability (°) | ≥16 | ≥16 | ≥16 | ≥16 | ≥16 | |
Traction Force (kN) | ≥20 | ≥20 | ≥40 | ≥40 | ≥40 | |
Minimum Ground Clearance (mm) | ≥180 | ≥180 | ≥200 | ≥200 | ≥200 | |
Maximum Travel Speed (m/s) | ≥0.5 | ≥0.5 | ≥0.81 | ≥0.81 | ≥0.81 | |
Working Mechanism Pressure (MPa) | 16±0.5 | 16±0.5 | 16±0.5 | 16±0.5 | 16±0.5 | |
Travel Motor Pressure (MPa) | 22±0.5 | 22±0.5 | 22±0.5 | 22±0.5 | 22±0.5 | |
External Oil Port Pressure (MPa) | 20±0.5 | |||||
Noise (Sound Pressure Level) (dB) | ≤90 | |||||
Center of Gravity Position | Xg=635 | Xg=650 | Xg=710 | Xg=750 | Xg=780 | |
Track Ground Pressure (MPa) | 0.09 | 0.1 | ||||
Overall Dimensions | Length (mm) | 4490 | 4580 | 5100 | 5330 | 5370 |
Width (mm) | 1425 | 1520 | 1696 | 1696 | 1876 | |
Height (mm) | 2046 | 2046 | 2100 | 2300 | 2300 | |
Dry Weight(kg) | 4500 | 4650 | 7350 | 8300 | 8500 | |
About us

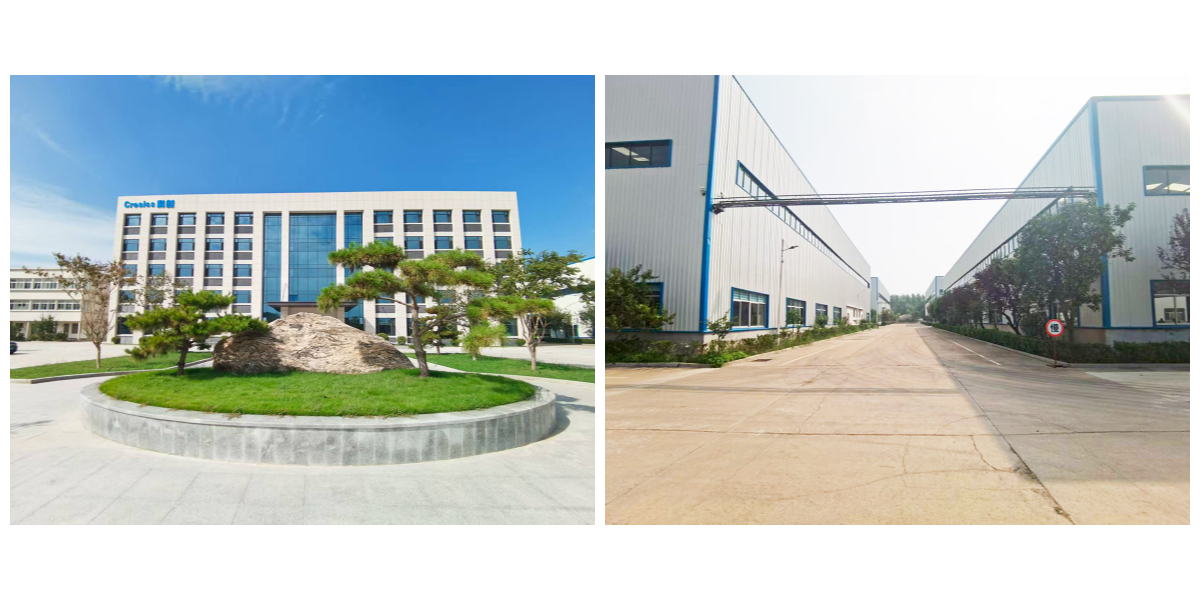

In 2004, Shandong Cresics Equipment Manufacturing Co., Ltd. came into being under the call of the times and devoted itself to the great cause of mining equipment R&D and manufacturing. Since its establishment, the company has always regarded technological innovation as the core driving force of its operations, constantly exploring innovative models, improving innovation capabilities, and striving to stand out in the fierce market competition. With this firm belief and unremitting efforts, the company has won many honors such as the National Small Giant Enterprise, Shandong Province Single Champion Enterprise, etc. It has also successfully ranked among the Shandong Province Gazelle Enterprise, Shandong Enterprise Technology Center, Shandong Industrial Design Center, National High-tech Enterprise, and Shandong Province Specialty New Enterprise.
The company has a strong and innovative R&D team who come from different professional fields and have rich practical experience and profound theoretical knowledge. In order to stimulate the innovative vitality of the team, the company actively carries out extensive technical cooperation and exchanges with China University of Mining and Technology and a number of mining groups, and has established a series of cooperation mechanisms and platforms. Through in-depth cooperation with universities and enterprises, the company jointly carries out scientific research projects and achieved a series of important technical results, providing strong technical support for product upgrading.
