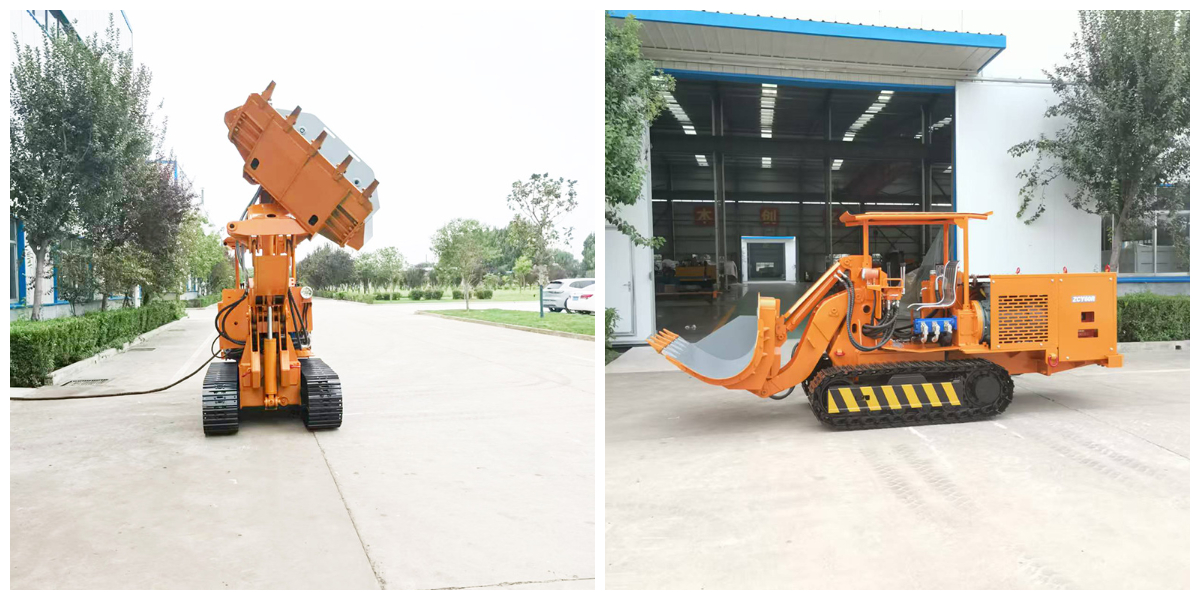

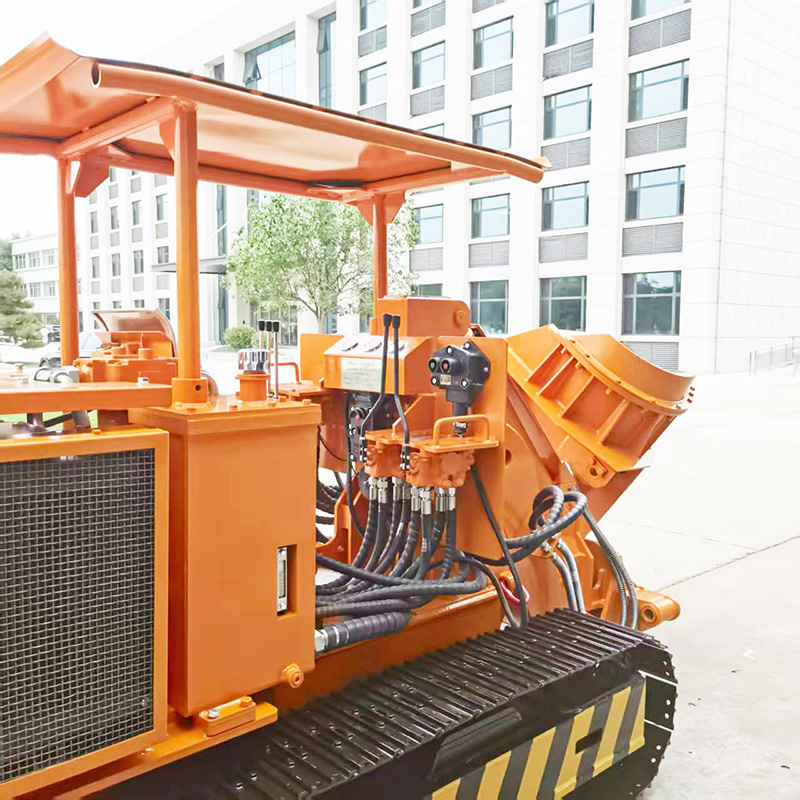

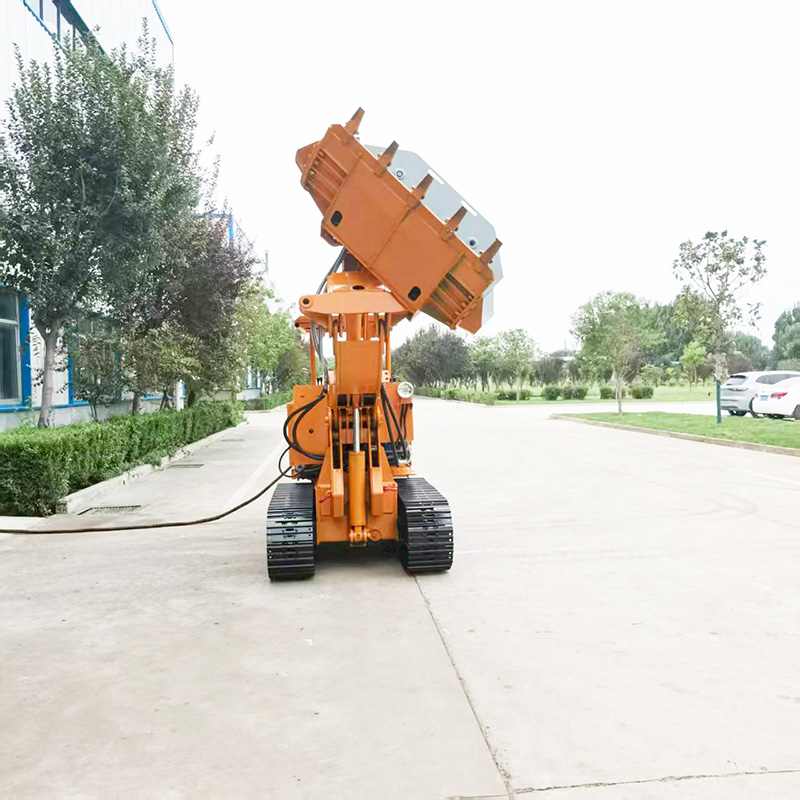

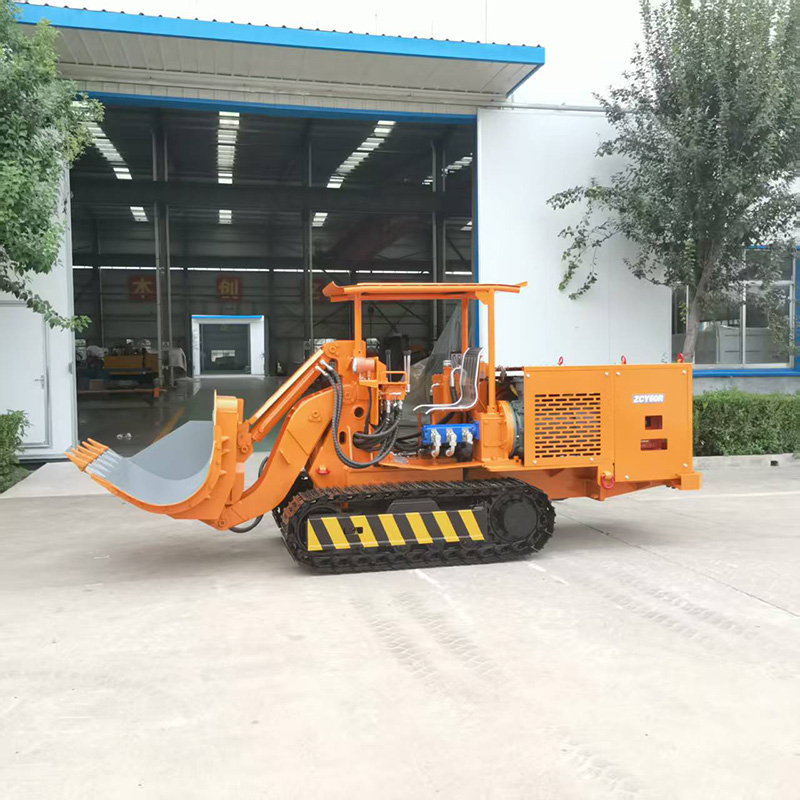

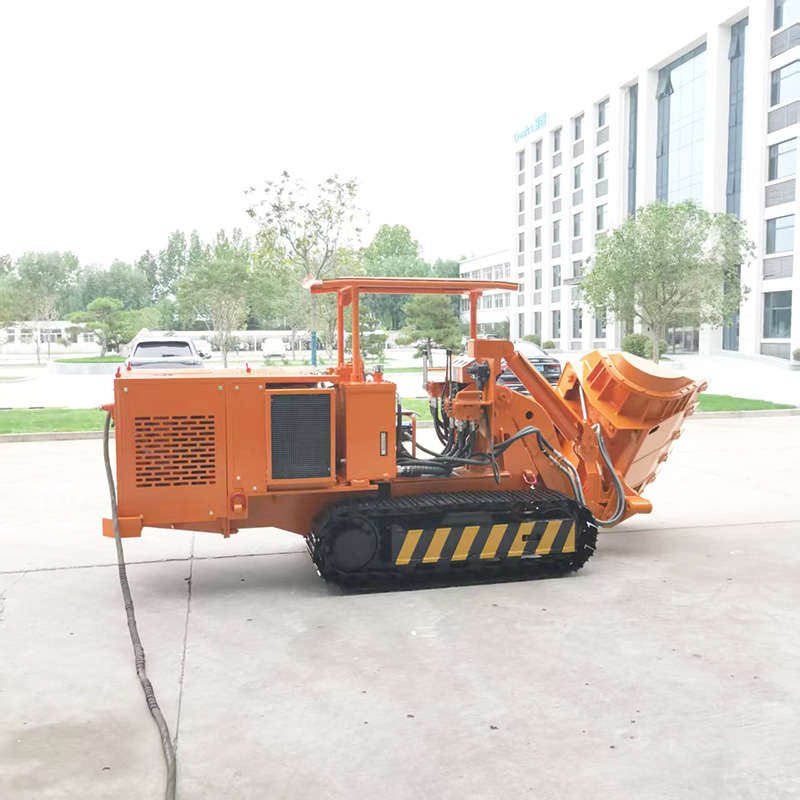

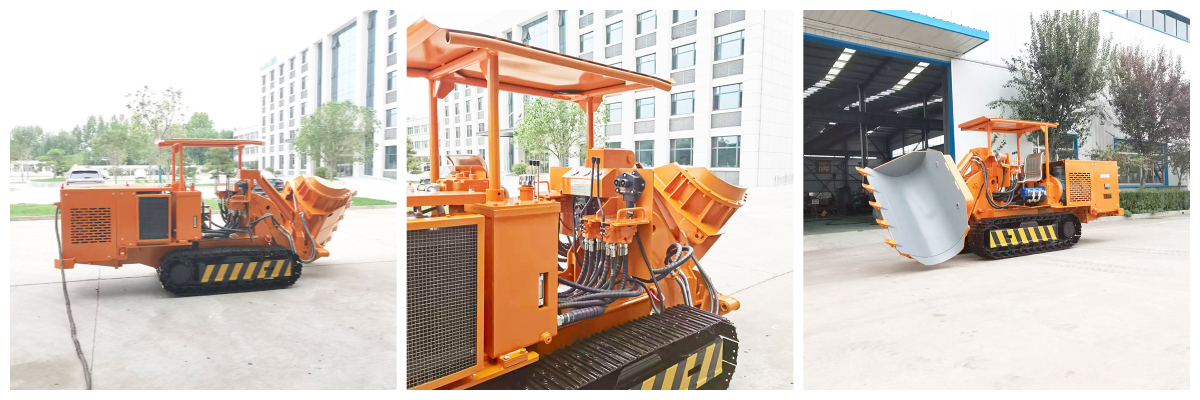

Side Unloading Rock Loader Solutions
1. All-purpose construction tool
Equipped with an intelligent control system to achieve precise adjustment of crawler insertion force and support full-section efficient loading. It can maintain stability and efficiency in the construction of flat and inclined tunnels, and has strong adaptability to complex working conditions.
2. Technology integration pioneer
This equipment breaks through the limitations of traditional rock loaders: the bucket can lift heavy components such as metal brackets and complete short-distance transfers; the elevating working platform supports real-time maintenance of the roof; the integrated hydraulic station can supply energy to a variety of ancillary equipment; the deep cleaning system realizes the automation of the entire bottom loading process for the first time, eliminating manual bottom cleaning.
The side discharge rock loader is a new generation of crawler trackless loading equipment, which plays a key role in mining operations. It is mainly used for loading coal, rock and ore in coal mines and other mine tunnels, and also performs well in rock loading scenarios in small-section full-rock tunnels. This equipment has many advantages and has a large insertion force. It can easily handle various hard materials and quickly cut in for loading; it has good maneuverability and can move flexibly and shuttle freely in narrow and curved tunnels; it has full-section operation capabilities to improve the coverage and efficiency of operations; it is high in safety, providing safe work guarantee for operators; and it has multiple functions, making one machine multi-purpose.
If equipped with a breaker hammer, it can effectively break large rocks and coal, accelerate the excavation speed, and bring good comprehensive economic benefits. It consists of a side-mounted shovel mechanism, crawler traveling assembly, frame assembly, hydraulic operating system, driving control system, electrical system and other parts. All parts work closely together to ensure efficient and stable operation of the equipment. Users can select the appropriate equipment model based on the actual tunnel section and loading efficiency requirements.
Product Details
Parameters
Product Model | ZCY45R | ZCY60R | ZCY80R | ZCY100R | ZCY120R | |
Technical Bucket Capacity (m³) | 0.45 | 0.60 | 0.80 | 1.00 | 1.2 | |
Main Motor Power (kW) | 30 | 45 | 55 | |||
Voltage (V) | 660/1140 | 660/1140 | ||||
Bucket Width (mm) | 1370 | 1520 | 1696 | 1696 | 1876 | |
Maximum Dumping Height (mm) | ≥1460 | ≥1320 | ≥1600 | ≥1900 | ≥2000 | |
Maximum Digging Depth (mm) | ≥400 | ≥400 | ≥400 | ≥500 | ≥500 | |
Gradeability (°) | ≥16 | ≥16 | ≥16 | ≥16 | ≥16 | |
Traction Force (kN) | ≥20 | ≥20 | ≥40 | ≥40 | ≥40 | |
Minimum Ground Clearance (mm) | ≥180 | ≥180 | ≥200 | ≥200 | ≥200 | |
Maximum Travel Speed (m/s) | ≥0.5 | ≥0.5 | ≥0.81 | ≥0.81 | ≥0.81 | |
Working Mechanism Pressure (MPa) | 16±0.5 | 16±0.5 | 16±0.5 | 16±0.5 | 16±0.5 | |
Travel Motor Pressure (MPa) | 22±0.5 | 22±0.5 | 22±0.5 | 22±0.5 | 22±0.5 | |
External Oil Port Pressure (MPa) | 20±0.5 | |||||
Noise (Sound Pressure Level) (dB) | ≤90 | |||||
Center of Gravity Position | Xg=635 | Xg=650 | Xg=710 | Xg=750 | Xg=780 | |
Track Ground Pressure (MPa) | 0.09 | 0.1 | ||||
Overall Dimensions | Length (mm) | 4490 | 4580 | 5100 | 5330 | 5370 |
Width (mm) | 1425 | 1520 | 1696 | 1696 | 1876 | |
Height (mm) | 2046 | 2046 | 2100 | 2300 | 2300 | |
Dry Weight(kg) | 4500 | 4650 | 7350 | 8300 | 8500 | |
