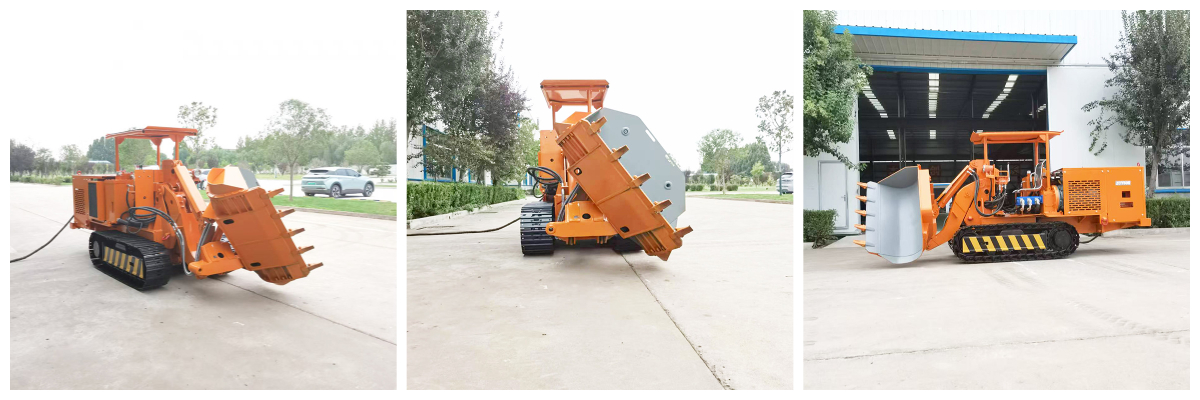

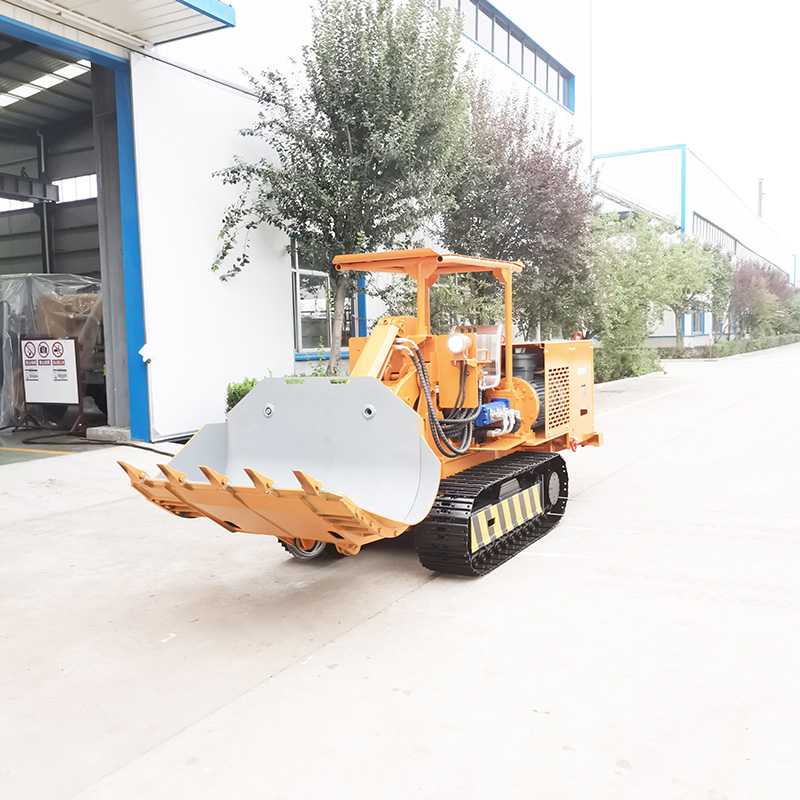

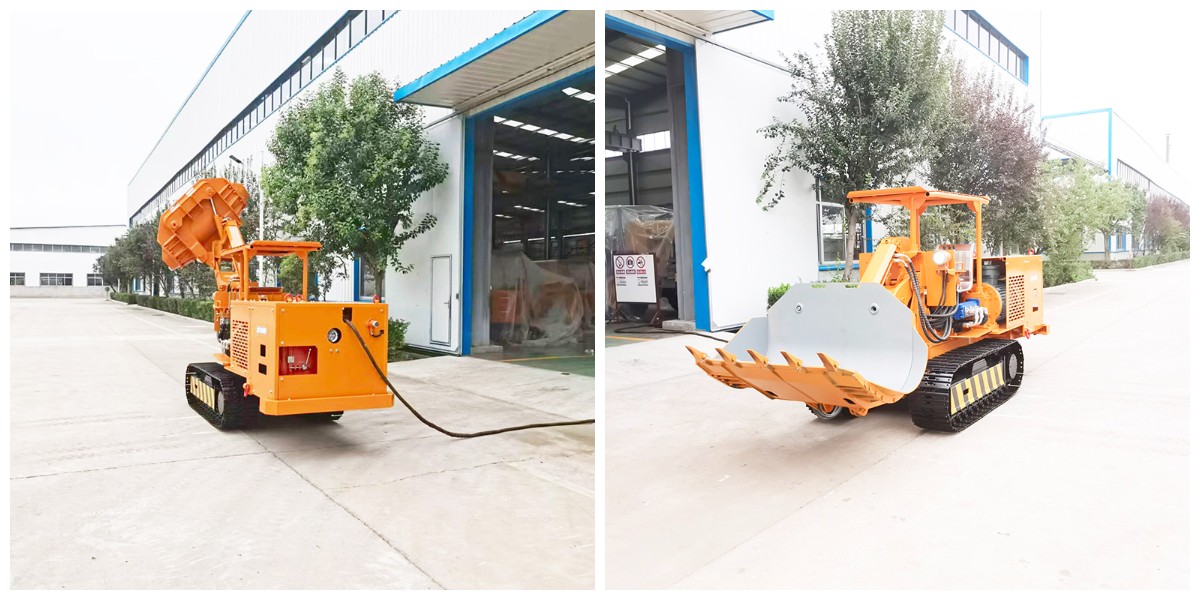

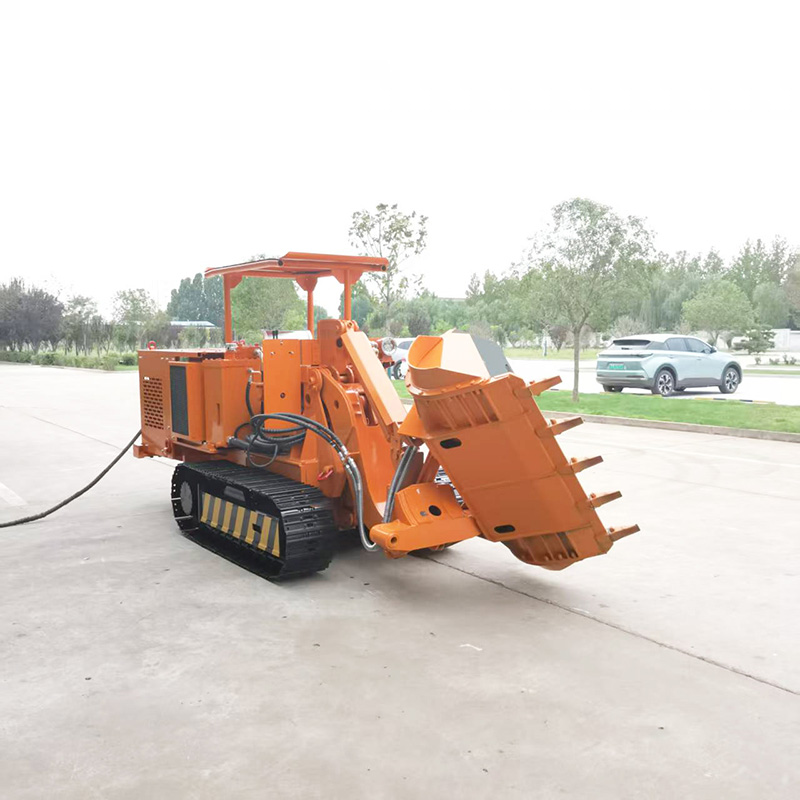

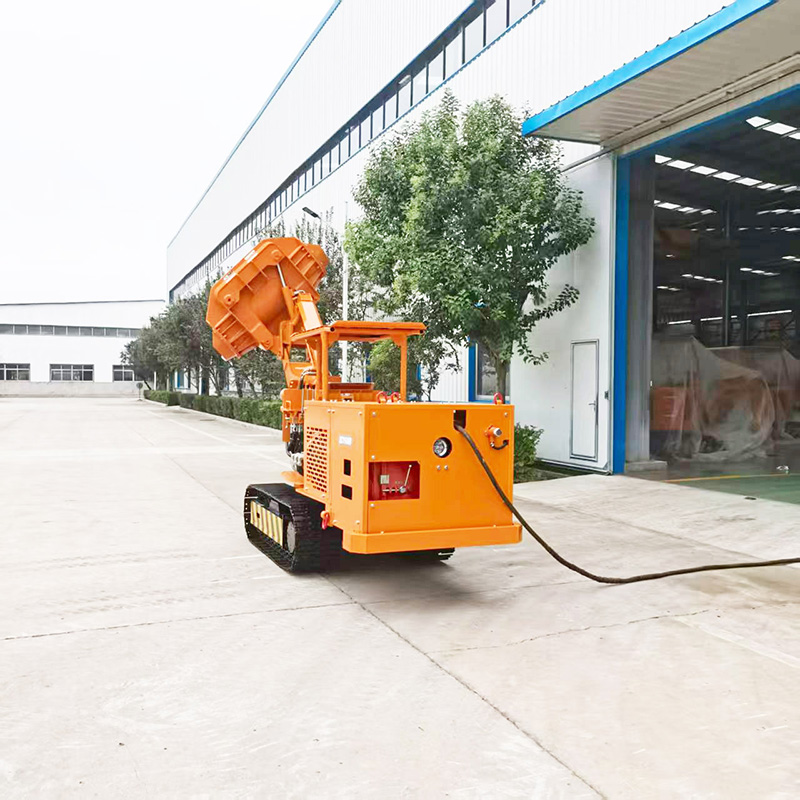

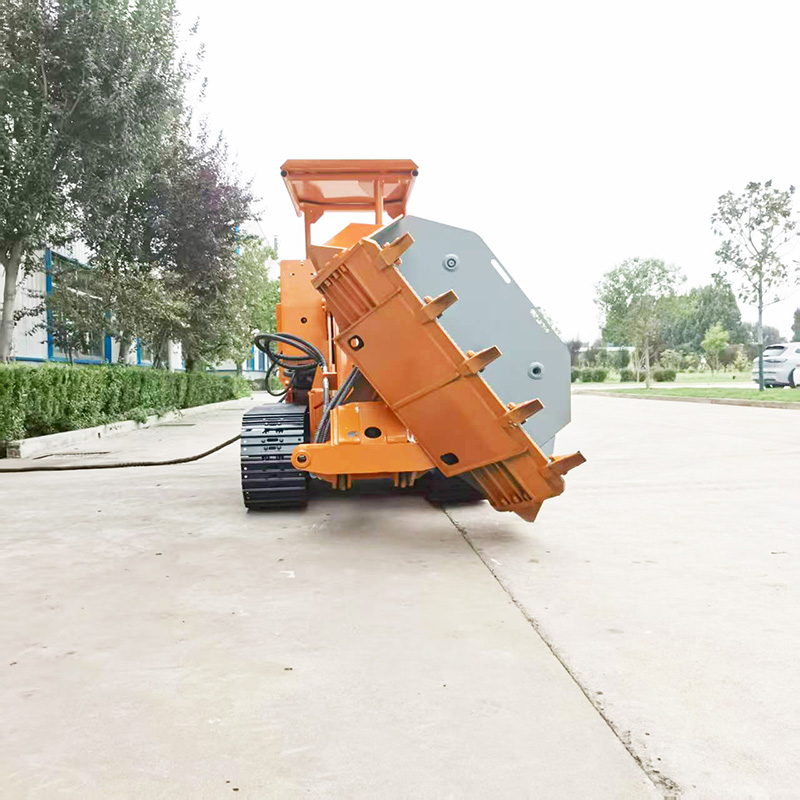

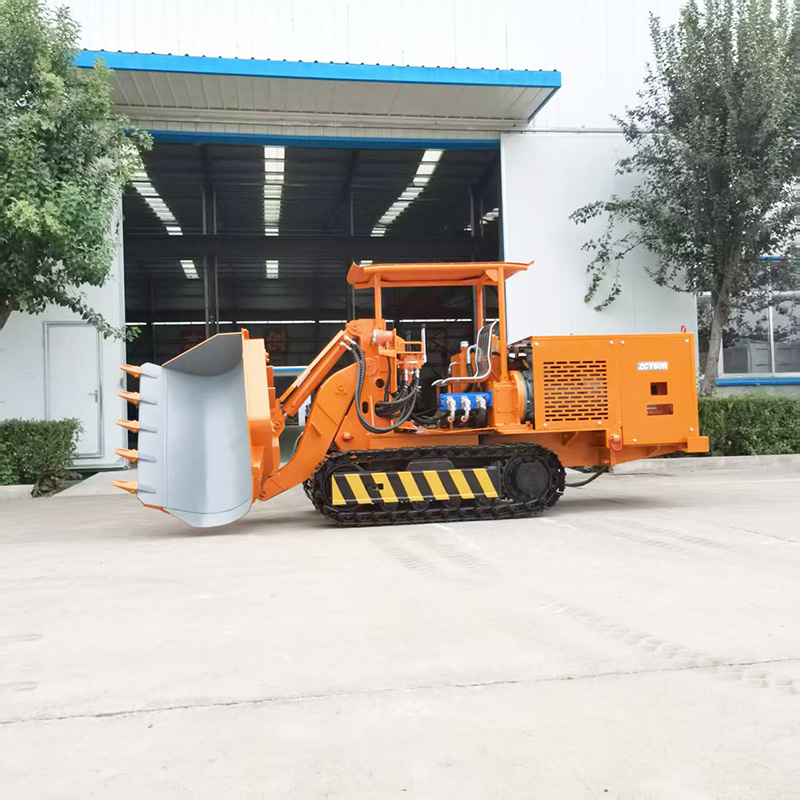

Great Side Dump Rock Loader
1. Professional loading solutions
The reinforced crawler running mechanism is used to provide continuous and stable insertion operation capabilities and achieve full-section synchronous loading. It is especially suitable for long-span tunnel construction, and the efficiency of intersection operations is greatly improved.
2. High-efficiency supporting matrix
Through standardized interface design, equipment can be quickly replaced, and the supporting combination covers the entire process of drilling, support, and transportation, which can shorten equipment deployment time in large-scale tunnel construction.
3.Example of performance upgrade
Its outstanding features include: the bucket has both lifting and transportation capabilities and can handle oversized support materials such as tires; the adjustable working platform meets the dynamic management needs of the roof; the hydraulic power center provides power support for equipment such as anchor drills; and the intelligent bottom cleaning system mechanizes the entire loading process for the first time, greatly improving operating efficiency.
The side discharge rock loader is a new generation of crawler trackless loading equipment in the mining industry, providing solid support for mining. It is mainly responsible for loading coal, rock and ore in tunnels of coal mines and other mines, and is also responsible for loading rocks in small-section full-rock tunnels.
This equipment has distinctive features, strong insertion force, and can quickly cut into materials for loading; it has excellent maneuverability and can move flexibly in complex and changeable tunnel environments; it can realize full-section operations, expand the scope of operations, and improve work efficiency; it has good safety, providing reliable safety guarantee for operators; and it has the function of multiple uses in one machine. It can not only complete loading tasks, but also provide power for hydraulic drilling tools, serve as a working platform during support operations, and complete short-distance transportation, undercover, and gang cleaning on the working surface. If a breaker is installed, it can crush large rocks and coal, speed up the excavation process, and create good economic benefits.
It consists of key parts such as side-mounted shovel mechanism, crawler traveling assembly, frame assembly, hydraulic operating system, driving control system, and electrical system. Each part cooperates with each other to ensure the normal operation of the equipment. Users can choose suitable equipment based on the actual cross-section size of the tunnel and loading efficiency requirements.
Product Details
Parameters
Product Model | ZCY45R | ZCY60R | ZCY80R | ZCY100R | ZCY120R | |
Technical Bucket Capacity (m³) | 0.45 | 0.60 | 0.80 | 1.00 | 1.2 | |
Main Motor Power (kW) | 30 | 45 | 55 | |||
Voltage (V) | 660/1140 | 660/1140 | ||||
Bucket Width (mm) | 1370 | 1520 | 1696 | 1696 | 1876 | |
Maximum Dumping Height (mm) | ≥1460 | ≥1320 | ≥1600 | ≥1900 | ≥2000 | |
Maximum Digging Depth (mm) | ≥400 | ≥400 | ≥400 | ≥500 | ≥500 | |
Gradeability (°) | ≥16 | ≥16 | ≥16 | ≥16 | ≥16 | |
Traction Force (kN) | ≥20 | ≥20 | ≥40 | ≥40 | ≥40 | |
Minimum Ground Clearance (mm) | ≥180 | ≥180 | ≥200 | ≥200 | ≥200 | |
Maximum Travel Speed (m/s) | ≥0.5 | ≥0.5 | ≥0.81 | ≥0.81 | ≥0.81 | |
Working Mechanism Pressure (MPa) | 16±0.5 | 16±0.5 | 16±0.5 | 16±0.5 | 16±0.5 | |
Travel Motor Pressure (MPa) | 22±0.5 | 22±0.5 | 22±0.5 | 22±0.5 | 22±0.5 | |
External Oil Port Pressure (MPa) | 20±0.5 | |||||
Noise (Sound Pressure Level) (dB) | ≤90 | |||||
Center of Gravity Position | Xg=635 | Xg=650 | Xg=710 | Xg=750 | Xg=780 | |
Track Ground Pressure (MPa) | 0.09 | 0.1 | ||||
Overall Dimensions | Length (mm) | 4490 | 4580 | 5100 | 5330 | 5370 |
Width (mm) | 1425 | 1520 | 1696 | 1696 | 1876 | |
Height (mm) | 2046 | 2046 | 2100 | 2300 | 2300 | |
Dry Weight(kg) | 4500 | 4650 | 7350 | 8300 | 8500 | |
About us

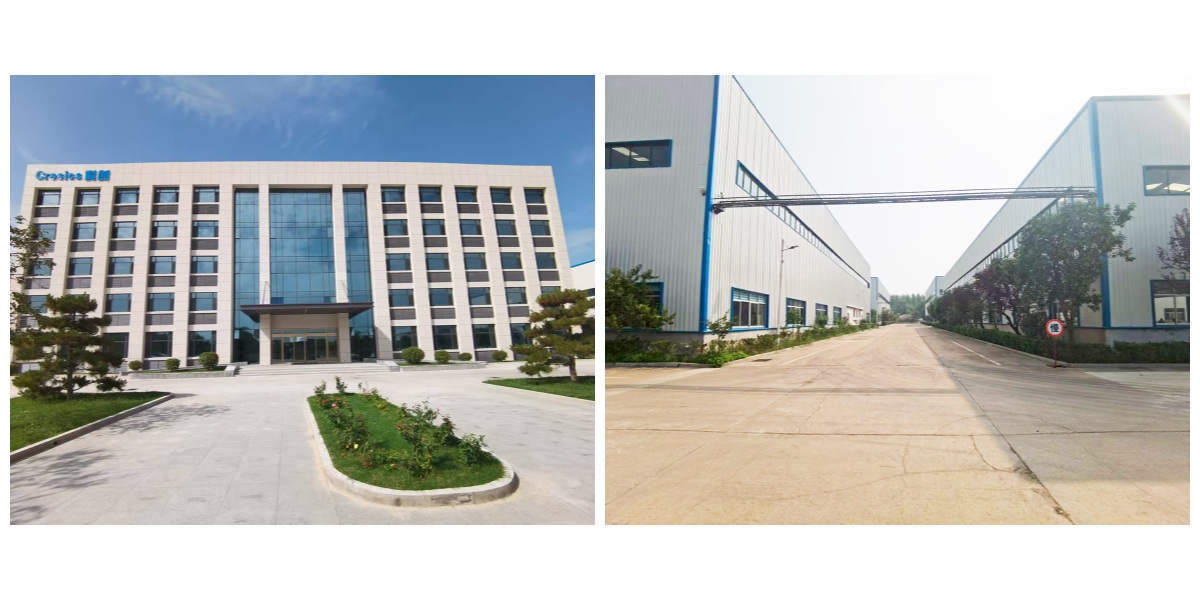

In 2004, Shandong Cresics Equipment Manufacturing Co., Ltd. emerged in the wave of mining equipment industry and embarked on an entrepreneurial journey full of challenges and opportunities. Since its establishment, the company has regarded technological innovation as the core support of its operations, continuously increased investment in research and development, cultivated innovative talents, and strived to create core technologies and products with independent intellectual property rights. With this firm belief in innovation and unremitting efforts, the company has won many honors such as the National Small Giant Enterprise, Shandong Province Single Champion Enterprise, etc. It has also successfully ranked among the Shandong Province Gazelle Enterprise, Shandong Enterprise Technology Center, Shandong Industrial Design Center, National High-tech Enterprise, and Shandong Province Specialty New Enterprise.
