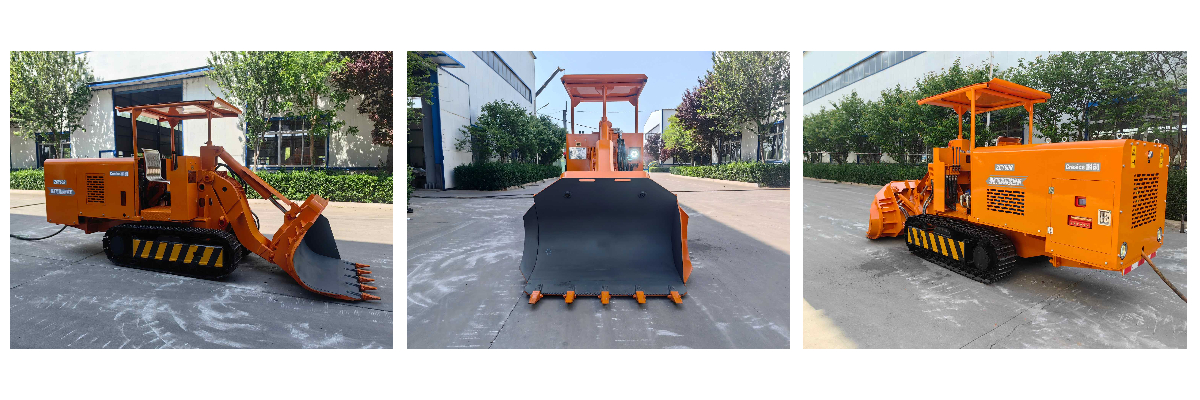

Medium Side Dump Rock Loader
1. Efficient construction equipment
The intelligent crawler drive system ensures precise loading operations across all sections. It performs well in the construction of various cross-section tunnels, and the efficiency in complex working conditions is significantly improved.
2. Functional integration benchmark
This model has achieved four major breakthroughs through innovative design: the bucket can lift heavy support components and complete short-distance bulk material transportation; after lifting, it forms a stable working platform to support roof maintenance; hydraulic power sharing technology provides the possibility for multi-equipment collaborative operations; and the revolutionary cleaning technology realizes full automation of bottom-hole loading for the first time, saying goodbye to shovel operations.
In mining operations, side-discharging rock loaders are a new generation of crawler-type trackless loading equipment with unique advantages. It is mainly used for loading coal, rock and ore in coal mines and other mine tunnels, and also has excellent performance in rock loading in small-section full-rock tunnels.
The equipment has a strong insertion force and can easily cope with various hard geological conditions, quickly cutting into materials for efficient loading; it has good maneuverability and can freely shuttle and flexibly turn in narrow tunnels; it has full-section operation capabilities to improve the comprehensiveness and efficiency of operations; it is highly safe, providing a safe working environment for operators; and it is rich in functions, making one machine multi-purpose.
In addition to loading operations, it can also provide power for hydraulic drilling tools and serve as a working platform during support to complete short-distance transportation, undercover work, and gang cleaning on the working surface. If equipped with a breaker, it can break large rocks and coal, speed up the excavation, and improve overall economic benefits. It consists of a side-mounted shovel mechanism, crawler traveling assembly, frame assembly, hydraulic operating system, driving control system, electrical system and other parts. All parts work closely together to ensure stable and efficient operation of the equipment. Users can select appropriate equipment based on the actual tunnel section and loading efficiency requirements.
Product Details
Parameters
Product Model | ZCY45R | ZCY60R | ZCY80R | ZCY100R | ZCY120R | |
Technical Bucket Capacity (m³) | 0.45 | 0.60 | 0.80 | 1.00 | 1.2 | |
Main Motor Power (kW) | 30 | 45 | 55 | |||
Voltage (V) | 660/1140 | 660/1140 | ||||
Bucket Width (mm) | 1370 | 1520 | 1696 | 1696 | 1876 | |
Maximum Dumping Height (mm) | ≥1460 | ≥1320 | ≥1600 | ≥1900 | ≥2000 | |
Maximum Digging Depth (mm) | ≥400 | ≥400 | ≥400 | ≥500 | ≥500 | |
Gradeability (°) | ≥16 | ≥16 | ≥16 | ≥16 | ≥16 | |
Traction Force (kN) | ≥20 | ≥20 | ≥40 | ≥40 | ≥40 | |
Minimum Ground Clearance (mm) | ≥180 | ≥180 | ≥200 | ≥200 | ≥200 | |
Maximum Travel Speed (m/s) | ≥0.5 | ≥0.5 | ≥0.81 | ≥0.81 | ≥0.81 | |
Working Mechanism Pressure (MPa) | 16±0.5 | 16±0.5 | 16±0.5 | 16±0.5 | 16±0.5 | |
Travel Motor Pressure (MPa) | 22±0.5 | 22±0.5 | 22±0.5 | 22±0.5 | 22±0.5 | |
External Oil Port Pressure (MPa) | 20±0.5 | |||||
Noise (Sound Pressure Level) (dB) | ≤90 | |||||
Center of Gravity Position | Xg=635 | Xg=650 | Xg=710 | Xg=750 | Xg=780 | |
Track Ground Pressure (MPa) | 0.09 | 0.1 | ||||
Overall Dimensions | Length (mm) | 4490 | 4580 | 5100 | 5330 | 5370 |
Width (mm) | 1425 | 1520 | 1696 | 1696 | 1876 | |
Height (mm) | 2046 | 2046 | 2100 | 2300 | 2300 | |
Dry Weight(kg) | 4500 | 4650 | 7350 | 8300 | 8500 | |
