Side Dump Loader
1. Technology integration benchmark
This equipment breaks through the limitations of traditional rock loaders: the bucket can lift heavy components such as metal brackets and complete short-distance transfers; the elevating working platform supports real-time maintenance of the roof; the integrated hydraulic station can supply energy to a variety of ancillary equipment; the cleaning technology realizes the automation of the entire bottom loading process, eliminating the manual bottom cleaning link.
2. Efficiency engine
Through the collaborative optimization of the power system and shovel structure, efficient breakthrough of broken strata and rapid clearing of the entire section can be achieved, and the advantages of mechanized construction can be maintained in the intersection area of the tunnel.

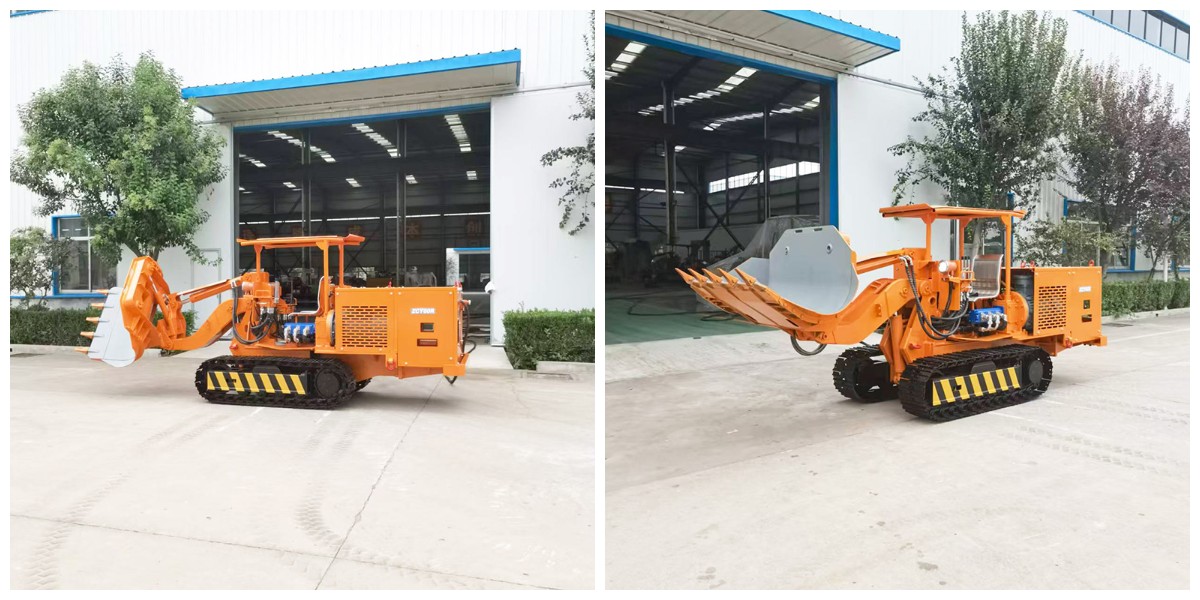

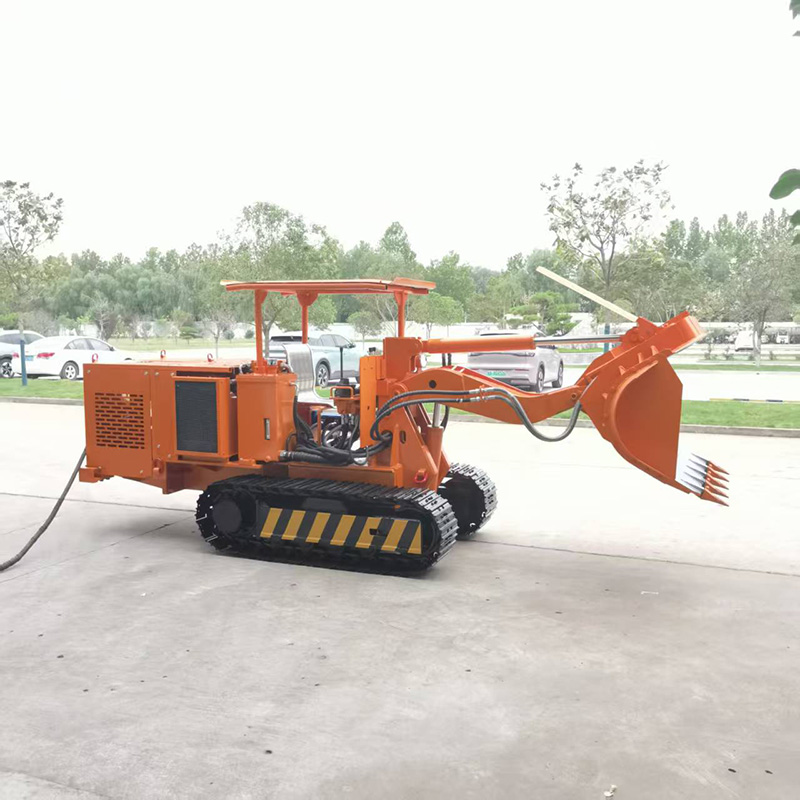

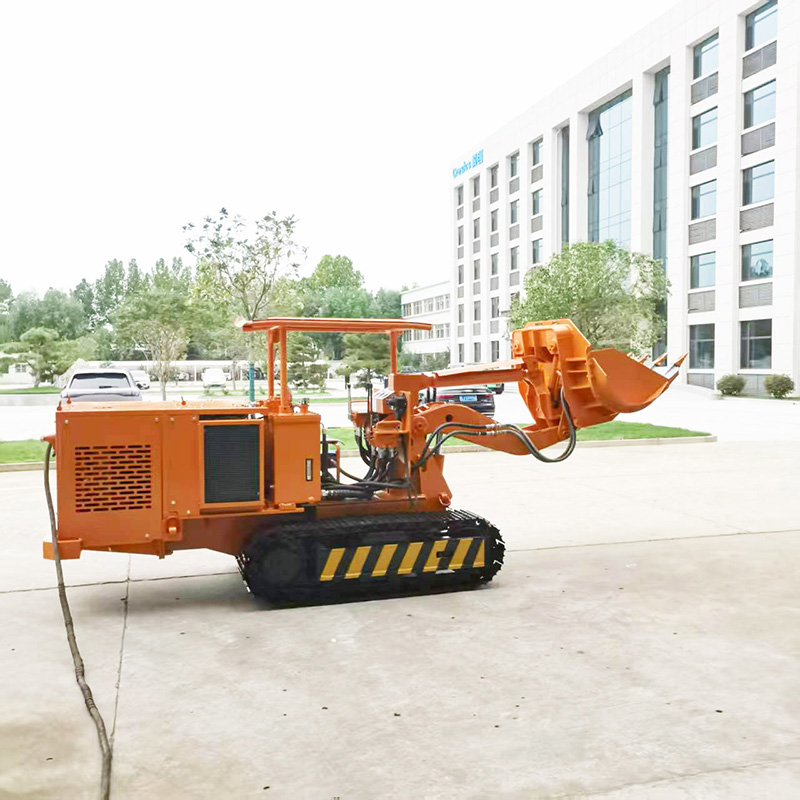

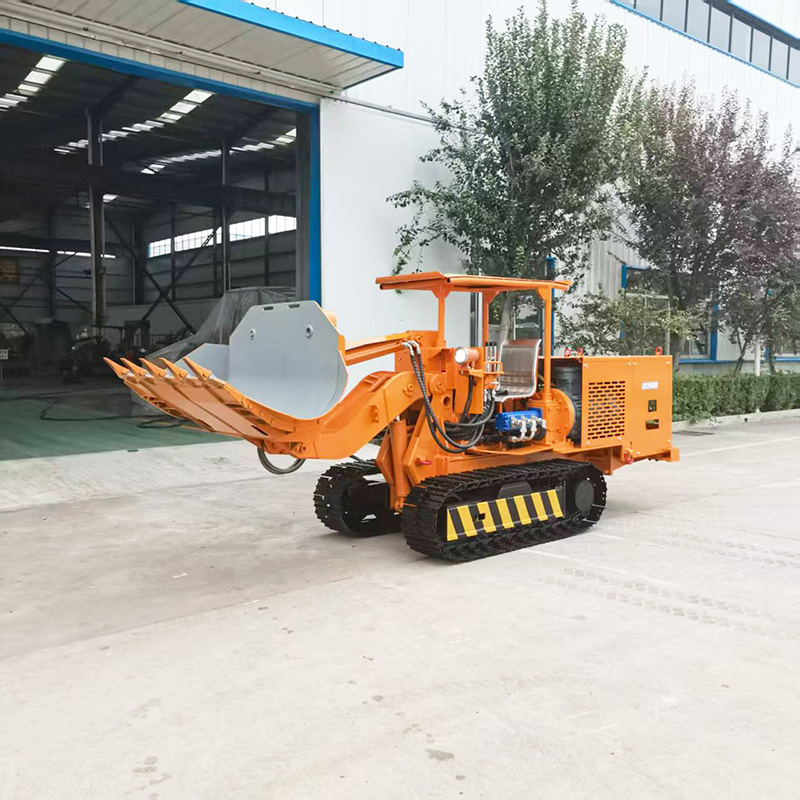

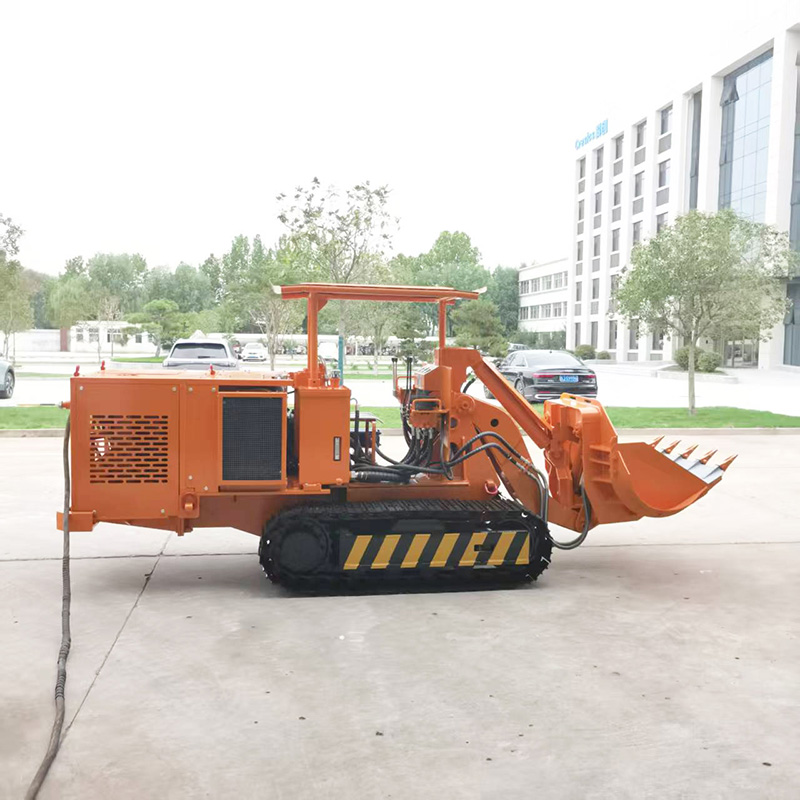

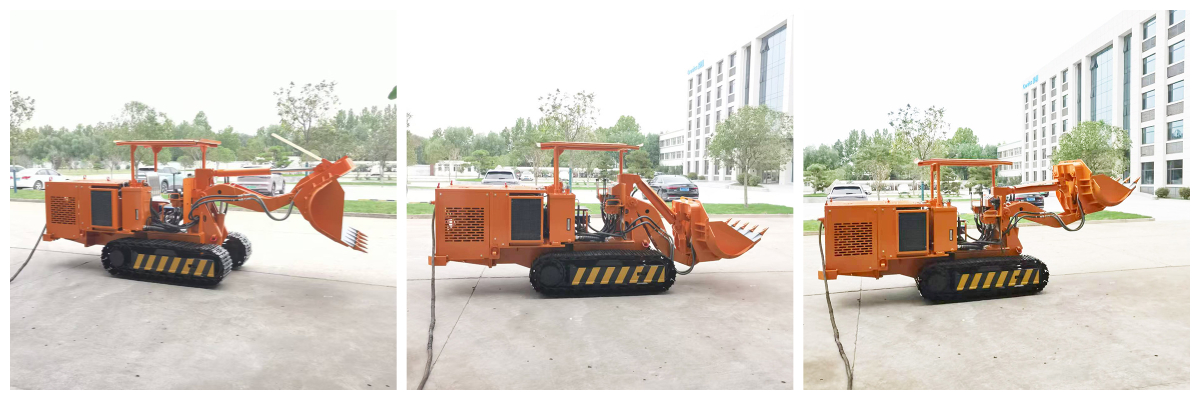

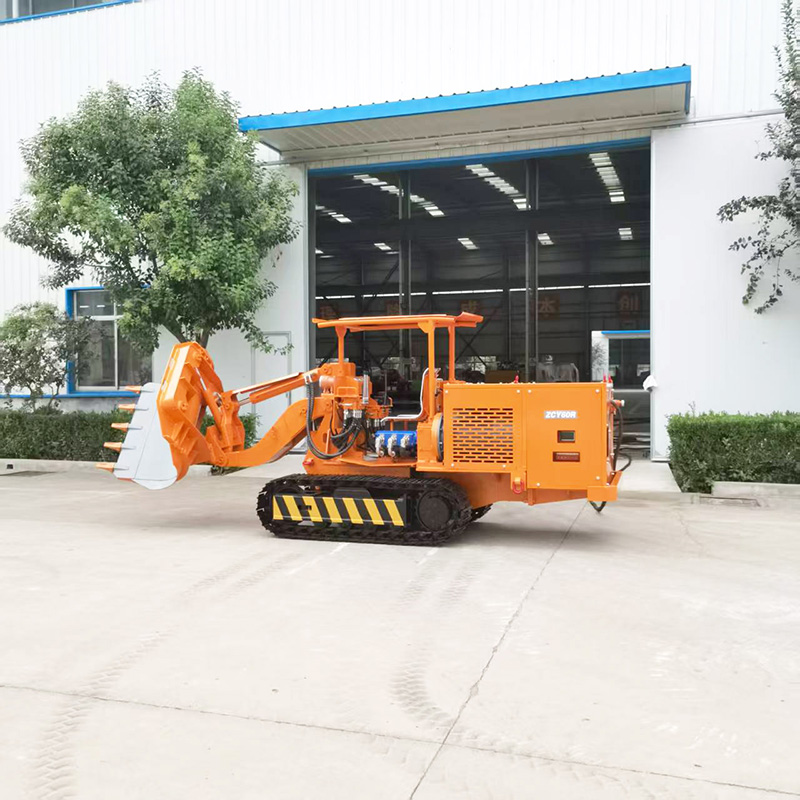

The side discharge rock loader is a new generation of crawler-type trackless loading equipment, which plays an irreplaceable role in mining operations. It is mainly used for loading coal, rock and ore in coal mines and other mine tunnels, and also performs well in rock loading scenarios in small-section full-rock tunnels.
This equipment has many advantages and has a large insertion force. It can easily handle various hard materials and quickly cut in for loading; it has good maneuverability and can move flexibly and shuttle freely in narrow and curved tunnels; it has full-section operation capabilities to improve the coverage and efficiency of operations; it is high in safety, providing safe work guarantee for operators; and it has multiple functions, making one machine multi-purpose.
If equipped with a breaker hammer, it can effectively break large rocks and coal, accelerate the excavation speed, and bring good comprehensive economic benefits. It consists of a side-mounted shovel mechanism, crawler traveling assembly, frame assembly, hydraulic operating system, driving control system, electrical system and other parts. All parts work closely together to ensure efficient and stable operation of the equipment. Users can select the appropriate equipment model based on the actual tunnel section and loading efficiency requirements.
Product Details
Parameters
Product Model | ZCY45R | ZCY60R | ZCY80R | ZCY100R | ZCY120R | |
Technical Bucket Capacity (m³) | 0.45 | 0.60 | 0.80 | 1.00 | 1.2 | |
Main Motor Power (kW) | 30 | 45 | 55 | |||
Voltage (V) | 660/1140 | 660/1140 | ||||
Bucket Width (mm) | 1370 | 1520 | 1696 | 1696 | 1876 | |
Maximum Dumping Height (mm) | ≥1460 | ≥1320 | ≥1600 | ≥1900 | ≥2000 | |
Maximum Digging Depth (mm) | ≥400 | ≥400 | ≥400 | ≥500 | ≥500 | |
Gradeability (°) | ≥16 | ≥16 | ≥16 | ≥16 | ≥16 | |
Traction Force (kN) | ≥20 | ≥20 | ≥40 | ≥40 | ≥40 | |
Minimum Ground Clearance (mm) | ≥180 | ≥180 | ≥200 | ≥200 | ≥200 | |
Maximum Travel Speed (m/s) | ≥0.5 | ≥0.5 | ≥0.81 | ≥0.81 | ≥0.81 | |
Working Mechanism Pressure (MPa) | 16±0.5 | 16±0.5 | 16±0.5 | 16±0.5 | 16±0.5 | |
Travel Motor Pressure (MPa) | 22±0.5 | 22±0.5 | 22±0.5 | 22±0.5 | 22±0.5 | |
External Oil Port Pressure (MPa) | 20±0.5 | |||||
Noise (Sound Pressure Level) (dB) | ≤90 | |||||
Center of Gravity Position | Xg=635 | Xg=650 | Xg=710 | Xg=750 | Xg=780 | |
Track Ground Pressure (MPa) | 0.09 | 0.1 | ||||
Overall Dimensions | Length (mm) | 4490 | 4580 | 5100 | 5330 | 5370 |
Width (mm) | 1425 | 1520 | 1696 | 1696 | 1876 | |
Height (mm) | 2046 | 2046 | 2100 | 2300 | 2300 | |
Dry Weight(kg) | 4500 | 4650 | 7350 | 8300 | 8500 | |
About us

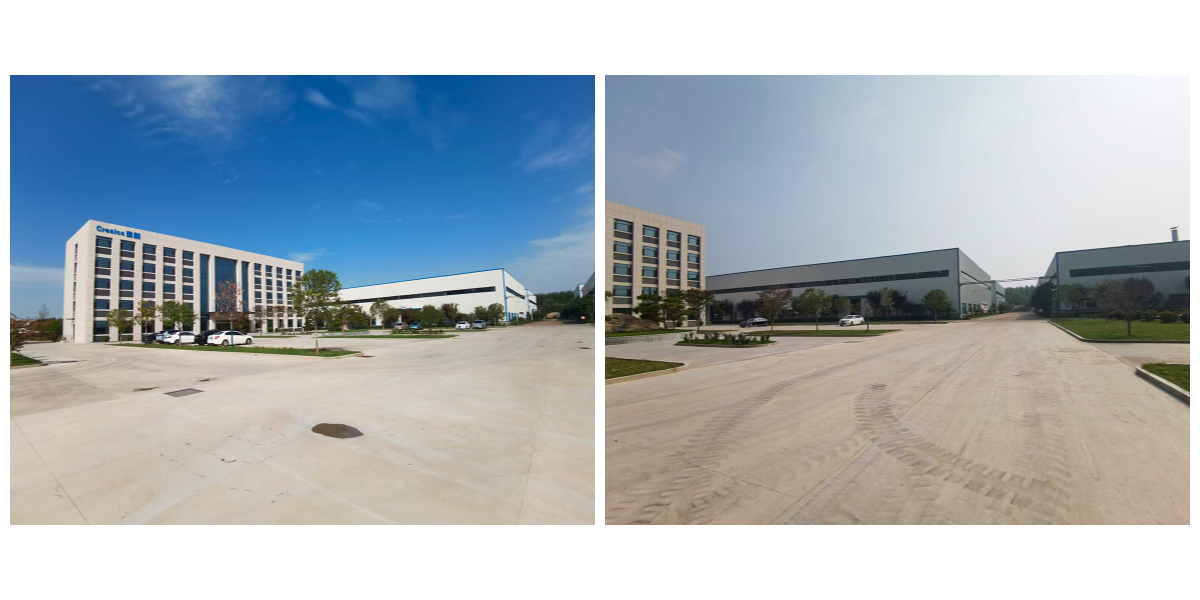

Shandong Cresics Equipment Manufacturing Co., Ltd., founded in 2004, has become a benchmark enterprise in the research and development and manufacturing of mining equipment with twenty years of professional accumulation. The company takes technological innovation as its foundation. It has not only won the honors of National Specialized, Specialized and New Little Giant, Shandong Province Specialized, Specialized and New Enterprise, etc., it has also passed three major international management system certifications and formed a strict quality control network. In the fields of mining automation intelligent equipment, integrated equipment for digging and anchoring, and auxiliary transportation systems, companies have achieved technological iteration through in-depth cooperation between industry, academia, and research institutes, and provided full-chain solutions from scene adaptation to on-site use.From product design, manufacturing inspection to after-sales service, a complete quality control mechanism has been established in all aspects, and design plans can be customized according to user needs to create customer value with the "quality + service" model.
