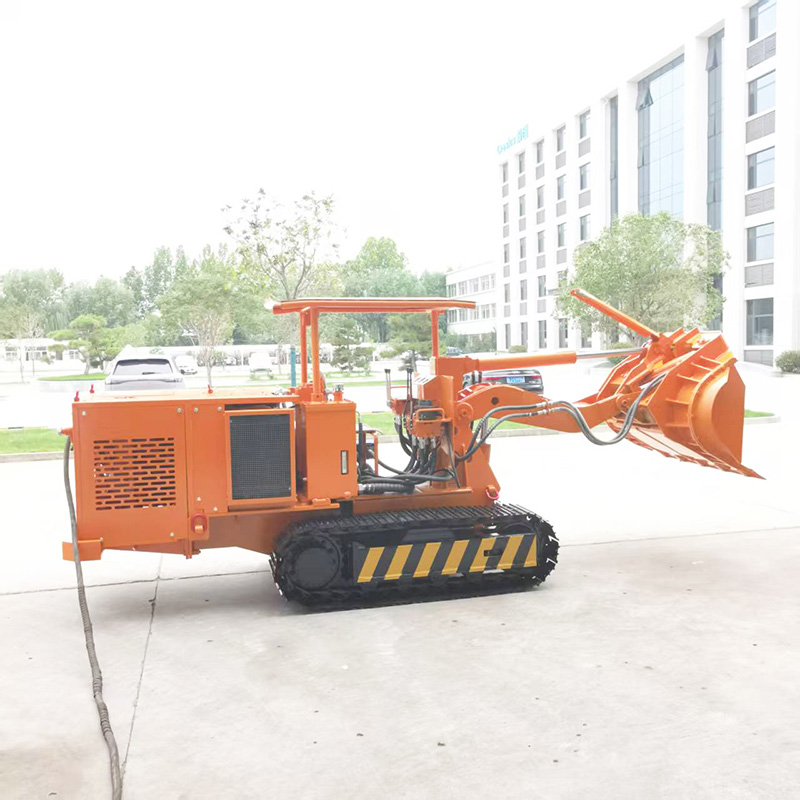

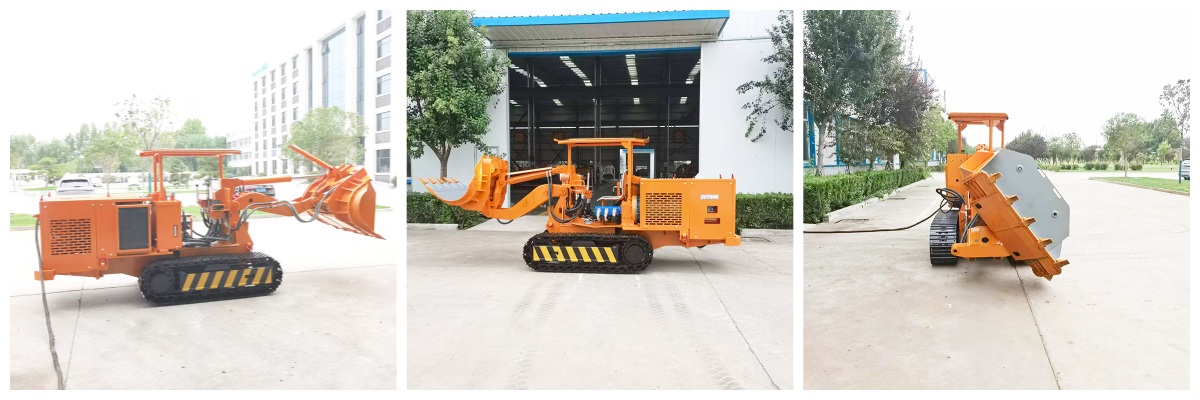

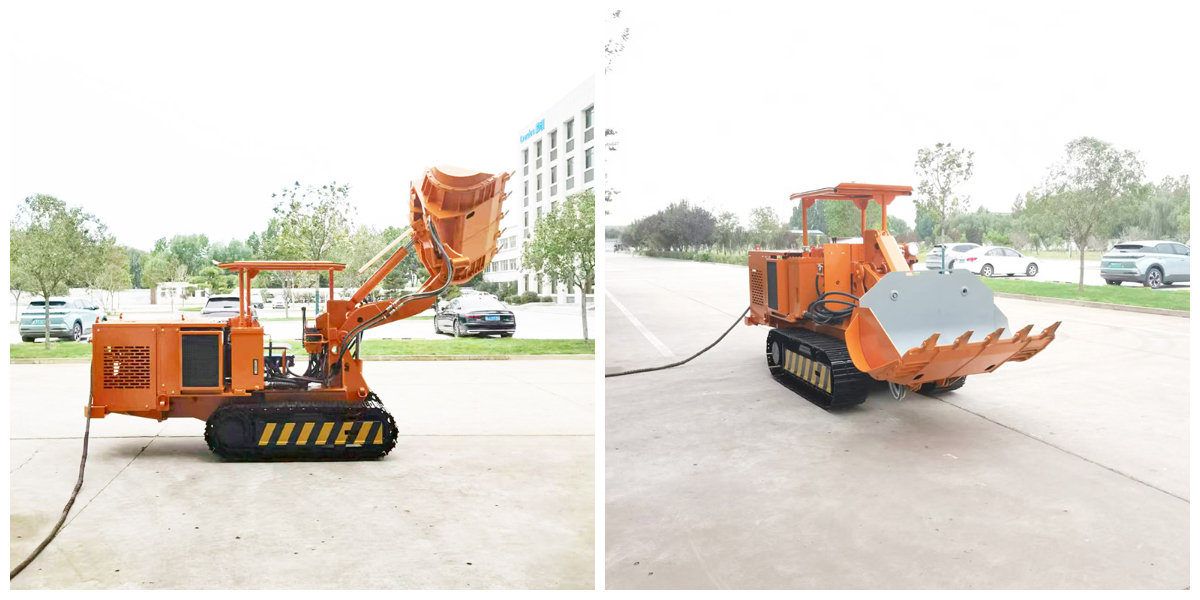

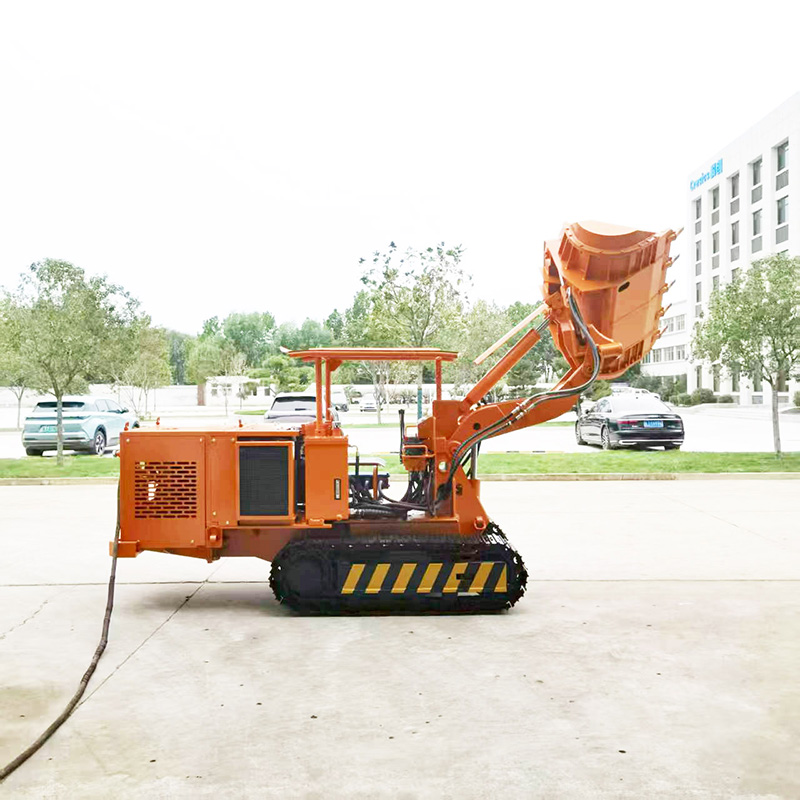

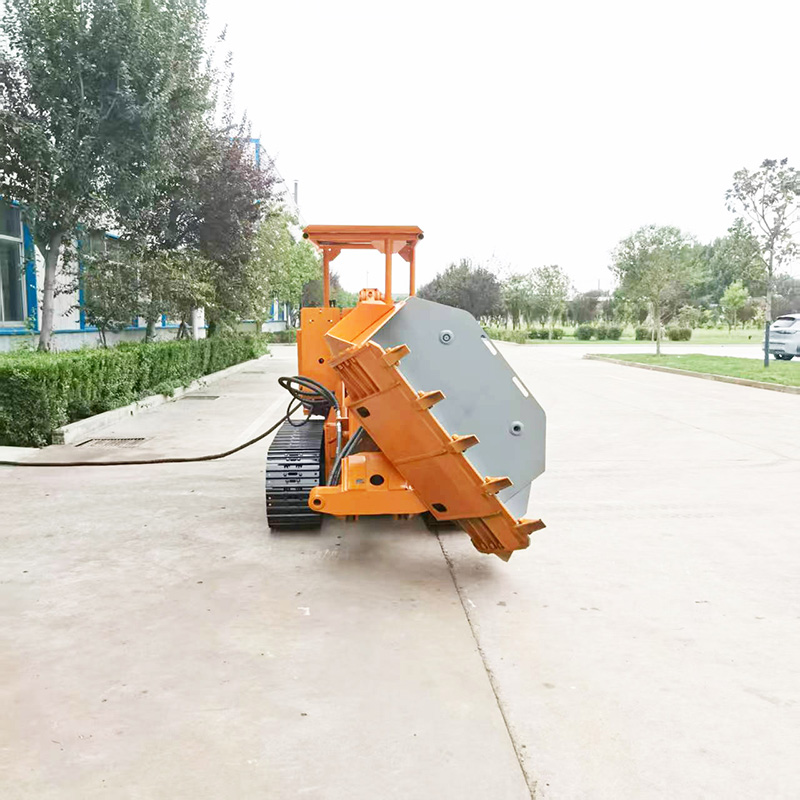

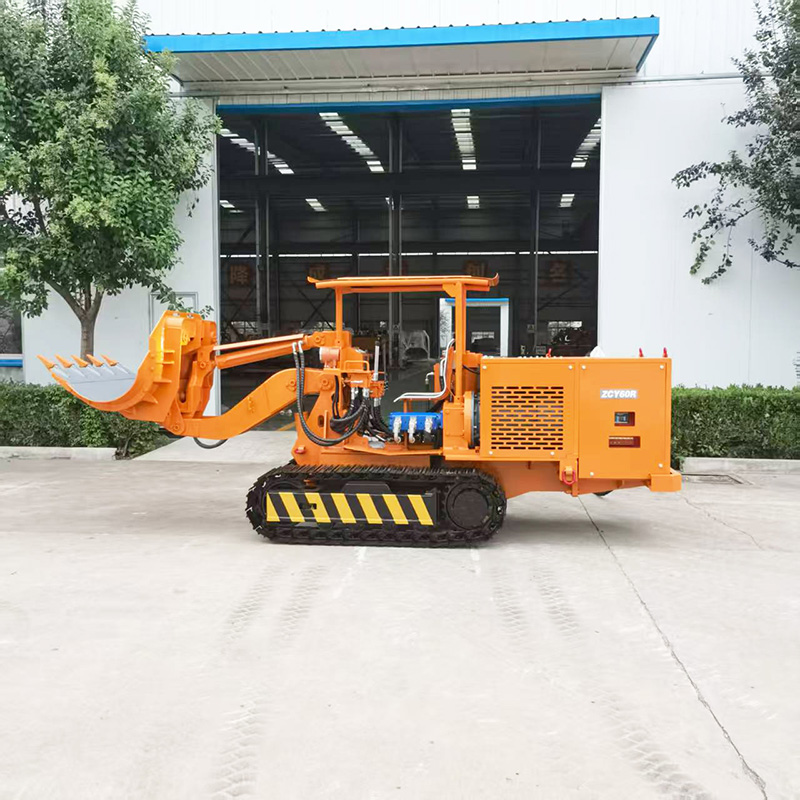

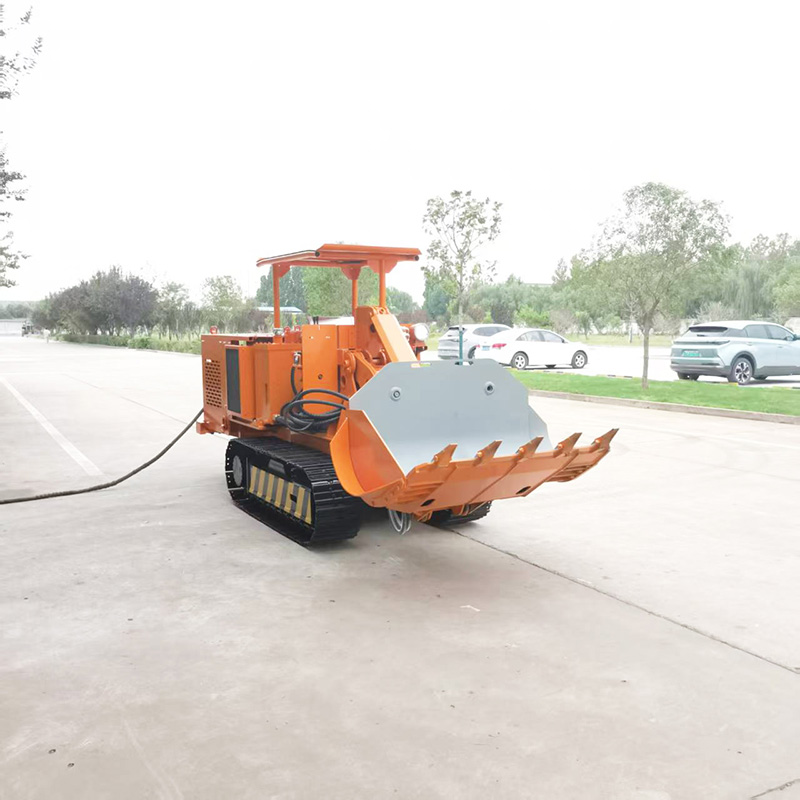

Tracked Side Dump Rock Loader
1. Efficient loading solution
The reinforced crawler running mechanism is used to produce continuous and stable insertion operation capabilities and support full-section loading without dead corners. It is especially suitable for the construction of large tunnels and intersections, and has outstanding efficiency improvement effects.
2. Model of working model innovation
Its core advantages are reflected in: the bucket has the dual functions of lifting heavy materials and short-distance transportation; the deformable platform design meets the dynamic management needs of the roof; the hydraulic power output interface supports the operation of equipment such as anchor drills; the intelligent bottom cleaning system realizes the mechanization of the loading process and promotes the transformation of work towards intelligentization.
3. Operation under harsh working conditions
Using special alloy materials and heat treatment technology, the bucket assembly has both strong thrust and long service life. It can cover all cross-sections without dead corners and perform well in complex cross-lane construction.
As a new generation of crawler trackless loading equipment in the mining field, the side discharge rock loader has brought new technological changes to mining. It mainly serves the loading of coal, rock and ore in tunnels of coal mines and other mines. It can also easily handle rock loading in small-section full-rock tunnels. This equipment has outstanding features, strong insertion force, and can quickly cut into materials for efficient loading; it has good maneuverability and can move and turn flexibly in complex tunnels; it can realize full-section operations, expand the scope of operations, and improve work efficiency; it is safe and provides reliable safety protection for operators; and it has the characteristics of a multi-purpose machine.
It can not only complete loading tasks, but also provide power support for hydraulic drilling tools, serve as a working platform during support operations, and complete short-distance transportation, undercover work, and gang cleaning on the working surface. If a breaker is installed, it can crush large rocks and coal, speed up the excavation process, and create good economic benefits. It consists of key parts such as side-mounted shovel mechanism, crawler traveling assembly, frame assembly, hydraulic operating system, driving control system, and electrical system. All parts work together to ensure stable operation of the equipment. Users can select appropriate equipment based on the actual cross-section size of the tunnel and loading efficiency requirements.
Product Details
Parameters
Product Model | ZCY45R | ZCY60R | ZCY80R | ZCY100R | ZCY120R | |
Technical Bucket Capacity (m³) | 0.45 | 0.60 | 0.80 | 1.00 | 1.2 | |
Main Motor Power (kW) | 30 | 45 | 55 | |||
Voltage (V) | 660/1140 | 660/1140 | ||||
Bucket Width (mm) | 1370 | 1520 | 1696 | 1696 | 1876 | |
Maximum Dumping Height (mm) | ≥1460 | ≥1320 | ≥1600 | ≥1900 | ≥2000 | |
Maximum Digging Depth (mm) | ≥400 | ≥400 | ≥400 | ≥500 | ≥500 | |
Gradeability (°) | ≥16 | ≥16 | ≥16 | ≥16 | ≥16 | |
Traction Force (kN) | ≥20 | ≥20 | ≥40 | ≥40 | ≥40 | |
Minimum Ground Clearance (mm) | ≥180 | ≥180 | ≥200 | ≥200 | ≥200 | |
Maximum Travel Speed (m/s) | ≥0.5 | ≥0.5 | ≥0.81 | ≥0.81 | ≥0.81 | |
Working Mechanism Pressure (MPa) | 16±0.5 | 16±0.5 | 16±0.5 | 16±0.5 | 16±0.5 | |
Travel Motor Pressure (MPa) | 22±0.5 | 22±0.5 | 22±0.5 | 22±0.5 | 22±0.5 | |
External Oil Port Pressure (MPa) | 20±0.5 | |||||
Noise (Sound Pressure Level) (dB) | ≤90 | |||||
Center of Gravity Position | Xg=635 | Xg=650 | Xg=710 | Xg=750 | Xg=780 | |
Track Ground Pressure (MPa) | 0.09 | 0.1 | ||||
Overall Dimensions | Length (mm) | 4490 | 4580 | 5100 | 5330 | 5370 |
Width (mm) | 1425 | 1520 | 1696 | 1696 | 1876 | |
Height (mm) | 2046 | 2046 | 2100 | 2300 | 2300 | |
Dry Weight(kg) | 4500 | 4650 | 7350 | 8300 | 8500 | |
