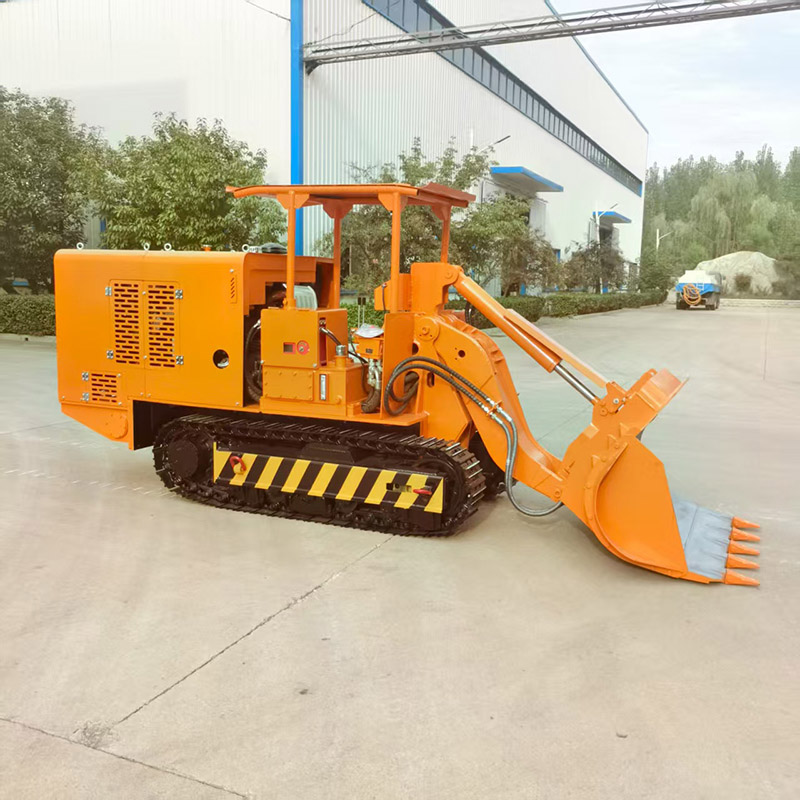

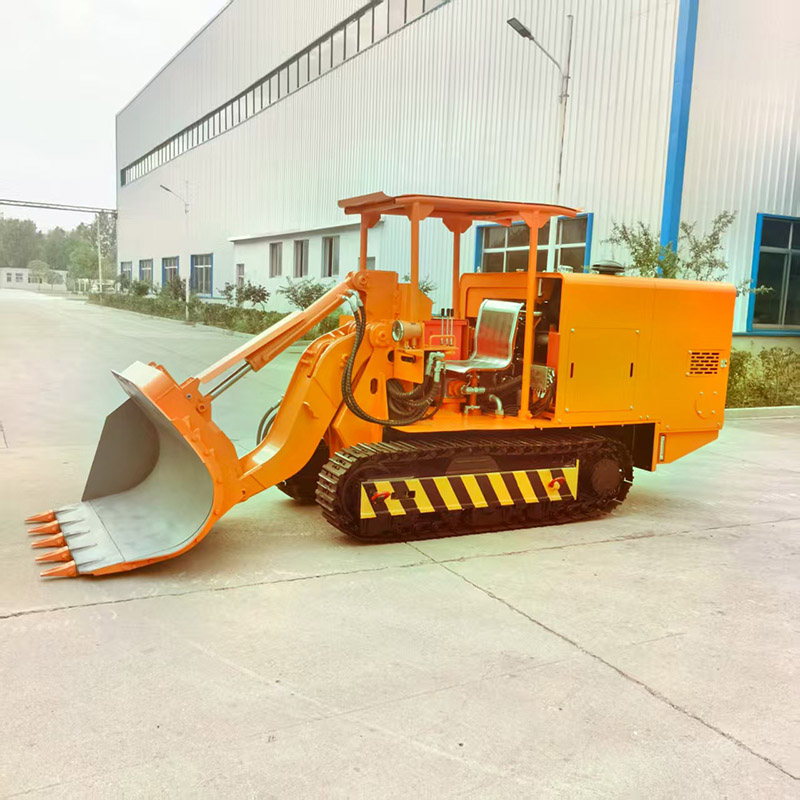

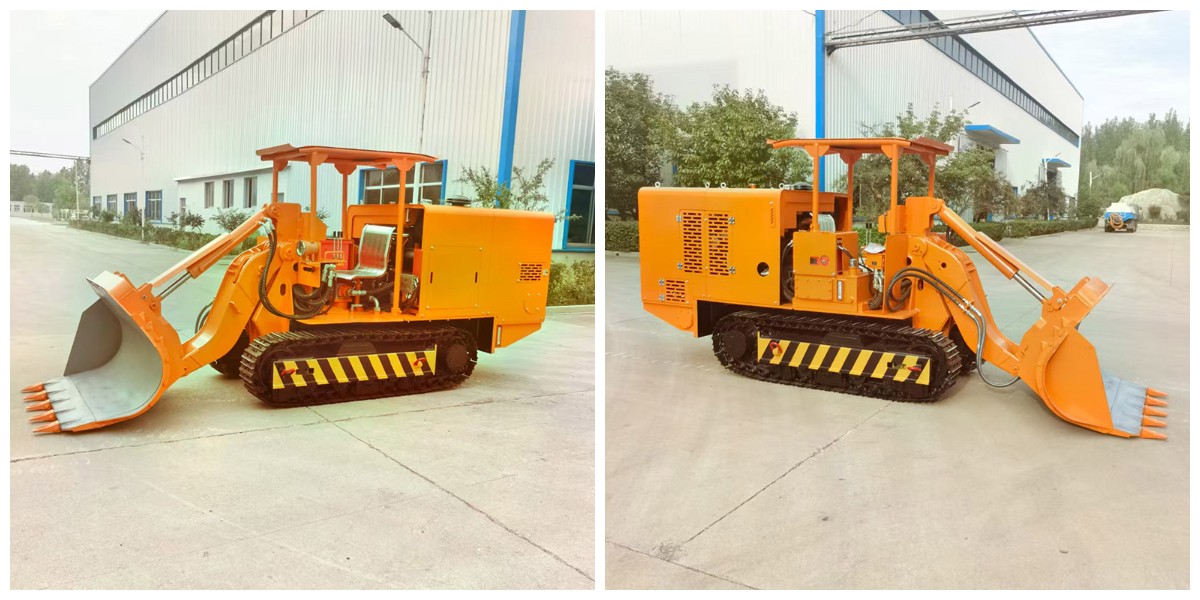

Best Side Unloading Rock Loader
1.The full-section operation capability covers a wide range
It can cover the entire tunnel section, clean the bottom, and reduce the workload of manual assistance.
2.Strong adaptability
It is suitable for the construction of horizontal rock, semi-coal rock tunnels and coal tunnels, and is especially efficient in medium and large tunnels.
3.One machine has multiple uses
In addition to loading, it can also be used as a support platform, a short-distance ransportation tool, or it can be used with drilling rigs, conveyors, etc. to form a mechanized operation line, significantly improving the mechanization level of tunnel construction.

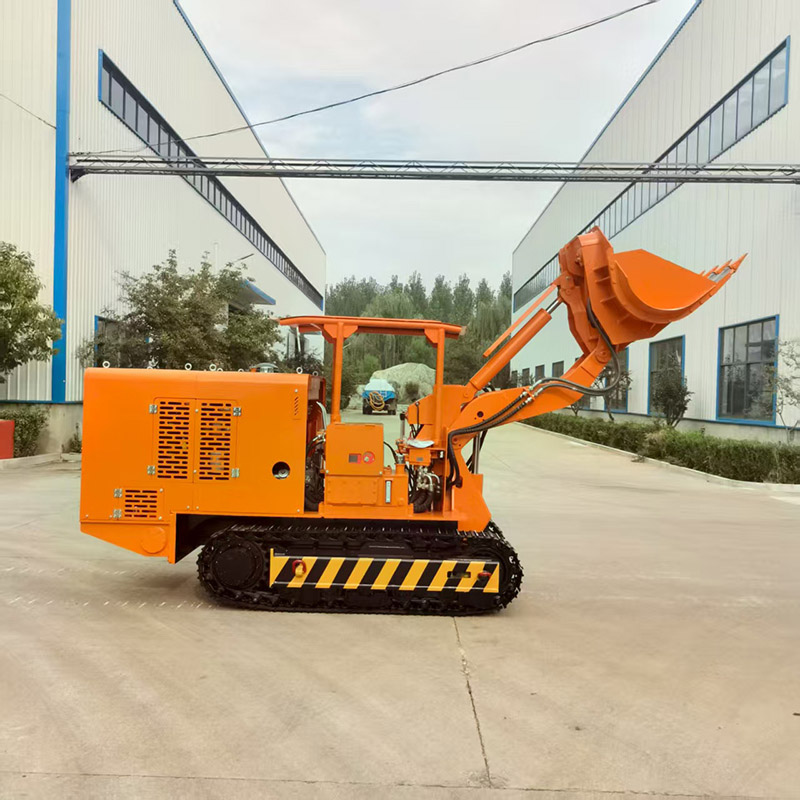

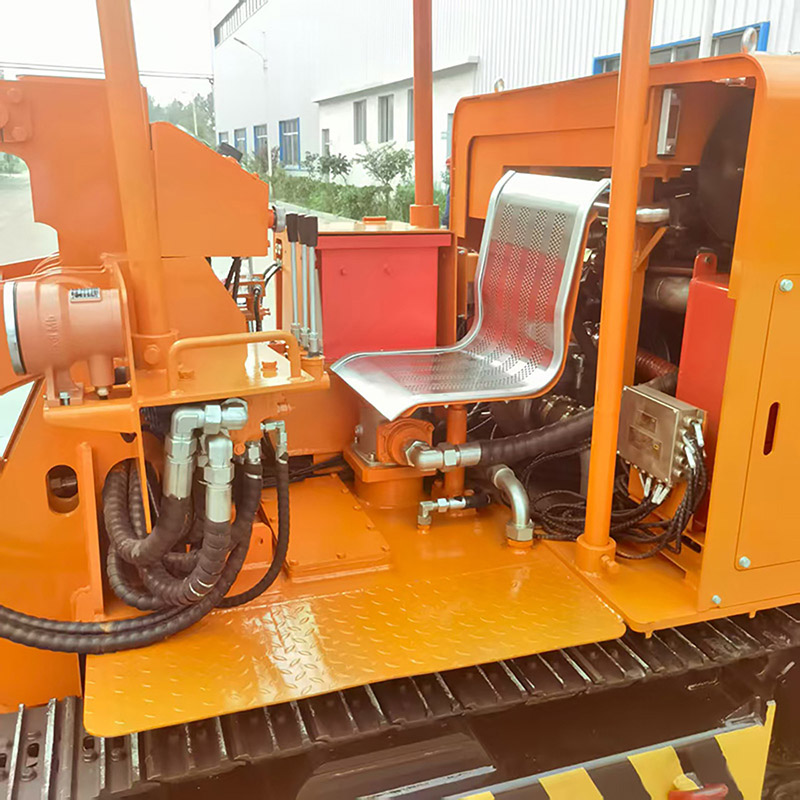

The shovel loading mechanism of the side dump rock loader consists of a bucket, bucket base, luffing arm, lifting cylinder, bucket cylinder, and side-dumping cylinder, all connected by articulated shafts. The luffing arm, bucket cylinder, bucket base, and frame together form a double-crank four-bar linkage.

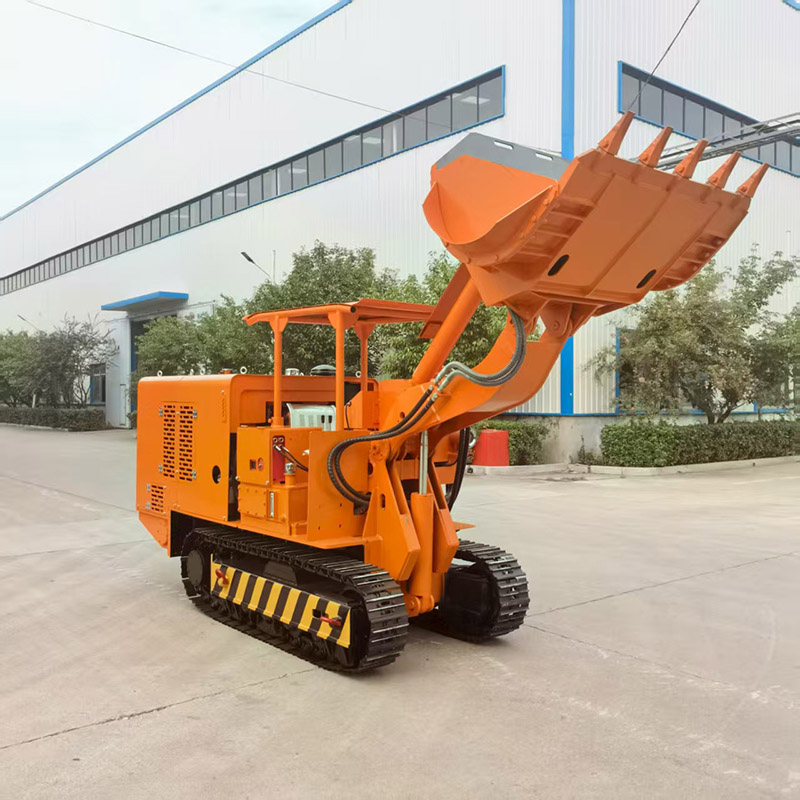

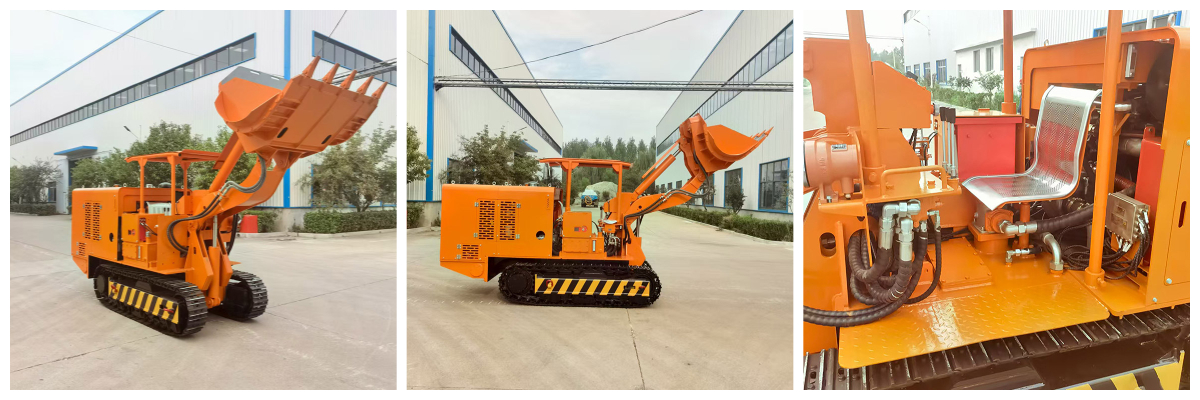

The bucket has an arc-shaped cross-section, with a sidewall on one side and an open side featuring a curved lip. This shape reduces insertion resistance, increases insertion depth, and improves fill efficiency. Changing the side discharge direction requires simply swapping the sidewall and lip. The teeth are bolted to the bucket, making them easy to replace if worn.
Product Details
Parameters
Product Model | ZCN60R | ZCN80R | ZCN100R | ZCN120R | ZCN150R | ZCN180R |
Overall Dimensions (L*W*H mm) | 4500*1510*2060 | 4585*1636*2088 | 4855*1636*2150 | 5200*1820*2150 | 5250*2120*2150 | 5380*2420*2200 |
Bucket Capacity (m³) | 0.6 | 0.8 | 1 | 1.2 | 1.5 | 1.8 |
Bucket Width (mm) | 1510 | 1636 | 1636 | 1820 | 2120 | 2420 |
Max. Dumping Height (mm) | 1700 | 1900 | 1900 | 1900 | 2000 | 2000 |
Max. Dumping Angle (°) | 55 | 55 | 55 | 55 | 55 | 55 |
Max. Traction Force (KN) | 25 | 40 | 40 | 50 | 50 | 50 |
Rated Traction Force (KN) | 20 | 30 | 30 | 45 | 45 | 45 |
Max. Travel Speed (m/min) | 30 | 30 | 30 | 30 | 30 | 30 |
Min. Ground Clearance (mm) | 180 | 180 | 200 | 200 | 200 | 200 |
Max. Undercutting Depth (mm) | 450 | 500 | 500 | 500 | 500 | 500 |
Gradeability (°) | ±16° | ±16° | ±16° | ±16° | ±16° | ±16° |
Track Shoe Width (mm) | 260 | 300 | 300 | 300 | 300 | 300 |
Track Ground Pressure (MPa) | 0.09 | 0.09 | 0.1 | 0.1 | 0.1 | 0.1 |
Center of Gravity Position (mm) | Xg=694 | Xg=763 | Xg=788 | Xg=815 | Xg=842 | Xg=850 |
Yg=30 | Yg=34 | Yg=35 | Yg=44 | Yg=85 | Yg=100 | |
Noise (dBA) | ≤90 | ≤90 | ≤90 | ≤90 | ≤90 | ≤90 |
Diesel Engine - Installed Power (kW) | 62 | |||||
Starting Method | Electric Start | |||||
Protection Type | Electric Protection | |||||
Engine Speed | 2200rpm | |||||
Travel Working Pressure (MPa) | 20 | 20 | 23 | 23 | 23 | 23 |
System Working Pressure (MPa) | 18 | 18 | 20 | 20 | 20 | 20 |
Operating Weight (without fuel) (kg) | 5200 | 6500 | 7500 | 7900 | 8200 | 9000 |
