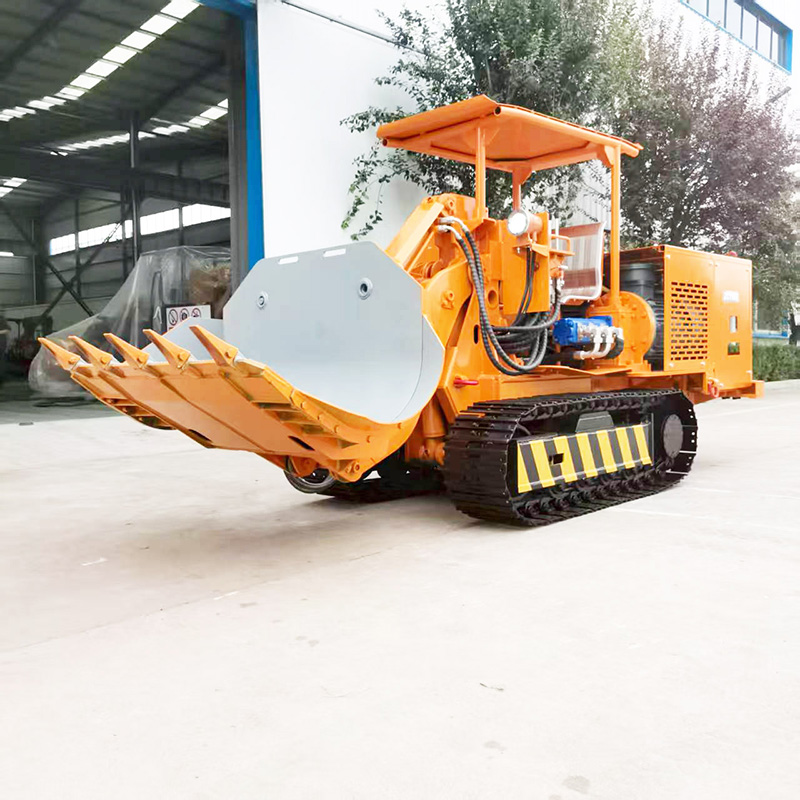

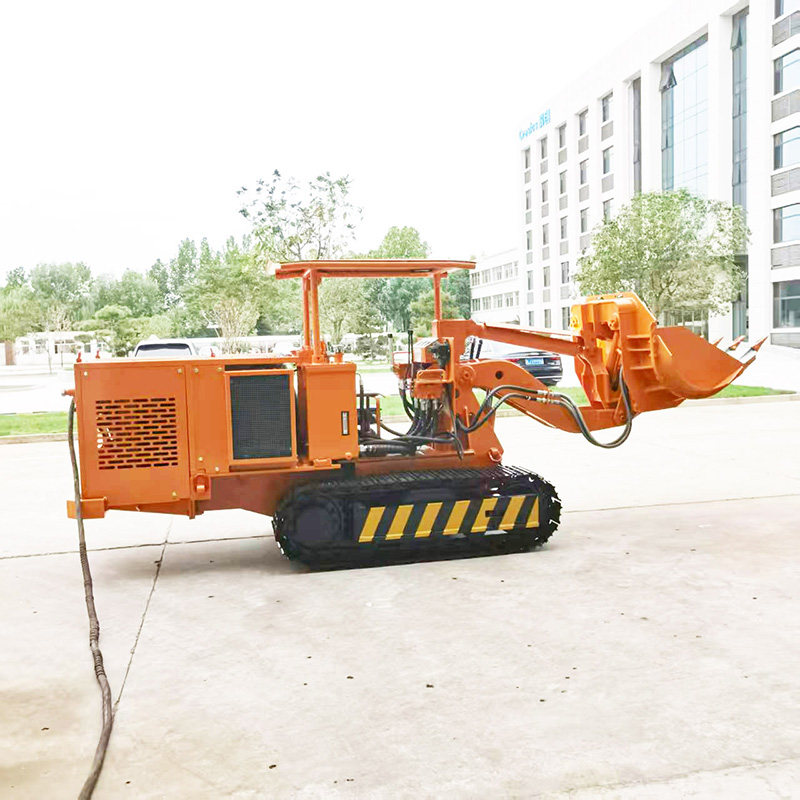

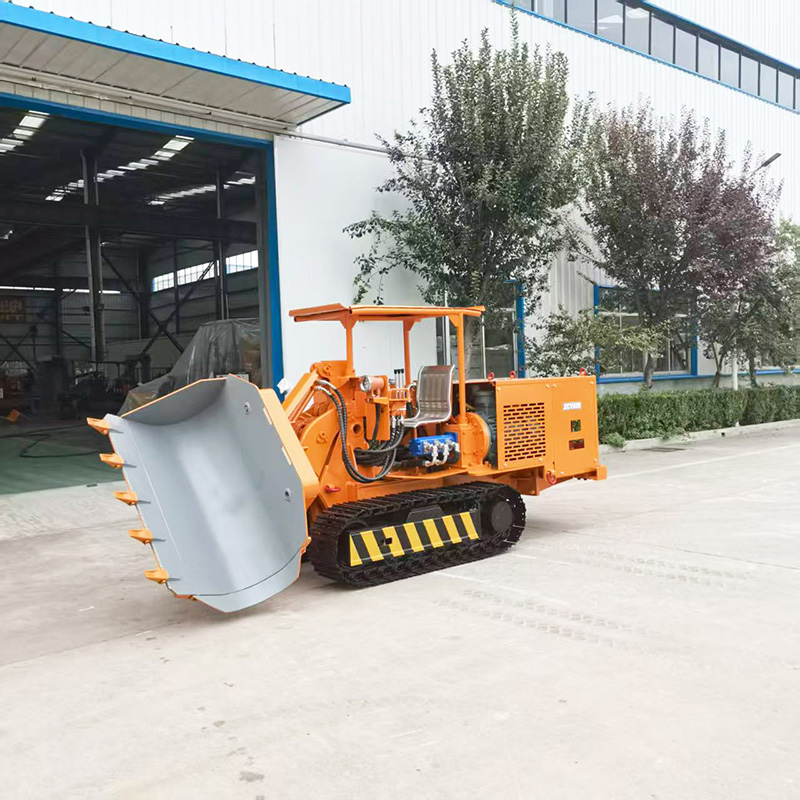

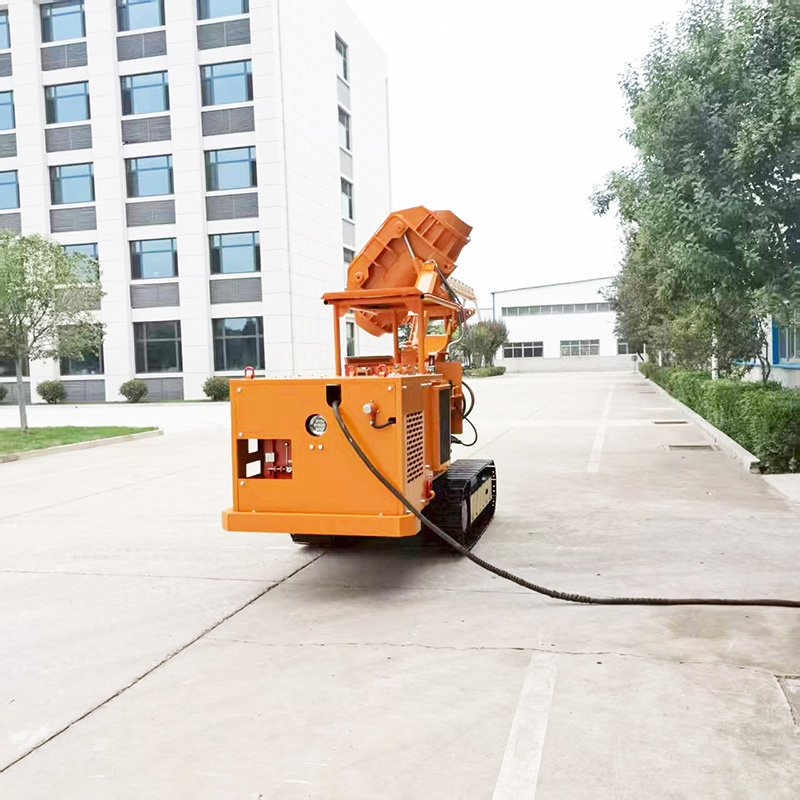

Electric Side Dump Rock Loader
1. Powerful loading system
The professional-grade crawler running device generates super insertion force and supports full-section, uninterrupted and efficient loading. It is especially suitable for the construction of large tunnels and intersections, with industry-leading operating efficiency.
2. Work efficiency improver
Its core advantages are reflected in: the bucket has dual functions of lifting heavy materials and transporting short-distance materials; the deformable platform design meets the dynamic management needs of the roof; the hydraulic power output interface supports the operation of equipment such as anchor drills; the deep cleaning system realizes 100% mechanization of the loading process for the first time, promoting the transformation of work towards full automation.
As a new generation of crawler trackless loading equipment in the mining field, side discharge rock loaders have brought new development impetus to mining. It mainly serves the loading of coal, rock and ore in tunnels of coal mines and other mines. It can also easily handle rock loading in small-section full-rock tunnels.
This equipment has outstanding features, strong insertion force, and can quickly cut into materials for efficient loading; it has good maneuverability and can move and turn flexibly in complex tunnels; it can realize full-section operations, expand the scope of operations, and improve work efficiency; it is safe and provides reliable safety protection for operators; and it has the characteristics of a multi-purpose machine.
It can not only complete loading tasks, but also provide power support for hydraulic drilling tools, serve as a working platform during support operations, and complete short-distance transportation, undercover work, and gang cleaning on the working surface. If a breaker is installed, it can crush large rocks and coal, speed up the excavation process, and create good economic benefits. It consists of key parts such as side-mounted shovel mechanism, crawler traveling assembly, frame assembly, hydraulic operating system, driving control system, and electrical system. All parts work together to ensure stable operation of the equipment. Users can select appropriate equipment based on the actual cross-section size of the tunnel and loading efficiency requirements.

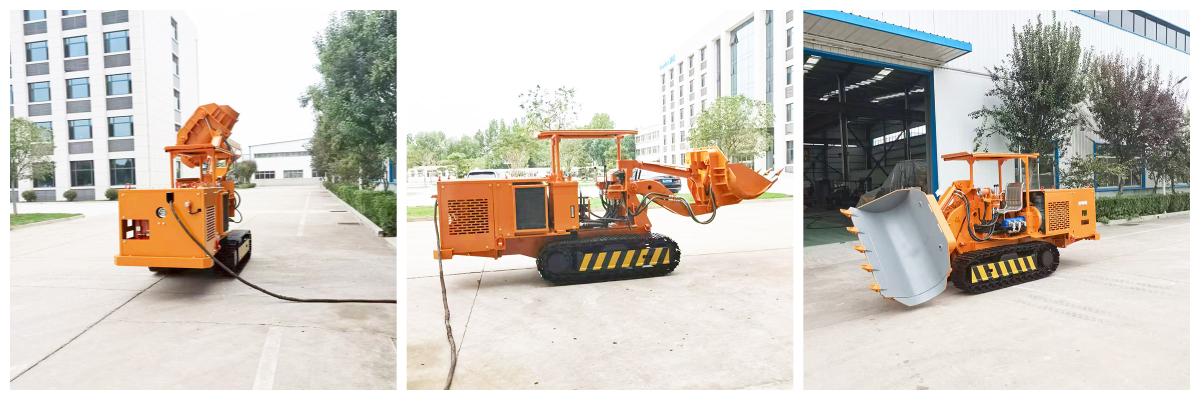

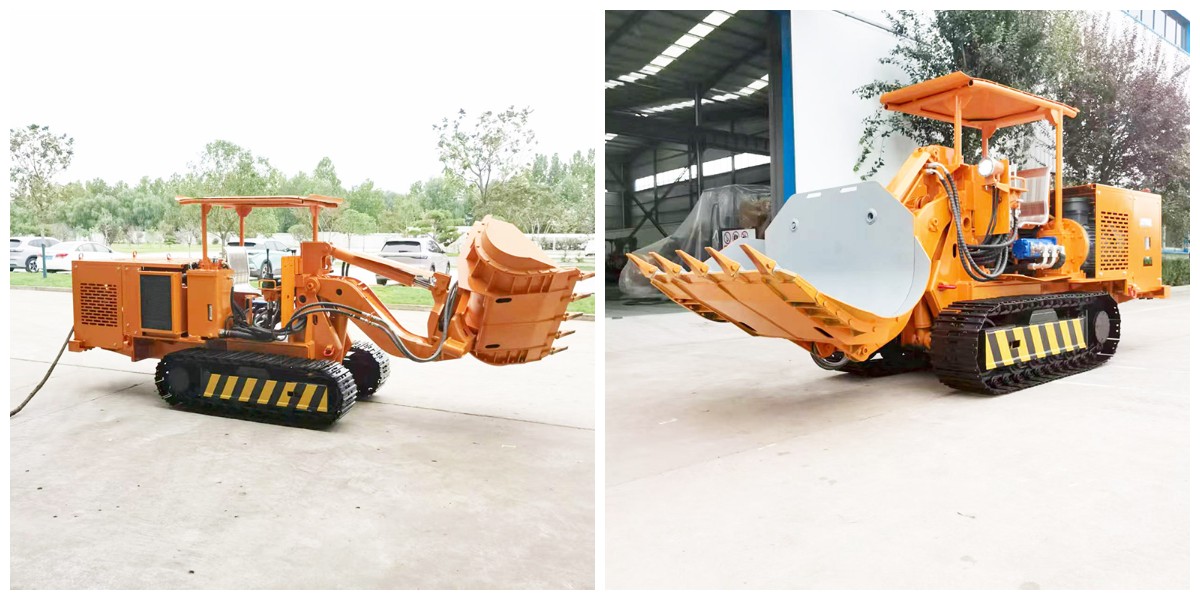

Product Details
Parameters
Product Model | ZCY45R | ZCY60R | ZCY80R | ZCY100R | ZCY120R | |
Technical Bucket Capacity (m³) | 0.45 | 0.60 | 0.80 | 1.00 | 1.2 | |
Main Motor Power (kW) | 30 | 45 | 55 | |||
Voltage (V) | 660/1140 | 660/1140 | ||||
Bucket Width (mm) | 1370 | 1520 | 1696 | 1696 | 1876 | |
Maximum Dumping Height (mm) | ≥1460 | ≥1320 | ≥1600 | ≥1900 | ≥2000 | |
Maximum Digging Depth (mm) | ≥400 | ≥400 | ≥400 | ≥500 | ≥500 | |
Gradeability (°) | ≥16 | ≥16 | ≥16 | ≥16 | ≥16 | |
Traction Force (kN) | ≥20 | ≥20 | ≥40 | ≥40 | ≥40 | |
Minimum Ground Clearance (mm) | ≥180 | ≥180 | ≥200 | ≥200 | ≥200 | |
Maximum Travel Speed (m/s) | ≥0.5 | ≥0.5 | ≥0.81 | ≥0.81 | ≥0.81 | |
Working Mechanism Pressure (MPa) | 16±0.5 | 16±0.5 | 16±0.5 | 16±0.5 | 16±0.5 | |
Travel Motor Pressure (MPa) | 22±0.5 | 22±0.5 | 22±0.5 | 22±0.5 | 22±0.5 | |
External Oil Port Pressure (MPa) | 20±0.5 | |||||
Noise (Sound Pressure Level) (dB) | ≤90 | |||||
Center of Gravity Position | Xg=635 | Xg=650 | Xg=710 | Xg=750 | Xg=780 | |
Track Ground Pressure (MPa) | 0.09 | 0.1 | ||||
Overall Dimensions | Length (mm) | 4490 | 4580 | 5100 | 5330 | 5370 |
Width (mm) | 1425 | 1520 | 1696 | 1696 | 1876 | |
Height (mm) | 2046 | 2046 | 2100 | 2300 | 2300 | |
Dry Weight(kg) | 4500 | 4650 | 7350 | 8300 | 8500 | |

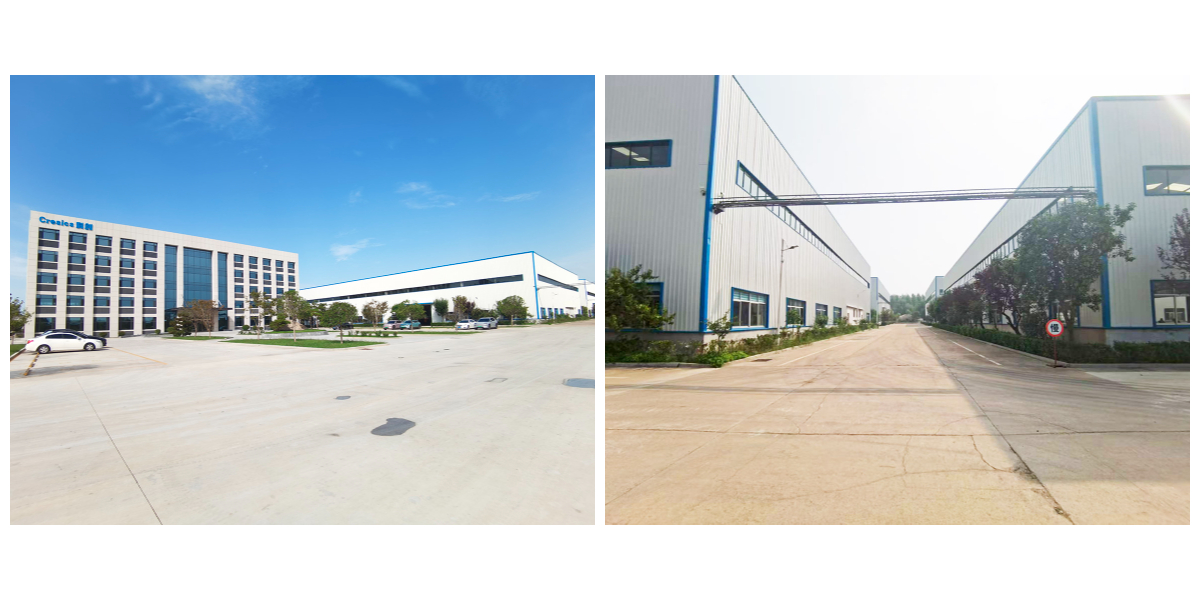

About us
