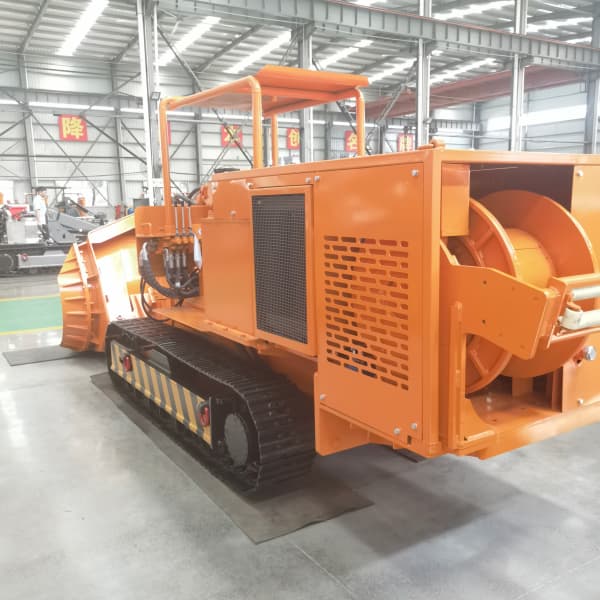

Quick Change Side Dump Rock Loader
1. All-round construction assistant
It adopts adaptive crawler technology to realize intelligent adjustment of insertion force and supports full-section dynamic loading. It performs stably in the construction of flat and inclined tunnels, and the efficiency of complex sections is significantly improved.
2. Model of technology integration
This equipment breaks through the boundaries of traditional functions: the bucket can lift heavy components such as metal brackets and complete short-distance transportation; the elevating working platform supports real-time maintenance of the roof; the integrated hydraulic station can supply energy to a variety of ancillary equipment; the intelligent bottom cleaning system realizes the automation of the entire bottom loading process for the first time, eliminating the manual bottom cleaning link.
The side-discharging rock loader is a new generation of crawler-type trackless loading equipment, which occupies an important position in mining operations. It is mainly used for loading coal, rock and ore in coal mines and other mine tunnels, and also performs well in rock loading scenarios in small-section full-rock tunnels. This equipment has many advantages and has a large insertion force. It can easily handle various hard materials and quickly cut in for loading; it has good maneuverability and can move flexibly and shuttle freely in narrow and curved tunnels; it has full-section operation capabilities to improve the coverage and efficiency of operations; it is high in safety, providing safe work guarantee for operators; and it has multiple functions, making one machine multi-purpose.

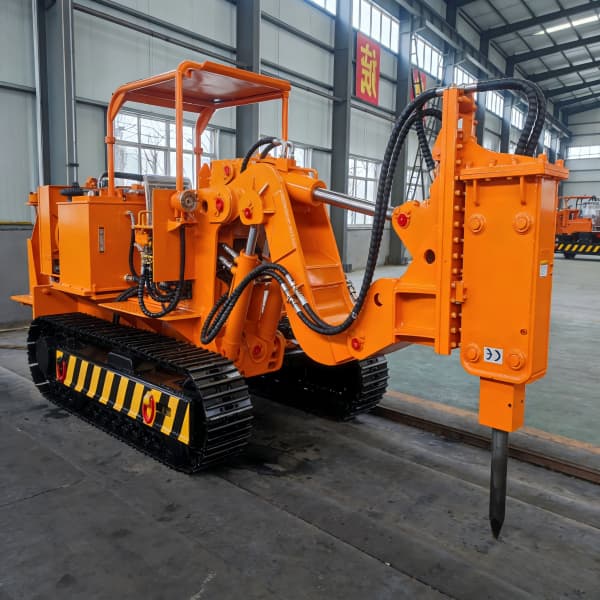

In addition to loading operations, it can also provide power for hydraulic drilling tools and serve as a working platform during support to complete short-distance transportation, undercover work, and gang cleaning on the working surface. If equipped with a breaker hammer, it can effectively break large rocks and coal, accelerate the excavation speed, and bring good comprehensive economic benefits. It consists of a side-mounted shovel mechanism, crawler traveling assembly, frame assembly, hydraulic operating system, driving control system, electrical system and other parts. All parts work closely together to ensure efficient and stable operation of the equipment. Users can select the appropriate equipment model based on the actual tunnel section and loading efficiency requirements.
Product Details
Parameters
Product Model | ZCY45R | ZCY60R | ZCY80R | ZCY100R | ZCY120R | |
Technical Bucket Capacity (m³) | 0.45 | 0.60 | 0.80 | 1.00 | 1.2 | |
Main Motor Power (kW) | 30 | 45 | 55 | |||
Voltage (V) | 660/1140 | 660/1140 | ||||
Bucket Width (mm) | 1370 | 1520 | 1696 | 1696 | 1876 | |
Maximum Dumping Height (mm) | ≥1460 | ≥1320 | ≥1600 | ≥1900 | ≥2000 | |
Maximum Digging Depth (mm) | ≥400 | ≥400 | ≥400 | ≥500 | ≥500 | |
Gradeability (°) | ≥16 | ≥16 | ≥16 | ≥16 | ≥16 | |
Traction Force (kN) | ≥20 | ≥20 | ≥40 | ≥40 | ≥40 | |
Minimum Ground Clearance (mm) | ≥180 | ≥180 | ≥200 | ≥200 | ≥200 | |
Maximum Travel Speed (m/s) | ≥0.5 | ≥0.5 | ≥0.81 | ≥0.81 | ≥0.81 | |
Working Mechanism Pressure (MPa) | 16±0.5 | 16±0.5 | 16±0.5 | 16±0.5 | 16±0.5 | |
Travel Motor Pressure (MPa) | 22±0.5 | 22±0.5 | 22±0.5 | 22±0.5 | 22±0.5 | |
External Oil Port Pressure (MPa) | 20±0.5 | |||||
Noise (Sound Pressure Level) (dB) | ≤90 | |||||
Center of Gravity Position | Xg=635 | Xg=650 | Xg=710 | Xg=750 | Xg=780 | |
Track Ground Pressure (MPa) | 0.09 | 0.1 | ||||
Overall Dimensions | Length (mm) | 4490 | 4580 | 5100 | 5330 | 5370 |
Width (mm) | 1425 | 1520 | 1696 | 1696 | 1876 | |
Height (mm) | 2046 | 2046 | 2100 | 2300 | 2300 | |
Dry Weight(kg) | 4500 | 4650 | 7350 | 8300 | 8500 | |
