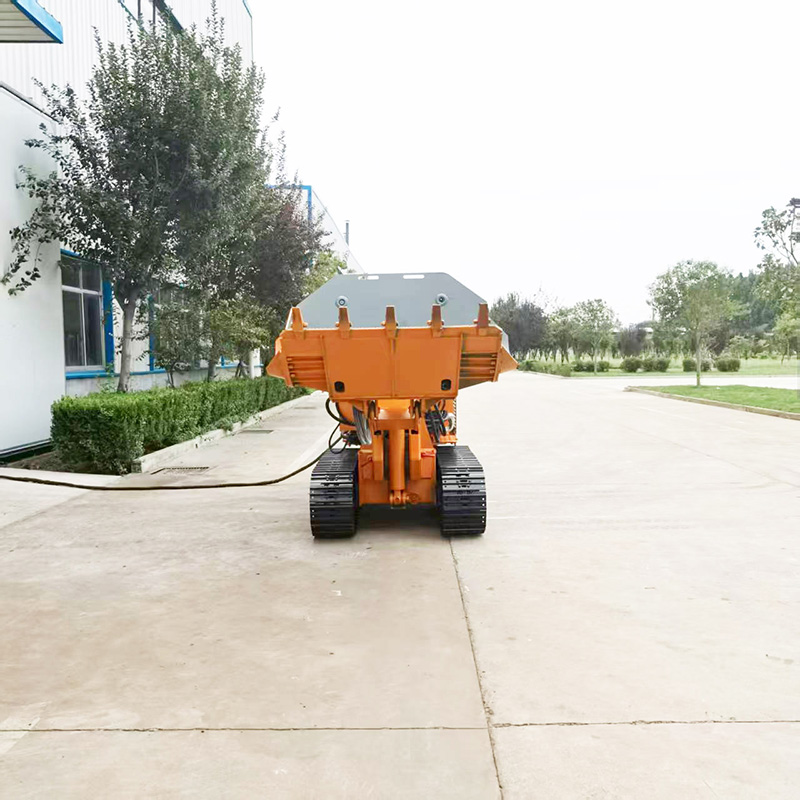

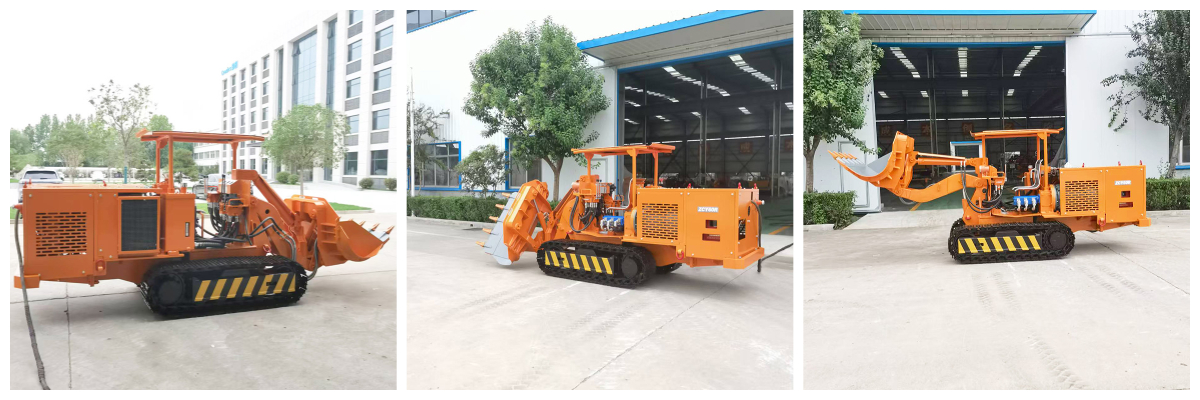

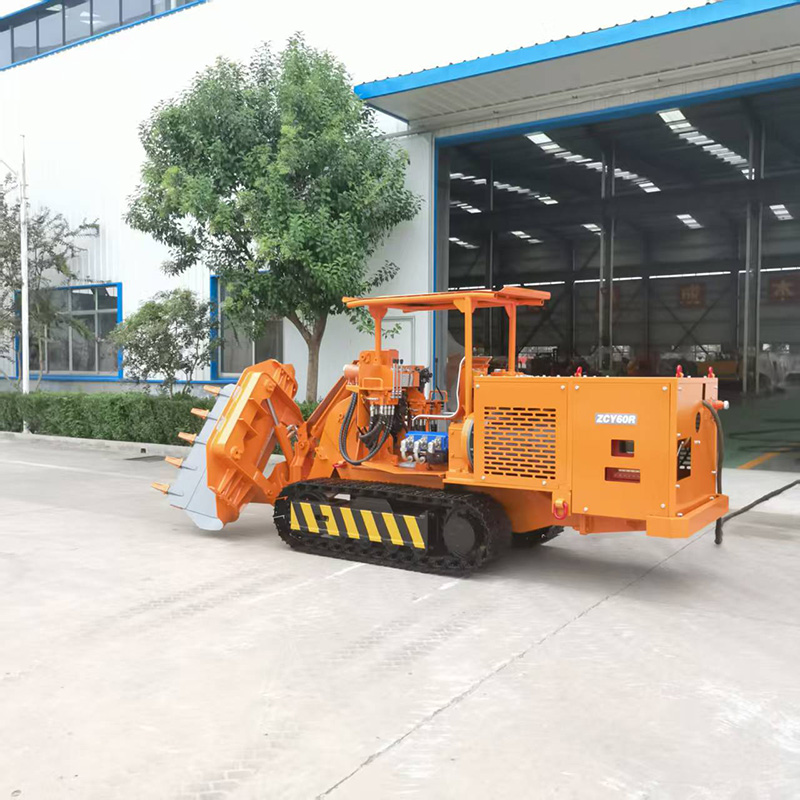

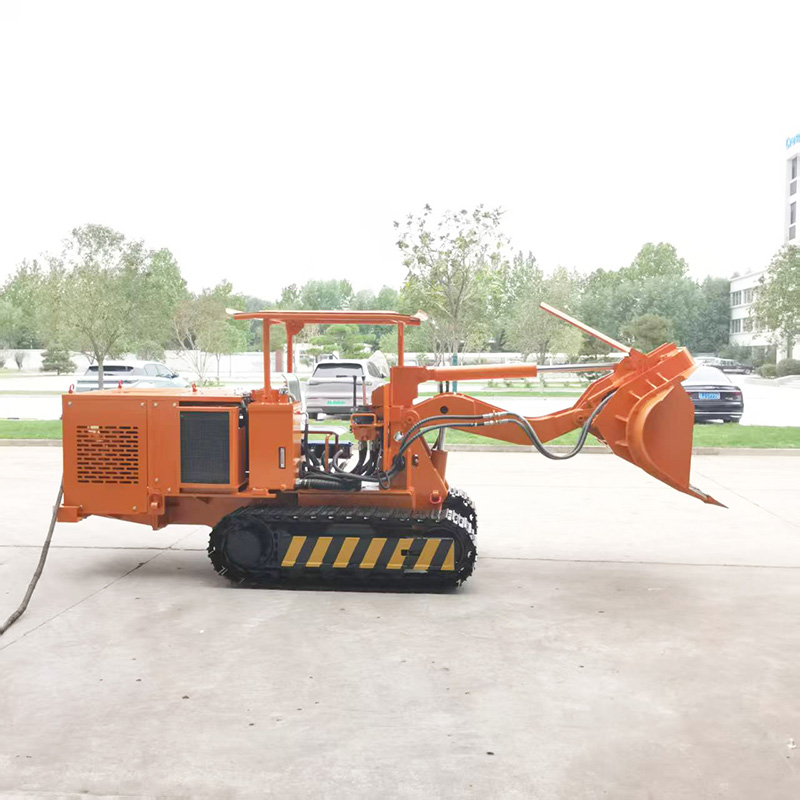

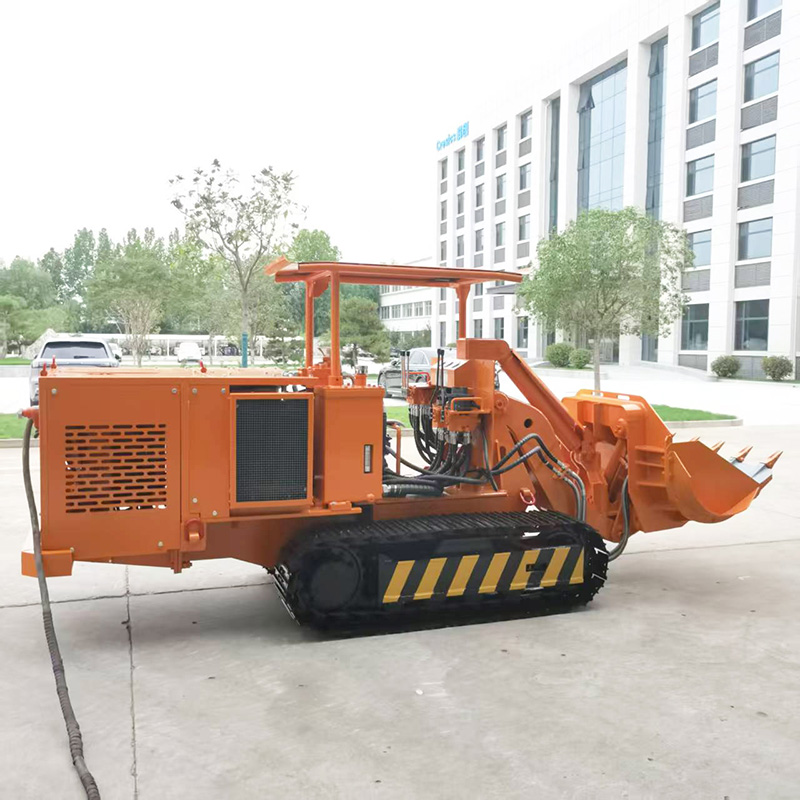

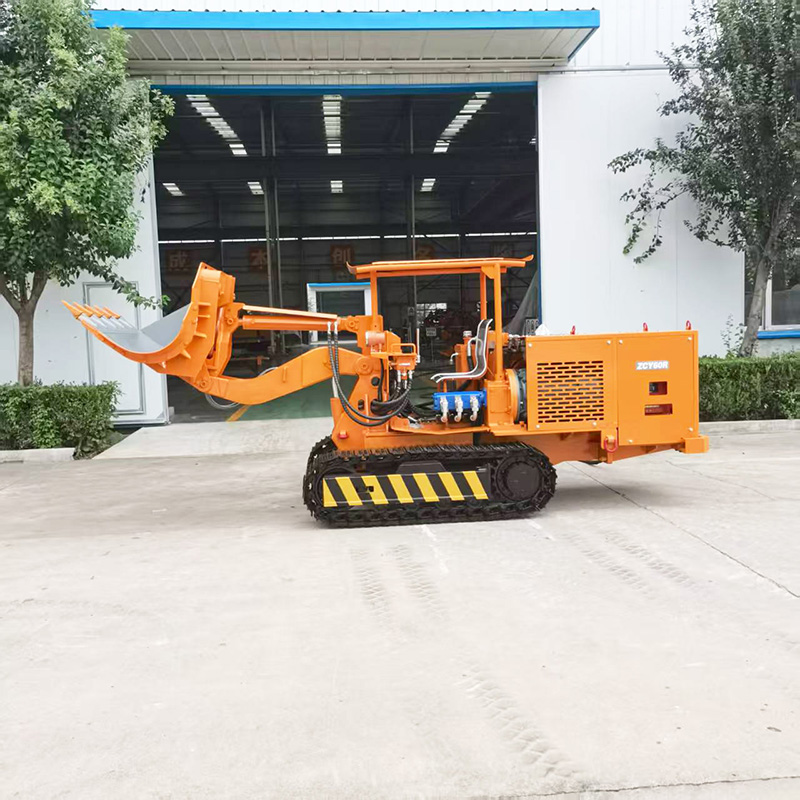

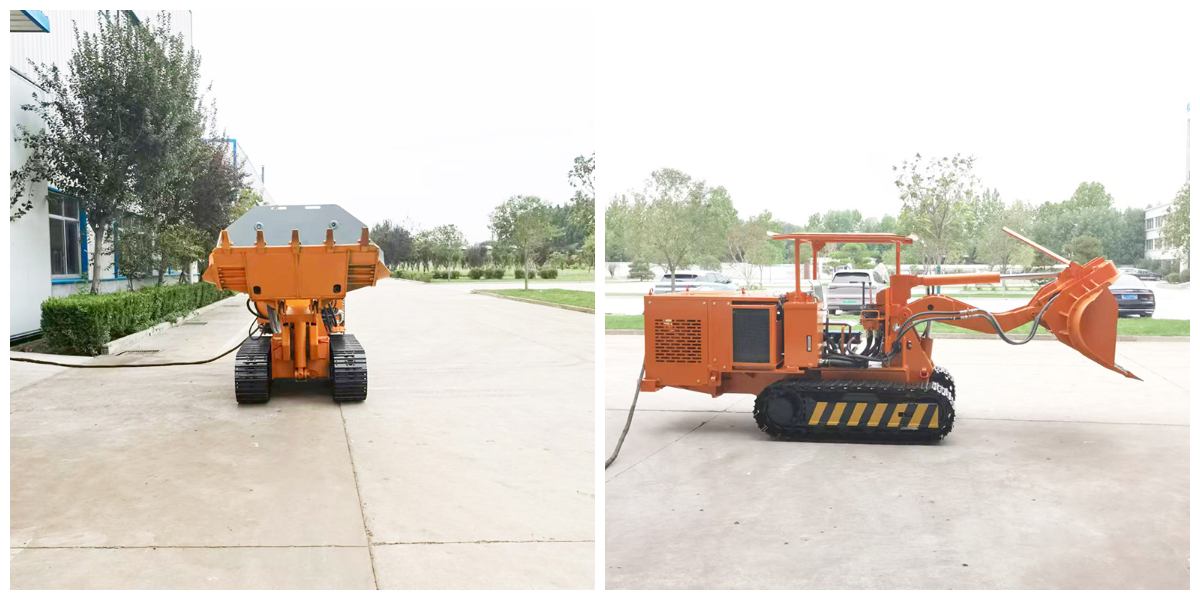

Engineering Side Dump Rock Loader
1. Efficient loading tool
The high-strength crawler traveling mechanism is equipped with a dynamic force control system to ensure rapid loading of materials across all sections. It is especially suitable for long-span tunnel construction, and the operating efficiency at intersections can be increased by more than 25%.
2. Intelligent integrated job group
Equipment collaboration strategies can be optimized based on construction data to form dynamic optimal configurations with anchor support systems, transportation machinery, etc.
3. Efficiency improvement revolutionaries
Its differentiated advantages are: the bucket has both lifting and transportation capabilities, and can handle oversized support materials such as tires; the adjustable working platform meets the dynamic management needs of the roof; the hydraulic power center provides power support for equipment such as anchor drills; the revolutionary cleaning technology realizes the mechanization of the entire loading process for the first time, greatly improving operation safety.
The side discharge rock loader is a new generation of crawler trackless loading equipment in the mining industry, providing reliable equipment support for mining. It is mainly responsible for loading coal, rock and ore in tunnels of coal mines and other mines, and is also responsible for loading rocks in small-section full-rock tunnels. This equipment has distinctive features, strong insertion force, and can quickly cut into materials for loading; it has excellent maneuverability and can move flexibly in complex and changeable tunnel environments; it can realize full-section operations, expand the scope of operations, and improve work efficiency; it has good safety, providing reliable safety guarantee for operators; and it has the function of one machine with multiple functions.
It can not only complete loading tasks, but also provide power for hydraulic drilling tools, serve as a working platform during support operations, and complete short-distance transportation, undercover work, and gang cleaning on the working surface. If a breaker is installed, it can crush large rocks and coal, speed up the excavation process, and create good economic benefits. It consists of key parts such as side-mounted shovel mechanism, crawler traveling assembly, frame assembly, hydraulic operating system, driving control system, and electrical system. Each part cooperates with each other to ensure the normal operation of the equipment. Users can choose suitable equipment based on the actual cross-section size of the tunnel and loading efficiency requirements.
Product Details
Parameters
Product Model | ZCY45R | ZCY60R | ZCY80R | ZCY100R | ZCY120R | |
Technical Bucket Capacity (m³) | 0.45 | 0.60 | 0.80 | 1.00 | 1.2 | |
Main Motor Power (kW) | 30 | 45 | 55 | |||
Voltage (V) | 660/1140 | 660/1140 | ||||
Bucket Width (mm) | 1370 | 1520 | 1696 | 1696 | 1876 | |
Maximum Dumping Height (mm) | ≥1460 | ≥1320 | ≥1600 | ≥1900 | ≥2000 | |
Maximum Digging Depth (mm) | ≥400 | ≥400 | ≥400 | ≥500 | ≥500 | |
Gradeability (°) | ≥16 | ≥16 | ≥16 | ≥16 | ≥16 | |
Traction Force (kN) | ≥20 | ≥20 | ≥40 | ≥40 | ≥40 | |
Minimum Ground Clearance (mm) | ≥180 | ≥180 | ≥200 | ≥200 | ≥200 | |
Maximum Travel Speed (m/s) | ≥0.5 | ≥0.5 | ≥0.81 | ≥0.81 | ≥0.81 | |
Working Mechanism Pressure (MPa) | 16±0.5 | 16±0.5 | 16±0.5 | 16±0.5 | 16±0.5 | |
Travel Motor Pressure (MPa) | 22±0.5 | 22±0.5 | 22±0.5 | 22±0.5 | 22±0.5 | |
External Oil Port Pressure (MPa) | 20±0.5 | |||||
Noise (Sound Pressure Level) (dB) | ≤90 | |||||
Center of Gravity Position | Xg=635 | Xg=650 | Xg=710 | Xg=750 | Xg=780 | |
Track Ground Pressure (MPa) | 0.09 | 0.1 | ||||
Overall Dimensions | Length (mm) | 4490 | 4580 | 5100 | 5330 | 5370 |
Width (mm) | 1425 | 1520 | 1696 | 1696 | 1876 | |
Height (mm) | 2046 | 2046 | 2100 | 2300 | 2300 | |
Dry Weight(kg) | 4500 | 4650 | 7350 | 8300 | 8500 | |
About us

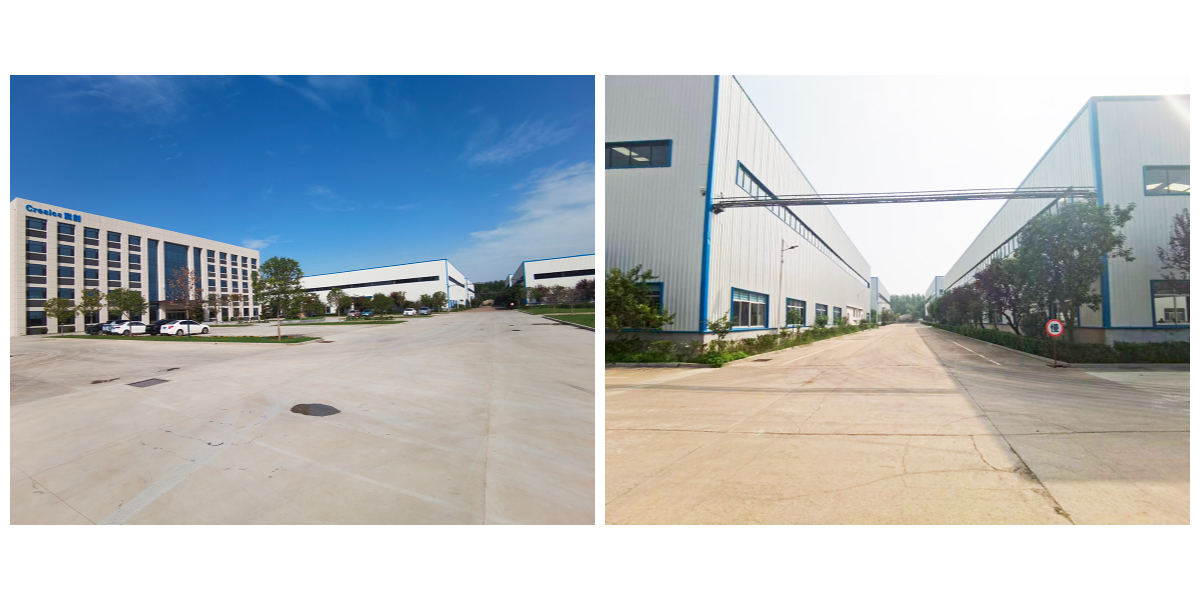

Shandong Cresics Equipment Manufacturing Co., Ltd., established in 2004, has gradually developed into a technology-driven leading enterprise based on the research and development and manufacturing of mining equipment. The company has been rated as a Gazelle Enterprise in Shandong Province and a "Little Giant" Enterprise specializing in new technologies. It has established a provincial enterprise technology center and an industrial design center, and has maintained the national high-tech enterprise qualifications for many years. Through in-depth cooperation with leading universities and enterprises in the mining field, the company has built an integrated innovation system of "industry, academia, research and application". As of 2024, it has obtained 38 core patents, more than 300 coal safety certifications, and leads the industry in the conversion rate of technological achievements.
