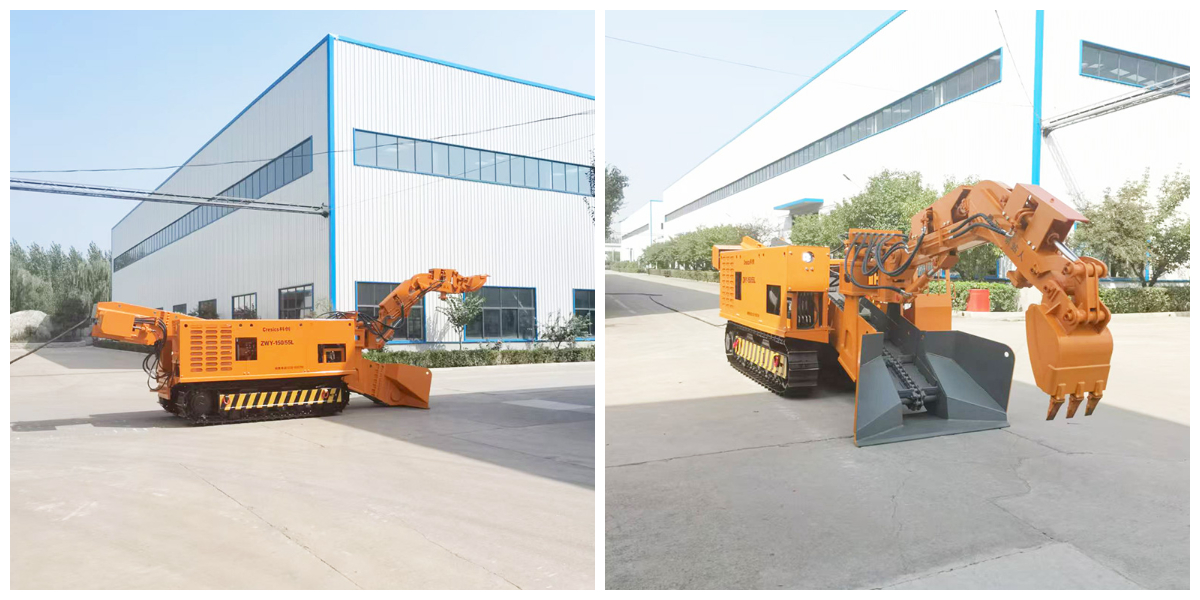

Gold Mine Mucking Loader
1. Efficient operation throughout the entire process
The whole process of slag removal, loading, transportation and loading can be completed with a single equipment, reducing losses in intermediate links. The full-section rock loading technology covers the entire working surface, eliminating blind spots for cleaning, eliminating the need for manual processing, and improving operating efficiency.
2. Quick replacement customization system
It can be equipped with a crushing module, cable drum, belt conveyor system, etc., and is equipped with a quick-change device to realize tool replacement in 5 minutes; the excavation height, width and body width can be customized on demand. The standard climbing grade is ±20°, and the customized version can reach a steep slope of ±30°.
3. Compact track, easy to handle complex terrain
The low ground contact pressure track design enhances passability and is suitable for complex terrains such as mud and sand. A variety of models are available, and small equipment can enter low tunnels to meet the needs of narrow space operations. The overload alarm system monitors the load in real time to prevent equipment damage and ensure operational safety. The pilot valve control technology enables smooth and shock-free operation and reduces operating fatigue; the hydraulic system has a low failure rate and makes maintenance convenient and efficient.

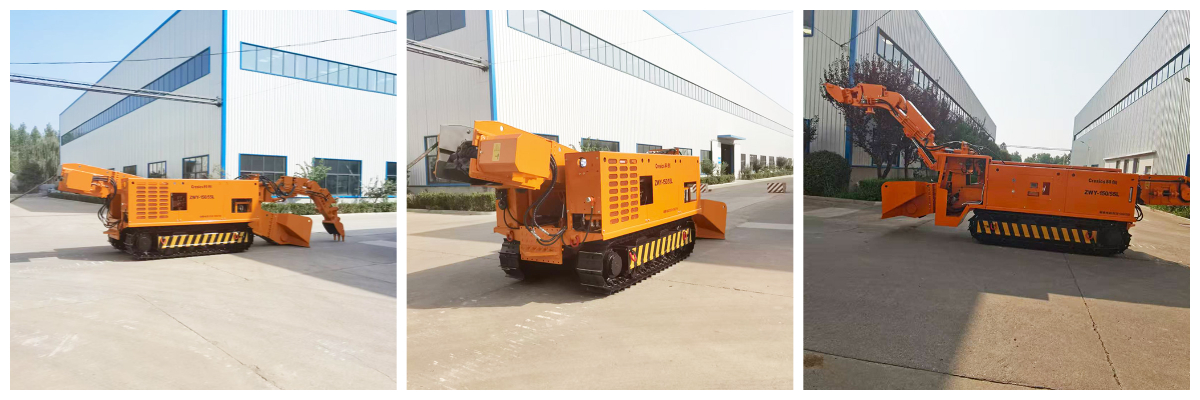

The slag scraper is a continuous and high-efficiency mining equipment. It is an ideal replacement product for the mining rake rock loader and vertical claw loader. It can meet the slag loading requirements of small-section tunnel construction. Slag scrapers play a key role in various cross-section excavation and loading operations in mine inclined shafts and shaft tunnels, as well as in mining and loading operations for ores such as phosphorus, iron, and manganese. In addition, it is also widely used in tunnel excavation projects such as railway tunnels, highway tunnels, and water diversion tunnels.The slag scraper has a fully hydraulic crawler structure. It uses a unique backhoe system to scrape rocks or ores, send them to the central scraper transport tank, and then transport the materials from the front to the rear connection equipment through the scraper transport mechanism. Moreover, the bucket can clean the work surface. Its crawler running mechanism driven by a hydraulic motor has strong performance, strong climbing force, and flexibility, and can work stably in wet and water-logged tunnels.
Product Details
Parameters
Item | ZWY-80/30L | ZWY-80/37L | ZWY-80/45L | ZWY-100/45L | ZWY-120/65L | ZWY-150/55L | ZWY-180/75L | ZWY-220/75L | |
Main Technical Parameters | |||||||||
Applicable Section (Width × Height) m | 3.2×2.2 | 3.5×2.5 | 4×2.5 | 4.8×3.2 | 5.4×4.0 | 5.8×4.5 | 6.2×5 | 7.5×5.5 | |
Applicable Axis Width* | (-16° ~ +16°) | (-20° ~ +20°) | ( -32° ~ +32°) | ||||||
Loading Capacity m³/h | 80 | 100 | 120 | 150 | 180 | 220 | |||
Control Mode | Hydraulic Pilot Control | ||||||||
Main Motor Power KW | 30 | 37 | 45 | 55 | 75 | ||||
Digging Width mm | 3200 | 3500 | 4000 | 4600 | 5400 | 5800 | 6200 | 7000 | |
Digging Distance mm | 1500 | 1600 | 1800 | 2150 | 2500 | 3300 | |||
Digging Height mm | 1800 | 2200 | 3000 | 3500 | 3800 | 4000 | 4300 | ||
Digging Depth mm | 400 | 500 | 800 | 990 | 1050 | ||||
Unloading Height (Adjustable) mm | 1200 | 1450 | 2000 | ||||||
Unloading Distance (Adjustable) mm | 1150 | ||||||||
Max. Rotation Angle* | ±36° | ±45° | ±55° | ||||||
Max. Transport Material Size mm | < φ500 | < φ580 | < φ625 | < φ780 | |||||
Boom Structure | Single Boom | Single Boom (or Double Boom) | Double Boom | ||||||
Hoisting Speed m/min | 44 | ||||||||
Track Gauge (Adjustable) mm | 890 | 890 | 900 | 1110 | 1190 | 1400 | |||
Travel Speed m/s | 0.5 | ||||||||
Ground Clearance mm | 300 | ||||||||
Min. Turning Radius m | ≥ 5 | ≥ 7 | ≥ 8 | ||||||
Ground Pressure MPa | ≤ 0.1 | ||||||||
Rated Working Pressure MPa | 23 | ||||||||
Max. Bucket Size | Length mm | 3350 | 4200 | ||||||
Width mm | 850 | 900 | 1000 | 1100 | 1200 | ||||
Height mm | 1200 | 1400 | 1500 | 1650 | |||||
Max. Bucket Weight Kg | 2300 | 3000 | 3500 | ||||||
Max. Overall Dimensions (Working) | Length mm | 6000 | 6500 | 6800 | 7000 | 7500 | 8800 | ||
Width mm | 1750 | 1800 | 2200 | 2350 | 2640 | ||||
Height mm | 1750 | 1750 | 1800 | 2900 | 3250 | 3600 | 3800 | 4200 | |
Machine Weight Kg | 7600 | 8000 | 8200 | 11200 | 13800 | 15200 | 17800 | 20000 | |
About us

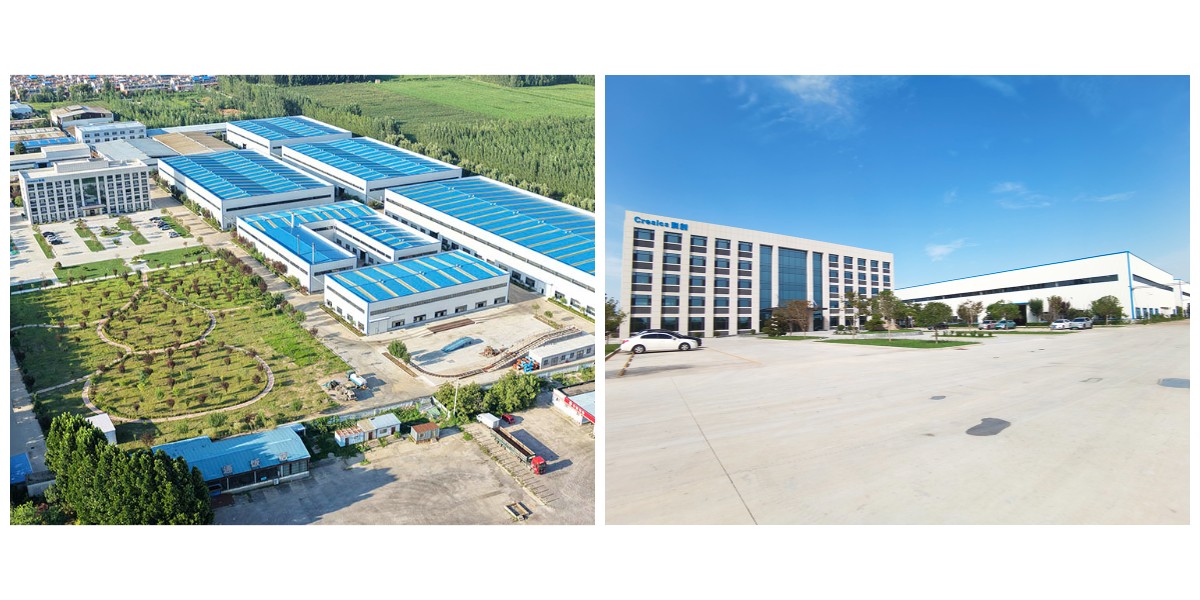

Shandong Cresics Equipment Manufacturing Co., Ltd., established in 2004, is a company specializing in the research, development and manufacturing of mining equipment. With technological innovation as its core business philosophy, the company has been recognized as a national high-tech enterprise, a single champion enterprise in Shandong Province, a gazelle enterprise in Shandong Province, an enterprise technology center in Shandong Province, an industrial design center in Shandong Province, a national high-tech enterprise, a special new enterprise in Shandong Province, etc.The company's technical team has strong R&D capabilities and has extensive technical cooperation with China University of Mining and Technology and a number of mining groups. The products cover the fields of mining anchor digging and transportation, automation and intelligence, and auxiliary transportation equipment, and can provide customers with complete equipment solutions in multiple fields. The company has established a complete quality control system in product design, manufacturing, inspection, on-site use, after-sales and other aspects, and has passed ISO9001 international quality system, ISO14001 environmental management system, and ISO45001 occupational health and safety management system certification.
