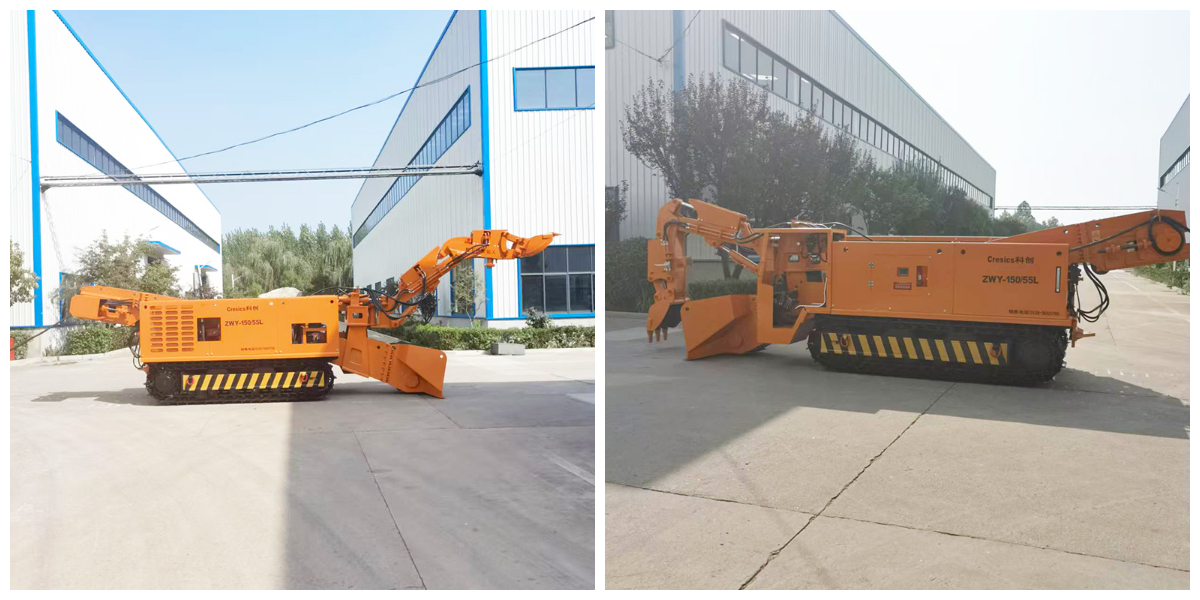

Underground Engineering Mucking Loader
1. New paradigm of intelligent homework
It integrates the four functions of slag removal, loading, transportation and loading into one, forming a closed-loop operation system. The full-section rock loading capability enables full coverage of the working surface, eliminating the need for manual cleaning of corners and improving overall operating efficiency.
2. Flexible job configuration plan
It supports additional crushing devices, cable drums, belt conveyors, etc., and can realize tool switching within 5 minutes through a quick change mechanism; the excavation size and body width can be adjusted on site, the conventional climbing angle is ±20°, and the large slope model can be increased to ±30°.
3. Multiple models to choose from, a powerful tool for working in narrow spaces
The crawler model adopts a low ground pressure structure and has excellent performance to cope with complex terrains such as mud and loose sand. Available in multiple specifications, the compact model is suitable for low tunnel operations and meets the needs of small spaces. The real-time load monitoring system avoids overload damage and ensures operational safety. The pilot valve control makes the operation smooth and coordinated and reduces fatigue; the hydraulic system has high reliability and simple and fast maintenance.

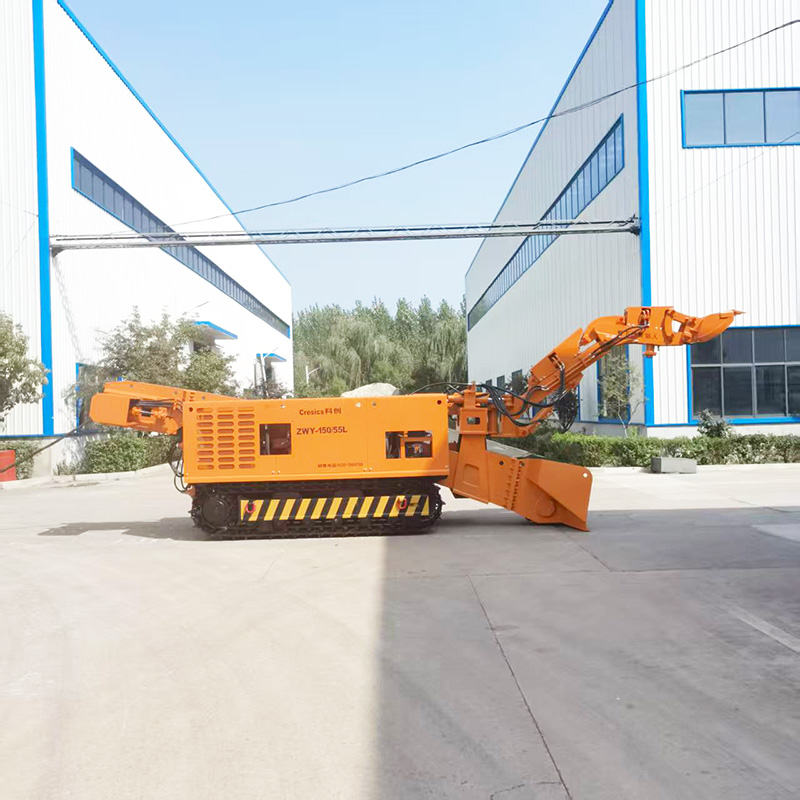

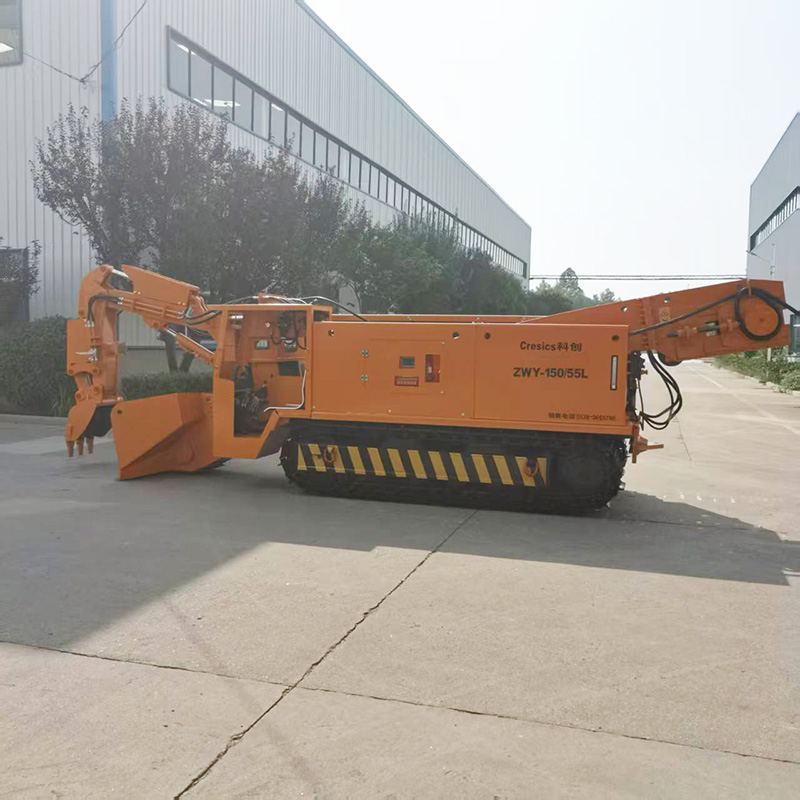

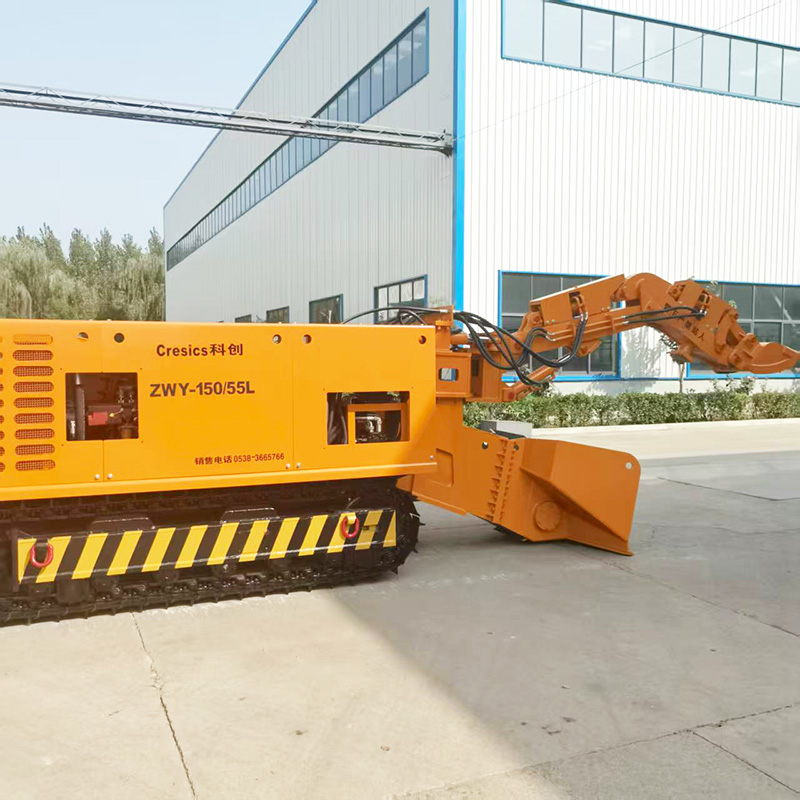

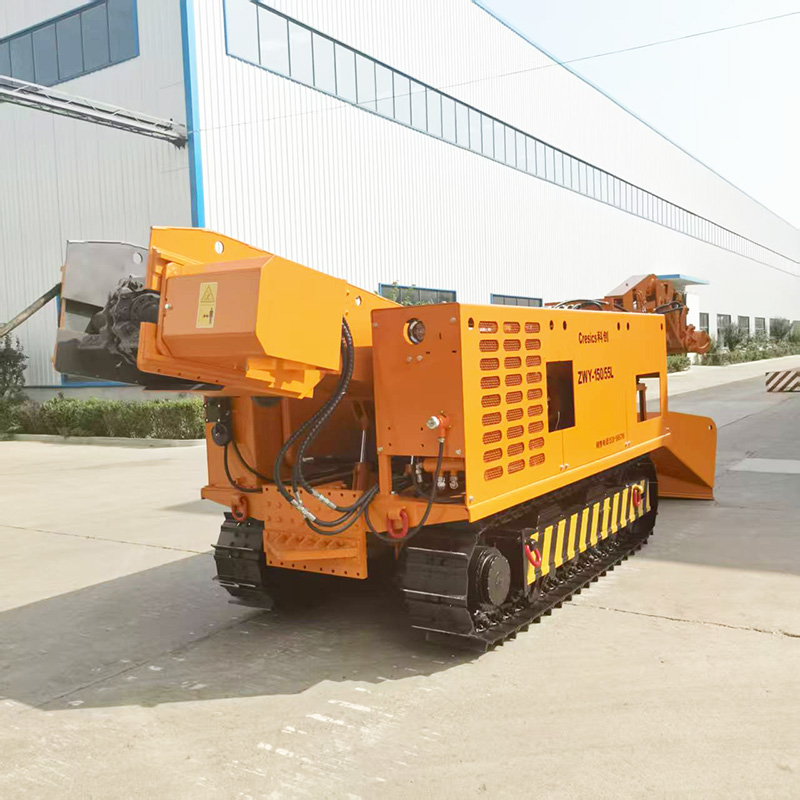

The slag scraper is a practical equipment for continuous and efficient mining. It can replace the mining rake rock loader and vertical claw loader to meet the needs of slag loading for small-section tunnel construction. It is commonly used in various cross-section excavation and loading operations of mine inclined shafts and vertical shaft tunnels. It is also frequently used in the excavation and loading operations of ores such as phosphate ore, iron ore, and manganese ore. It is also widely used in tunnel excavation projects such as railway tunnels, highway tunnels, and diversion tunnel projects.The slag scraper adopts a fully hydraulic crawler structure, uses a unique backhoe system to scrape rocks or ores, puts them into the central scraper transport tank, and then relies on the scraper transport mechanism to transport the materials from the front to the rear connection equipment. At the same time, the bucket can be used to clean the work surface. Its crawler traveling mechanism driven by a hydraulic motor has strong power, good climbing ability, and good maneuverability, and can work normally in damp roadways with water accumulation.

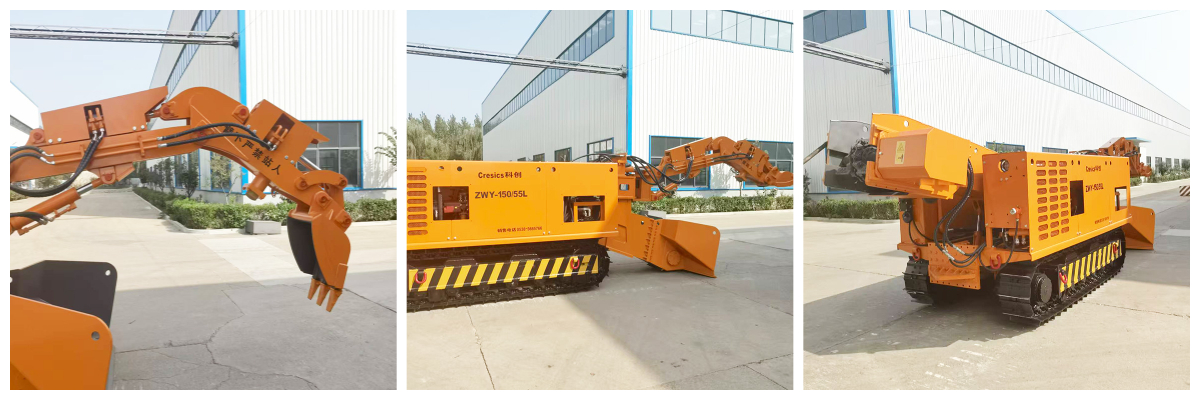

Product Details
Parameters
Item | ZWY-80/30L | ZWY-80/37L | ZWY-80/45L | ZWY-100/45L | ZWY-120/65L | ZWY-150/55L | ZWY-180/75L | ZWY-220/75L | |
Main Technical Parameters | |||||||||
Applicable Section (Width × Height) m | 3.2×2.2 | 3.5×2.5 | 4×2.5 | 4.8×3.2 | 5.4×4.0 | 5.8×4.5 | 6.2×5 | 7.5×5.5 | |
Applicable Axis Width* | (-16° ~ +16°) | (-20° ~ +20°) | ( -32° ~ +32°) | ||||||
Loading Capacity m³/h | 80 | 100 | 120 | 150 | 180 | 220 | |||
Control Mode | Hydraulic Pilot Control | ||||||||
Main Motor Power KW | 30 | 37 | 45 | 55 | 75 | ||||
Digging Width mm | 3200 | 3500 | 4000 | 4600 | 5400 | 5800 | 6200 | 7000 | |
Digging Distance mm | 1500 | 1600 | 1800 | 2150 | 2500 | 3300 | |||
Digging Height mm | 1800 | 2200 | 3000 | 3500 | 3800 | 4000 | 4300 | ||
Digging Depth mm | 400 | 500 | 800 | 990 | 1050 | ||||
Unloading Height (Adjustable) mm | 1200 | 1450 | 2000 | ||||||
Unloading Distance (Adjustable) mm | 1150 | ||||||||
Max. Rotation Angle* | ±36° | ±45° | ±55° | ||||||
Max. Transport Material Size mm | < φ500 | < φ580 | < φ625 | < φ780 | |||||
Boom Structure | Single Boom | Single Boom (or Double Boom) | Double Boom | ||||||
Hoisting Speed m/min | 44 | ||||||||
Track Gauge (Adjustable) mm | 890 | 890 | 900 | 1110 | 1190 | 1400 | |||
Travel Speed m/s | 0.5 | ||||||||
Ground Clearance mm | 300 | ||||||||
Min. Turning Radius m | ≥ 5 | ≥ 7 | ≥ 8 | ||||||
Ground Pressure MPa | ≤ 0.1 | ||||||||
Rated Working Pressure MPa | 23 | ||||||||
Max. Bucket Size | Length mm | 3350 | 4200 | ||||||
Width mm | 850 | 900 | 1000 | 1100 | 1200 | ||||
Height mm | 1200 | 1400 | 1500 | 1650 | |||||
Max. Bucket Weight Kg | 2300 | 3000 | 3500 | ||||||
Max. Overall Dimensions (Working) | Length mm | 6000 | 6500 | 6800 | 7000 | 7500 | 8800 | ||
Width mm | 1750 | 1800 | 2200 | 2350 | 2640 | ||||
Height mm | 1750 | 1750 | 1800 | 2900 | 3250 | 3600 | 3800 | 4200 | |
Machine Weight Kg | 7600 | 8000 | 8200 | 11200 | 13800 | 15200 | 17800 | 20000 | |
About us

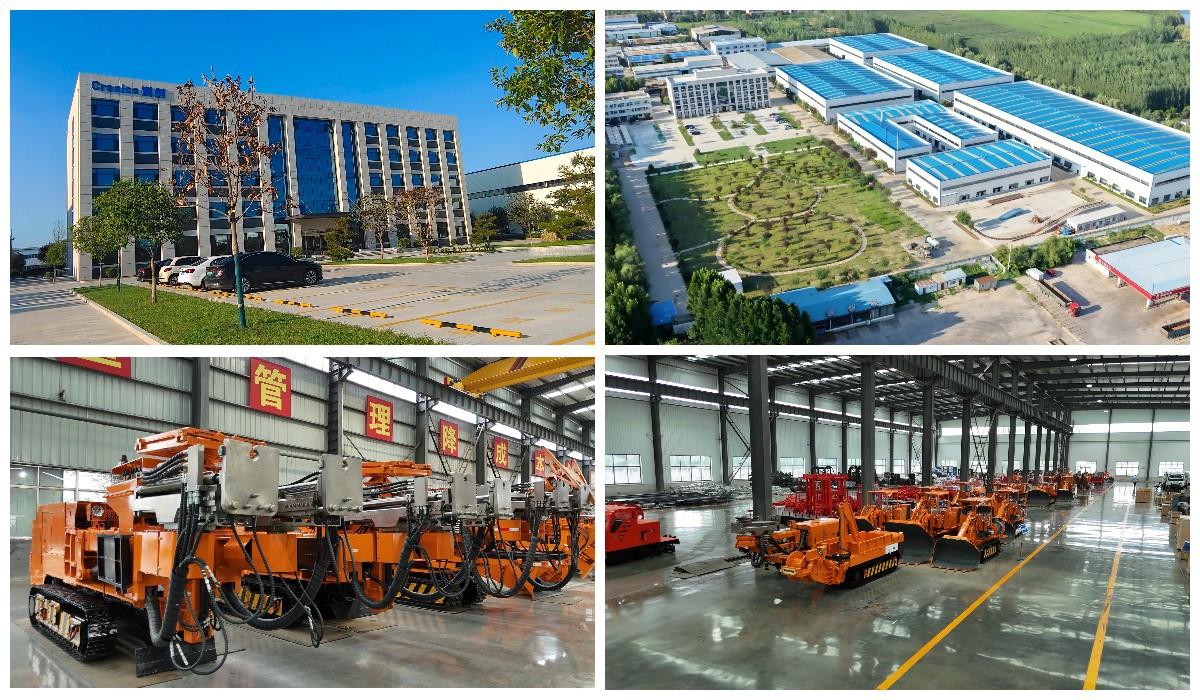

Shandong Cresics Equipment Manufacturing Co., Ltd. was established in 2004 and is an enterprise specializing in the research, development and manufacturing of mining equipment. With technological innovation as its core business philosophy, the company has successively won the honorary titles of National Specialized, Special and New Little Giant Enterprise, Shandong Province Individual Champion Enterprise, Shandong Province Gazelle Enterprise, Shandong Enterprise Technology Center, Shandong Industrial Design Center, National High-tech Enterprise, Shandong Province Specialized, Special and New Enterprise, etc. The company has a technical team with strong R&D capabilities and carries out extensive technical cooperation with China University of Mining and Technology and a number of mining groups.The products cover the fields of mining, anchor digging and transportation, automation and intelligence, and auxiliary transportation equipment, and can provide complete sets of equipment solutions for many fields. The company has established a complete quality control system in all aspects of product design, manufacturing, inspection, on-site use, and after-sales, and has passed ISO9001 international quality system, ISO14001 environmental management system, and ISO45001 occupational health and safety management system certification.
