Coal Mine Side Unloading Rock Loader
Specialist in small space operations
Since its unloading method does not require a tall space (unlike the front unloading type which requires a raised bucket), it is particularly suitable for operating in tunnels and tunnels with small cross-sections and limited heights. This is one of its core advantages.
All movements of the side-discharging rock loader are hydraulically driven, with small impact and more suitable for underground working spaces. The hydraulic pipeline connection method has reliable sealing and no leakage, reducing maintenance costs. The air cooling method is adopted to improve the heat dissipation system of the whole machine, getting rid of the restrictions of water pipes and enabling uninterrupted operation in high temperature environments. The fully hydraulic system makes the operation more flexible and enables fine control, such as bucket lifting, loading and unloading, etc., thus improving operating efficiency and safety.
Product Details
Parameters
Product Model | ZCN60R | ZCN80R | ZCN100R | ZCN120R | ZCN150R | ZCN180R |
Overall Dimensions (L*W*H mm) | 4500*1510*2060 | 4585*1636*2088 | 4855*1636*2150 | 5200*1820*2150 | 5250*2120*2150 | 5380*2420*2200 |
Bucket Capacity (m³) | 0.6 | 0.8 | 1 | 1.2 | 1.5 | 1.8 |
Bucket Width (mm) | 1510 | 1636 | 1636 | 1820 | 2120 | 2420 |
Max. Dumping Height (mm) | 1700 | 1900 | 1900 | 1900 | 2000 | 2000 |
Max. Dumping Angle (°) | 55 | 55 | 55 | 55 | 55 | 55 |
Max. Traction Force (KN) | 25 | 40 | 40 | 50 | 50 | 50 |
Rated Traction Force (KN) | 20 | 30 | 30 | 45 | 45 | 45 |
Max. Travel Speed (m/min) | 30 | 30 | 30 | 30 | 30 | 30 |
Min. Ground Clearance (mm) | 180 | 180 | 200 | 200 | 200 | 200 |
Max. Undercutting Depth (mm) | 450 | 500 | 500 | 500 | 500 | 500 |
Gradeability (°) | ±16° | ±16° | ±16° | ±16° | ±16° | ±16° |
Track Shoe Width (mm) | 260 | 300 | 300 | 300 | 300 | 300 |
Track Ground Pressure (MPa) | 0.09 | 0.09 | 0.1 | 0.1 | 0.1 | 0.1 |
Center of Gravity Position (mm) | Xg=694 | Xg=763 | Xg=788 | Xg=815 | Xg=842 | Xg=850 |
Yg=30 | Yg=34 | Yg=35 | Yg=44 | Yg=85 | Yg=100 | |
Noise (dBA) | ≤90 | ≤90 | ≤90 | ≤90 | ≤90 | ≤90 |
Diesel Engine - Installed Power (kW) | 62 | |||||
Starting Method | Electric Start | |||||
Protection Type | Electric Protection | |||||
Engine Speed | 2200rpm | |||||
Travel Working Pressure (MPa) | 20 | 20 | 23 | 23 | 23 | 23 |
System Working Pressure (MPa) | 18 | 18 | 20 | 20 | 20 | 20 |
Operating Weight (without fuel) (kg) | 5200 | 6500 | 7500 | 7900 | 8200 | 9000 |

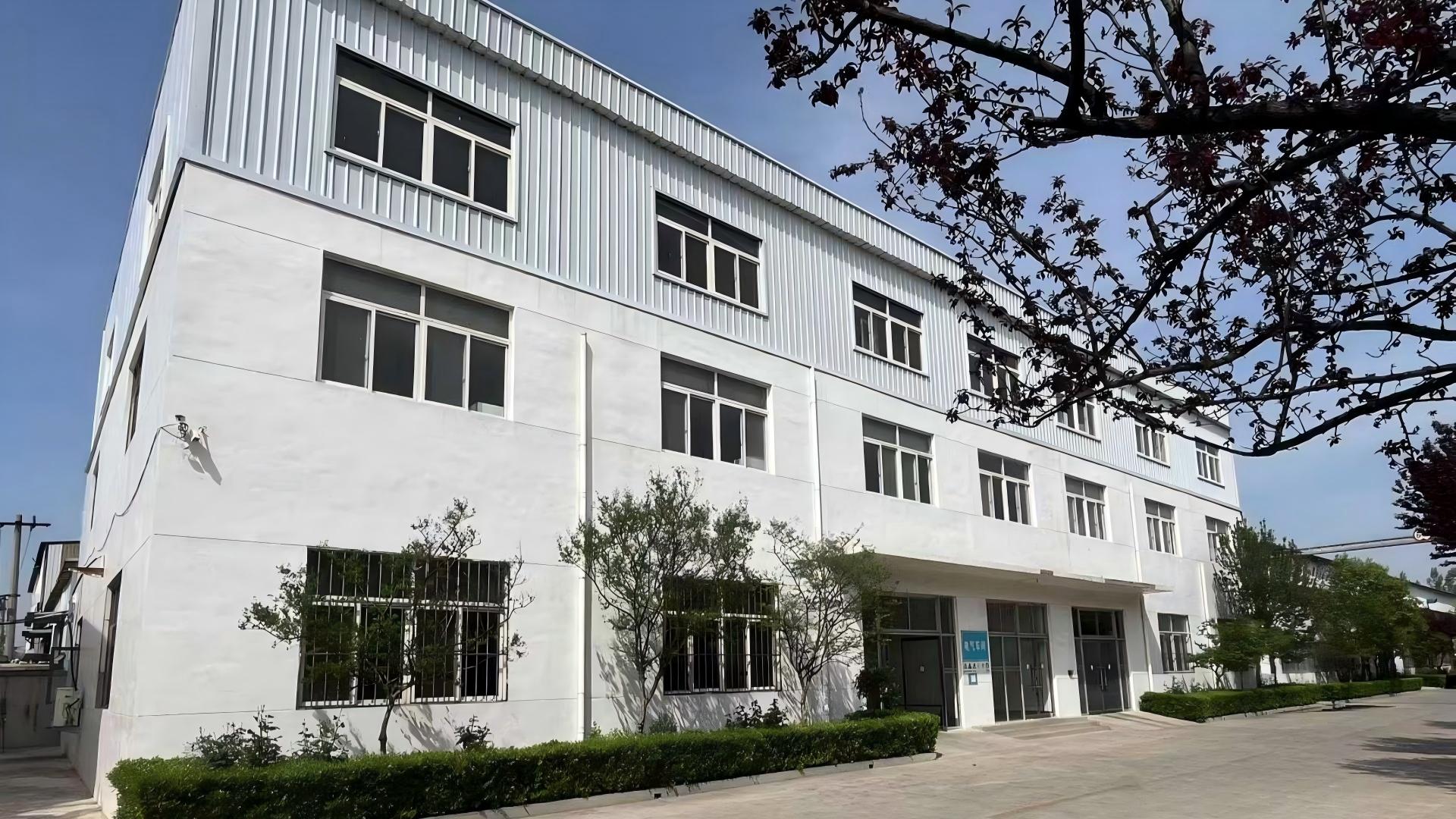

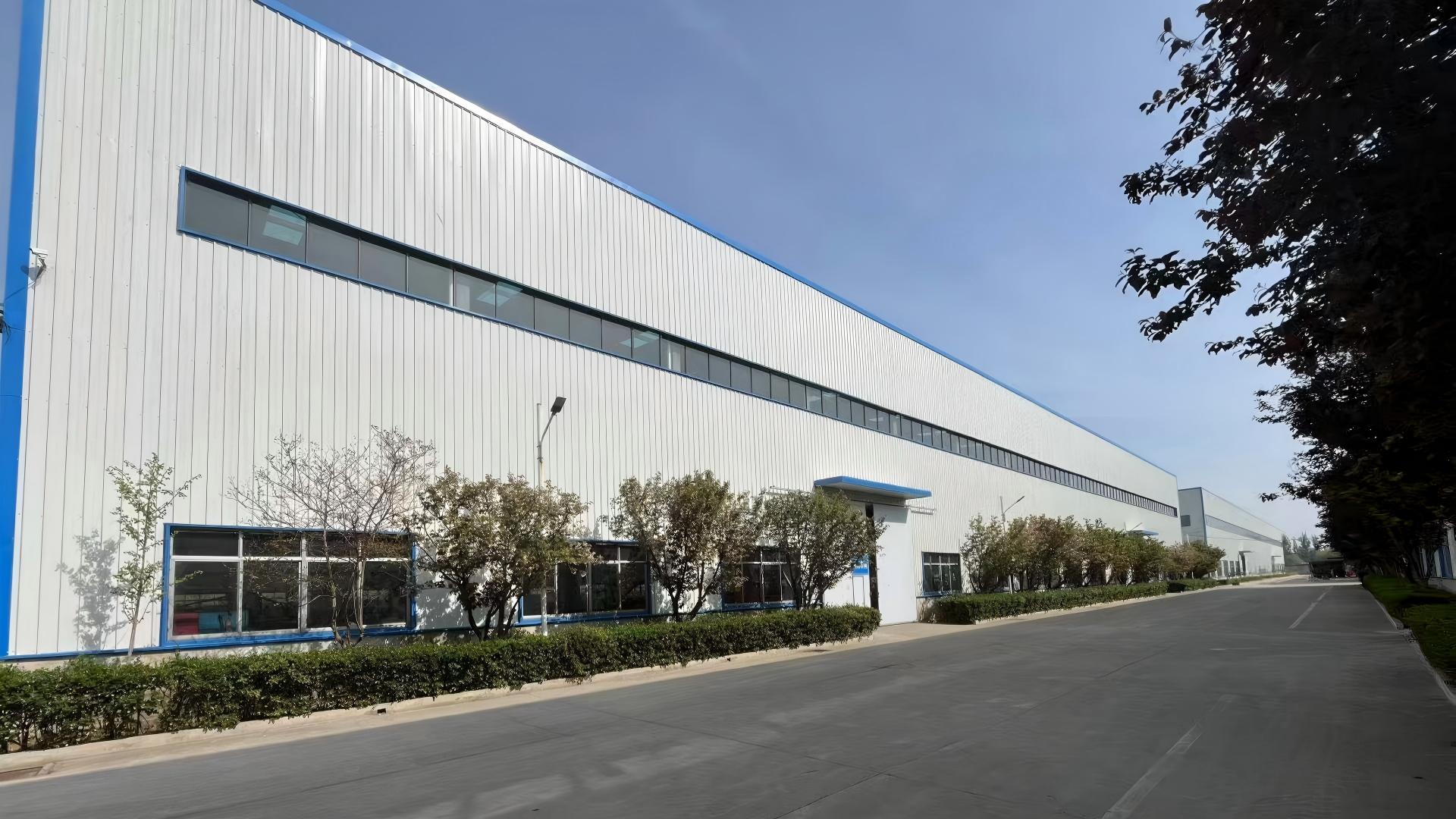

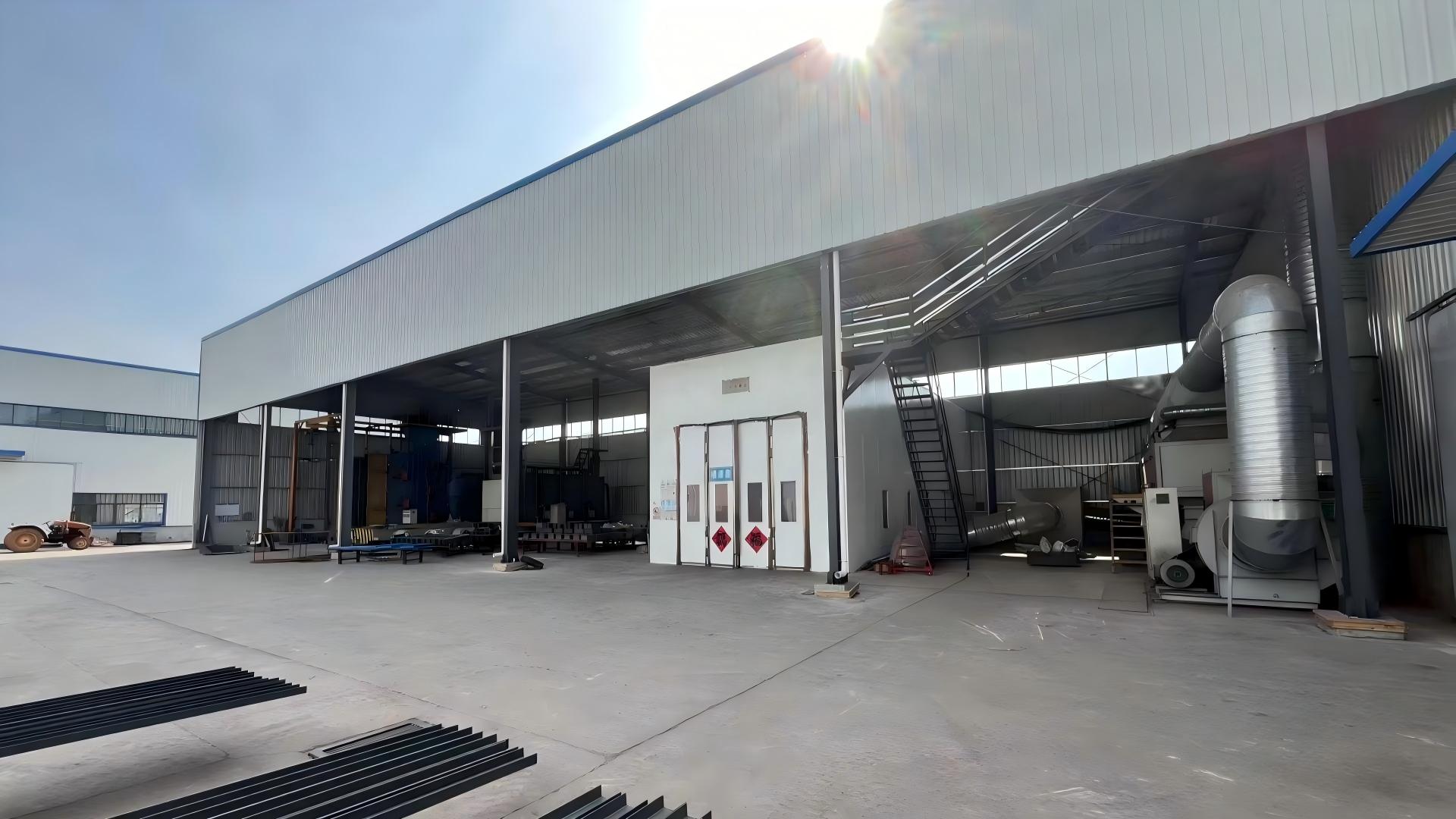

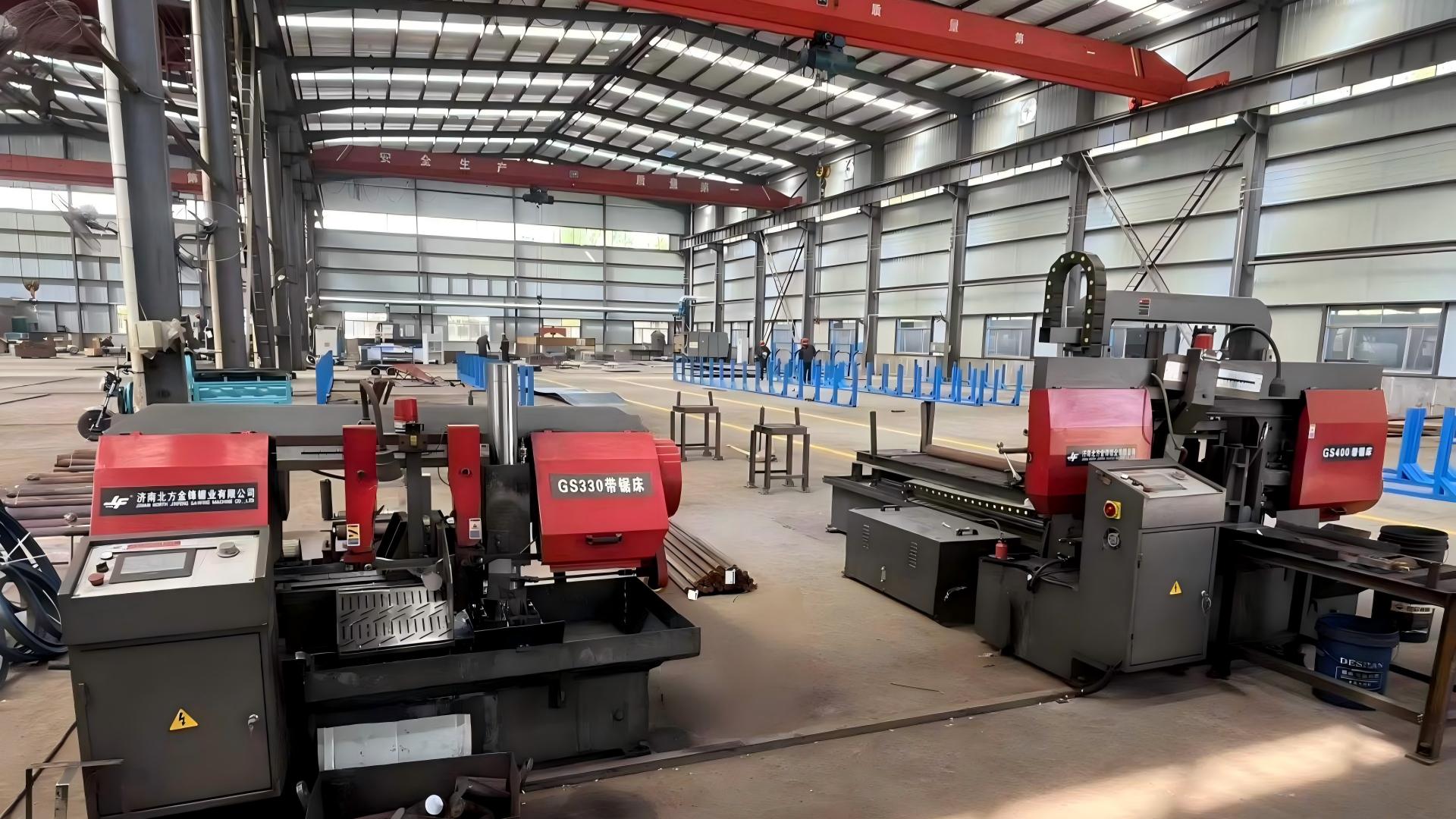

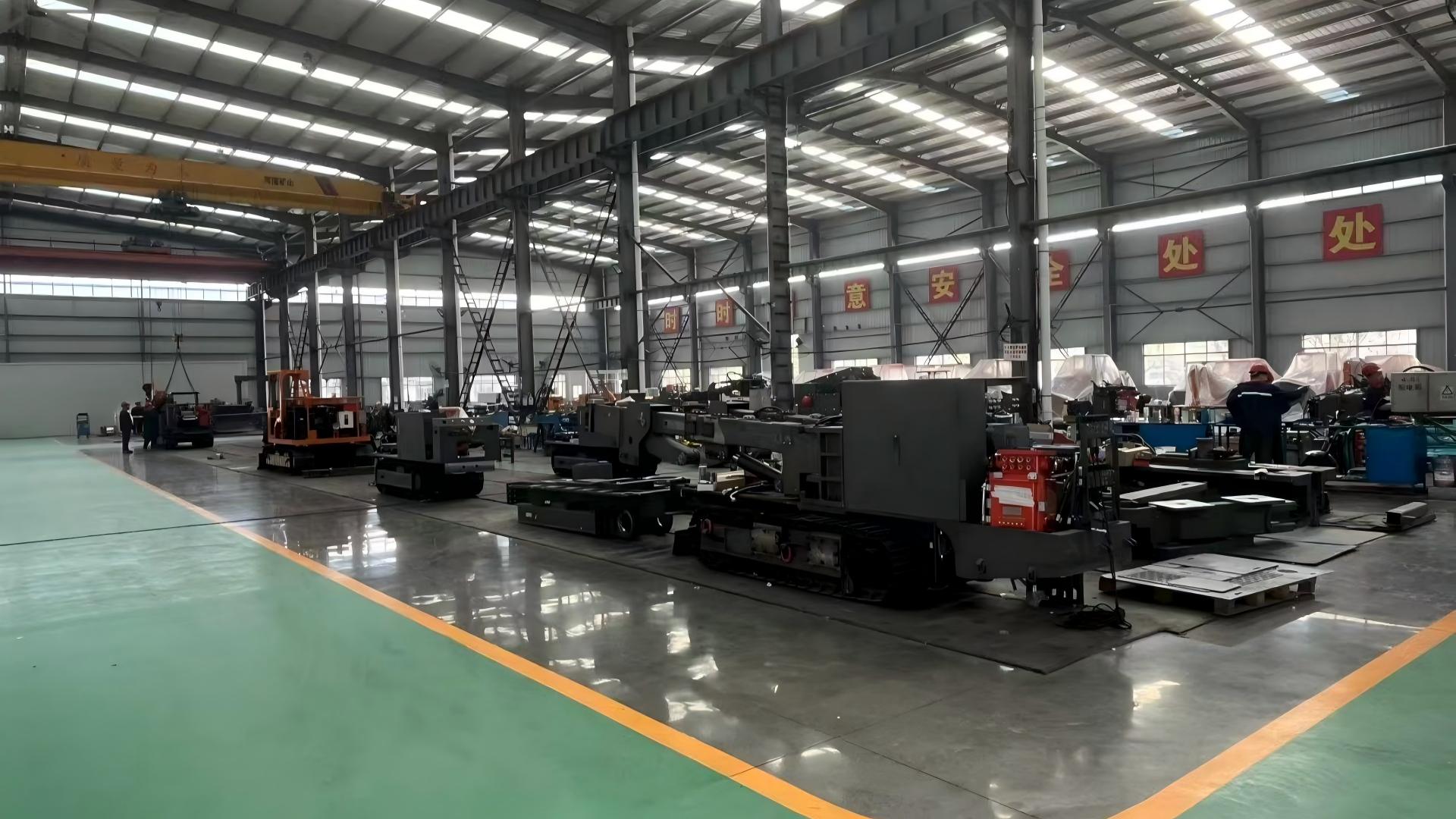

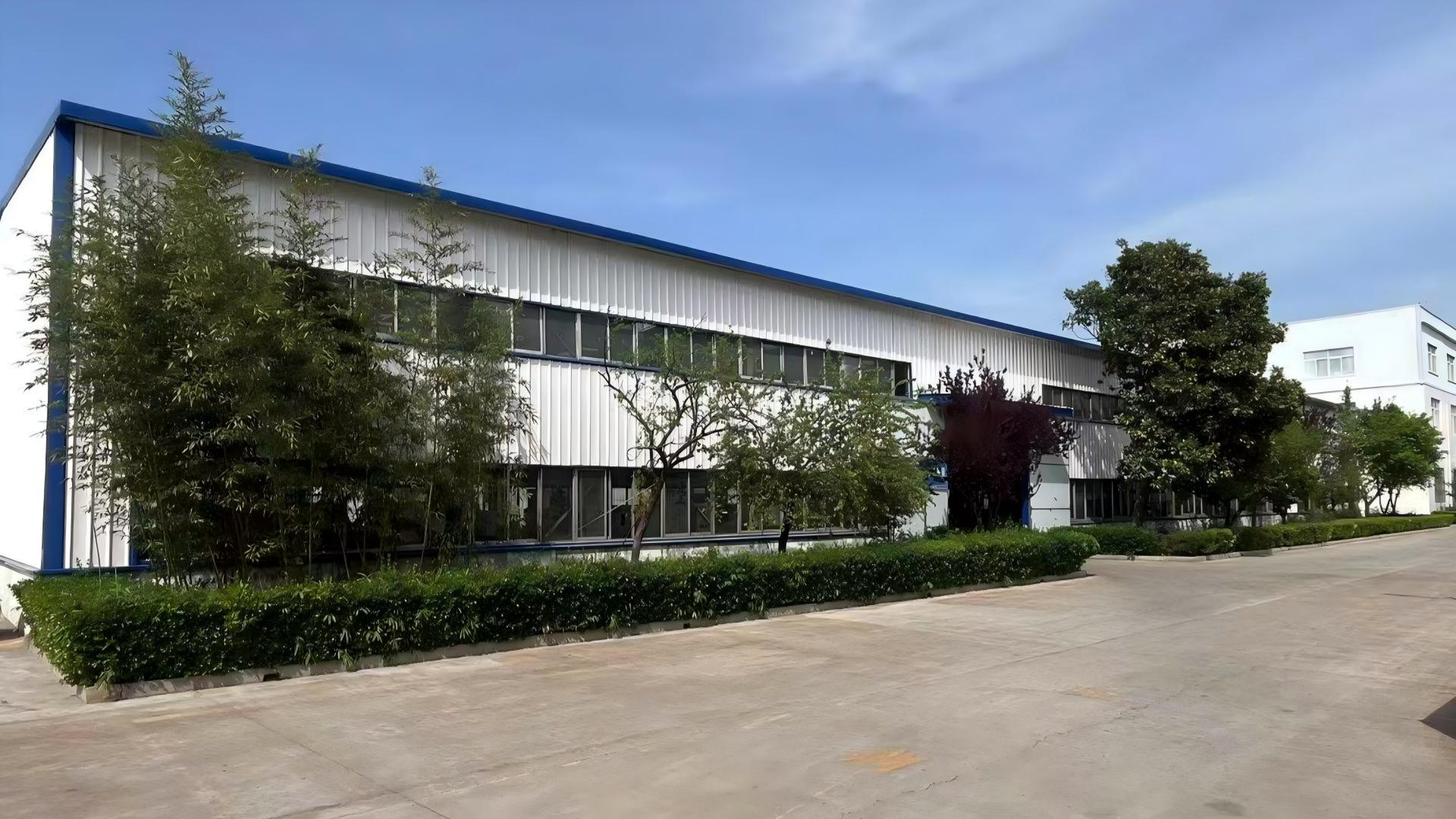

About us
Established in 2004, Shandong Cresics Equipment Manufacturing Co., Ltd. stands out as a leading professional firm specializing in the research, development, and production of mining equipment. Guided by a core business philosophy centered on technological innovation, the company has garnered numerous prestigious accolades, including recognition as a National Specialized and Innovative "Little Giant" Enterprise, Shandong Provincial Single Champion Enterprise, Shandong Gazelle Enterprise, and designations as both a Shandong Provincial Enterprise Technology Center and Shandong Industrial Design Center. Additionally, it has been honored as a National High-Tech Enterprise and a Shandong Specialized and Innovative Enterprise.
Backed by a highly capable R&D team, the company fosters extensive technical collaborations with China University of Mining and Technology and various mining groups. Its exceptional equipment development capabilities and stellar reputation have earned it widespread acclaim within the industry.
