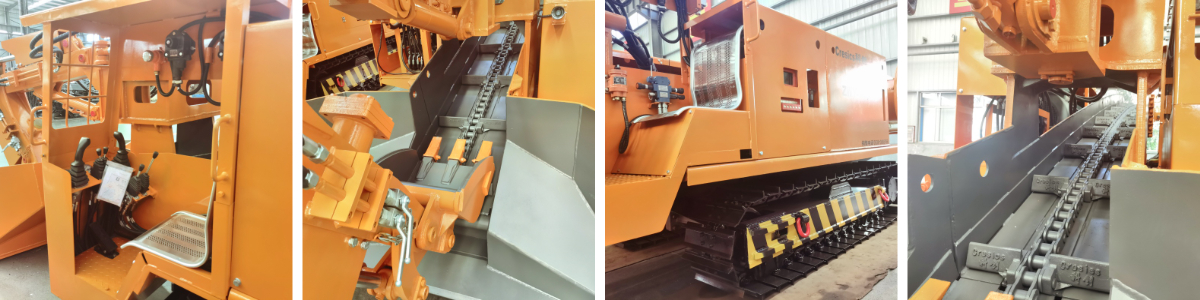

High Quality Mucking Loader
1.Equipped with a powerful hydraulically driven slag raking arm, it has a wide range of arm lengths and can achieve flexible rotation and extension
2.Dig deep into the corners of the tunnel or narrow Spaces to scoop up materials, and clear the debris without any blind spots
3.Directly connect to dump trucks or belt conveyors to reduce material transfer links and improve operational efficiency.
Product Details
The High Quality Mucking Loader features an outstanding terrain adaptability and climbing ability. It can operate on steep slopes and is specially designed for steep tunnels, solving the movement problems of traditional equipment in inclined tunnels. Walk steadily on muddy, gravel and other harsh ground to avoid slipping or falling.
Efficient loading and intelligent operation, continuous high output, integrated functions of shoveling, conveying and unloading, high loading capacity, full cross-section slag removal without dead corners, no need for manual assistance.
Operating Scenario
The High Quality Mucking Loader is a continuous, high-efficiency ore extraction equipment. It serves as an ideal replacement for traditional scraper rock loaders and gripper loaders in mines, perfectly meeting the mucking needs of small-section tunnel construction.
Widely used in excavation and loading operations of various cross-sections in mine inclined shafts, vertical shafts, and horizontal drifts, this equipment is also suitable for ore excavation and loading in phosphate mines, iron mines, manganese mines, and other mineral mines. Additionally, it is extensively applied in various tunnel excavation projects such as railway tunnels, highway tunnels, and water diversion tunnels.
Parameters
Item | ZWY-80/30L | ZWY-80/37L | ZWY-80/45L | ZWY-100/45L | ZWY-120/65L | ZWY-150/55L | ZWY-180/75L | ZWY-220/75L | |
Main Technical Parameters | |||||||||
Applicable Section (Width × Height) m | 3.2×2.2 | 3.5×2.5 | 4×2.5 | 4.8×3.2 | 5.4×4.0 | 5.8×4.5 | 6.2×5 | 7.5×5.5 | |
Applicable Axis Width* | (-16° ~ +16°) | (-20° ~ +20°) | ( -32° ~ +32°) | ||||||
Loading Capacity m³/h | 80 | 100 | 120 | 150 | 180 | 220 | |||
Control Mode | Hydraulic Pilot Control | ||||||||
Main Motor Power KW | 30 | 37 | 45 | 55 | 75 | ||||
Digging Width mm | 3200 | 3500 | 4000 | 4600 | 5400 | 5800 | 6200 | 7000 | |
Digging Distance mm | 1500 | 1600 | 1800 | 2150 | 2500 | 3300 | |||
Digging Height mm | 1800 | 2200 | 3000 | 3500 | 3800 | 4000 | 4300 | ||
Digging Depth mm | 400 | 500 | 800 | 990 | 1050 | ||||
Unloading Height (Adjustable) mm | 1200 | 1450 | 2000 | ||||||
Unloading Distance (Adjustable) mm | 1150 | ||||||||
Max. Rotation Angle* | ±36° | ±45° | ±55° | ||||||
Max. Transport Material Size mm | < φ500 | < φ580 | < φ625 | < φ780 | |||||
Boom Structure | Single Boom | Single Boom (or Double Boom) | Double Boom | ||||||
Hoisting Speed m/min | 44 | ||||||||
Track Gauge (Adjustable) mm | 890 | 890 | 900 | 1110 | 1190 | 1400 | |||
Travel Speed m/s | 0.5 | ||||||||
Ground Clearance mm | 300 | ||||||||
Min. Turning Radius m | ≥ 5 | ≥ 7 | ≥ 8 | ||||||
Ground Pressure MPa | ≤ 0.1 | ||||||||
Rated Working Pressure MPa | 23 | ||||||||
Max. Bucket Size | Length mm | 3350 | 4200 | ||||||
Width mm | 850 | 900 | 1000 | 1100 | 1200 | ||||
Height mm | 1200 | 1400 | 1500 | 1650 | |||||
Max. Bucket Weight Kg | 2300 | 3000 | 3500 | ||||||
Max. Overall Dimensions (Working) | Length mm | 6000 | 6500 | 6800 | 7000 | 7500 | 8800 | ||
Width mm | 1750 | 1800 | 2200 | 2350 | 2640 | ||||
Height mm | 1750 | 1750 | 1800 | 2900 | 3250 | 3600 | 3800 | 4200 | |
Machine Weight Kg | 7600 | 8000 | 8200 | 11200 | 13800 | 15200 | 17800 | 20000 | |
Frequently Asked Questions about equipment
Q1: How does the equipment simplify operation and reduce maintenance costs?
A1: The equipment is equipped with an intelligent control hydraulic pilot system, which enables the combined operation of the boom, bucket arm and conveyor. This design not only ensures fast response speed but also effectively reduces operational fatigue for operators. In addition, we adopt a modular design for key components such as bucket teeth and tracks. This modular structure allows for quick and convenient replacement of worn or damaged parts, significantly shortening equipment downtime and thus reducing overall maintenance costs.
Q2: Can the equipment operate safely in extreme underground environments?
A2: Yes, the equipment is specifically designed to ensure safe operation in extreme environments. It is equipped with motor overload protection and circuit fault detection functions. The motor overload protection prevents the motor from being damaged due to excessive load, while the circuit fault detection can promptly identify and alert potential circuit faults. These safety protection mechanisms work together to minimize operational risks and ensure the stable and safe operation of the equipment even in harsh underground working conditions.
Q3: Does the equipment meet international underground environmental protection standards?
A3: Absolutely. The equipment adopts a motor-driven model, which features low noise operation. This low-noise design not only improves the working environment for operators but also meets the strict environmental protection requirements for underground operations in most international markets. It effectively reduces noise pollution and complies with relevant environmental regulations, making it suitable for use in environmentally sensitive underground projects.
Q4: Can the equipment be customized to meet different operational needs?
A4: Yes, the equipment supports multi-functional expansion to adapt to various operational scenarios. It can be equipped with a variety of auxiliary devices, including breakers, cable drums, and suspended belt conveyors. This flexible expansion capability allows the equipment to be customized according to specific project requirements, realizing multi-functional operations such as crushing, cable laying, and material conveying. It provides international buyers with a versatile solution that can meet different operational needs and improve overall work efficiency.
