Side Dump Rock Loader
1.The unique side-unloading bucket design features a large bucket capacity and strong insertion force
2.In coordination with the precise hydraulic control system, the bucket moves nimbly
3.The single loading capacity is large and the cycle time is short, significantly shortening the construction period
4.Side-dumping design with adjustable unloading height, suitable for docking requirements of different mining trucks
Product Details
The Side Dump Rock Loader demonstrates outstanding performance in complex terrain adaptability with a crawler-
type walking chassis. It has remarkable climbing ability, low ground contact pressure, and a small minimum ground clearance, enabling flexible movement in narrow and rugged tunnels and ensuring continuous operation in various terrains.
The Side Dump Rock Loader is composed of power, working mechanism, walking chassis, hydraulic and electrical control systems in coordination. It is equipped with multiple safety devices such as overload protection and emergency braking. The engine has stable explosion-proof performance. The structure is sturdy and durable, easy to maintain, and has a low failure rate, meeting the safety standards for mining operations. It is the core equipment for mine tunnel excavation and material loading. Its powerful and stable power system is the core advantage in dealing with complex working conditions, providing a solid guarantee for efficient construction.
Product Advantages
1.Efficient loading has significantly enhanced operational efficiency
Our side-discharge rock loader features a unique side-discharge bucket design, combining large bucket capacity with powerful insertion force. With its precise hydraulic control system in series, the bucket operation is extremely flexible, ensuring smooth and rapid material grasping. In addition, this equipment has a large single load-bearing capacity and a short operation cycle, directly reducing the number of repetitive operations, significantly shortening the entire underground construction period, and greatly improving the efficiency of mine excavation.
2. Flexible unloading, suitable for multi-scenario connection requirements
The side-discharge loader adopts an optimized side-discharge design, with adjustable stone unloading height, which can be flexibly adjusted according to the specifications of different mining trucks. This eliminates the limitation of the fixed unloading height of traditional equipment and can be seamlessly connected with various commonly used transport vehicles in mines. Whether it is for small mine cars in narrow tunnels or large-capacity mine cars for auxiliary operations in the open air, this loader can achieve stable and efficient material transportation, enhancing the compatibility of the entire mining operation process.
3. Precise control lowers the operational threshold and error rate
Due to the integration of a precise hydraulic control system in the side-discharge rock loader, the movement of the bucket has high responsiveness and controllability, reducing the physical exertion of the operator when working underground for a long time. The coordinated design of the side discharge hopper and the hydraulic system not only ensures the accuracy of material loading and unloading but also minimizes the risks of material overflow and equipment collision to the greatest extent. Even novice operators can quickly master the operation skills, effectively reducing the training costs after joining the company and minimizing operational errors caused by unskilled operation.
Parameter
Product Model | ZCN60R | ZCN80R | ZCN100R | ZCN120R | ZCN150R | ZCN180R |
Overall Dimensions (L*W*H mm) | 4500*1510*2060 | 4585*1636*2088 | 4855*1636*2150 | 5200*1820*2150 | 5250*2120*2150 | 5380*2420*2200 |
Bucket Capacity (m³) | 0.6 | 0.8 | 1 | 1.2 | 1.5 | 1.8 |
Bucket Width (mm) | 1510 | 1636 | 1636 | 1820 | 2120 | 2420 |
Max. Dumping Height (mm) | 1700 | 1900 | 1900 | 1900 | 2000 | 2000 |
Max. Dumping Angle (°) | 55 | 55 | 55 | 55 | 55 | 55 |
Max. Traction Force (KN) | 25 | 40 | 40 | 50 | 50 | 50 |
Rated Traction Force (KN) | 20 | 30 | 30 | 45 | 45 | 45 |
Max. Travel Speed (m/min) | 30 | 30 | 30 | 30 | 30 | 30 |
Min. Ground Clearance (mm) | 180 | 180 | 200 | 200 | 200 | 200 |
Max. Undercutting Depth (mm) | 450 | 500 | 500 | 500 | 500 | 500 |
Gradeability (°) | ±16° | ±16° | ±16° | ±16° | ±16° | ±16° |
Track Shoe Width (mm) | 260 | 300 | 300 | 300 | 300 | 300 |
Track Ground Pressure (MPa) | 0.09 | 0.09 | 0.1 | 0.1 | 0.1 | 0.1 |
Center of Gravity Position (mm) | Xg=694 | Xg=763 | Xg=788 | Xg=815 | Xg=842 | Xg=850 |
Yg=30 | Yg=34 | Yg=35 | Yg=44 | Yg=85 | Yg=100 | |
Noise (dBA) | ≤90 | ≤90 | ≤90 | ≤90 | ≤90 | ≤90 |
Diesel Engine - Installed Power (kW) | 62 | |||||
Starting Method | Electric Start | |||||
Protection Type | Electric Protection | |||||
Engine Speed | 2200rpm | |||||
Travel Working Pressure (MPa) | 20 | 20 | 23 | 23 | 23 | 23 |
System Working Pressure (MPa) | 18 | 18 | 20 | 20 | 20 | 20 |
Operating Weight (without fuel) (kg) | 5200 | 6500 | 7500 | 7900 | 8200 | 9000 |
Applicable Scenarios
For underground mining and tunneling projects, the Side Dump Rock Loader has become a core piece of material handling equipment, with the Best Side Dump Rock Loader and Best Side Unloading Loader setting industry benchmarks for efficiency and adaptability. This equipment excels in narrow coal mine roadways, metal mine development tunnels, and small-section engineering tunneling sites where space is constrained. In coal mines, it efficiently clears broken coal and rock after blasting, coordinating with mining trucks to streamline material transfer; in metal mines, its strong insertion force and nimble bucket movement handle ore and gangue with precision, cutting down cycle times. In municipal tunnel projects, its adjustable unloading height enables seamless docking with different transport vehicles, eliminating workflow bottlenecks. Whether for high-intensity continuous operations or complex underground terrain, the Side Dump Rock Loader delivers reliable performance, making the Best Side Dump Rock Loader and Best Side Unloading Loader top choices for global mining and tunneling contractors seeking to boost productivity.
About us
As a deep cultivator in the equipment manufacturing field, Shandong Kechuang Equipment Manufacturing Co., Ltd. has always taken technological innovation as its engine and relied on its two core advantages to consolidate its development foundation. The company has formed an elite team of over 50 professional designers, among whom there are senior engineers and highly educated technical talents with more than ten years of experience in the industry. The team can precisely meet the personalized needs of customers, providing solid technical support for the customization of various equipment with its refined and intelligent design capabilities, from scheme design, 3D modeling to performance simulation.

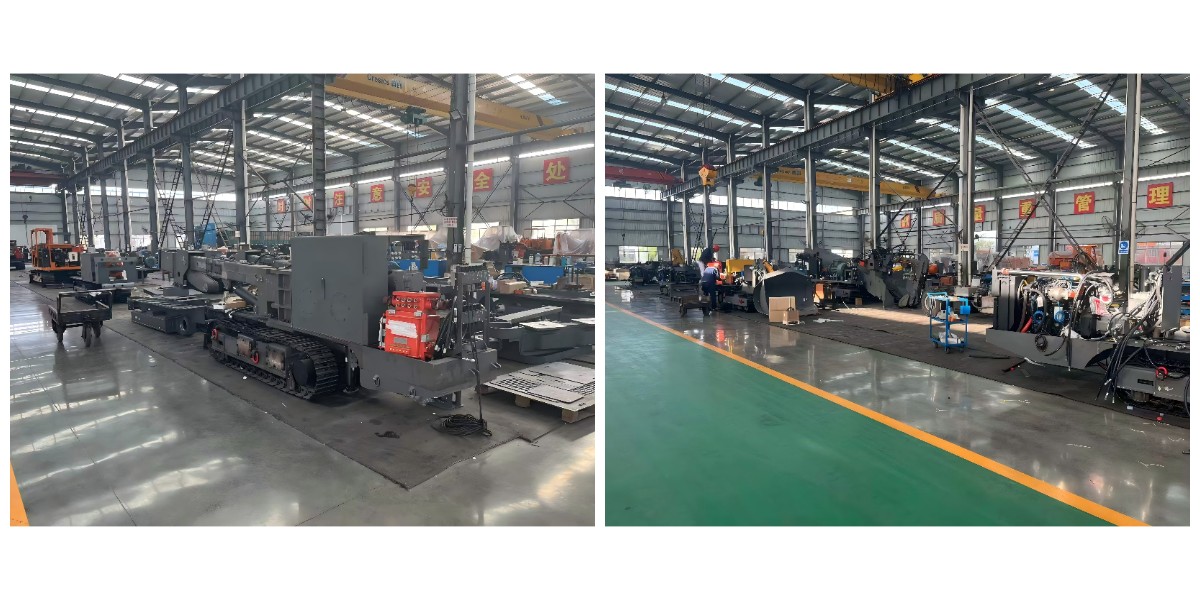

Meanwhile, the company has its own modern assembly workshop with independent property rights. The workshop is equipped with multiple sets of high-precision assembly equipment and a complete quality inspection system, achieving full-process independent control from the assembly of core components to the debugging of complete machines. The efficient collaboration between the design team and the assembly workshop not only shortens the product research and development and production cycle but also ensures that every piece of equipment leaving the factory meets strict quality standards. This effectively helps customers reduce costs and increase efficiency, continuously providing high-reliability equipment solutions for fields such as energy, chemical engineering, and construction machinery, demonstrating Shandong Kechuang's strong capabilities in the intelligent manufacturing race.
