Best Side Rock Loader
1.It is powerful and equipped with a high-performance diesel engine
2.The power output is stable and long-lasting, easily handling the loading operation of high-hardness rocks
3.It can still maintain efficient operation in harsh environments with a lot of dust and high humidity
Product Details

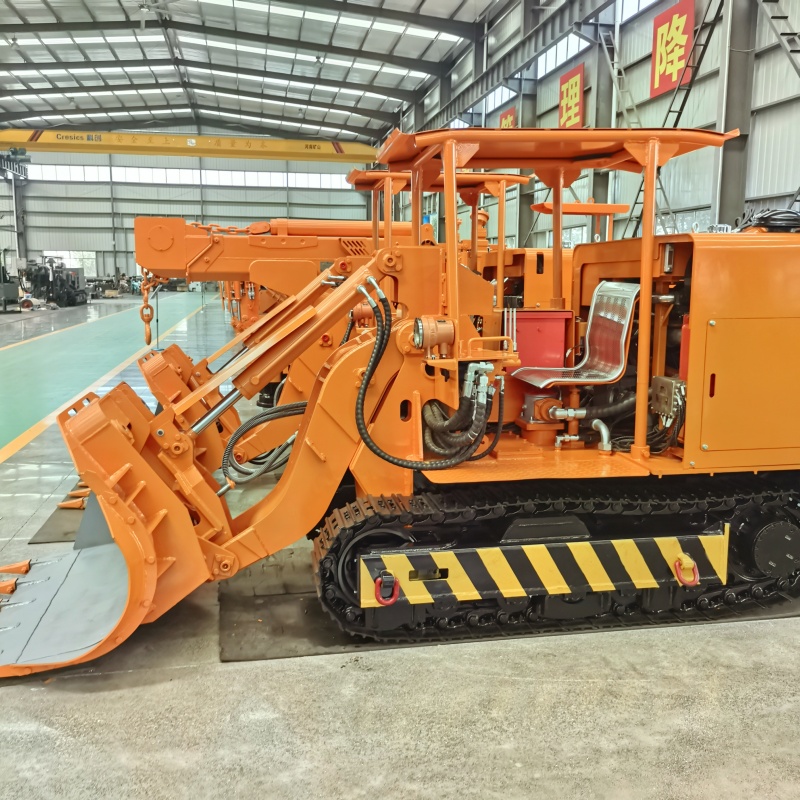

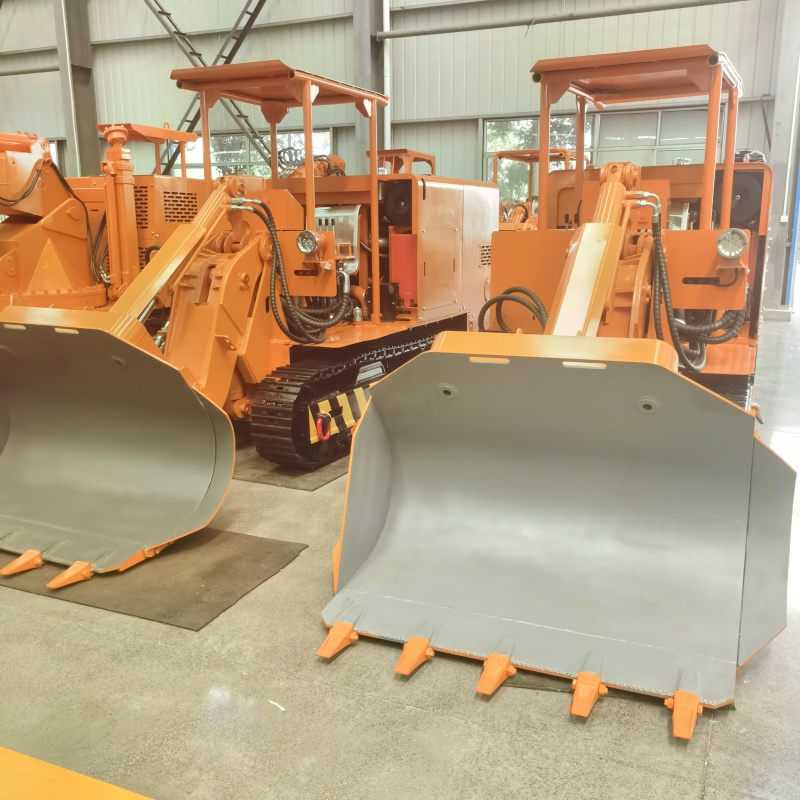

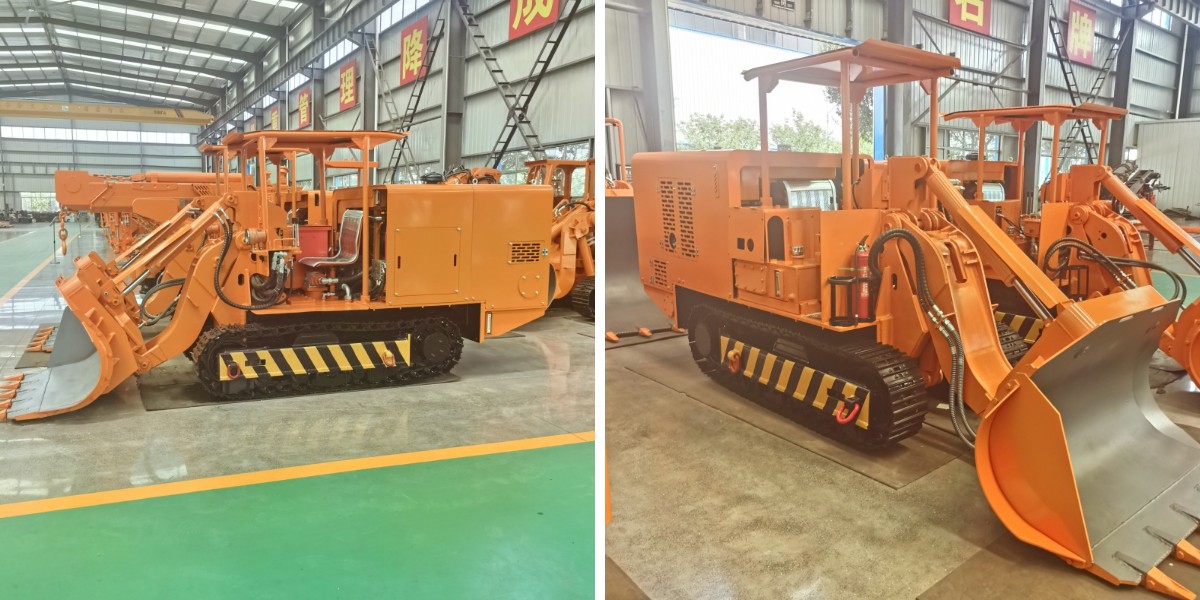

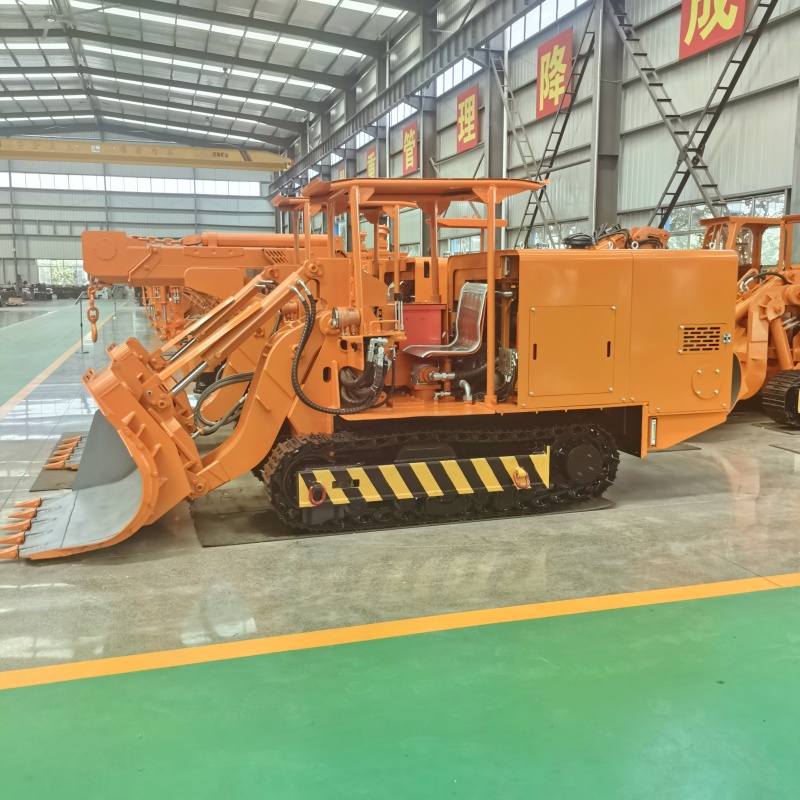

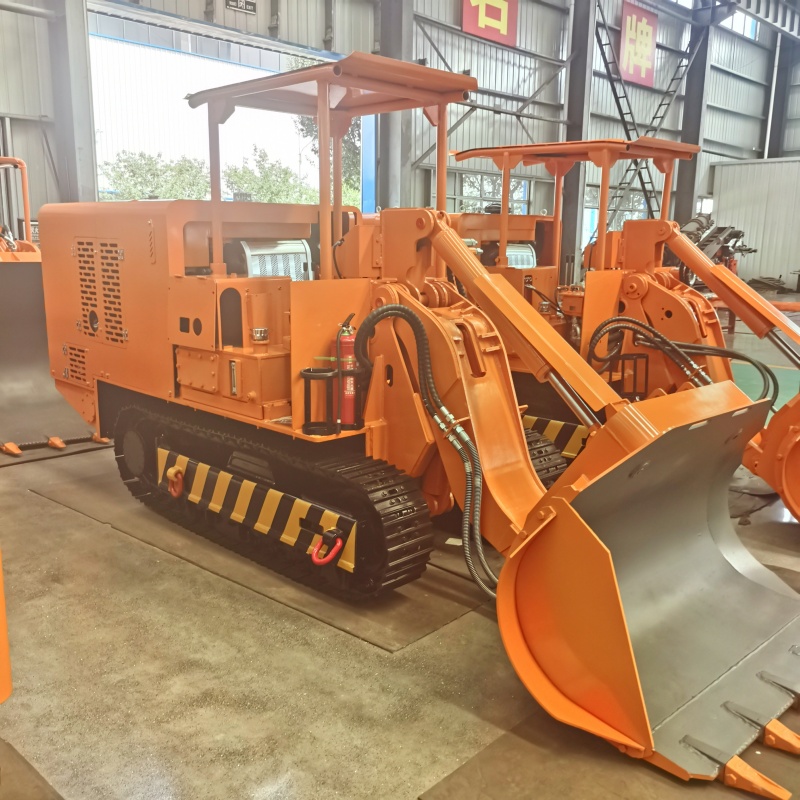

The Side Dump Loader is equipped with a high-performance diesel engine, providing abundant power and a power output far exceeding that of equipment of the same level. In response to the high-load operation requirements of mines, it can maintain a stable power output during continuous operation.
The power system of the side-unloading rock loading machine stands out particularly in terms of adaptability to extreme environments. It is equipped with dual protection mechanisms of overheat and overload. When the oil temperature or oil pressure is abnormal, it will automatically reduce the speed to prevent damage to the core components. The strong power and high reliability features ensure continuous operation without interruption in harsh environments such as slippery, dusty, high and low temperatures.

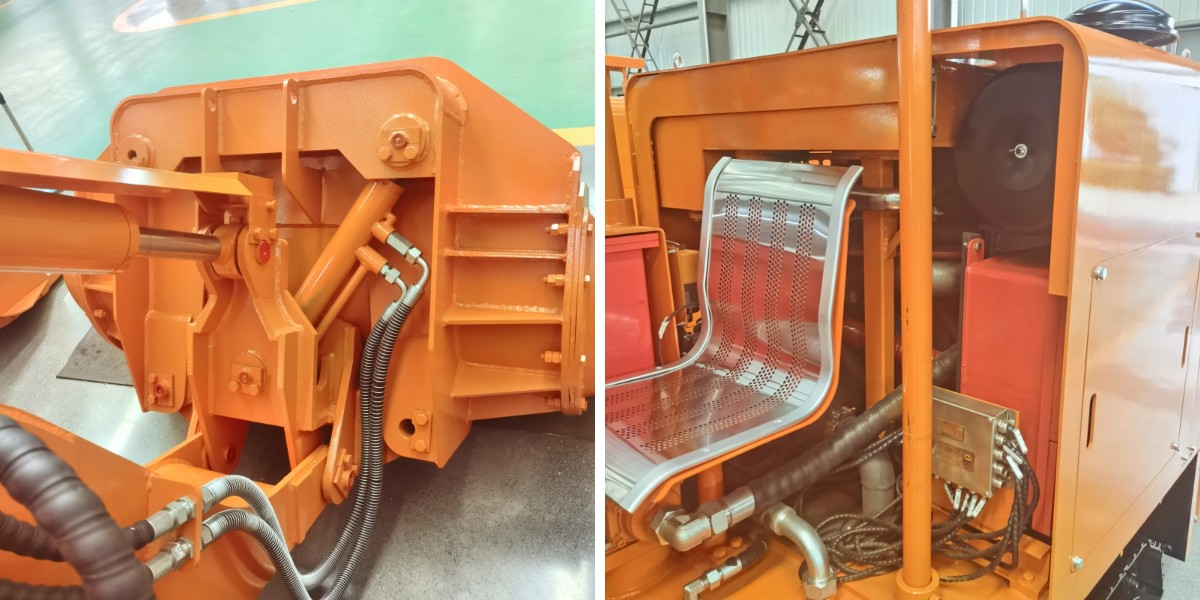

Relying on its powerful performance, it has derived multiple performance advantages. It has strong track drive, strong climbing ability, and is more composed when turning and getting out of difficult situations in narrow tunnels. The hydraulic system has stable working performance. The response speed of the bucket lifting and side-unloading actions is fast. Combined with the large-capacity bucket, it achieves a dual improvement in power and efficiency.
It is widely applicable to various types of mine tunnel loading operations. The outstanding performance of its power system makes it the preferred equipment for harsh working conditions such as high-hardness rock strata and long-distance tunneling, completely solving the pain points of insufficient power and frequent shutdowns of traditional equipment.
Parameters
Product Model | ZCN60R | ZCN80R | ZCN100R | ZCN120R | ZCN150R | ZCN180R |
Overall Dimensions (L*W*H mm) | 4495*1525*2058 | 4585*1696*2088 | 4855*1922*2122 | 5125*2385*2155 | 5225*2433*2175 | 5380*2590*2200 |
Bucket Capacity (m³) | 0.6 | 0.8 | 1 | 1.2 | 1.5 | 1.8 |
Bucket Width (mm) | 1510 | 1636 | 1636 | 1820 | 2120 | 2420 |
Max. Dumping Height (mm) | 1700 | 1900 | 1900 | 1900 | 2000 | 2000 |
Max. Dumping Angle (°) | 55 | 55 | 55 | 55 | 55 | 55 |
Max. Traction Force (KN) | 25 | 40 | 40 | 50 | 50 | 50 |
Rated Traction Force (KN) | 20 | 30 | 30 | 45 | 45 | 45 |
Max. Travel Speed (m/min) | 30 | 30 | 30 | 30 | 30 | 30 |
Min. Ground Clearance (mm) | 180 | 180 | 200 | 200 | 200 | 200 |
Max. Undercutting Depth (mm) | 450 | 500 | 500 | 500 | 500 | 500 |
Grade ability (°) | ±16° | ±16° | ±16° | ±16° | ±16° | ±16° |
Track Shoe Width (mm) | 260 | 300 | 300 | 300 | 300 | 300 |
Track Ground Pressure (MPa) | 0.09 | 0.09 | 0.1 | 0.1 | 0.1 | 0.1 |
Center of Gravity Position (mm) | Xg=694 | Xg=763 | Xg=788 | Xg=815 | Xg=842 | Xg=850 |
Yg=30 | Yg=34 | Yg=35 | Yg=44 | Yg=85 | Yg=100 | |
Noise (dBA) | ≤90 | ≤90 | ≤90 | ≤90 | ≤90 | ≤90 |
Diesel Engine - Installed Power (kW) | 62 | |||||
Starting Method | Electric Start | |||||
Protection Type | Electric Protection | |||||
Engine Speed | 2200rpm | |||||
Travel Working Pressure (MPa) | 20 | 20 | 23 | 23 | 23 | 23 |
System Working Pressure (MPa) | 18 | 18 | 20 | 20 | 20 | 20 |
Operating Weight (without fuel) (kg) | 5200 | 6500 | 7500 | 7900 | 8200 | 9000 |
Model Explanation
Ⅰ. Prioritize Operating Conditions When Selecting a Best Side Rock Loader
For underground mine roadway applications, first confirm the roadway width and height to select a model matching the roadway dimensions:
① ZCN60R and ZCN80R feature a compact body with an overall width of 1510–1636 mm, ideal for operation in space-constricted small-section roadways or maintenance roadways.
② ZCN100R and ZCN120R are suitable for conventional underground mines and tunnels, striking a balance between passability and loading efficiency.
③ ZCN150R and ZCN180R have a larger body, designed for main haulage roadways with sufficient cross-section.
Ⅱ. Selection Based on Operating Conditions and Actual Road Conditions
Models of ZCN120R and above boast high traction force and overall machine weight, as well as excellent stability, making them suitable for high-load and long-term continuous operation scenarios. With a climbing angle of 16° and low ground contact pressure, they ensure stable operation in roadways. All equipment is adaptable to complex road conditions and can be customized and adjusted according to actual operating requirements.
