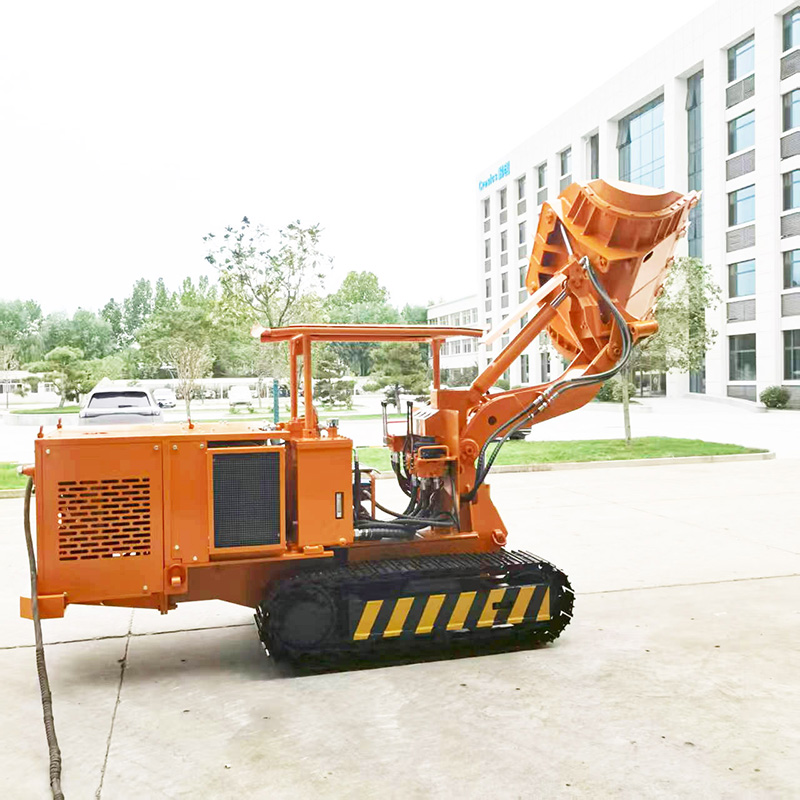

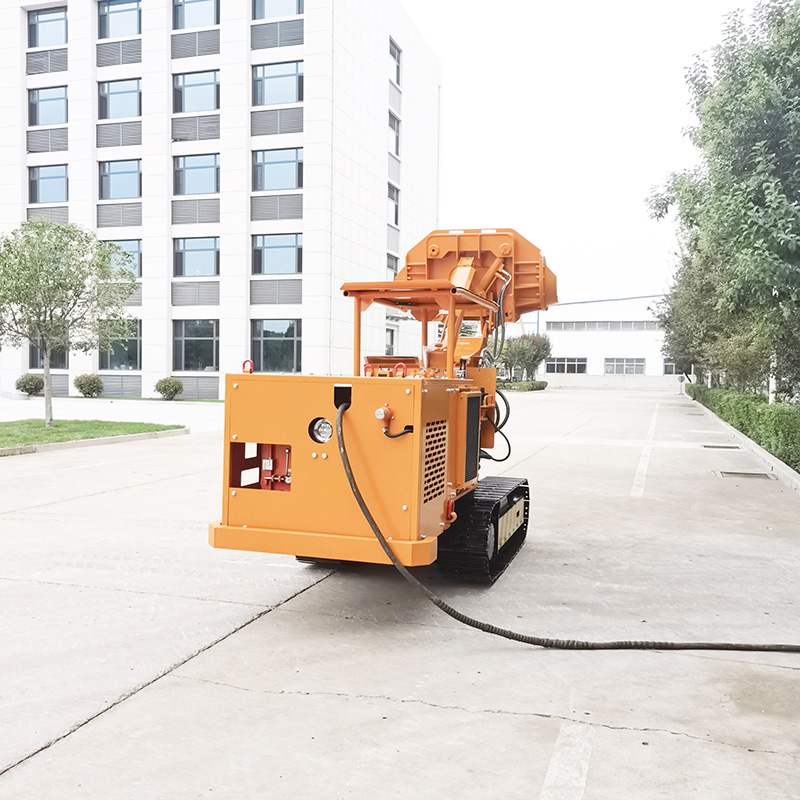

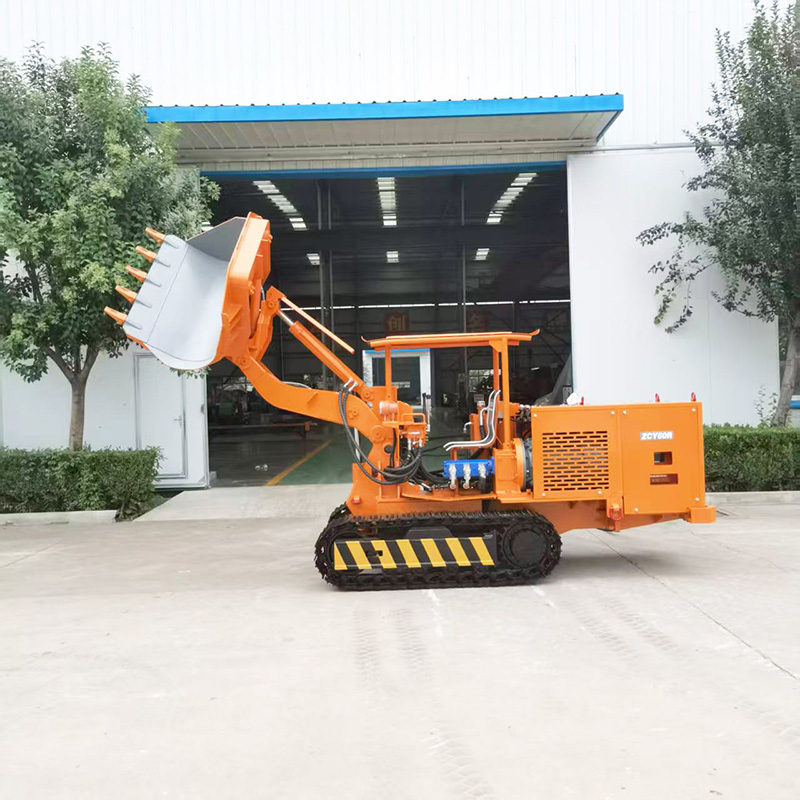

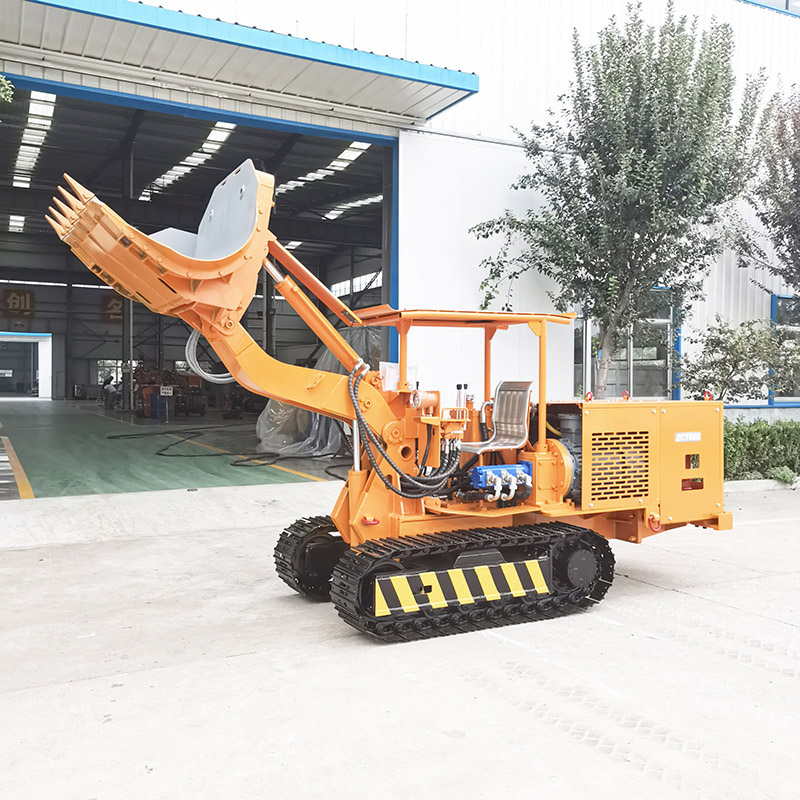

Rock Loader
1. Efficient loading solution
It adopts a crawler drive design, has strong insertion operation capabilities, and supports full-section synchronous loading. It is suitable for tunnel construction with different slopes and can highlight its advantages of efficient operation in complex cross-section environments.
2. All-round supporting advantages
It has outstanding comprehensive supporting performance, compact and flexible body design, and can quickly adapt to various tunnel equipment combinations. It can form a modular operation unit with anchor support systems, transportation machinery, etc., significantly improving construction efficiency.
3. Full-scenario operation capability
Different from conventional equipment, its bucket has dual functions: it can not only lift heavy components such as tires, but also complete short-distance material transportation; the elevating work platform design greatly improves the efficiency of roof management; the integrated hydraulic interface can supply energy for a variety of ancillary equipment; the revolutionary cleaning system enables 100% mechanized loading of the working surface for the first time, truly achieving "shovel-free" operating standards.
The side-discharging rock loader is a new generation of crawler trackless loading tool in the mining field. It focuses on loading coal, rock and ore in coal mines and other types of mine tunnels, and also performs well in rock loading scenarios in small-section all-rock tunnels. The equipment has distinctive features, strong insertion force, and can quickly cut into materials; it has good maneuverability and can move freely in complex tunnel environments; it can carry out full-section operations to improve the operation coverage; it has guaranteed safety to ensure the safety of operations; it also has the characteristics of a multi-purpose machine.
It can not only complete loading tasks, but also provide power support for hydraulic drilling tools, serve as a working platform during support operations, and realize short-distance transportation, undercover, and cleaning functions on the working surface.

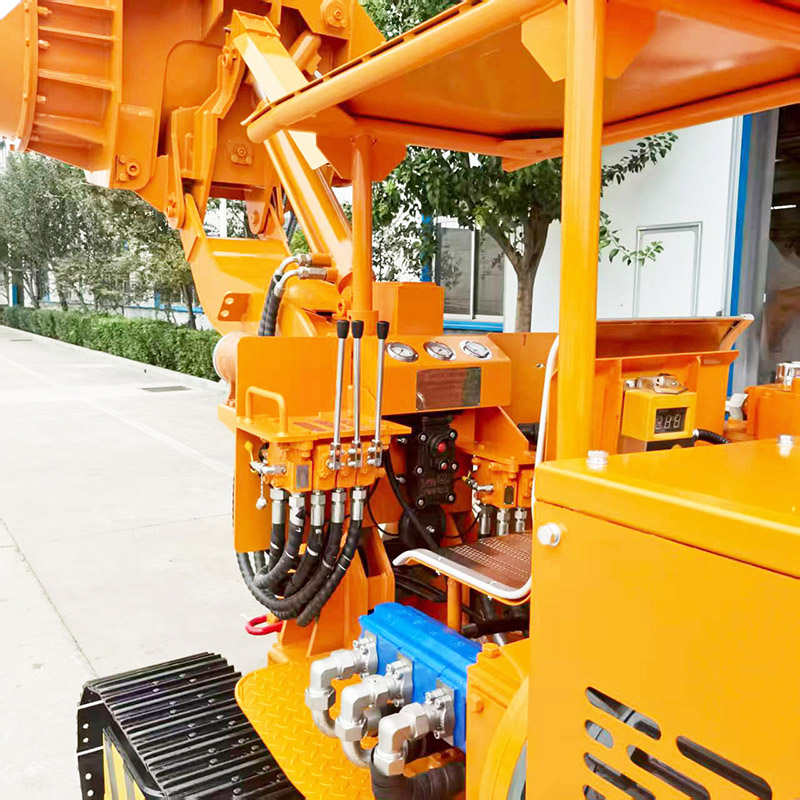

If a breaker is installed, it can easily break large rocks and coal, speed up the excavation process, and create considerable comprehensive economic benefits. It consists of seven key parts, including the side-mounted shovel mechanism, crawler traveling assembly, frame assembly, hydraulic operating system, driving control system, and electrical system. Each part works closely together to ensure efficient and stable operation of the equipment. Users can select appropriate equipment based on the actual conditions of the tunnel section and loading efficiency requirements.

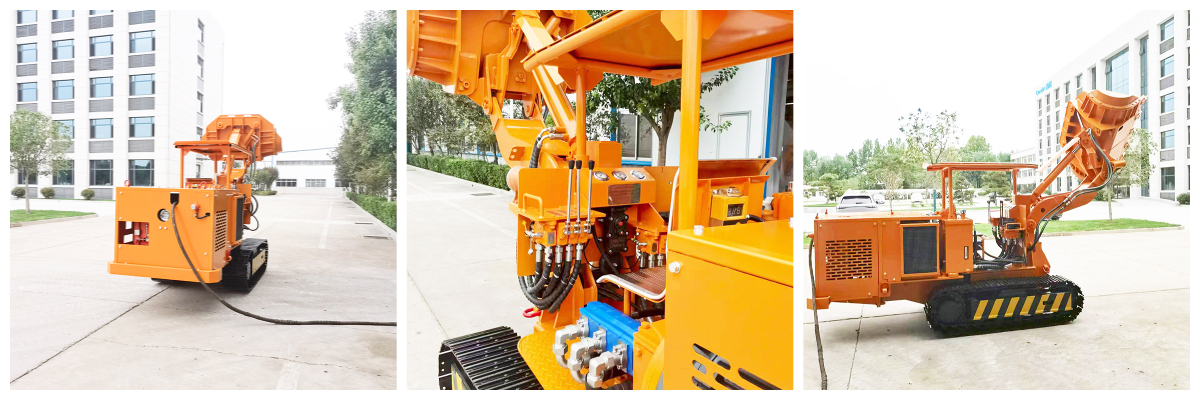

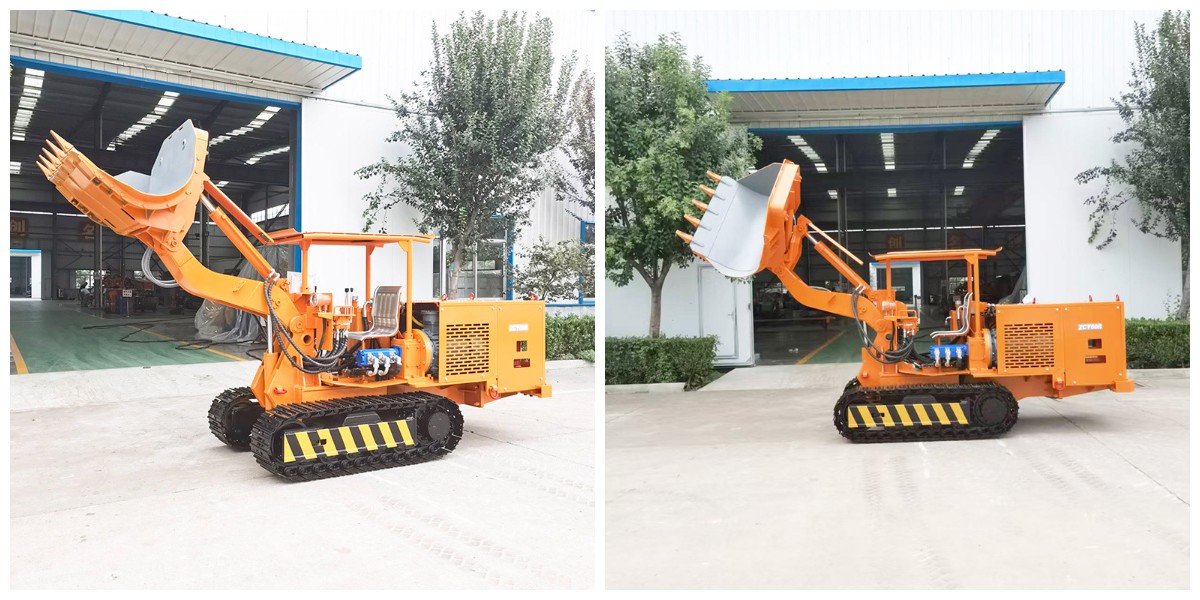

Product Details
Parameters
Product Model | ZCY45R | ZCY60R | ZCY80R | ZCY100R | ZCY120R | |
Technical Bucket Capacity (m³) | 0.45 | 0.60 | 0.80 | 1.00 | 1.2 | |
Main Motor Power (kW) | 30 | 45 | 55 | |||
Voltage (V) | 660/1140 | 660/1140 | ||||
Bucket Width (mm) | 1370 | 1520 | 1696 | 1696 | 1876 | |
Maximum Dumping Height (mm) | ≥1460 | ≥1320 | ≥1600 | ≥1900 | ≥2000 | |
Maximum Digging Depth (mm) | ≥400 | ≥400 | ≥400 | ≥500 | ≥500 | |
Gradeability (°) | ≥16 | ≥16 | ≥16 | ≥16 | ≥16 | |
Traction Force (kN) | ≥20 | ≥20 | ≥40 | ≥40 | ≥40 | |
Minimum Ground Clearance (mm) | ≥180 | ≥180 | ≥200 | ≥200 | ≥200 | |
Maximum Travel Speed (m/s) | ≥0.5 | ≥0.5 | ≥0.81 | ≥0.81 | ≥0.81 | |
Working Mechanism Pressure (MPa) | 16±0.5 | 16±0.5 | 16±0.5 | 16±0.5 | 16±0.5 | |
Travel Motor Pressure (MPa) | 22±0.5 | 22±0.5 | 22±0.5 | 22±0.5 | 22±0.5 | |
External Oil Port Pressure (MPa) | 20±0.5 | |||||
Noise (Sound Pressure Level) (dB) | ≤90 | |||||
Center of Gravity Position | Xg=635 | Xg=650 | Xg=710 | Xg=750 | Xg=780 | |
Track Ground Pressure (MPa) | 0.09 | 0.1 | ||||
Overall Dimensions | Length (mm) | 4490 | 4580 | 5100 | 5330 | 5370 |
Width (mm) | 1425 | 1520 | 1696 | 1696 | 1876 | |
Height (mm) | 2046 | 2046 | 2100 | 2300 | 2300 | |
Dry Weight(kg) | 4500 | 4650 | 7350 | 8300 | 8500 | |
