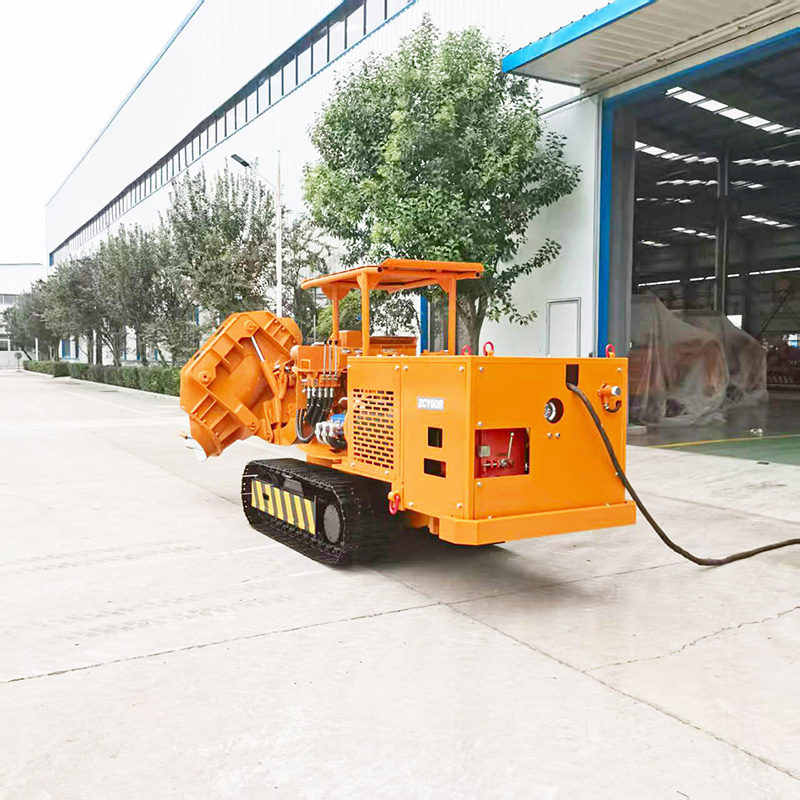

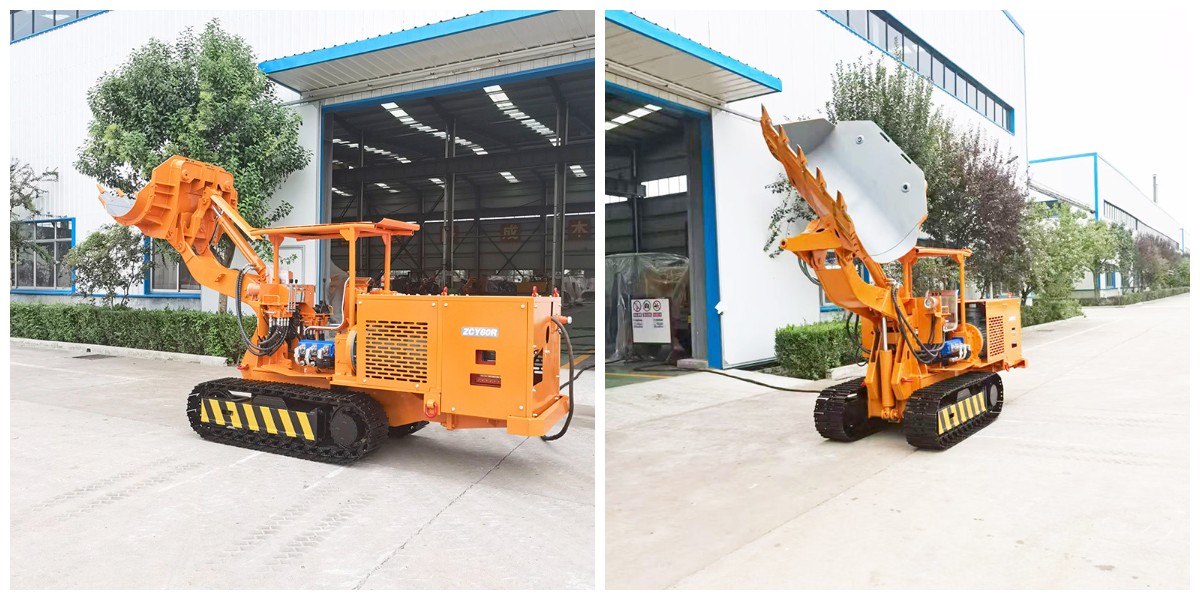

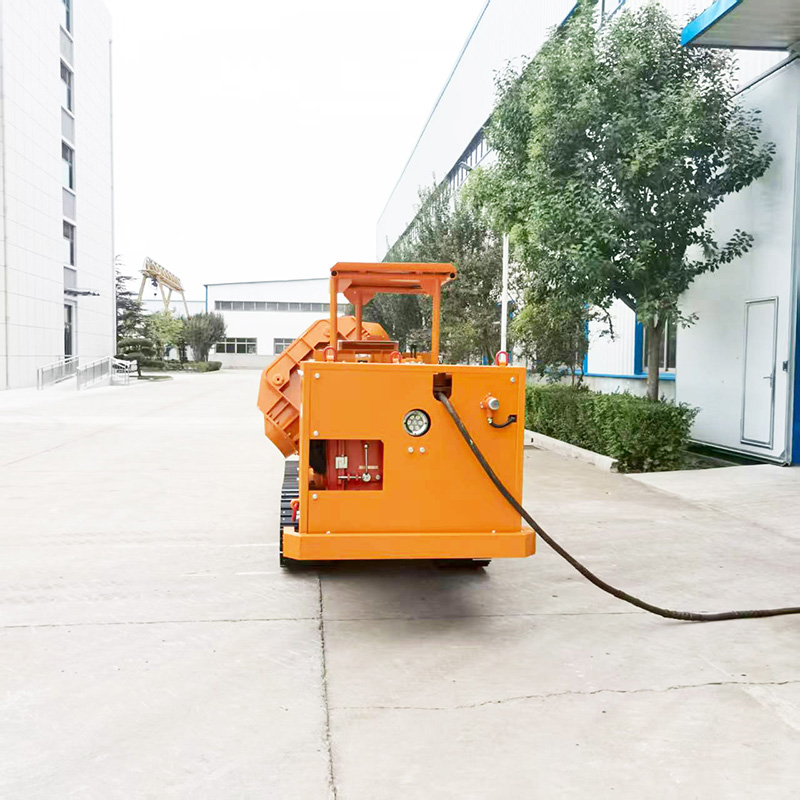

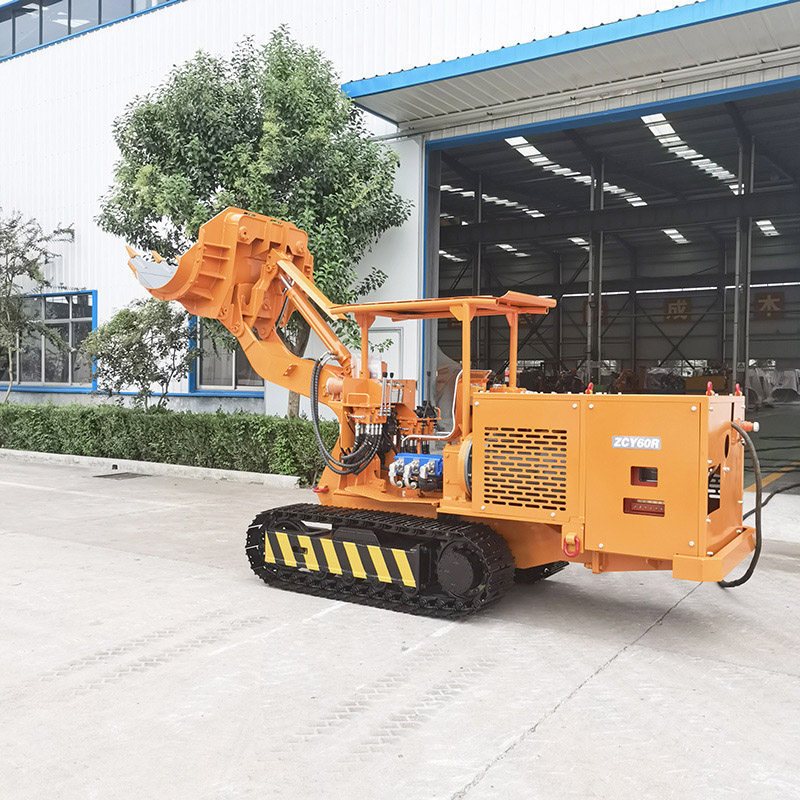

Crawler Rock Loader
1. All-round loading expert
Equipped with a high-torque crawler traveling system, it can realize full-section loading operations without dead corners. It is especially suitable for the construction of large-section tunnels and intersections, and its efficient operation capability can significantly improve the progress of the project.
2. Intelligent integrated solutions
It adopts a flexible supporting design and has both high mobility and strong adaptability. It can achieve plug-and-play connection with a full range of tunnel equipment such as drilling, support, and transportation to build an intelligent construction ecological chain.
3. Breakthrough in compound operations
The equipment achieves four core functions through innovative design: the bucket can carry heavy support materials and complete short-distance transportation; after lifting, it forms a stable working platform to support roof maintenance; the hydraulic power center can provide continuous power for equipment such as anchor drills; and the deep cleaning system realizes the automation of the entire bottom-hole loading process for the first time, completely eliminating the need for manual assistance.
In mining operations, side discharge rock loaders are outstanding representatives of the new generation of crawler trackless loading equipment. It is mainly used for loading coal, rock and ore in tunnels of coal mines and other mines, and is also capable of loading rocks in small-section full-rock tunnels. This equipment has the advantages of queue, large insertion force, and can easily cope with various impacts; good maneuverability, and can flexibly turn in narrow and curved tunnels; it has full-section operating capabilities to improve operating efficiency; it has good safety, providing a safe working environment for operators; and it has multiple functions, making one machine multi-purpose.

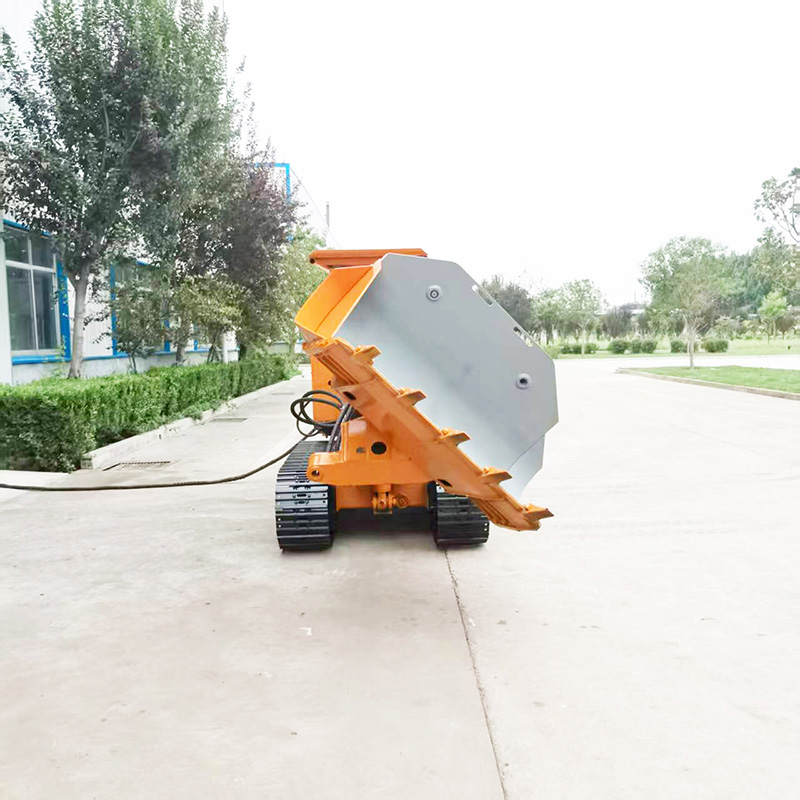

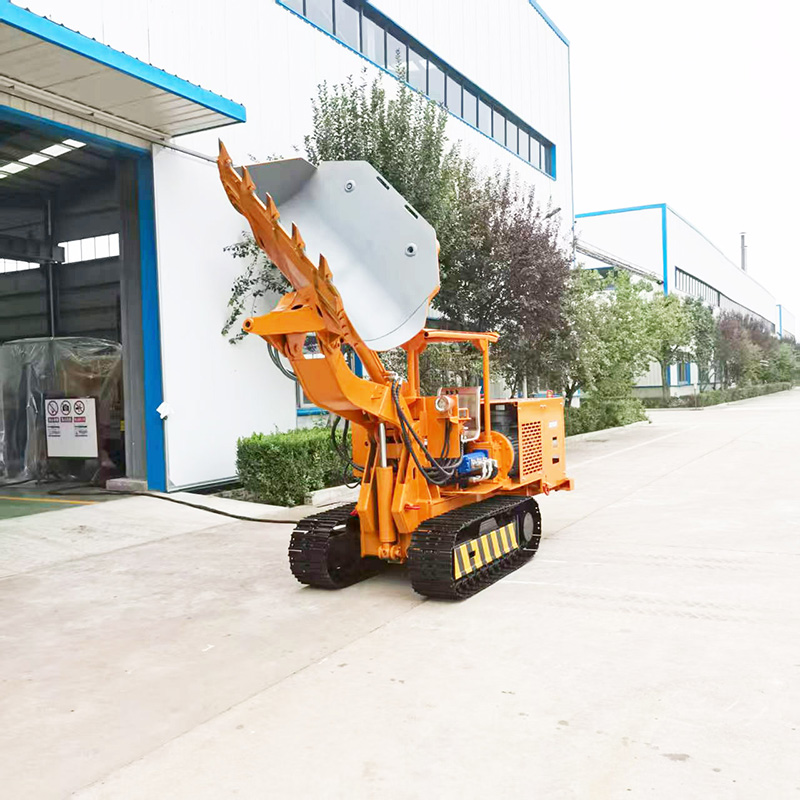

In addition to loading, it can also provide power for hydraulic drilling tools and serve as a working platform during support to complete short-distance transportation, undercover work, and gang cleaning on the working surface. If equipped with a breaker hammer, it can effectively break large rocks and coal, speed up the excavation, and bring good economic benefits. It consists of a side-mounted shovel mechanism, crawler traveling assembly, frame assembly, hydraulic operating system, driving control system, electrical system and other parts. All parts work together to ensure the stability and reliability of the equipment. Users can choose the appropriate equipment model based on the actual tunnel section and loading efficiency requirements.
Product Details
Parameters
Product Model | ZCY45R | ZCY60R | ZCY80R | ZCY100R | ZCY120R | |
Technical Bucket Capacity (m³) | 0.45 | 0.60 | 0.80 | 1.00 | 1.2 | |
Main Motor Power (kW) | 30 | 45 | 55 | |||
Voltage (V) | 660/1140 | 660/1140 | ||||
Bucket Width (mm) | 1370 | 1520 | 1696 | 1696 | 1876 | |
Maximum Dumping Height (mm) | ≥1460 | ≥1320 | ≥1600 | ≥1900 | ≥2000 | |
Maximum Digging Depth (mm) | ≥400 | ≥400 | ≥400 | ≥500 | ≥500 | |
Gradeability (°) | ≥16 | ≥16 | ≥16 | ≥16 | ≥16 | |
Traction Force (kN) | ≥20 | ≥20 | ≥40 | ≥40 | ≥40 | |
Minimum Ground Clearance (mm) | ≥180 | ≥180 | ≥200 | ≥200 | ≥200 | |
Maximum Travel Speed (m/s) | ≥0.5 | ≥0.5 | ≥0.81 | ≥0.81 | ≥0.81 | |
Working Mechanism Pressure (MPa) | 16±0.5 | 16±0.5 | 16±0.5 | 16±0.5 | 16±0.5 | |
Travel Motor Pressure (MPa) | 22±0.5 | 22±0.5 | 22±0.5 | 22±0.5 | 22±0.5 | |
External Oil Port Pressure (MPa) | 20±0.5 | |||||
Noise (Sound Pressure Level) (dB) | ≤90 | |||||
Center of Gravity Position | Xg=635 | Xg=650 | Xg=710 | Xg=750 | Xg=780 | |
Track Ground Pressure (MPa) | 0.09 | 0.1 | ||||
Overall Dimensions | Length (mm) | 4490 | 4580 | 5100 | 5330 | 5370 |
Width (mm) | 1425 | 1520 | 1696 | 1696 | 1876 | |
Height (mm) | 2046 | 2046 | 2100 | 2300 | 2300 | |
Dry Weight(kg) | 4500 | 4650 | 7350 | 8300 | 8500 | |
