Mucking Loader For Small Tunnels
1. New options for full-process operations
It achieves one-stop operation of slag removal, loading, conveying and loading without the need for linkage of multiple equipment. It can be equipped with crushing tools, cable retraction and release, conveyor belts, etc. The slag removal machine can be customized as needed.
2. Unimpeded travel on complex terrain, convenient maintenance and cost savings
The crawler model can adapt well to complex terrain conditions such as mud and loose sand due to its small ground contact pressure. Its modular design allows key components such as the hydraulic arm to be quickly disassembled and replaced, effectively shortening maintenance time. At the same time, electric drive eliminates the need for diesel engine oil, filters and other consumables, resulting in lower maintenance costs.
The application scenarios of slag scrapers cover a wide range of applications. In the mining process, whether it is the mining and loading operations of metallic or non-metallic ores, or the excavation and loading operations of different sections such as inclined shafts, vertical shafts, and tunnels, it can efficiently handle it. In engineering fields such as tunnel excavation and diversion tunnels, slag scrapers also demonstrate their extraordinary capabilities. Its fully hydraulic crawler chassis and backhoe system can accurately grab rocks or ores, and quickly transfer materials to rear equipment, such as mine trucks or belt conveyors, through the central scraper conveyor to achieve continuous slag discharging operations.
The powerful hydraulic crawler drive device gives it good climbing ability and can maintain stable operation even in complex and rugged terrain or wet and water-logged tunnels. In the blasting excavation process, the slag scraper needs to be parked 20 meters away to make room for the drill rig to drill holes. After the explosive blasting is completed, the scattered slag and rocks are quickly cleaned up and seamlessly cooperated with subsequent secondary transport belt conveyors, scraper conveyors and other equipment to ensure a compact and efficient operation process.

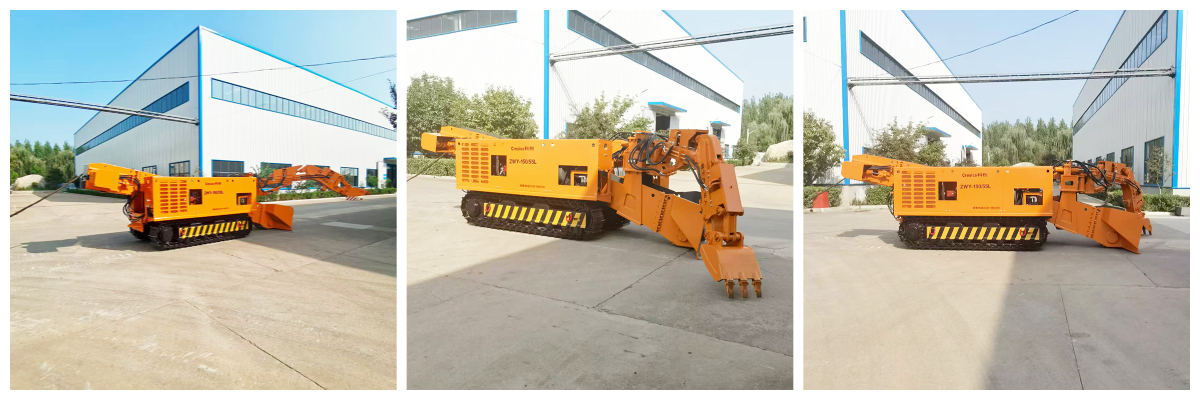

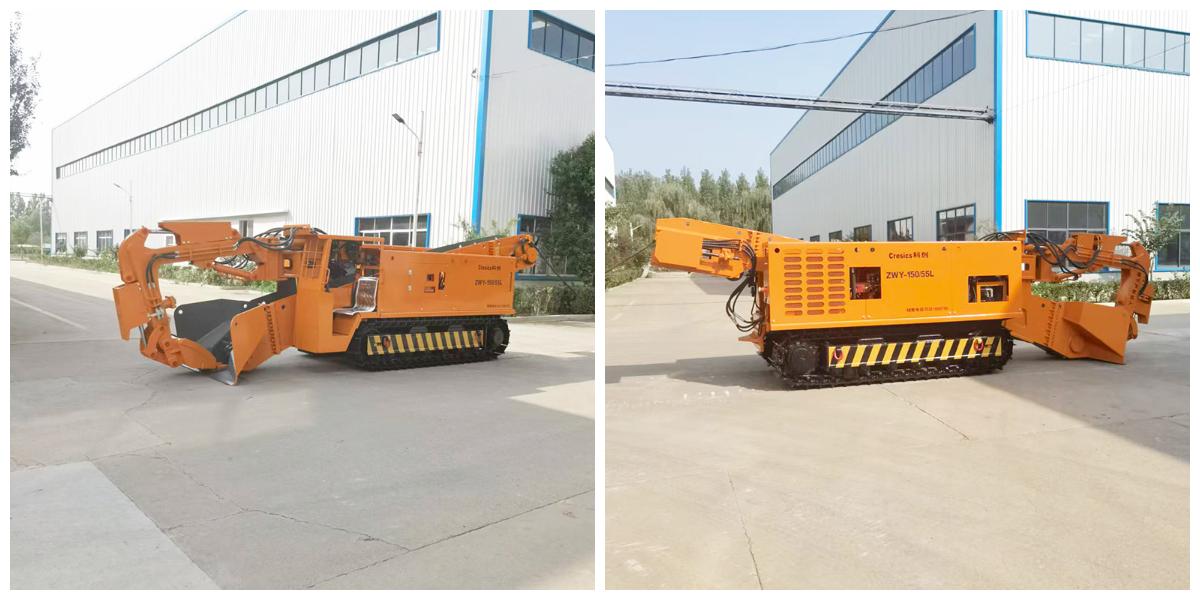

Product Details
Parameters
Item | ZWY-80/30L | ZWY-80/37L | ZWY-80/45L | ZWY-100/45L | ZWY-120/65L | ZWY-150/55L | ZWY-180/75L | ZWY-220/75L | |
Main Technical Parameters | |||||||||
Applicable Section (Width × Height) m | 3.2×2.2 | 3.5×2.5 | 4×2.5 | 4.8×3.2 | 5.4×4.0 | 5.8×4.5 | 6.2×5 | 7.5×5.5 | |
Applicable Axis Width* | (-16° ~ +16°) | (-20° ~ +20°) | ( -32° ~ +32°) | ||||||
Loading Capacity m³/h | 80 | 100 | 120 | 150 | 180 | 220 | |||
Control Mode | Hydraulic Pilot Control | ||||||||
Main Motor Power KW | 30 | 37 | 45 | 55 | 75 | ||||
Digging Width mm | 3200 | 3500 | 4000 | 4600 | 5400 | 5800 | 6200 | 7000 | |
Digging Distance mm | 1500 | 1600 | 1800 | 2150 | 2500 | 3300 | |||
Digging Height mm | 1800 | 2200 | 3000 | 3500 | 3800 | 4000 | 4300 | ||
Digging Depth mm | 400 | 500 | 800 | 990 | 1050 | ||||
Unloading Height (Adjustable) mm | 1200 | 1450 | 2000 | ||||||
Unloading Distance (Adjustable) mm | 1150 | ||||||||
Max. Rotation Angle* | ±36° | ±45° | ±55° | ||||||
Max. Transport Material Size mm | < φ500 | < φ580 | < φ625 | < φ780 | |||||
Boom Structure | Single Boom | Single Boom (or Double Boom) | Double Boom | ||||||
Hoisting Speed m/min | 44 | ||||||||
Track Gauge (Adjustable) mm | 890 | 890 | 900 | 1110 | 1190 | 1400 | |||
Travel Speed m/s | 0.5 | ||||||||
Ground Clearance mm | 300 | ||||||||
Min. Turning Radius m | ≥ 5 | ≥ 7 | ≥ 8 | ||||||
Ground Pressure MPa | ≤ 0.1 | ||||||||
Rated Working Pressure MPa | 23 | ||||||||
Max. Bucket Size | Length mm | 3350 | 4200 | ||||||
Width mm | 850 | 900 | 1000 | 1100 | 1200 | ||||
Height mm | 1200 | 1400 | 1500 | 1650 | |||||
Max. Bucket Weight Kg | 2300 | 3000 | 3500 | ||||||
Max. Overall Dimensions (Working) | Length mm | 6000 | 6500 | 6800 | 7000 | 7500 | 8800 | ||
Width mm | 1750 | 1800 | 2200 | 2350 | 2640 | ||||
Height mm | 1750 | 1750 | 1800 | 2900 | 3250 | 3600 | 3800 | 4200 | |
Machine Weight Kg | 7600 | 8000 | 8200 | 11200 | 13800 | 15200 | 17800 | 20000 | |
About us
In 2004, Shandong Cresics Equipment Manufacturing Co., Ltd. came into being. It is a professional equipment enterprise integrating R&D, manufacturing and after-sales service. The company has always regarded technological innovation as its core business philosophy, and has been rated as a national-level specialized, special and new small giant enterprise, a single champion enterprise in Shandong Province, a gazelle enterprise in Shandong Province, and a national high-tech enterprise. The company's products cover the fields of mining anchor digging and transportation, mining automation intelligence and mining auxiliary transportation equipment, and can provide customers with complete equipment comprehensive solutions in multiple fields.
The company has established a complete quality control system for the entire product process from design, manufacturing, inspection to on-site use and after-sales service. It can also provide customized designs based on users' actual working conditions and deliver value to customers through the "quality + service" model. The company has passed the three-system certification and is an "AAA" credit certification unit.
