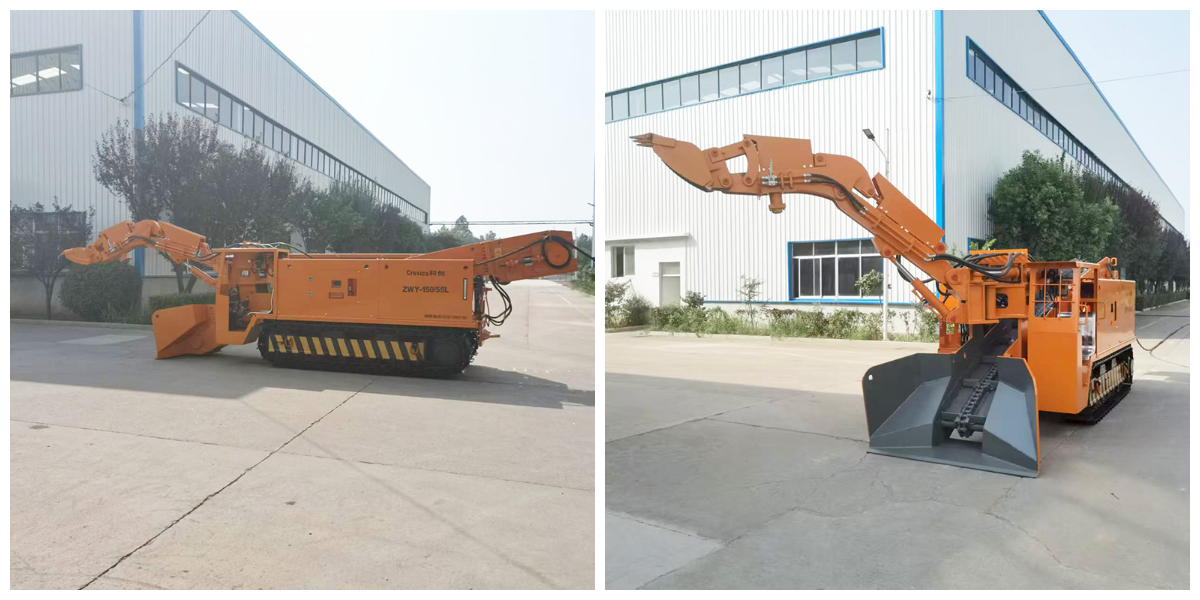

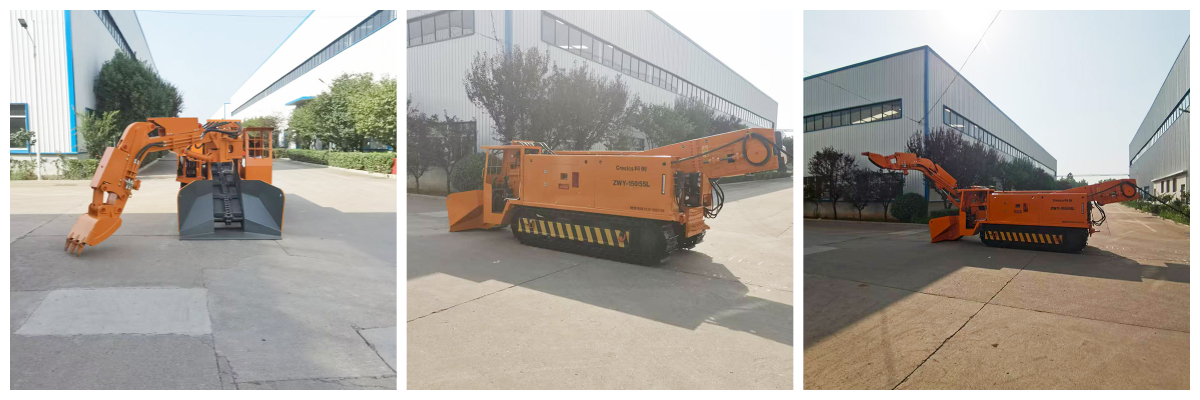

Belt Conveyor Mucking Loader
1. Efficient integrated operation mode
2. Easy to navigate complex terrain, fast maintenance and reduced costs
Product Details
The Belt Conveyor Mucking Loader is an underground mining equipment specially developed by Shandong Kechuang Equipment Manufacturing Co., Ltd. to address the core pain points such as low efficiency, poor adaptability to working conditions, and high safety risks in overseas mines' underground mining operations. It is suitable for various scenarios including coal mines, iron mines, and phosphate mines.
The core excavation and transportation function is equipped with a high-strength scraper bucket, and the cutting edge is designed for wear resistance, enabling easy crushing of large chunks of coal waste. It is combined with a hydraulic drive device to achieve stepless speed regulation. The scraping force and frequency can be precisely adjusted to avoid material jams. The belt conveying capacity can reach up to 220 m³/h, and the continuous conveying capacity is 50% higher than that of traditional equipment, completely solving the problems of slow manual slag removal and material accumulation delaying the construction schedule. The crawler chassis is equipped with anti-slip patterns and a hydraulic leveling system, which can smoothly adapt to slopes of ≤ 32°, narrow tunnels, and waterlogged conditions, resolving the difficulties in passing through complex terrains.
The integrated electro-hydraulic control system enables single-person operation, precisely controlling the integrated process of excavation, transportation, and loading. This reduces manpower input and underground safety risks. The explosion-proof electrical system complies with international safety standards. The wear-resistant tracks and sealed hydraulic components can withstand harsh working conditions. Maintenance only requires routine checks and replacements, and spare parts supply is convenient, significantly reducing the operating costs and downtime of overseas mines.
Parameters
Item | ZWY-80/30L | ZWY-80/37L | ZWY-80/45L | ZWY-100/45L | ZWY-120/65L | ZWY-150/55L | ZWY-180/75L | ZWY-220/75L | |
Main Technical Parameters | |||||||||
Applicable Section (Width × Height) m | 3.2×2.2 | 3.5×2.5 | 4×2.5 | 4.8×3.2 | 5.4×4.0 | 5.8×4.5 | 6.2×5 | 7.5×5.5 | |
Applicable Axis Width* | (-16° ~ +16°) | (-20° ~ +20°) | ( -32° ~ +32°) | ||||||
Loading Capacity m³/h | 80 | 100 | 120 | 150 | 180 | 220 | |||
Control Mode | Hydraulic Pilot Control | ||||||||
Main Motor Power KW | 30 | 37 | 45 | 55 | 75 | ||||
Digging Width mm | 3200 | 3500 | 4000 | 4600 | 5400 | 5800 | 6200 | 7000 | |
Digging Distance mm | 1500 | 1600 | 1800 | 2150 | 2500 | 3300 | |||
Digging Height mm | 1800 | 2200 | 3000 | 3500 | 3800 | 4000 | 4300 | ||
Digging Depth mm | 400 | 500 | 800 | 990 | 1050 | ||||
Unloading Height (Adjustable) mm | 1200 | 1450 | 2000 | ||||||
Unloading Distance (Adjustable) mm | 1150 | ||||||||
Max. Rotation Angle* | ±36° | ±45° | ±55° | ||||||
Max. Transport Material Size mm | < φ500 | < φ580 | < φ625 | < φ780 | |||||
Boom Structure | Single Boom | Single Boom (or Double Boom) | Double Boom | ||||||
Hoisting Speed m/min | 44 | ||||||||
Track Gauge (Adjustable) mm | 890 | 890 | 900 | 1110 | 1190 | 1400 | |||
Travel Speed m/s | 0.5 | ||||||||
Ground Clearance mm | 300 | ||||||||
Min. Turning Radius m | ≥ 5 | ≥ 7 | ≥ 8 | ||||||
Ground Pressure MPa | ≤ 0.1 | ||||||||
Rated Working Pressure MPa | 23 | ||||||||
Max. Bucket Size | Length mm | 3350 | 4200 | ||||||
Width mm | 850 | 900 | 1000 | 1100 | 1200 | ||||
Height mm | 1200 | 1400 | 1500 | 1650 | |||||
Max. Bucket Weight Kg | 2300 | 3000 | 3500 | ||||||
Max. Overall Dimensions (Working) | Length mm | 6000 | 6500 | 6800 | 7000 | 7500 | 8800 | ||
Width mm | 1750 | 1800 | 2200 | 2350 | 2640 | ||||
Height mm | 1750 | 1750 | 1800 | 2900 | 3250 | 3600 | 3800 | 4200 | |
Machine Weight Kg | 7600 | 8000 | 8200 | 11200 | 13800 | 15200 | 17800 | 20000 | |
Frequently Asked Questions
Q1: What underground mining scenarios is this Belt Conveyor Mucking Loader suitable for?
A1: This Belt Conveyor Mucking Loader is widely applicable to a variety of underground mining scenarios, and it is especially suitable for coal mines, iron mines, phosphate mines and other common underground mining working sites in the mining industry.
Q2: What is the maximum belt conveying capacity of this equipment?
A2: The belt system of this Belt Conveyor Mucking Loader has an excellent material conveying performance, and its maximum belt conveying capacity can reach up to 220 cubic meters per hour (220 m³/h).
Q3: How steep a slope can the equipment adapt to stably?
A3: With the support of its professional crawler chassis equipped with anti-slip patterns and a reliable hydraulic leveling system, this equipment can stably and smoothly adapt to underground mining slopes with an inclination of ≤ 32°.
Q4: Can this mucking loader be operated by a single person?
A4: Yes, this Belt Conveyor Mucking Loader is configured with an advanced integrated electro-hydraulic control system, which realizes the precise and integrated control of excavation, transportation and loading processes, and fully supports one-person operation.
