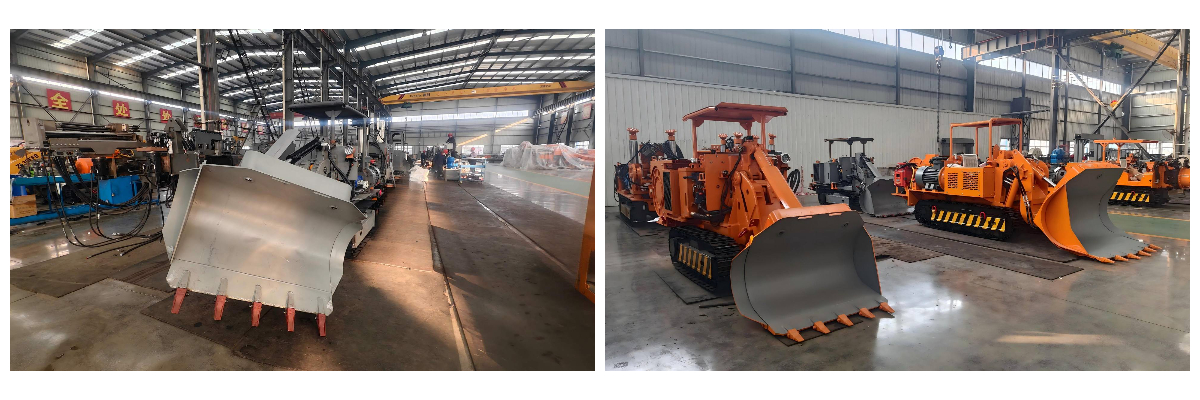

Cheap Price Side Unloading Rock Loader
1.One machine for multiple purposes
It can be equipped with a breaker, supports a quick-change structure, and can complete the exchange of breaker and bucket in 5 minutes; it can realize integrated operations of crushing, shoveling, and short-distance transportation, truly realizing "one machine for multiple purposes."
2.Multifunctional
In addition to loading operations, it can also provide power for hydraulic drilling tools and serve as a support platform for tunnel operations. It is safe to operate and can significantly reduce the loading operation time in dangerous areas.
The fully hydraulic side-discharge rock loader is a new generation of trackless loading equipment that travels on track. It is mainly used for loading coal and rock in the tunnels of coal mines or other mines. It can also be used for small-section full-rock tunnel operations.
The whole machine has strong loading capacity, crawler running mechanism, full-section operation, and is suitable for level and inclined tunnel construction;
Versatility, in addition to loading operations, it can also provide power for hydraulic drilling tools, serve as a support platform, short-distance transportation, undercover, gang cleaning and other tasks;
It is driven by diesel engine and has strong endurance.
Product Details
Parameters
Product Model | ZCN60R | ZCN80R | ZCN100R | ZCN120R | ZCN150R | ZCN180R |
Overall Dimensions (L*W*H mm) | 4500*1510*2060 | 4585*1636*2088 | 4855*1636*2150 | 5200*1820*2150 | 5250*2120*2150 | 5380*2420*2200 |
Bucket Capacity (m³) | 0.6 | 0.8 | 1 | 1.2 | 1.5 | 1.8 |
Bucket Width (mm) | 1510 | 1636 | 1636 | 1820 | 2120 | 2420 |
Max. Dumping Height (mm) | 1700 | 1900 | 1900 | 1900 | 2000 | 2000 |
Max. Dumping Angle (°) | 55 | 55 | 55 | 55 | 55 | 55 |
Max. Traction Force (KN) | 25 | 40 | 40 | 50 | 50 | 50 |
Rated Traction Force (KN) | 20 | 30 | 30 | 45 | 45 | 45 |
Max. Travel Speed (m/min) | 30 | 30 | 30 | 30 | 30 | 30 |
Min. Ground Clearance (mm) | 180 | 180 | 200 | 200 | 200 | 200 |
Max. Undercutting Depth (mm) | 450 | 500 | 500 | 500 | 500 | 500 |
Gradeability (°) | ±16° | ±16° | ±16° | ±16° | ±16° | ±16° |
Track Shoe Width (mm) | 260 | 300 | 300 | 300 | 300 | 300 |
Track Ground Pressure (MPa) | 0.09 | 0.09 | 0.1 | 0.1 | 0.1 | 0.1 |
Center of Gravity Position (mm) | Xg=694 | Xg=763 | Xg=788 | Xg=815 | Xg=842 | Xg=850 |
Yg=30 | Yg=34 | Yg=35 | Yg=44 | Yg=85 | Yg=100 | |
Noise (dBA) | ≤90 | ≤90 | ≤90 | ≤90 | ≤90 | ≤90 |
Diesel Engine - Installed Power (kW) | 62 | |||||
Starting Method | Electric Start | |||||
Protection Type | Electric Protection | |||||
Engine Speed | 2200rpm | |||||
Travel Working Pressure (MPa) | 20 | 20 | 23 | 23 | 23 | 23 |
System Working Pressure (MPa) | 18 | 18 | 20 | 20 | 20 | 20 |
Operating Weight (without fuel) (kg) | 5200 | 6500 | 7500 | 7900 | 8200 | 9000 |
