Track Mucking Loader
1. Adapt to complex road conditions, convenient and efficient maintenance
Crawler equipment can adapt well to complex terrain environments such as mud and loose sand due to its small ground specific pressure. The modular design allows key components such as conveyor belts and hydraulic arms to be quickly replaced, significantly improving maintenance efficiency.
2. One-stop integration
Achieve full-functional operations of slag removal, loading, transportation and loading without the need for multiple equipment.
The application scenarios of the slag scraper are extremely broad. In mining operations, whether it is the mining and loading operations of metallic or non-metallic ores, or the excavation and loading tasks of different sections such as inclined shafts, vertical shafts, and tunnels, it can be efficiently competent. In engineering fields such as tunnel excavation and diversion tunnels, slag scrapers also perform brilliantly.It uses a hydraulic crawler chassis and a backhoe system to accurately grab rocks or ores. The grabbed materials pass through the central scraper conveyor trough and are quickly transferred to the rear mine cars or belt conveyors to achieve continuous slag discharging.
The powerful hydraulic crawler drive configuration gives it excellent climbing ability. Even in complex and rugged terrain areas or humid and water-logged tunnel environments, it can still carry out operations stably. In the blasting excavation process, the slag scraper needs to be parked 20 meters away to create conditions for the drilling rig to drill holes. After the explosive blasting is completed, the scattered slag and rocks are quickly cleaned up and work seamlessly with subsequent secondary transport belt conveyors, scraper conveyors and other equipment to ensure a compact and efficient operation process.

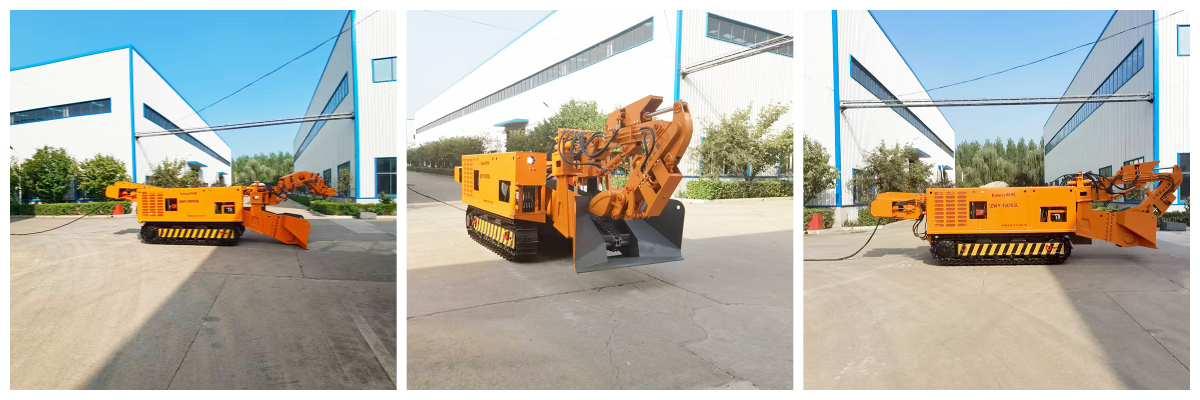

Product Details
Parameters
Item | ZWY-80/30L | ZWY-80/37L | ZWY-80/45L | ZWY-100/45L | ZWY-120/65L | ZWY-150/55L | ZWY-180/75L | ZWY-220/75L | |
Main Technical Parameters | |||||||||
Applicable Section (Width × Height) m | 3.2×2.2 | 3.5×2.5 | 4×2.5 | 4.8×3.2 | 5.4×4.0 | 5.8×4.5 | 6.2×5 | 7.5×5.5 | |
Applicable Axis Width* | (-16° ~ +16°) | (-20° ~ +20°) | ( -32° ~ +32°) | ||||||
Loading Capacity m³/h | 80 | 100 | 120 | 150 | 180 | 220 | |||
Control Mode | Hydraulic Pilot Control | ||||||||
Main Motor Power KW | 30 | 37 | 45 | 55 | 75 | ||||
Digging Width mm | 3200 | 3500 | 4000 | 4600 | 5400 | 5800 | 6200 | 7000 | |
Digging Distance mm | 1500 | 1600 | 1800 | 2150 | 2500 | 3300 | |||
Digging Height mm | 1800 | 2200 | 3000 | 3500 | 3800 | 4000 | 4300 | ||
Digging Depth mm | 400 | 500 | 800 | 990 | 1050 | ||||
Unloading Height (Adjustable) mm | 1200 | 1450 | 2000 | ||||||
Unloading Distance (Adjustable) mm | 1150 | ||||||||
Max. Rotation Angle* | ±36° | ±45° | ±55° | ||||||
Max. Transport Material Size mm | < φ500 | < φ580 | < φ625 | < φ780 | |||||
Boom Structure | Single Boom | Single Boom (or Double Boom) | Double Boom | ||||||
Hoisting Speed m/min | 44 | ||||||||
Track Gauge (Adjustable) mm | 890 | 890 | 900 | 1110 | 1190 | 1400 | |||
Travel Speed m/s | 0.5 | ||||||||
Ground Clearance mm | 300 | ||||||||
Min. Turning Radius m | ≥ 5 | ≥ 7 | ≥ 8 | ||||||
Ground Pressure MPa | ≤ 0.1 | ||||||||
Rated Working Pressure MPa | 23 | ||||||||
Max. Bucket Size | Length mm | 3350 | 4200 | ||||||
Width mm | 850 | 900 | 1000 | 1100 | 1200 | ||||
Height mm | 1200 | 1400 | 1500 | 1650 | |||||
Max. Bucket Weight Kg | 2300 | 3000 | 3500 | ||||||
Max. Overall Dimensions (Working) | Length mm | 6000 | 6500 | 6800 | 7000 | 7500 | 8800 | ||
Width mm | 1750 | 1800 | 2200 | 2350 | 2640 | ||||
Height mm | 1750 | 1750 | 1800 | 2900 | 3250 | 3600 | 3800 | 4200 | |
Machine Weight Kg | 7600 | 8000 | 8200 | 11200 | 13800 | 15200 | 17800 | 20000 | |

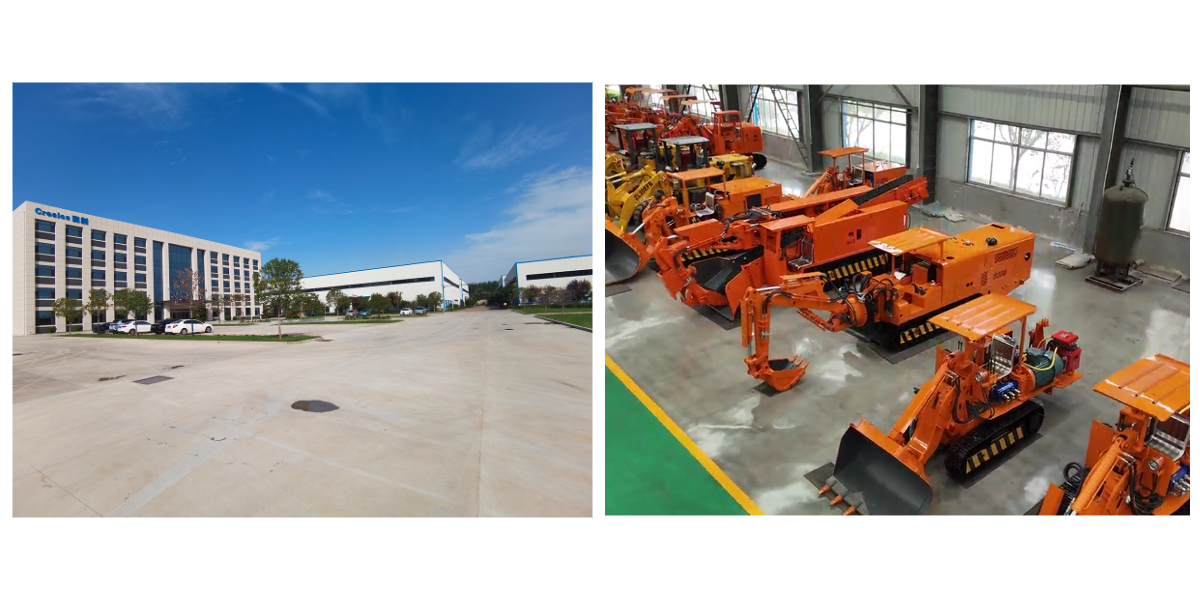

About us
In 2004, Shandong Cresics Equipment Manufacturing Co., Ltd. was successfully established. It is a professional equipment enterprise integrating R&D, manufacturing and after-sales services. The company has always regarded technological innovation as its core business guideline, and has been rated as a national-level specialized, special and new small giant enterprise, a single champion enterprise in Shandong Province, a gazelle enterprise in Shandong Province, and a national high-tech enterprise.The company's products focus on the fields of mining anchor digging and transportation, mining automation intelligence, and mining auxiliary transportation equipment, and can provide customers in different fields with one-stop purchasing solutions for complete sets of equipment. The company has established a complete quality control system based on product design, production process, inspection standards, on-site usage and after-sales follow-up work. Moreover, personalized designs can be provided according to the user's actual working conditions. The company has successfully passed the three-system certification and was rated as an "AAA" credit certification enterprise.
