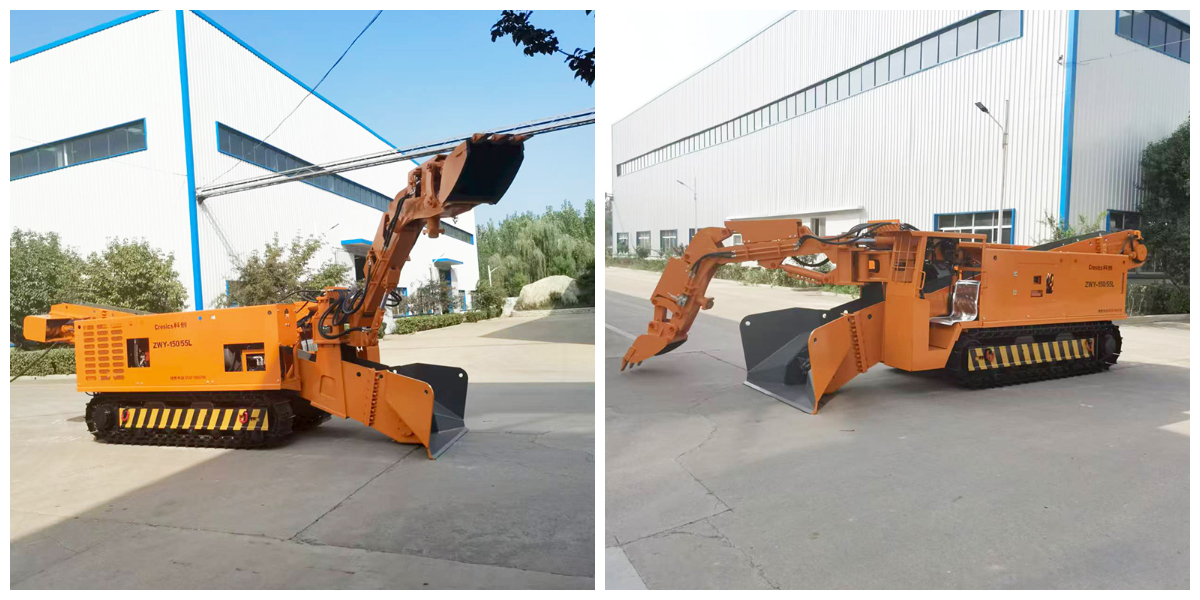

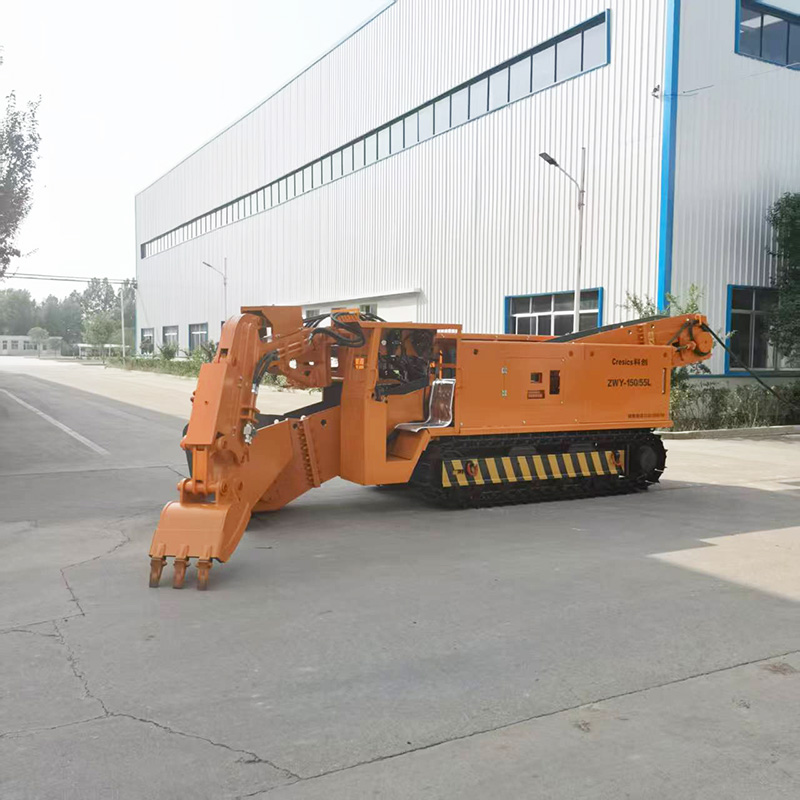

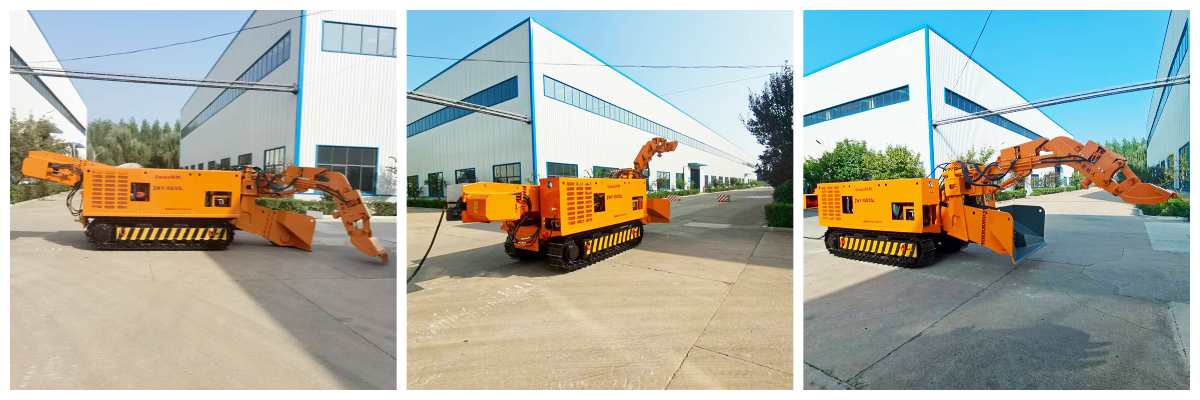

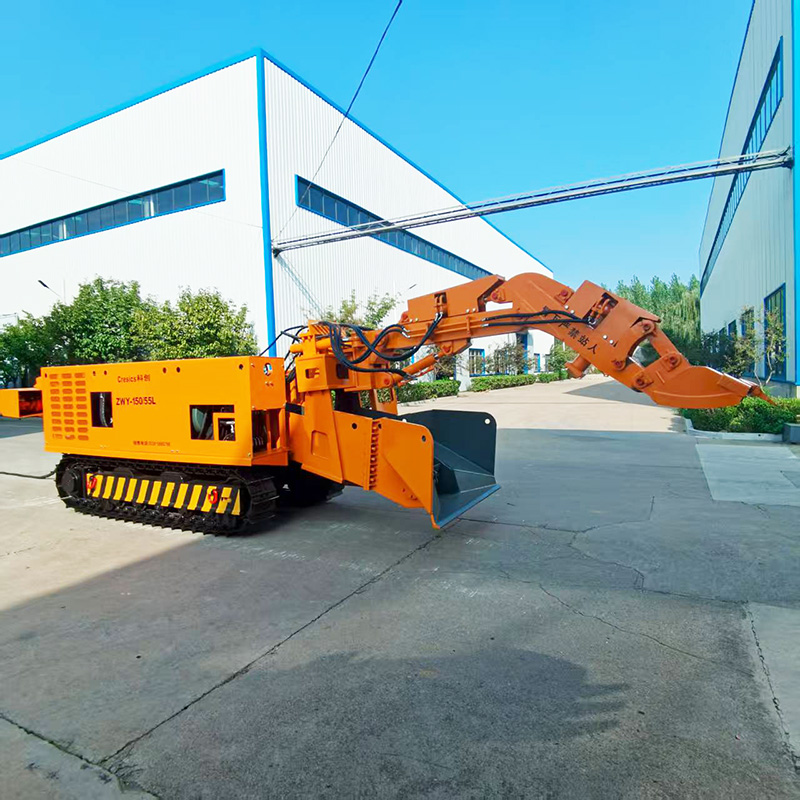

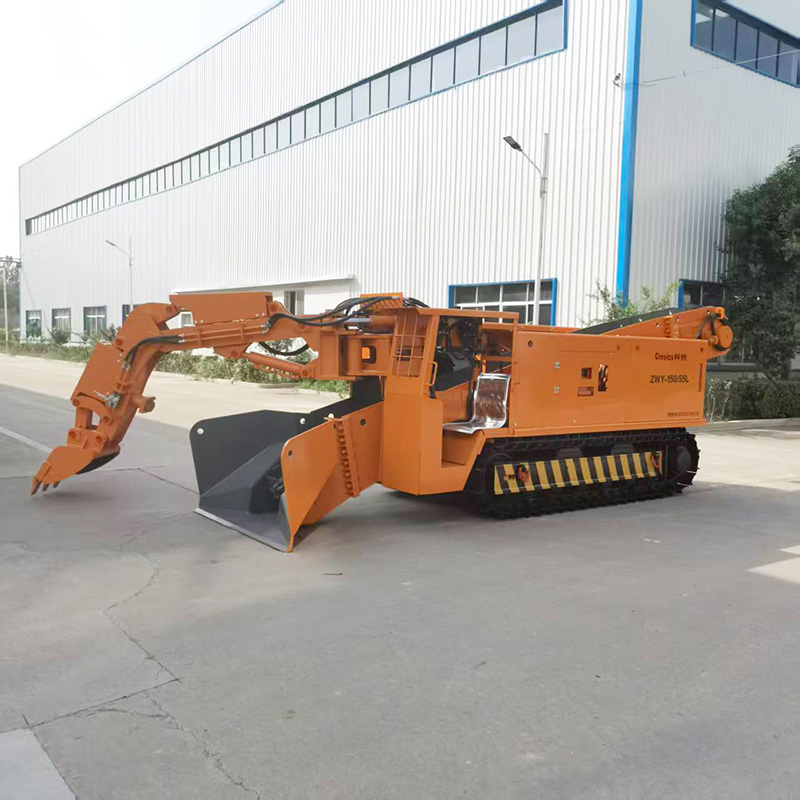

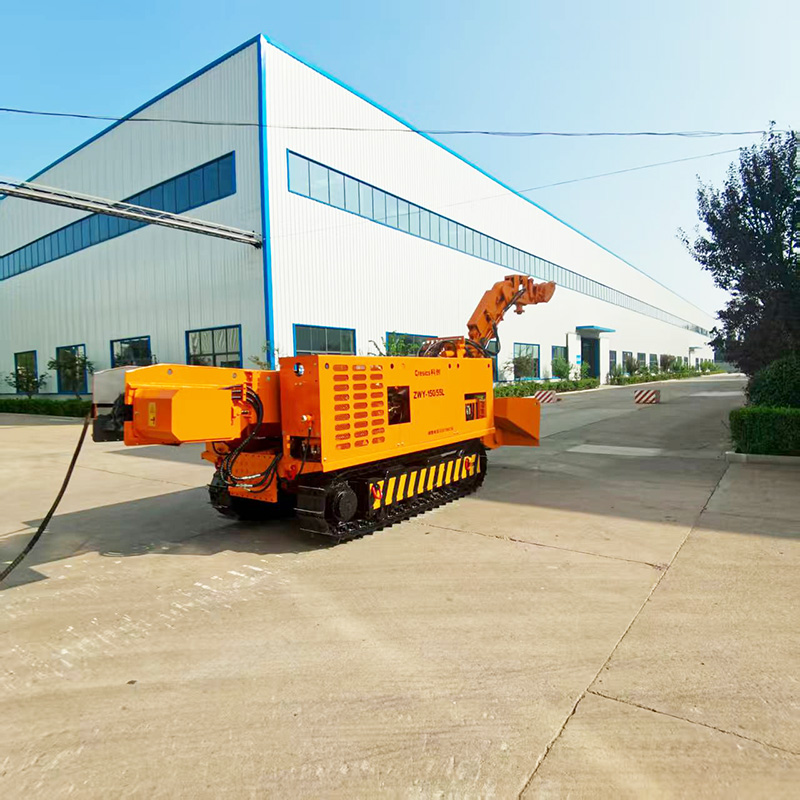

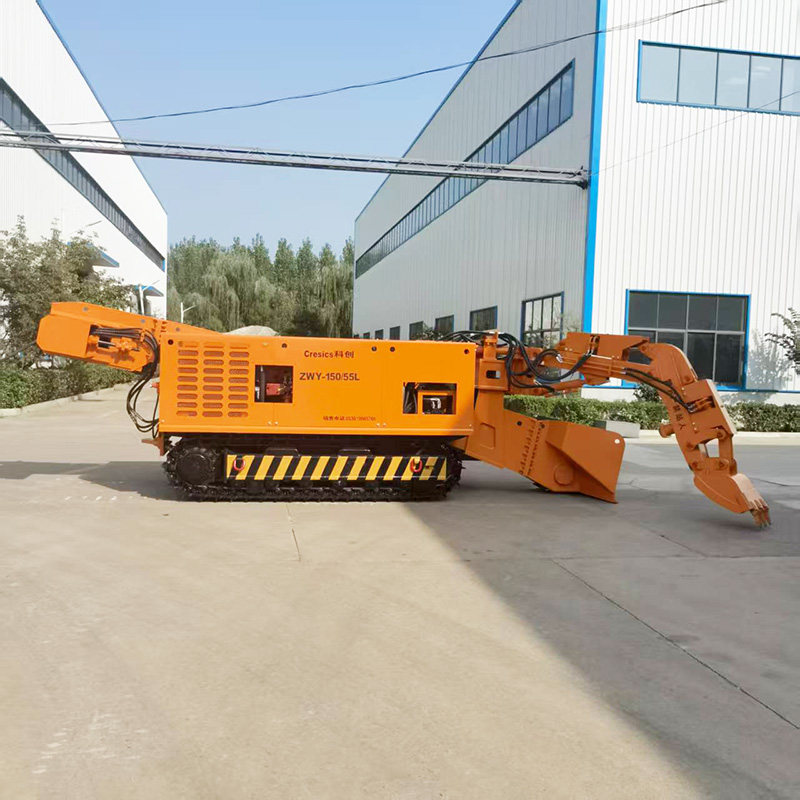

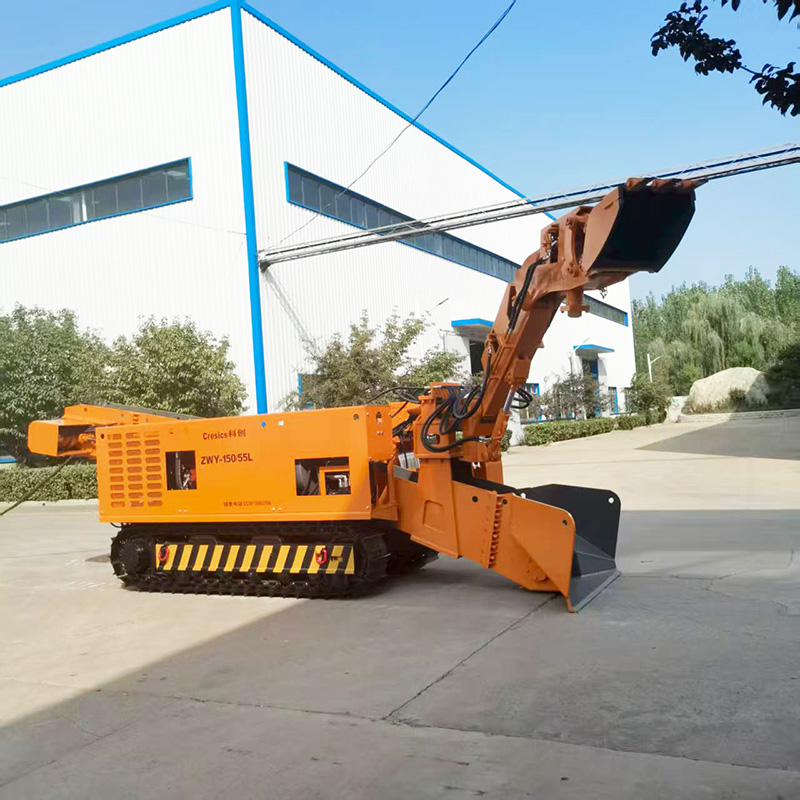

Large Slope Mucking Loader
1. Integration work
The overall process of slag removal, loading, transportation and loading is realized without the need for multiple equipment linkages. Crushing components, cable reels, transport belts, etc. can be added. The slag removal machine can be customized and produced.
2. Smooth travel on complex terrain, saving time and effort in maintenance
The crawler-type device can freely shuttle through complex terrain such as mud and loose sand due to its small ground contact pressure. Its modular design allows core components such as conveyor belts and hydraulic arms to be quickly replaced, effectively improving maintenance efficiency.
The application scenarios of the slag scraper are quite wide. In the mining process, whether it is the mining and loading tasks of metallic or non-metallic ores, or the excavation and loading operations of different sections such as inclined shafts, vertical shafts, and tunnels, it can achieve efficient results. In terms of tunnel excavation and water diversion tunnels, the slag scraper also shows great strength. The hydraulic crawler chassis and backhoe system are used to accurately grab rocks or ores. Subsequently, the central scraper conveyor trough is used to quickly transport the material to the rear mine car or belt conveyor and other equipment to achieve the goal of continuous slag discharging.
The powerful hydraulic crawler drive gives the equipment excellent gradeability. Whether it is facing complex and rugged terrain conditions or wet and water-logged tunnel conditions, it can operate stably. In the process of blasting and excavation, the slag scraper must first be moved 20 meters away and parked aside to make room for the drilling rig. After the explosives are blasted, the scattered slag and rocks must be quickly cleaned up and work closely with subsequent secondary transport belt conveyors, scraper conveyors and other equipment to ensure an efficient and compact operation process.
Product Details
Parameters
Item | ZWY-80/30L | ZWY-80/37L | ZWY-80/45L | ZWY-100/45L | ZWY-120/65L | ZWY-150/55L | ZWY-180/75L | ZWY-220/75L | |
Main Technical Parameters | |||||||||
Applicable Section (Width × Height) m | 3.2×2.2 | 3.5×2.5 | 4×2.5 | 4.8×3.2 | 5.4×4.0 | 5.8×4.5 | 6.2×5 | 7.5×5.5 | |
Applicable Axis Width* | (-16° ~ +16°) | (-20° ~ +20°) | ( -32° ~ +32°) | ||||||
Loading Capacity m³/h | 80 | 100 | 120 | 150 | 180 | 220 | |||
Control Mode | Hydraulic Pilot Control | ||||||||
Main Motor Power KW | 30 | 37 | 45 | 55 | 75 | ||||
Digging Width mm | 3200 | 3500 | 4000 | 4600 | 5400 | 5800 | 6200 | 7000 | |
Digging Distance mm | 1500 | 1600 | 1800 | 2150 | 2500 | 3300 | |||
Digging Height mm | 1800 | 2200 | 3000 | 3500 | 3800 | 4000 | 4300 | ||
Digging Depth mm | 400 | 500 | 800 | 990 | 1050 | ||||
Unloading Height (Adjustable) mm | 1200 | 1450 | 2000 | ||||||
Unloading Distance (Adjustable) mm | 1150 | ||||||||
Max. Rotation Angle* | ±36° | ±45° | ±55° | ||||||
Max. Transport Material Size mm | < φ500 | < φ580 | < φ625 | < φ780 | |||||
Boom Structure | Single Boom | Single Boom (or Double Boom) | Double Boom | ||||||
Hoisting Speed m/min | 44 | ||||||||
Track Gauge (Adjustable) mm | 890 | 890 | 900 | 1110 | 1190 | 1400 | |||
Travel Speed m/s | 0.5 | ||||||||
Ground Clearance mm | 300 | ||||||||
Min. Turning Radius m | ≥ 5 | ≥ 7 | ≥ 8 | ||||||
Ground Pressure MPa | ≤ 0.1 | ||||||||
Rated Working Pressure MPa | 23 | ||||||||
Max. Bucket Size | Length mm | 3350 | 4200 | ||||||
Width mm | 850 | 900 | 1000 | 1100 | 1200 | ||||
Height mm | 1200 | 1400 | 1500 | 1650 | |||||
Max. Bucket Weight Kg | 2300 | 3000 | 3500 | ||||||
Max. Overall Dimensions (Working) | Length mm | 6000 | 6500 | 6800 | 7000 | 7500 | 8800 | ||
Width mm | 1750 | 1800 | 2200 | 2350 | 2640 | ||||
Height mm | 1750 | 1750 | 1800 | 2900 | 3250 | 3600 | 3800 | 4200 | |
Machine Weight Kg | 7600 | 8000 | 8200 | 11200 | 13800 | 15200 | 17800 | 20000 | |
