ZWY Type Mucking Loader
1. Strong terrain adaptability and faster maintenance
Crawler machinery has a smaller ground contact pressure and can adapt well to complex terrain conditions such as mud and loose sand. The modular design concept allows important components such as conveyor belts and hydraulic arms to be quickly disassembled and replaced, thereby improving maintenance efficiency.
2. New breakthroughs in the whole process operation
Achieve coherent operations of slag removal, loading, conveying and loading without the need for the cooperation of multiple equipment. It can be equipped with a crushing mechanism, cable retracting and retracting, conveyor belts, etc. The slag removal machine can be specially built.
The application scenarios of slag scrapers cover a wide range of applications. In the mining process, whether it is the mining and loading of metal or non-metallic ores, or the excavation and loading operations of different sections such as inclined shafts, vertical shafts, and tunnels, it can be completed excellently. In engineering projects such as tunnel excavation and diversion tunnels, slag scrapers also play an outstanding role. The hydraulic crawler infrastructure is used in conjunction with the backhoe operation system to accurately grab rocks or ores. After being grabbed and put into storage, the central scraper conveyor will be used to quickly transfer it to another mine car or handling machine to finally complete the output operation effect.The hydraulic crawler drive device with sufficient power gives it good climbing ability, and it can maintain the stability of the operation even in the face of complex and rugged terrain or wet and water-logged tunnels. In the blasting excavation process, the slag scraper needs to be parked 20 meters away to make room for the drill rig to drill holes. After the explosive blasting is completed, the scattered slag and rocks are quickly cleaned up and seamlessly connected with subsequent secondary transport belt conveyors, scraper conveyors and other equipment to ensure a compact and orderly operation process.

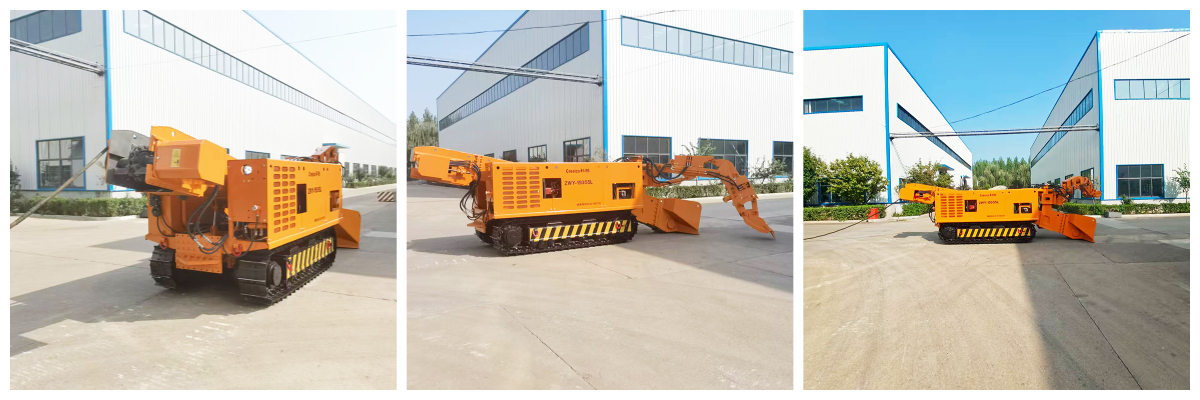

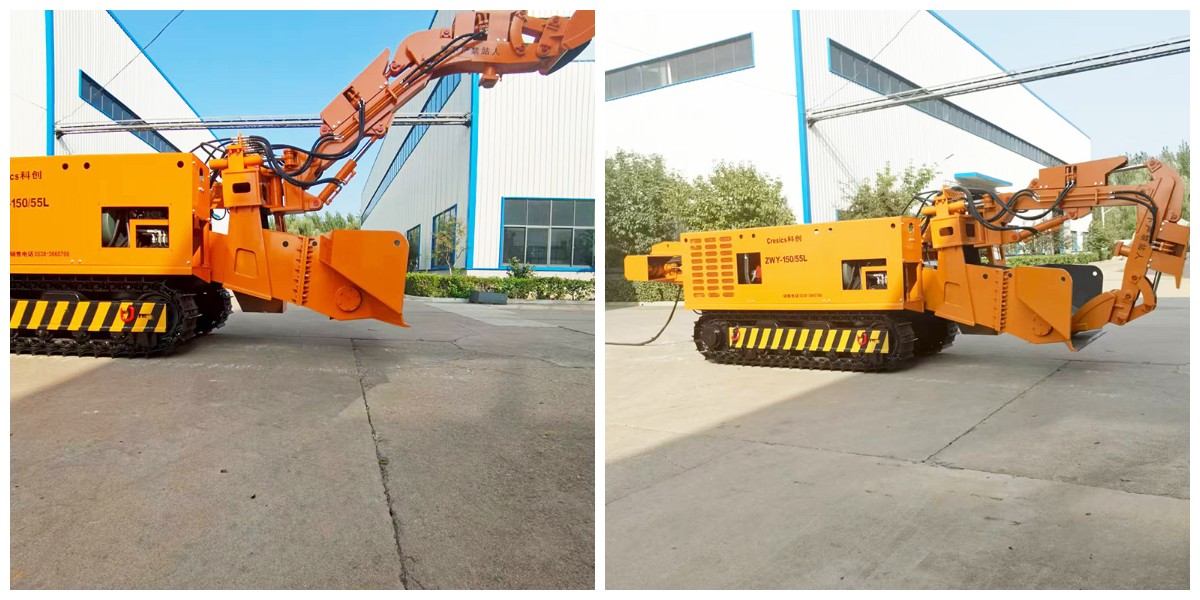

Product Details
Parameters
Item | ZWY-80/30L | ZWY-80/37L | ZWY-80/45L | ZWY-100/45L | ZWY-120/65L | ZWY-150/55L | ZWY-180/75L | ZWY-220/75L | |
Main Technical Parameters | |||||||||
Applicable Section (Width × Height) m | 3.2×2.2 | 3.5×2.5 | 4×2.5 | 4.8×3.2 | 5.4×4.0 | 5.8×4.5 | 6.2×5 | 7.5×5.5 | |
Applicable Axis Width* | (-16° ~ +16°) | (-20° ~ +20°) | ( -32° ~ +32°) | ||||||
Loading Capacity m³/h | 80 | 100 | 120 | 150 | 180 | 220 | |||
Control Mode | Hydraulic Pilot Control | ||||||||
Main Motor Power KW | 30 | 37 | 45 | 55 | 75 | ||||
Digging Width mm | 3200 | 3500 | 4000 | 4600 | 5400 | 5800 | 6200 | 7000 | |
Digging Distance mm | 1500 | 1600 | 1800 | 2150 | 2500 | 3300 | |||
Digging Height mm | 1800 | 2200 | 3000 | 3500 | 3800 | 4000 | 4300 | ||
Digging Depth mm | 400 | 500 | 800 | 990 | 1050 | ||||
Unloading Height (Adjustable) mm | 1200 | 1450 | 2000 | ||||||
Unloading Distance (Adjustable) mm | 1150 | ||||||||
Max. Rotation Angle* | ±36° | ±45° | ±55° | ||||||
Max. Transport Material Size mm | < φ500 | < φ580 | < φ625 | < φ780 | |||||
Boom Structure | Single Boom | Single Boom (or Double Boom) | Double Boom | ||||||
Hoisting Speed m/min | 44 | ||||||||
Track Gauge (Adjustable) mm | 890 | 890 | 900 | 1110 | 1190 | 1400 | |||
Travel Speed m/s | 0.5 | ||||||||
Ground Clearance mm | 300 | ||||||||
Min. Turning Radius m | ≥ 5 | ≥ 7 | ≥ 8 | ||||||
Ground Pressure MPa | ≤ 0.1 | ||||||||
Rated Working Pressure MPa | 23 | ||||||||
Max. Bucket Size | Length mm | 3350 | 4200 | ||||||
Width mm | 850 | 900 | 1000 | 1100 | 1200 | ||||
Height mm | 1200 | 1400 | 1500 | 1650 | |||||
Max. Bucket Weight Kg | 2300 | 3000 | 3500 | ||||||
Max. Overall Dimensions (Working) | Length mm | 6000 | 6500 | 6800 | 7000 | 7500 | 8800 | ||
Width mm | 1750 | 1800 | 2200 | 2350 | 2640 | ||||
Height mm | 1750 | 1750 | 1800 | 2900 | 3250 | 3600 | 3800 | 4200 | |
Machine Weight Kg | 7600 | 8000 | 8200 | 11200 | 13800 | 15200 | 17800 | 20000 | |

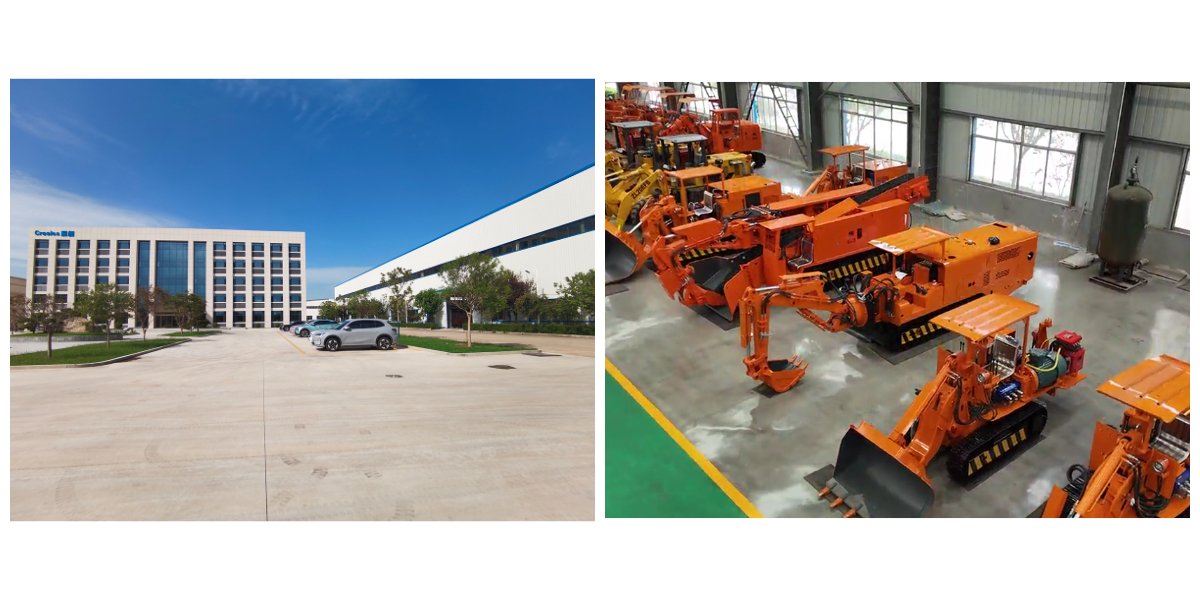

About us
In 2004, Shandong Cresics Equipment Manufacturing Co., Ltd. was formally established. It is a professional equipment enterprise integrating R&D, manufacturing and after-sales service. The company takes technological innovation as its core business philosophy and has been recognized as a national-level specialized and special new small giant enterprise, a single champion enterprise in Shandong Province, a gazelle enterprise in Shandong Province, and a national high-tech enterprise. The company's products cover three major sectors: mining anchor digging and transportation, mining automation intelligence, and mining auxiliary transportation equipment. It can provide customers with one-stop services of complete sets of equipment in multiple fields. From product design, manufacturing, quality inspection, to on-site application and after-sales tracking, the company has established a comprehensive and complete quality control system. At the same time, customized designs can be carried out based on the customer's actual working environment. At present, the company has successfully passed the three-system certification and won the "AAA" level credit certification.
