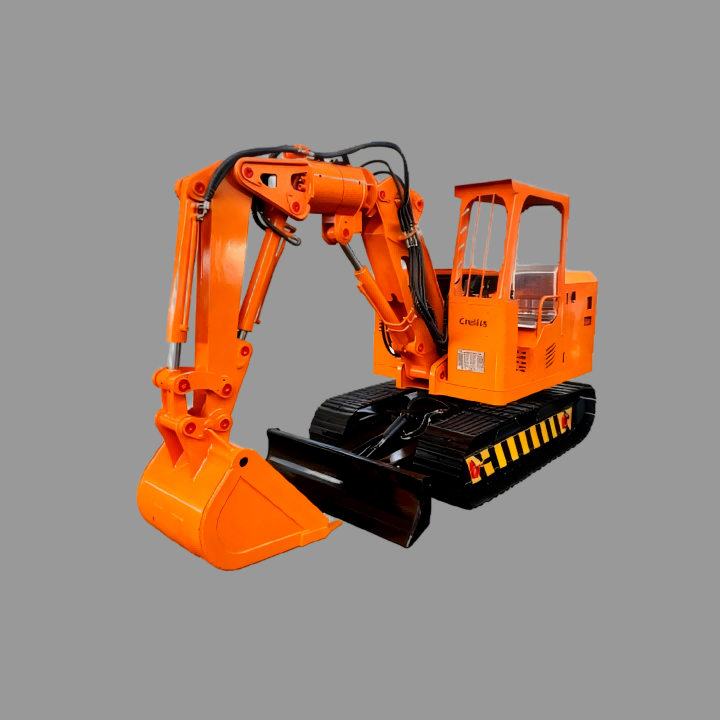

Mining Excavator
1.360° Rotation + ±90° Swing Three-Section Boom: Zero Blind Spots for Hydraulic Excavator Mining Operations
2.Flexible Boom Height Adjustment: Avoid Roadway Facilities for Underground Mining Equipment Safety
3.Compatible with Hydraulic Breakers/Milling Heads: Multi-Purpose Mining Machinery for Cost-Effective Operations
4.Full Explosion-Proof Design: Maximize Safety for Explosion-Proof Mining Equipment Roadway Operations
Product Details

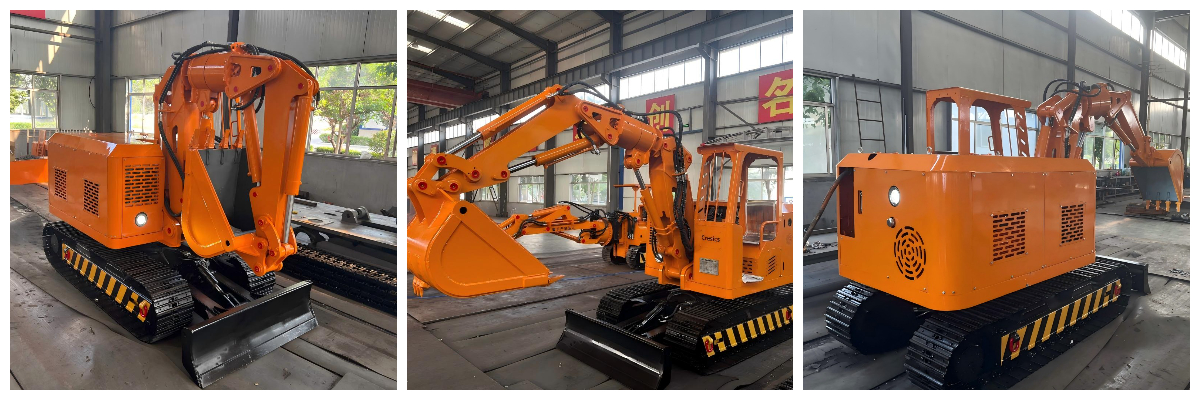

This Mining Excavator is a professional piece of equipment specifically designed for a wide array of underground and open-pit mining operations, suitable for diverse mining sites such as coal mines, metal mines, and non-metallic mines. It excels at core operations including shaft and roadway excavation, rock loading, muck removal, and permafrost digging, and is adaptable to various mine layouts—encompassing vertical shafts, inclined shafts, and horizontal roadways.
Parameters
Project | Unit | MWD2.1/0.1L | MWD3.3/0.16L | MWD5.5/0.2L | MWD6.8/0.28L | |
Basic Parameters | Standard Bucket Capacity | m³ | 0.1±0.01 | 0.16±0.016 | 0.2±0.02 | 0.28±0.028 |
Operating Mass | kg | 2100±105 | 3300±165 | 5500±275 | 6800±340 | |
MotorRated Power | kw | 22 | 30 | 37 | 55 | |
Hydraulic System Parameters | Rated Pressure | Mpa | 21.5 | 21.5 | 25 | 25 |
Maximum Flow Rate L/ | L/min | 70 | 90 | 110 | 135 | |
Excavation Parameters | Excavation Radius | mm | 3000 | 3500 | 4500 | 5200 |
Excavation Depth | mm | 1500 | 1800 | 2000 | 2400 | |
Excavation Heightmm | mm | 3200 | 3800 | 4700 | 5250 | |
Dumping Height(mm) | mm | 1800 | 2000 | 2500 | 2950 | |
Excavation Parameters | Walking Mode | / | Travel Motor with Built-in Spring Brake | Travel Motor with Built-in Spring Brake | Travel Motor with Built-in Spring Brake | Travel Motor with Built-in Spring Brake |
Travel Form | / | Caterpillar Track Traveling | Caterpillar Track Traveling | Caterpillar Track Traveling | Caterpillar Track Traveling | |
Ground Contact Pressure | Mpa | ≤ 0.1 | ≤ 0.1 | ≤ 0.1 | ≤ 0.1 | |
Travel Speed | m/min | 26.5 | 26.5 | 26.5 | 26.5 | |
Ground Clearance | mm | ≥ 250 | ≥ 250 | ≥ 250 | ≥ 280 | |
Gradeability | ° | ≥14(Applicable slope range: -14° to +14° ) | ≥ 14 (Applicable slope range: -14° to +14° ) | ≥ 14(Applicable slope range: -14° to +14° ) | ≥14(Applicable slope range: -14° to +14° ) | |
Minimum Turning Radius of Track | mm | ≤ 900 | ≤ 1100 | ≤ 1400 | ≤ 1600 | |
Overall Dimensions(Length × Width × Height) | mm | 2700×1000×2050 | 3200×1350×2250 | 3300×1450×2350 | 3350×1550×2600 | |
Frequently Asked Questions
Q1: What advantages does the 360° horizontal rotation of the working platform and ±90° swing of the three-section boom bring to mining operations?
A: The 360° horizontal rotation of the working platform and ±90° swing of the three-section boom enable the equipment to achieve full-range operation without blind spots. It can flexibly reach various positions in the roadway, significantly improving the efficiency of excavation, trimming and other operations, especially suitable for the complex and confined working environment of underground mines.
Q2: How does the equipment avoid collision with roadway facilities such as rock bolts and roof during operation?
A: The boom height of the equipment can be flexibly adjusted according to the size of the roadway section. This design allows the equipment to avoid touching rock bolts, cable bolts and roadway roofs effectively, ensuring safe operation in roadways of different heights and reducing the risk of equipment damage and roadway structure damage.
Q3: Can this mining excavator be customized to meet different operation requirements, and what are the specific options?
A: Yes. The equipment supports multiple optional attachments, including hydraulic breakers, milling heads and hydraulic shears. By equipping different attachments, it can realize multi-functional operations such as rock breaking, milling and shearing, achieving the goal of one machine for multiple uses and helping buyers save the cost of purchasing multiple specialized devices.
Company Strengths
Founded in 2004, Shandong Cresics Equipment Manufacturing Co., Ltd. has steadily grown from a small-scale manufacturer with a single product range into a professional direct manufacturer of mining equipment integrating R&D, design, production and after-sales service.
With two decades of dedicated experience and profound expertise in the mining industry, the company boasts strong technical and manufacturing capabilities: it has a team of 50 professional designers and over 50 full-time after-sales technicians, with a total workforce of nearly 400 employees. Our product portfolio is diverse and comprehensive, covering more than 60 categories including mine excavation, bolting, exploration and transportation equipment, electrical automation equipment, and mine auxiliary transportation equipment. Widely adopted by major domestic mining enterprises, our products fully meet the equipment supporting needs of various mining operations. Meanwhile, equipped with standardized and modern production workshops, we can complete the inspection, assembly and delivery of over 30 sets of equipment per month on average, ensuring the efficient fulfillment of customer orders with stable and reliable production capacity.
As a direct manufacturer specialized in independent R&D and production, we independently design and manufacture all electric and mechanical components. This enables us to significantly reduce intermediate price differences from the source. Choosing our products not only helps customers minimize procurement costs to the greatest extent, but also effectively cuts down on subsequent equipment maintenance expenses by virtue of our original parts supply and professional after-sales team, ultimately maximizing cost-effectiveness for our clients.
