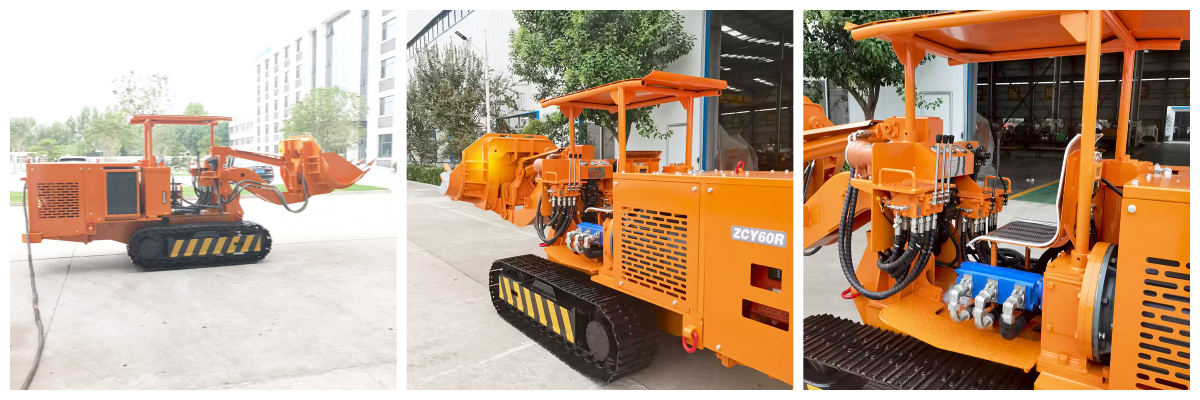

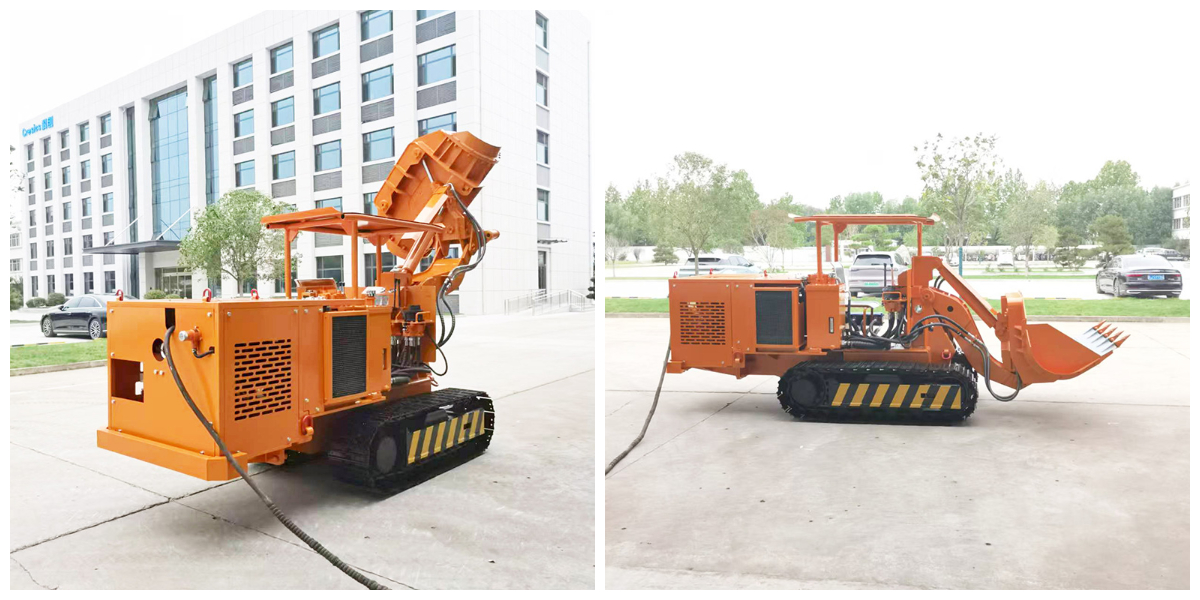

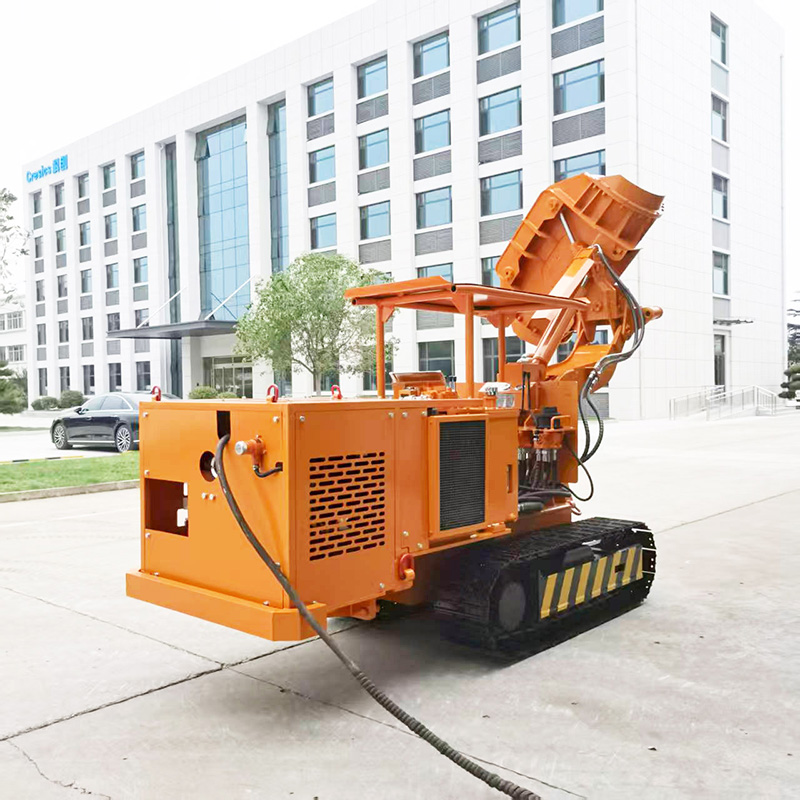

Hydraulic Side Unloading Rock Loader
1. Professional grade loading equipment
The adoption of adaptive crawler technology ensures continuous and stable insertion operation capabilities and enables full-section loading without dead corners. It performs well in complex tunnel construction and its efficiency far exceeds industry standards.
2. Flexible adaptation solution
The supporting performance has been verified by pressure tests, and it can still maintain high adaptability in narrow tunnels and complex geological conditions, and can form a stable operation chain with various drilling and transportation equipment.
3. A powerful tool for improving performance
Its differentiated advantages are: the bucket has both lifting and transportation capabilities, and can handle oversized support materials such as tires; the adjustable working platform meets the dynamic management needs of the roof; the hydraulic power center provides power support for equipment such as anchor drills; and the deep cleaning system mechanizes the entire loading process for the first time, greatly improving operational safety.

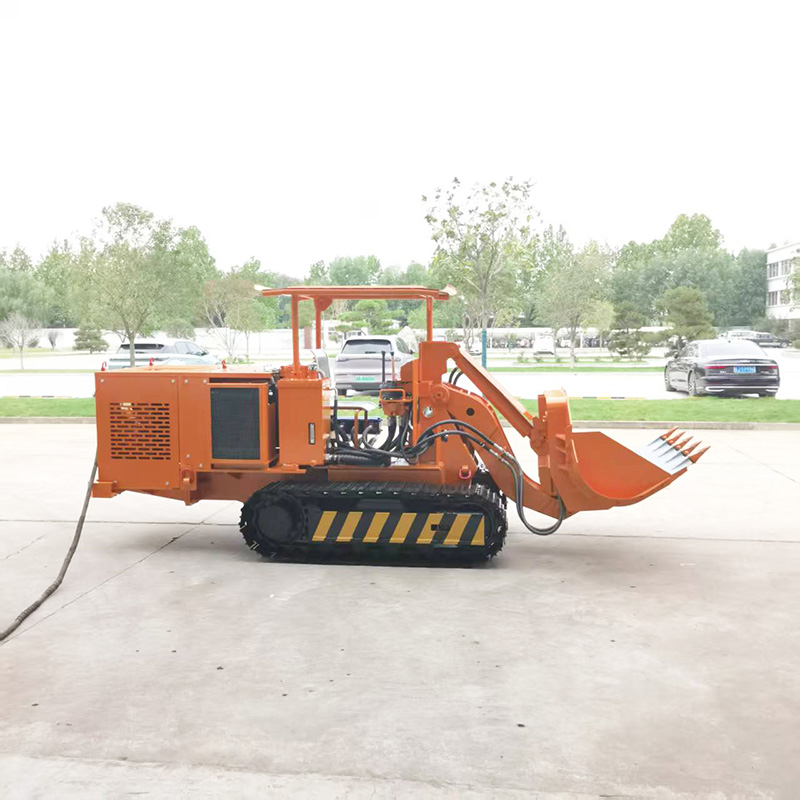

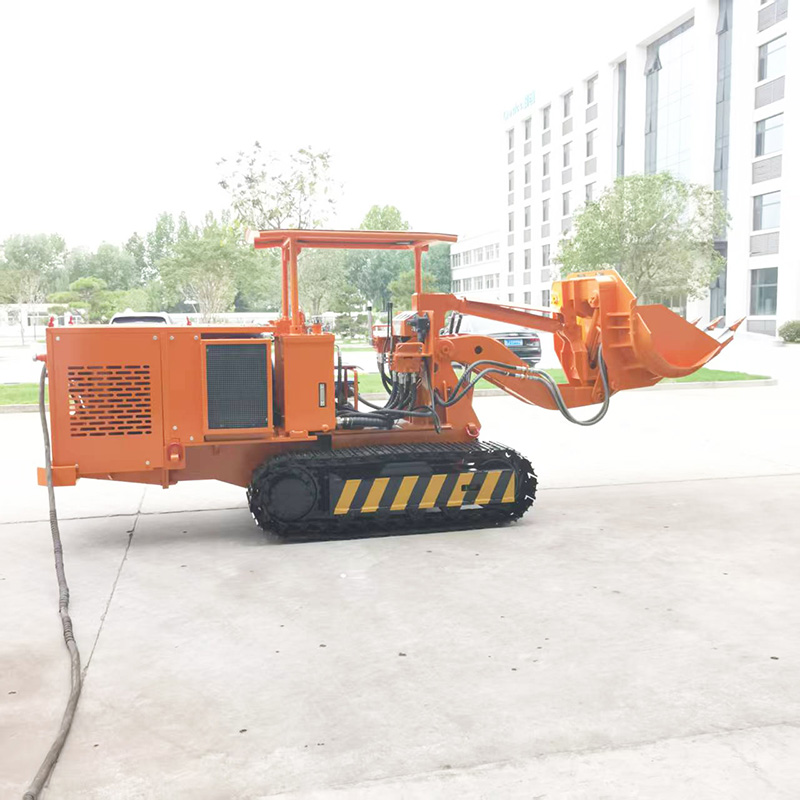

The side discharge rock loader is a new generation of crawler trackless loading equipment in the mining industry, which provides reliable guarantee for mining. It is mainly responsible for loading coal, rock and ore in tunnels of coal mines and other mines, and is also responsible for loading rocks in small-section full-rock tunnels.
This equipment has distinctive features, strong insertion force, and can quickly cut into materials for loading; it has excellent maneuverability and can move flexibly in complex and changeable tunnel environments; it can realize full-section operations, expand the scope of operations, and improve work efficiency; it has good safety, providing reliable safety guarantee for operators; and it has the function of multiple uses in one machine. It can not only complete loading tasks, but also provide power for hydraulic drilling tools, serve as a working platform during support operations, and complete short-distance transportation, undercover, and gang cleaning on the working surface.

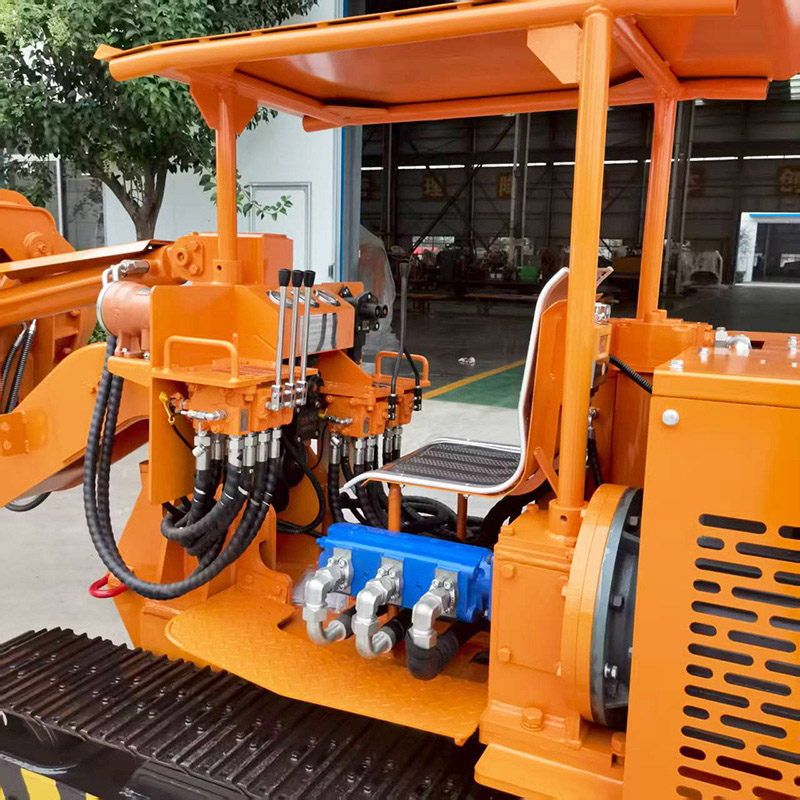

If a breaker is installed, it can crush large rocks and coal, speed up the excavation process, and create good economic benefits. It consists of key parts such as side-mounted shovel mechanism, crawler traveling assembly, frame assembly, hydraulic operating system, driving control system, and electrical system. Each part cooperates with each other to ensure the normal operation of the equipment. Users can choose suitable equipment based on the actual cross-section size of the tunnel and loading efficiency requirements.
Product Details
Parameters
Product Model | ZCY45R | ZCY60R | ZCY80R | ZCY100R | ZCY120R | |
Technical Bucket Capacity (m³) | 0.45 | 0.60 | 0.80 | 1.00 | 1.2 | |
Main Motor Power (kW) | 30 | 45 | 55 | |||
Voltage (V) | 660/1140 | 660/1140 | ||||
Bucket Width (mm) | 1370 | 1520 | 1696 | 1696 | 1876 | |
Maximum Dumping Height (mm) | ≥1460 | ≥1320 | ≥1600 | ≥1900 | ≥2000 | |
Maximum Digging Depth (mm) | ≥400 | ≥400 | ≥400 | ≥500 | ≥500 | |
Gradeability (°) | ≥16 | ≥16 | ≥16 | ≥16 | ≥16 | |
Traction Force (kN) | ≥20 | ≥20 | ≥40 | ≥40 | ≥40 | |
Minimum Ground Clearance (mm) | ≥180 | ≥180 | ≥200 | ≥200 | ≥200 | |
Maximum Travel Speed (m/s) | ≥0.5 | ≥0.5 | ≥0.81 | ≥0.81 | ≥0.81 | |
Working Mechanism Pressure (MPa) | 16±0.5 | 16±0.5 | 16±0.5 | 16±0.5 | 16±0.5 | |
Travel Motor Pressure (MPa) | 22±0.5 | 22±0.5 | 22±0.5 | 22±0.5 | 22±0.5 | |
External Oil Port Pressure (MPa) | 20±0.5 | |||||
Noise (Sound Pressure Level) (dB) | ≤90 | |||||
Center of Gravity Position | Xg=635 | Xg=650 | Xg=710 | Xg=750 | Xg=780 | |
Track Ground Pressure (MPa) | 0.09 | 0.1 | ||||
Overall Dimensions | Length (mm) | 4490 | 4580 | 5100 | 5330 | 5370 |
Width (mm) | 1425 | 1520 | 1696 | 1696 | 1876 | |
Height (mm) | 2046 | 2046 | 2100 | 2300 | 2300 | |
Dry Weight(kg) | 4500 | 4650 | 7350 | 8300 | 8500 | |
