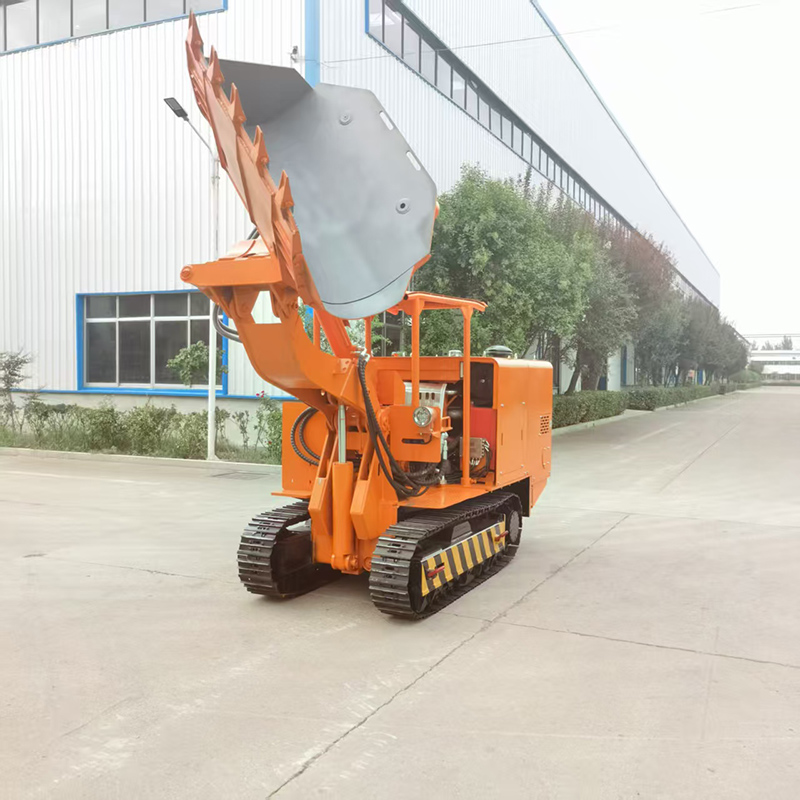

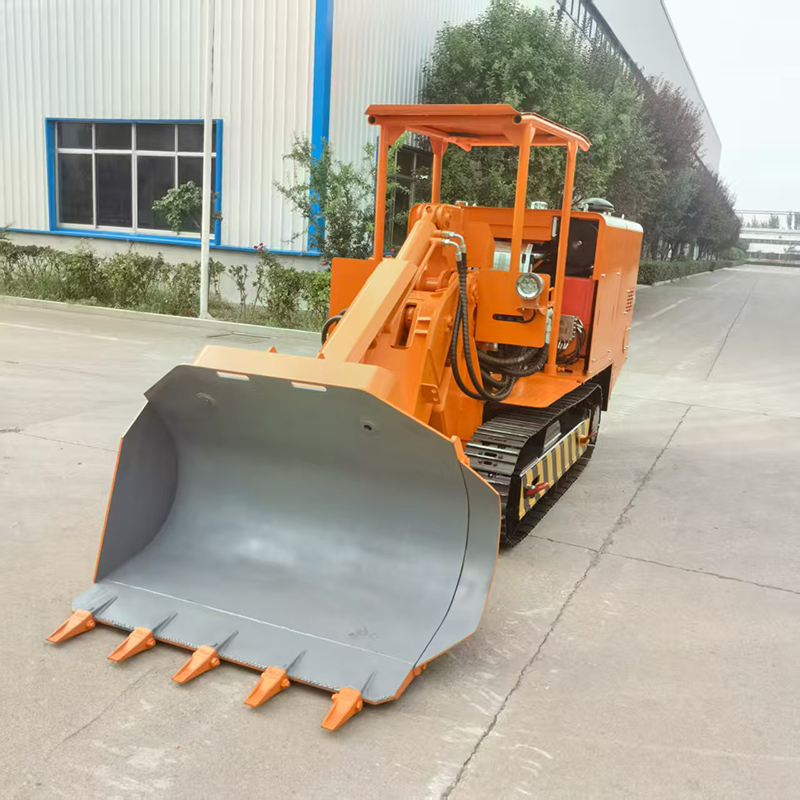

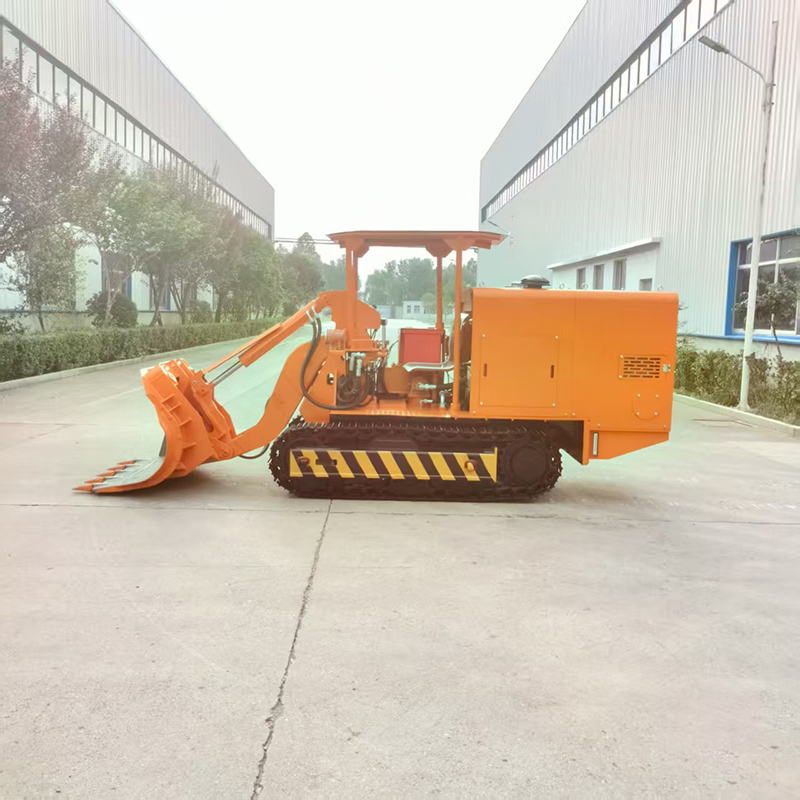

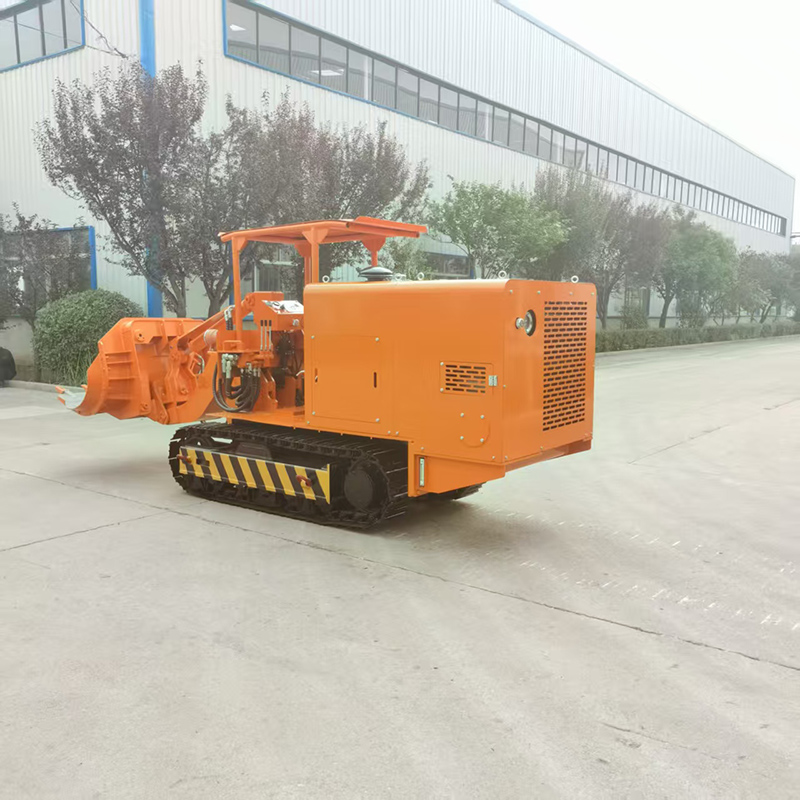

Diesel Side Unloading Rock Loader
1.Adapt to harsh working conditions
Designed for harsh environments such as underground mud, water, dust, and gravel, it has good sealing and anti-rust capabilities, low failure rate, and long service life.
2.enough traction
Usually, a crawler-type traveling mechanism is used, which has small ground pressure, large traction force and strong climbing ability. It can run stably even on muddy and uneven tunnel floors and is not prone to slipping.
The side-dumping rock loader for mining uses a diesel engine as power to drive a hydraulic pump. The hydraulic motor drives the crawler track and the hydraulic cylinder realizes bucket lifting and flipping. It is widely used in loading loose gravel and ore after blasting in various coal mines, metal mines, tunnels and other projects. It is a high-efficiency loading machine.
The side-unloading rock loader is safe to operate and can significantly reduce the labor intensity of workers; it has strong bottom cleaning ability. Because its bucket can be laid flat and close to the ground, it can clean the tunnel floor very thoroughly, which can effectively reduce the workload of manual-assisted bottom cleaning.

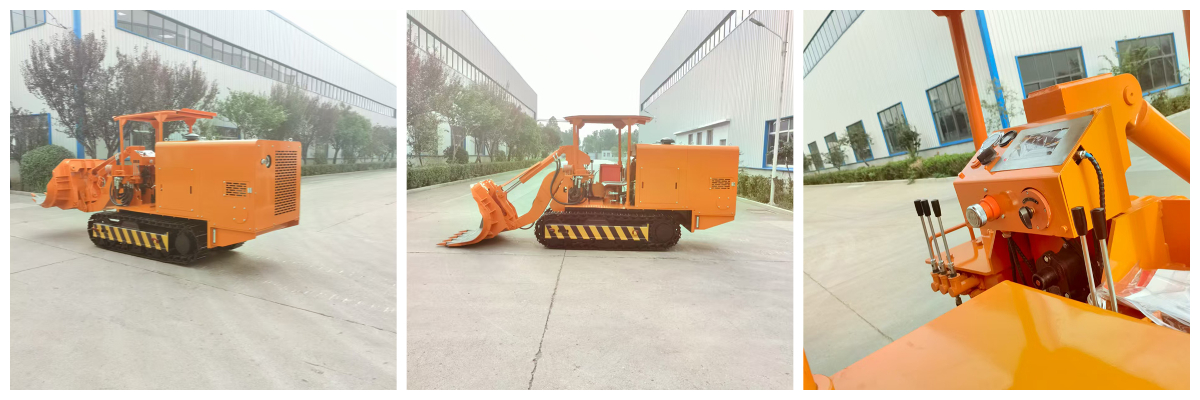

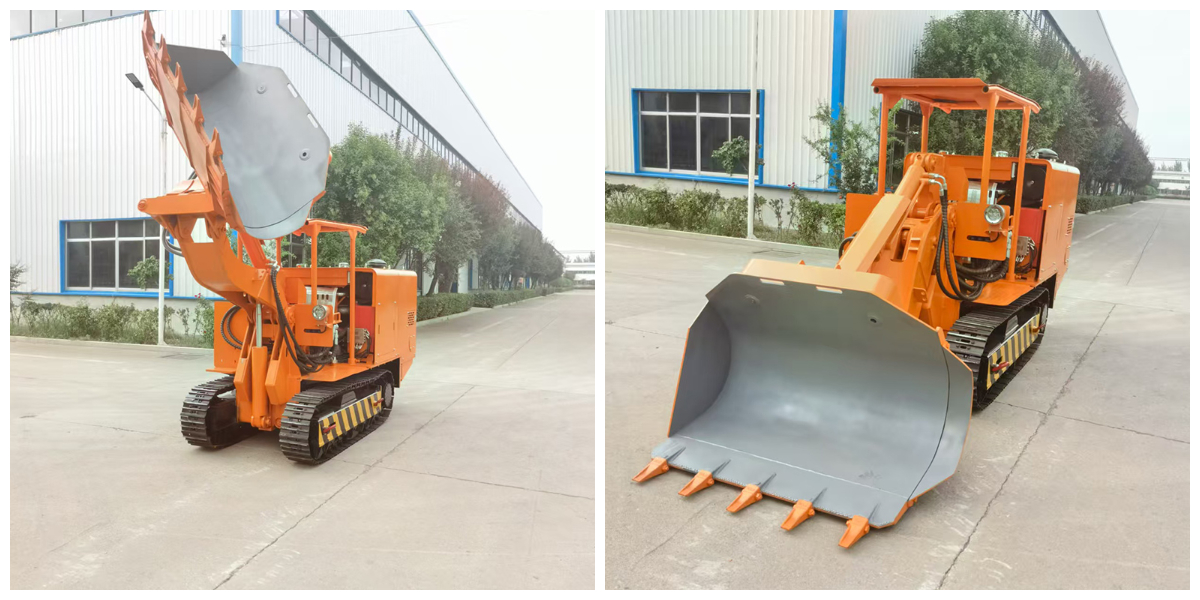

Product Details
Parameters
Product Model | ZCN60R | ZCN80R | ZCN100R | ZCN120R | ZCN150R | ZCN180R |
Overall Dimensions (L*W*H mm) | 4500*1510*2060 | 4585*1636*2088 | 4855*1636*2150 | 5200*1820*2150 | 5250*2120*2150 | 5380*2420*2200 |
Bucket Capacity (m³) | 0.6 | 0.8 | 1 | 1.2 | 1.5 | 1.8 |
Bucket Width (mm) | 1510 | 1636 | 1636 | 1820 | 2120 | 2420 |
Max. Dumping Height (mm) | 1700 | 1900 | 1900 | 1900 | 2000 | 2000 |
Max. Dumping Angle (°) | 55 | 55 | 55 | 55 | 55 | 55 |
Max. Traction Force (KN) | 25 | 40 | 40 | 50 | 50 | 50 |
Rated Traction Force (KN) | 20 | 30 | 30 | 45 | 45 | 45 |
Max. Travel Speed (m/min) | 30 | 30 | 30 | 30 | 30 | 30 |
Min. Ground Clearance (mm) | 180 | 180 | 200 | 200 | 200 | 200 |
Max. Undercutting Depth (mm) | 450 | 500 | 500 | 500 | 500 | 500 |
Gradeability (°) | ±16° | ±16° | ±16° | ±16° | ±16° | ±16° |
Track Shoe Width (mm) | 260 | 300 | 300 | 300 | 300 | 300 |
Track Ground Pressure (MPa) | 0.09 | 0.09 | 0.1 | 0.1 | 0.1 | 0.1 |
Center of Gravity Position (mm) | Xg=694 | Xg=763 | Xg=788 | Xg=815 | Xg=842 | Xg=850 |
Yg=30 | Yg=34 | Yg=35 | Yg=44 | Yg=85 | Yg=100 | |
Noise (dBA) | ≤90 | ≤90 | ≤90 | ≤90 | ≤90 | ≤90 |
Diesel Engine - Installed Power (kW) | 62 | |||||
Starting Method | Electric Start | |||||
Protection Type | Electric Protection | |||||
Engine Speed | 2200rpm | |||||
Travel Working Pressure (MPa) | 20 | 20 | 23 | 23 | 23 | 23 |
System Working Pressure (MPa) | 18 | 18 | 20 | 20 | 20 | 20 |
Operating Weight (without fuel) (kg) | 5200 | 6500 | 7500 | 7900 | 8200 | 9000 |

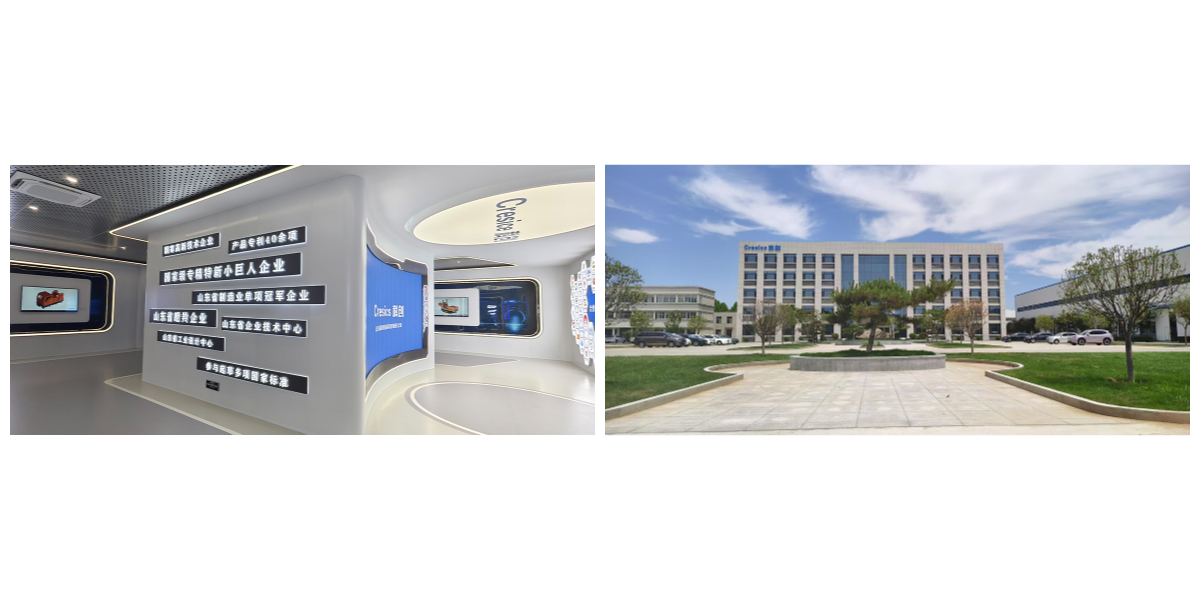

About us
