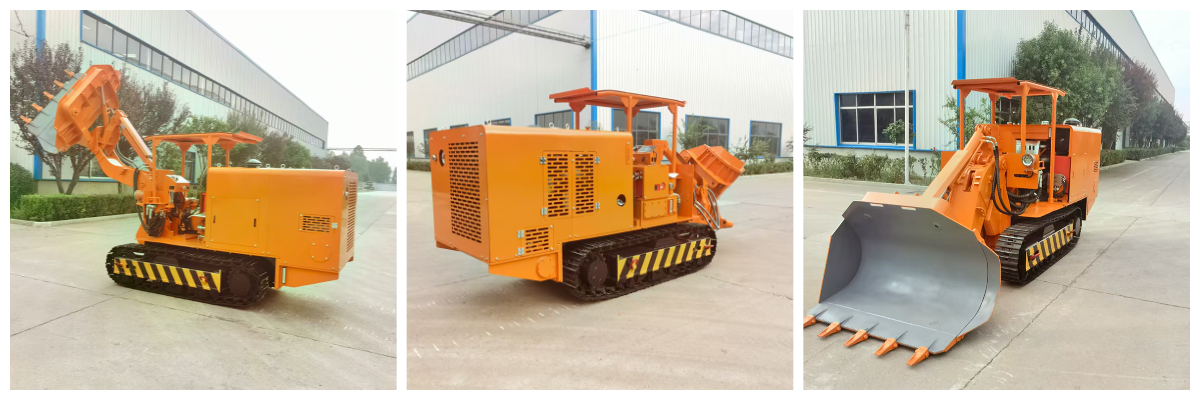

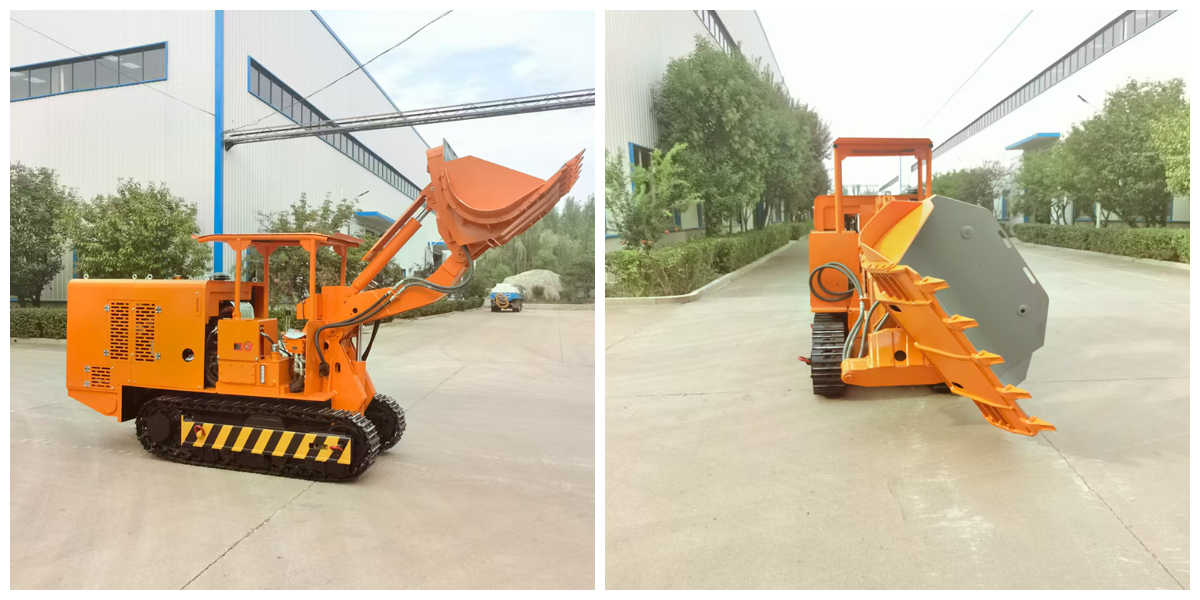

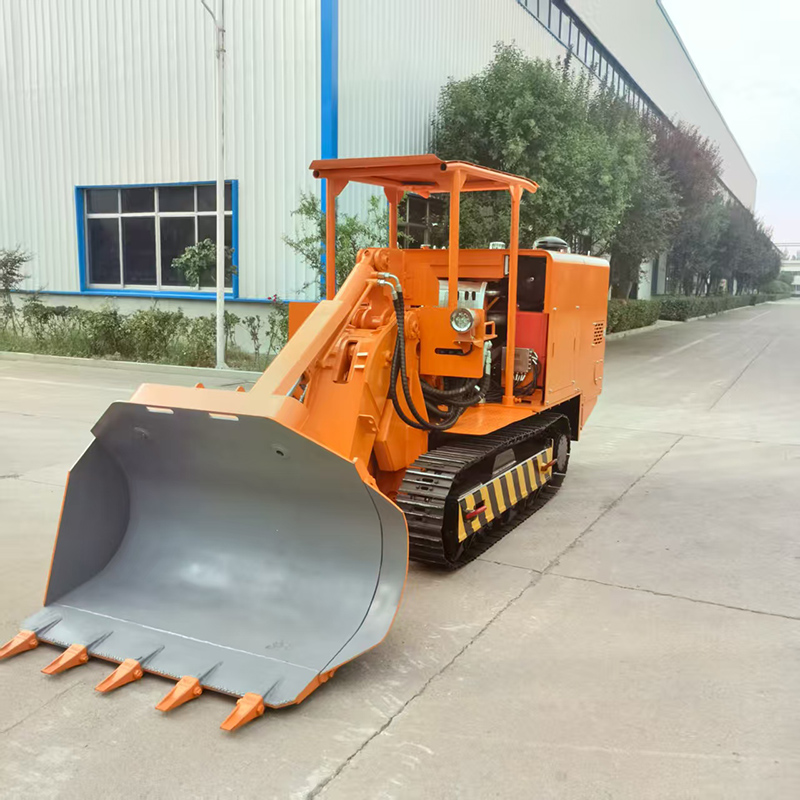

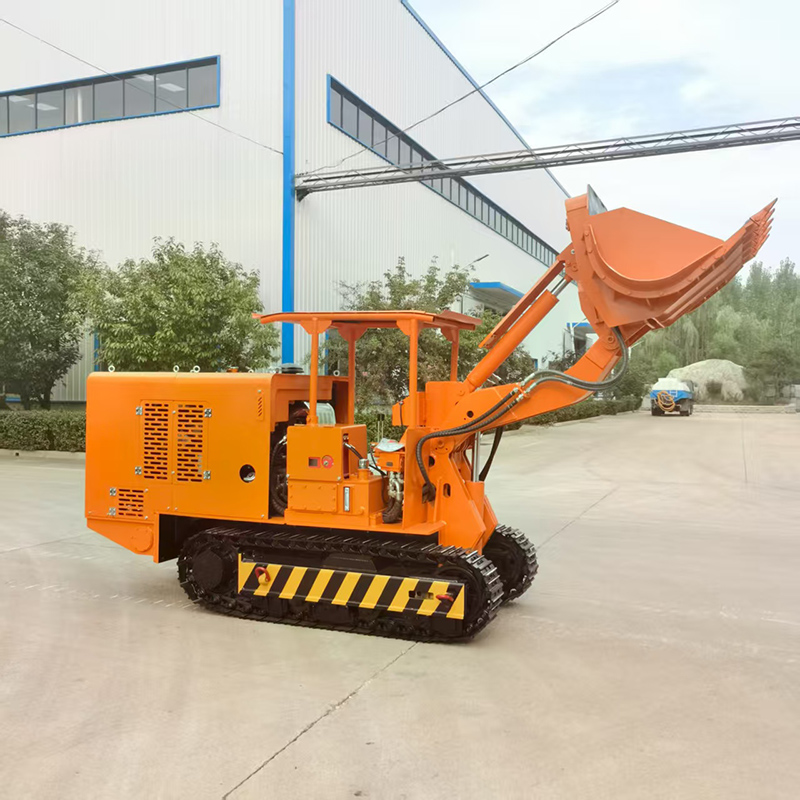

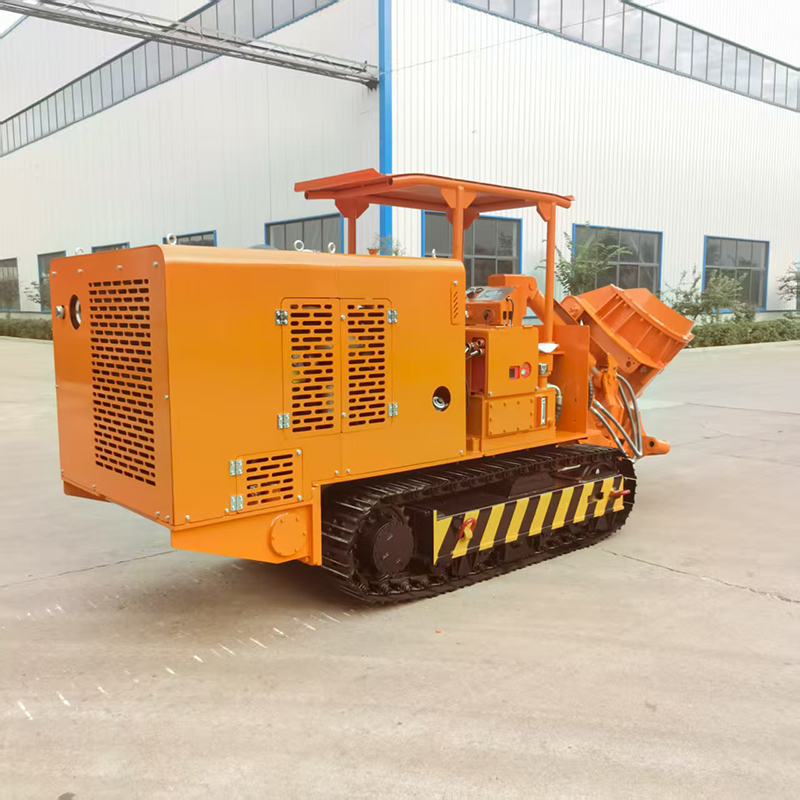

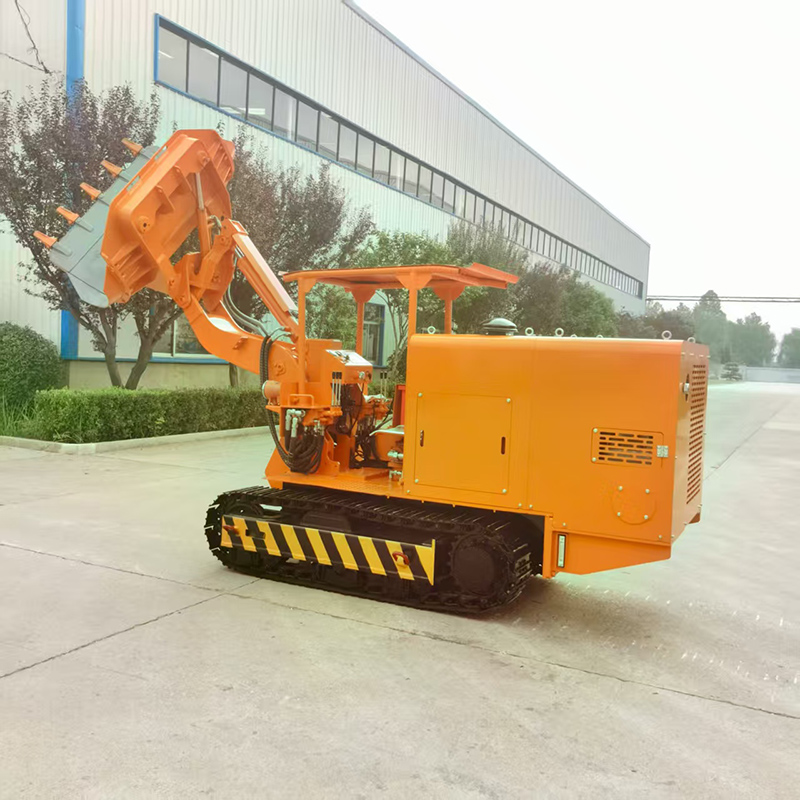

Crawler Side Unloading Rock Loader
Light and flexible
Small size, light weight, relatively compact structure, convenient for flexible operation in narrow spaces, and more adaptable to small cross-section tunnels or complex terrain.
The side discharge rock loader is relatively small in size and light in weight. It can operate flexibly in narrow spaces, is safe in operation, has outstanding loading capacity, and has large crawler walking insertion force. It is suitable for construction of flat and inclined tunnels with various cross-sections.
The crawler-type side-discharge rock loader has the characteristics of "one machine with multiple functions". In addition to loading operations, it can also be used as a working platform for support, short-distance transportation, undercover, and cleaning auxiliary operations. It can also lift heavy objects, and has good overall economic benefits.

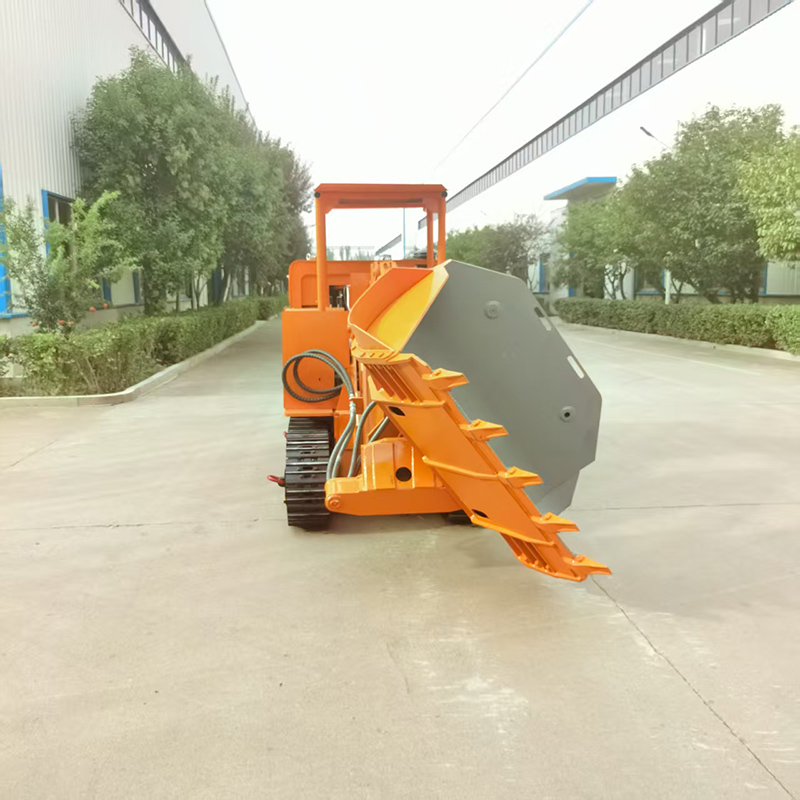

The design focuses on operational safety. The bucket can be quickly interchanged on the left and right sides to avoid frequent U-turns in a narrow space and reduce the time workers spend working in dangerous areas.
Product Details
Parameters
Product Model | ZCN60R | ZCN80R | ZCN100R | ZCN120R | ZCN150R | ZCN180R |
Overall Dimensions (L*W*H mm) | 4500*1510*2060 | 4585*1636*2088 | 4855*1636*2150 | 5200*1820*2150 | 5250*2120*2150 | 5380*2420*2200 |
Bucket Capacity (m³) | 0.6 | 0.8 | 1 | 1.2 | 1.5 | 1.8 |
Bucket Width (mm) | 1510 | 1636 | 1636 | 1820 | 2120 | 2420 |
Max. Dumping Height (mm) | 1700 | 1900 | 1900 | 1900 | 2000 | 2000 |
Max. Dumping Angle (°) | 55 | 55 | 55 | 55 | 55 | 55 |
Max. Traction Force (KN) | 25 | 40 | 40 | 50 | 50 | 50 |
Rated Traction Force (KN) | 20 | 30 | 30 | 45 | 45 | 45 |
Max. Travel Speed (m/min) | 30 | 30 | 30 | 30 | 30 | 30 |
Min. Ground Clearance (mm) | 180 | 180 | 200 | 200 | 200 | 200 |
Max. Undercutting Depth (mm) | 450 | 500 | 500 | 500 | 500 | 500 |
Gradeability (°) | ±16° | ±16° | ±16° | ±16° | ±16° | ±16° |
Track Shoe Width (mm) | 260 | 300 | 300 | 300 | 300 | 300 |
Track Ground Pressure (MPa) | 0.09 | 0.09 | 0.1 | 0.1 | 0.1 | 0.1 |
Center of Gravity Position (mm) | Xg=694 | Xg=763 | Xg=788 | Xg=815 | Xg=842 | Xg=850 |
Yg=30 | Yg=34 | Yg=35 | Yg=44 | Yg=85 | Yg=100 | |
Noise (dBA) | ≤90 | ≤90 | ≤90 | ≤90 | ≤90 | ≤90 |
Diesel Engine - Installed Power (kW) | 62 | |||||
Starting Method | Electric Start | |||||
Protection Type | Electric Protection | |||||
Engine Speed | 2200rpm | |||||
Travel Working Pressure (MPa) | 20 | 20 | 23 | 23 | 23 | 23 |
System Working Pressure (MPa) | 18 | 18 | 20 | 20 | 20 | 20 |
Operating Weight (without fuel) (kg) | 5200 | 6500 | 7500 | 7900 | 8200 | 9000 |
