Mucking Machinery
1. New solution for full-featured operations
It realizes the integrated operation of slag removal, loading, transportation and loading without the need for coordination of multiple equipment. It can be equipped with crushing units, cable storage, conveyor belts, etc. The slag removal machine can be customized.
2. Smooth traffic on complex terrain, simple maintenance and cost savings
The crawler model has a small ground contact pressure and can adapt to complex terrain conditions such as mud and loose sand. The modular design allows core components such as conveyor belts and hydraulic arms to be quickly replaced, shortening maintenance time.
The application scenarios of the slag scraper are quite wide. In the mining process, whether it is the mining and loading of metal or non-metallic ores, or the excavation and loading operations of different sections such as inclined shafts, vertical shafts, and tunnels, it can be completed excellently. In engineering projects such as tunnel excavation and water diversion tunnels, slag scrapers also show great strength. It is equipped with a fully hydraulic crawler chassis and backhoe system that can accurately grab rocks or ores, and use the central scraper conveyor to quickly transfer materials to rear equipment, such as mine trucks or belt conveyors, to achieve the purpose of continuous slag discharge.
The powerful hydraulic crawler drive device has excellent gradeability and can carry out stable operations even in complex and rugged terrain or wet and water-logged tunnels. In the process of blasting and excavation, the slag scraper must first be moved 20 meters away and parked aside to make room for the drill rig to drill holes; after the explosive is blasted, the scattered slag and rocks must be quickly cleaned up and work closely with subsequent secondary transport belt conveyors, scraper conveyors and other equipment to ensure an efficient and compact operation process.

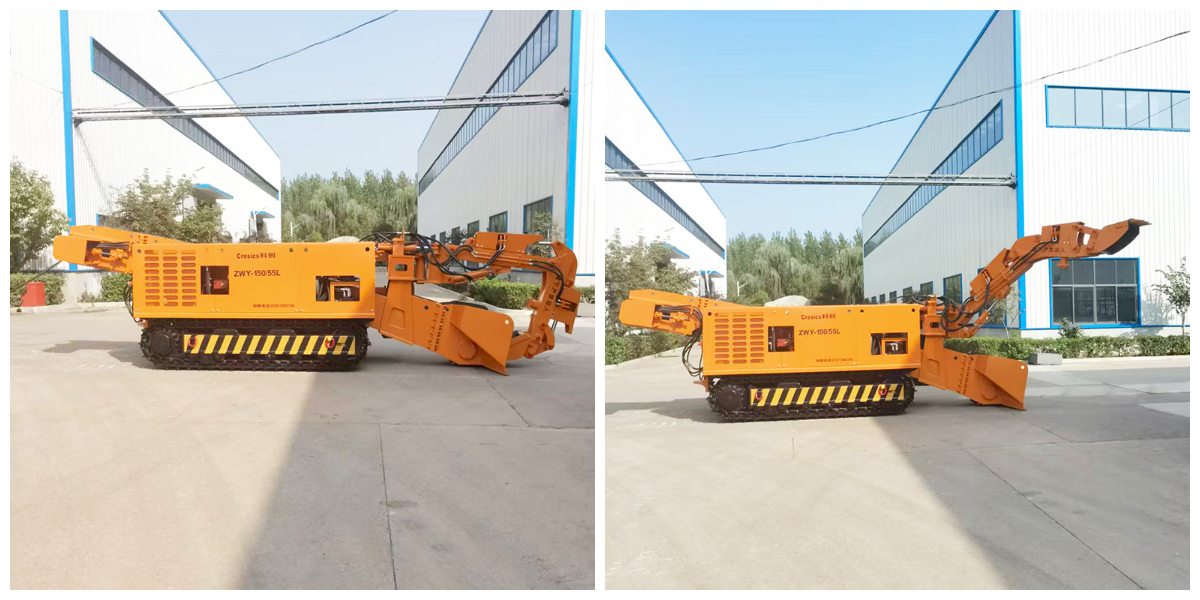

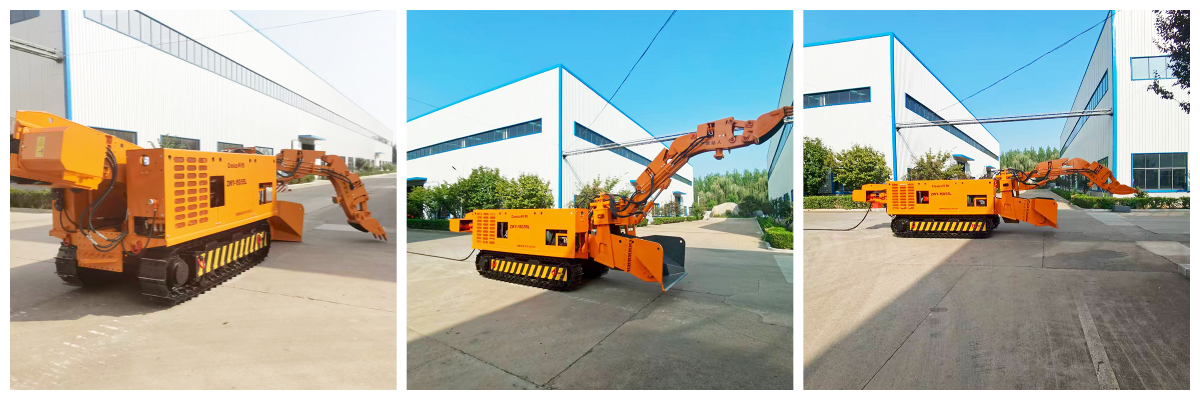

Product Details
Parameters
Item | ZWY-80/30L | ZWY-80/37L | ZWY-80/45L | ZWY-100/45L | ZWY-120/65L | ZWY-150/55L | ZWY-180/75L | ZWY-220/75L | |
Main Technical Parameters | |||||||||
Applicable Section (Width × Height) m | 3.2×2.2 | 3.5×2.5 | 4×2.5 | 4.8×3.2 | 5.4×4.0 | 5.8×4.5 | 6.2×5 | 7.5×5.5 | |
Applicable Axis Width* | (-16° ~ +16°) | (-20° ~ +20°) | ( -32° ~ +32°) | ||||||
Loading Capacity m³/h | 80 | 100 | 120 | 150 | 180 | 220 | |||
Control Mode | Hydraulic Pilot Control | ||||||||
Main Motor Power KW | 30 | 37 | 45 | 55 | 75 | ||||
Digging Width mm | 3200 | 3500 | 4000 | 4600 | 5400 | 5800 | 6200 | 7000 | |
Digging Distance mm | 1500 | 1600 | 1800 | 2150 | 2500 | 3300 | |||
Digging Height mm | 1800 | 2200 | 3000 | 3500 | 3800 | 4000 | 4300 | ||
Digging Depth mm | 400 | 500 | 800 | 990 | 1050 | ||||
Unloading Height (Adjustable) mm | 1200 | 1450 | 2000 | ||||||
Unloading Distance (Adjustable) mm | 1150 | ||||||||
Max. Rotation Angle* | ±36° | ±45° | ±55° | ||||||
Max. Transport Material Size mm | < φ500 | < φ580 | < φ625 | < φ780 | |||||
Boom Structure | Single Boom | Single Boom (or Double Boom) | Double Boom | ||||||
Hoisting Speed m/min | 44 | ||||||||
Track Gauge (Adjustable) mm | 890 | 890 | 900 | 1110 | 1190 | 1400 | |||
Travel Speed m/s | 0.5 | ||||||||
Ground Clearance mm | 300 | ||||||||
Min. Turning Radius m | ≥ 5 | ≥ 7 | ≥ 8 | ||||||
Ground Pressure MPa | ≤ 0.1 | ||||||||
Rated Working Pressure MPa | 23 | ||||||||
Max. Bucket Size | Length mm | 3350 | 4200 | ||||||
Width mm | 850 | 900 | 1000 | 1100 | 1200 | ||||
Height mm | 1200 | 1400 | 1500 | 1650 | |||||
Max. Bucket Weight Kg | 2300 | 3000 | 3500 | ||||||
Max. Overall Dimensions (Working) | Length mm | 6000 | 6500 | 6800 | 7000 | 7500 | 8800 | ||
Width mm | 1750 | 1800 | 2200 | 2350 | 2640 | ||||
Height mm | 1750 | 1750 | 1800 | 2900 | 3250 | 3600 | 3800 | 4200 | |
Machine Weight Kg | 7600 | 8000 | 8200 | 11200 | 13800 | 15200 | 17800 | 20000 | |

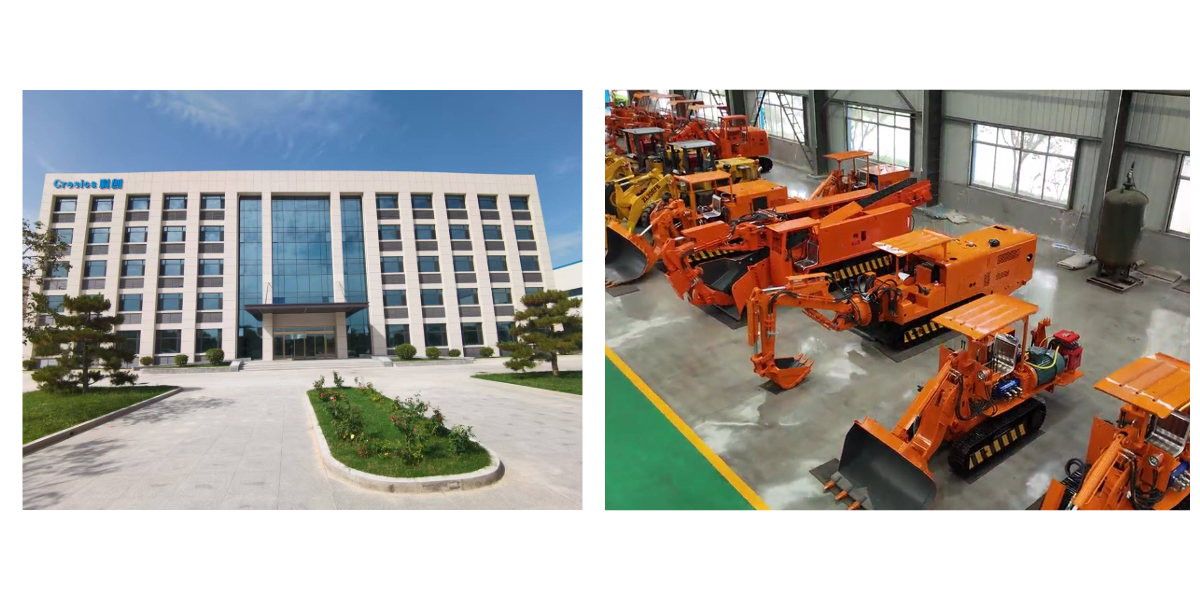

About us
