Mining Mucking Loader
1. New experience of one-stop operation
The integrated operation of slag removal, loading, conveying and loading can be achieved without the need for multiple equipment. Crushing components can be added, and the slag removal machine can be customized.
2. Worry-free operation on complex terrain, convenient and economical maintenance
The crawler model can handle complex terrains such as mud and loose sand with ease due to its smaller ground contact pressure. Designed with a modular concept, key components such as conveyor belts and hydraulic arms can be quickly disassembled and replaced, improving maintenance efficiency.
The application scenarios of slag scrapers cover a wide range of applications. In mining operations, whether it is the mining and loading operations of metallic or non-metallic ores, or the excavation and loading tasks of different sections such as inclined shafts, vertical shafts, and tunnels, it can be efficiently competent. In engineering fields such as tunnel excavation and diversion tunnels, slag scrapers also perform well. It uses a fully hydraulic crawler chassis with a backhoe system to accurately grab rocks or ores, and quickly transport materials to rear equipment, such as mine trucks or belt conveyors, through the central scraper conveyor to achieve continuous slag discharging.
The hydraulic crawler drive device with sufficient power gives it good climbing ability, and it can maintain the stability of the operation even in the face of complex and rugged terrain or wet and water-logged tunnels. In the blasting excavation process, the slag scraper needs to be parked 20 meters away to make room for the drill rig to drill holes. After the explosive blasting is completed, the scattered slag and rocks are quickly cleaned up and seamlessly connected with subsequent secondary transport belt conveyors, scraper conveyors and other equipment to ensure a compact and orderly operation process.

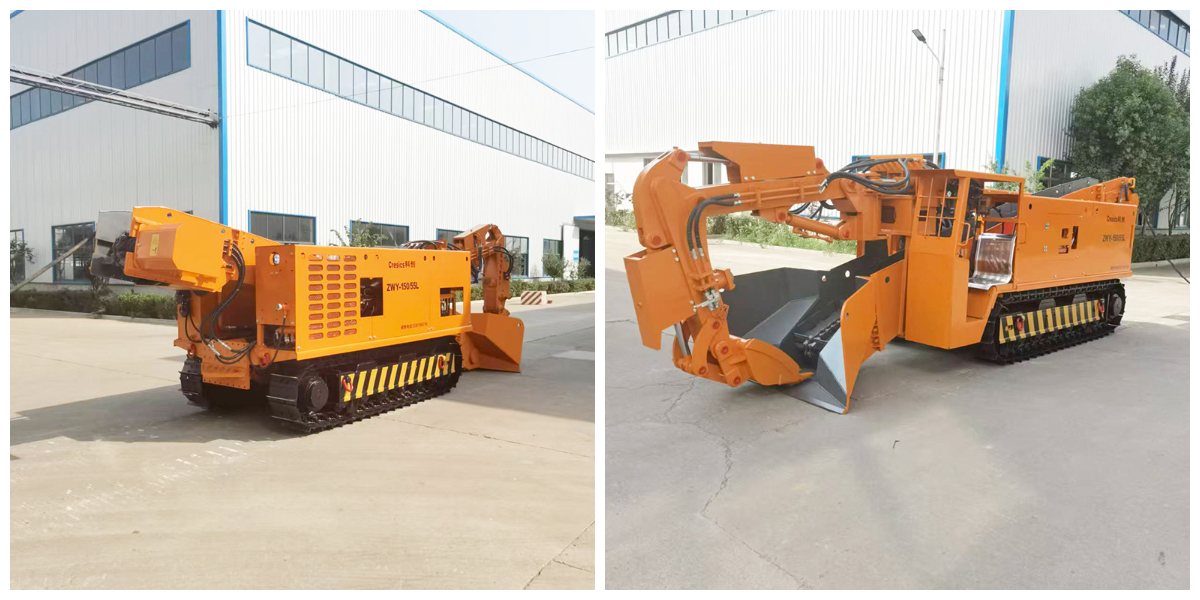

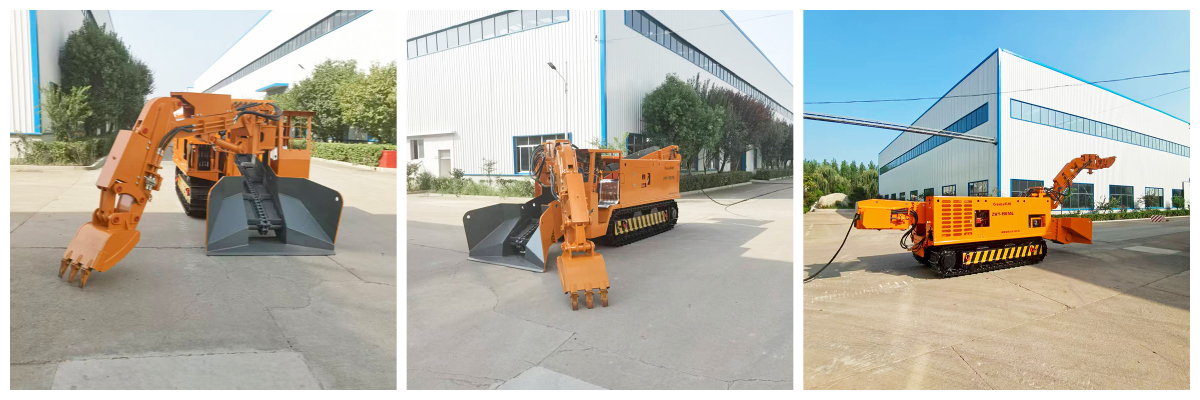

Product Details
Parameters
<tbody0
Item | ZWY-80/30L | ZWY-80/37L | ZWY-80/45L | ZWY-100/45L | ZWY-120/65L | ZWY-150/55L | ZWY-180/75L | ZWY-220/75L | |
Main Technical Parameters | |||||||||
Applicable Section (Width × Height) m | 3.2×2.2 | 3.5×2.5 | 4×2.5 | 4.8×3.2 | 5.4×4.0 | 5.8×4.5 | 6.2×5 | 7.5×5.5 | |
Applicable Axis Width* | (-16° ~ +16°) | (-20° ~ +20°) | ( -32° ~ +32°) | ||||||
Loading Capacity m³/h | 80 | 100 | 120 | 150 | 180 | 220 | |||
Control Mode | Hydraulic Pilot Control | ||||||||
Main Motor Power KW | 30 | 37 | 45 | 55 | 75 | ||||
Digging Width mm | 3200 | 3500 | 4000 | 4600 | 5400 | 5800 | 6200 | 7000 | |
Digging Distance mm | 1500 | 1600 | 1800 | 2150 | 2500 | 3300 | |||
Digging Height mm | 1800 | 2200 | 3000 | 3500 | 3800 | 4000 | 4300 | ||
Digging Depth mm | 400 | 500 | 800 | 990 | 1050 | ||||
Unloading Height (Adjustable) mm | 1200 | 1450 | 2000 | ||||||
Unloading Distance (Adjustable) mm | 1150 | ||||||||
Max. Rotation Angle* | ±36° | ±45° | ±55° | ||||||
Max. Transport Material Size mm | < φ500 | < φ580 | < φ625 | < φ780 | |||||
Boom Structure | Single Boom | Single Boom (or Double Boom) | Double Boom | ||||||
Hoisting Speed m/min | 44 | ||||||||
Track Gauge (Adjustable) mm | 890 | 890 | 900 | 1110 | 1190 | 1400 | |||
Travel Speed m/s | 0.5 | ||||||||
Ground Clearance mm | 300 | ||||||||
Min. Turning Radius m | ≥ 5 | ≥ 7 | ≥ 8 | ||||||
Ground Pressure MPa | ≤ 0.1 | ||||||||
Rated Working Pressure MPa | 23 | ||||||||
Max. Bucket Size | Length mm | 3350 | 4200 | ||||||
Width mm | 850 | 900 | 1000 | 1100 | 1200 | ||||
Height mm | 1200 | 1400 | 1500 | 1650 | |||||
Max. Bucket Weight Kg | 2300 | 3000 | 3500 | ||||||
Max. Overall Dimensions (Working) | Length mm | 6000 | 6500 | 6800 | 7000 | 7500 | 8800 | ||
Width mm | 1750 | 1800 | 2200 | 2350 | 2640 | ||||
Height mm | 1750 | 1750 | 1800 | 2900 | 3250 | 3600 | 3800 | 4200 | |
Machine Weight Kg | 7600 | 8000 | 8200 | 11200 | 13800 | 15200 | 17800 | 20000 | |

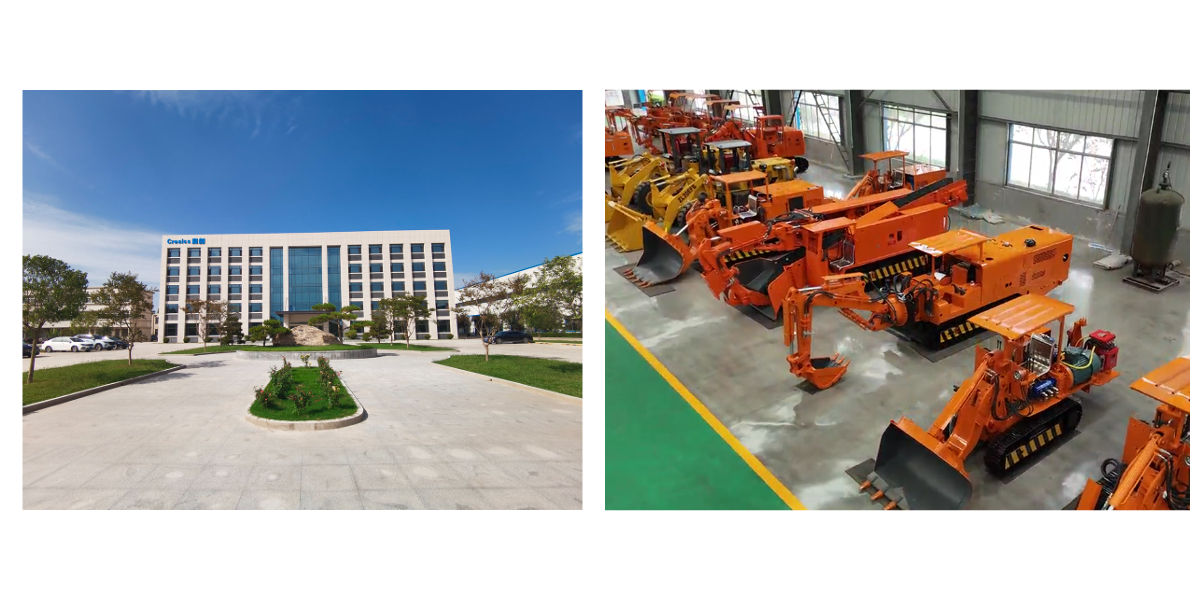

About us
In 2004, Shandong Cresics Equipment Manufacturing Co., Ltd. was formally established. It is a professional equipment enterprise integrating R&D, manufacturing and after-sales service. The company regards technological innovation as its core business philosophy and has been recognized as a national-level specialized, special and new small giant enterprise, a single champion enterprise in Shandong Province, a gazelle enterprise in Shandong Province, and a national high-tech enterprise. The company's products cover the fields of mining anchor digging and transportation, mining automation intelligence, and mining auxiliary transportation equipment, and can provide customers with one-stop solutions for complete sets of equipment in multiple fields.The company has established a complete quality control system in all aspects of product design, manufacturing, inspection, on-site use, and after-sales follow-up. It can also provide customized designs based on users' actual working conditions and create value for customers through the "quality + service" model. The company has passed the three-system certification and is an "AAA" credit certification enterprise.
