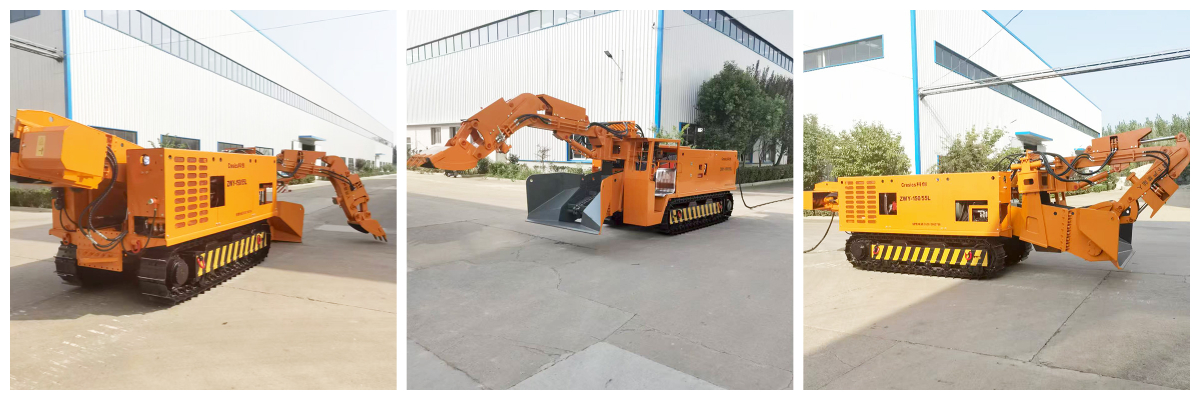

Mucking Loader Price
1. Direct supply from the original manufacturer, with excellent cost-effectiveness.
2. Independently developed and designed, suitable for various working conditions in mines.
3. Strong cost control ability, with quotations meeting international procurement requirements.
Structural Composition
The mucking loader is mainly composed of a boom system, a conveying trough mechanism, a crawler travel assembly, a hydraulic system, an electrical system and other components.
★Boom system：It is the core component for controlling the lifting, lowering and slewing of the bucket, which directly determines the mucking and unloading operation efficiency of the mucking loader.
★Conveying trough mechanism ：It is responsible for rapidly conveying the shoveled slag to transport vehicles, ensuring the continuous and smooth operation of mucking work.
★Crawler travel assembly：Different from the ordinary crawler mechanism, the crawler travel assembly is an integrated traveling component including crawlers, chassis, driving wheels, carrier rollers and other parts, with the advantages of strong ground grip, anti-vibration performance and adaptability to complex roadways.
★Hydraulic system：The hydraulic system of the mucking loader serves as the power core, endowing the equipment with superior operational smoothness and load capacity, featuring high-pressure stability, low energy consumption, shock resistance and easy maintenance.
★Electrical system：The electrical system is the control core of the mucking loader, responsible for the coordinated operation of all components and ensuring safe and accurate equipment control.
★Other components：Other components include bucket, scraper, protective cover, operation panel and other key auxiliary parts, which ensure the complete and reliable operation of the mucking loader.
Model Description

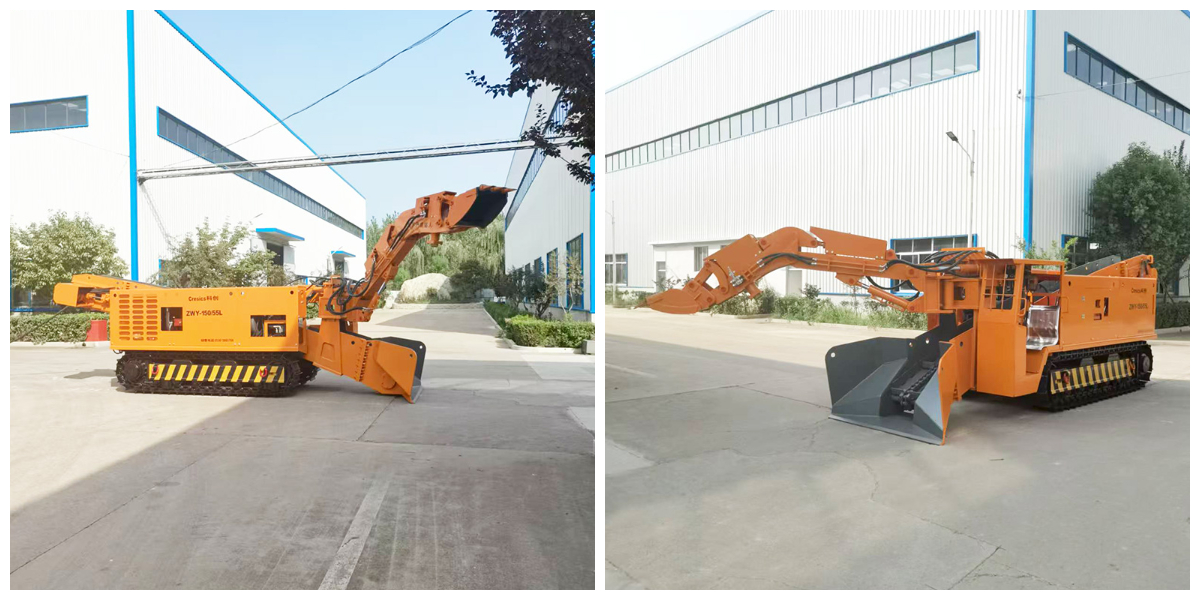

Mucking Loader: ZWY-100/45L
Z：Product Type: Loader for Coal Mine
W：Product Primary Feature：Excavating Type
Y：Product Secondary Feature: Drive Mode (Hydraulic: Y, Electric: D)
100：Loading Capacity: 100 m³/h
45：Installed Power: 45 kW
L：Supplementary Feature: Travel Type (Rail Wheel: G, Crawler: L, Tire: T)
Parameters
Item | ZWY-80/30L | ZWY-80/37L | ZWY-80/45L | ZWY-100/45L | ZWY-120/65L | ZWY-150/55L | ZWY-180/75L | ZWY-220/75L | |
Main Technical Parameters | |||||||||
Applicable Section (Width × Height) m | 3.2×2.2 | 3.5×2.5 | 4×2.5 | 4.8×3.2 | 5.4×4.0 | 5.8×4.5 | 6.2×5 | 7.5×5.5 | |
Applicable Axis Width* | (-16° ~ +16°) | (-20° ~ +20°) | ( -32° ~ +32°) | ||||||
Loading Capacity m³/h | 80 | 100 | 120 | 150 | 180 | 220 | |||
Control Mode | Hydraulic Pilot Control | ||||||||
Main Motor Power KW | 30 | 37 | 45 | 55 | 75 | ||||
Digging Width mm | 3200 | 3500 | 4000 | 4600 | 5400 | 5800 | 6200 | 7000 | |
Digging Distance mm | 1500 | 1600 | 1800 | 2150 | 2500 | 3300 | |||
Digging Height mm | 1800 | 2200 | 3000 | 3500 | 3800 | 4000 | 4300 | ||
Digging Depth mm | 400 | 500 | 800 | 990 | 1050 | ||||
Unloading Height (Adjustable) mm | 1200 | 1450 | 2000 | ||||||
Unloading Distance (Adjustable) mm | 1150 | ||||||||
Max. Rotation Angle* | ±36° | ±45° | ±55° | ||||||
Max. Transport Material Size mm | < φ500 | < φ580 | < φ625 | < φ780 | |||||
Boom Structure | Single Boom | Single Boom (or Double Boom) | Double Boom | ||||||
Hoisting Speed m/min | 44 | ||||||||
Track Gauge (Adjustable) mm | 890 | 890 | 900 | 1110 | 1190 | 1400 | |||
Travel Speed m/s | 0.5 | ||||||||
Ground Clearance mm | 300 | ||||||||
Min. Turning Radius m | ≥ 5 | ≥ 7 | ≥ 8 | ||||||
Ground Pressure MPa | ≤ 0.1 | ||||||||
Rated Working Pressure MPa | 23 | ||||||||
Max. Bucket Size | Length mm | 3350 | 4200 | ||||||
Width mm | 850 | 900 | 1000 | 1100 | 1200 | ||||
Height mm | 1200 | 1400 | 1500 | 1650 | |||||
Max. Bucket Weight Kg | 2300 | 3000 | 3500 | ||||||
Max. Overall Dimensions (Working) | Length mm | 6000 | 6500 | 6800 | 7000 | 7500 | 8800 | ||
Width mm | 1750 | 1800 | 2200 | 2350 | 2640 | ||||
Height mm | 1750 | 1750 | 1800 | 2900 | 3250 | 3600 | 3800 | 4200 | |
Machine Weight Kg | 7600 | 8000 | 8200 | 11200 | 13800 | 15200 | 17800 | 20000 | |
Detailed List of Common Spare Parts
1.Tooth Point：We supply high-wear-resistant bucket tooth points for ZWY-100/45L coal mine mucking loaders, with long service life
2.Scraper：A key spare part for the conveying trough mechanism, ensuring the smooth transportation of mine slag.
3.Pin Shaft：A core connecting part for the boom system, crawler travel assembly, scraper and other components of the mucking loader.
4.Filter：Mainly the Hydraulic Filter for the hydraulic system, it is a core protective part of the hydraulic system.
5.Reversing Valve：It controls the direction of hydraulic oil flow and determines the operational precision of the boom system and conveying trough.
6.Oil Cylinder：It provides power for the lifting of the boom, the overturning of the conveying trough and other movements.
7.High-Pressure Oil Pipe：A core hydraulic oil delivery part of the hydraulic system, adapted to the high-pressure hydraulic working conditions underground.
Applicable Conditions
Suitable for use in underground coal mine environments containing methane and explosive gases.
Altitude not exceeding 1000 meters.
Ambient temperature: -5 ～ +40℃.
Relative humidity of ambient air: not more than 95% (at +25℃).
For use in areas without water dripping.
