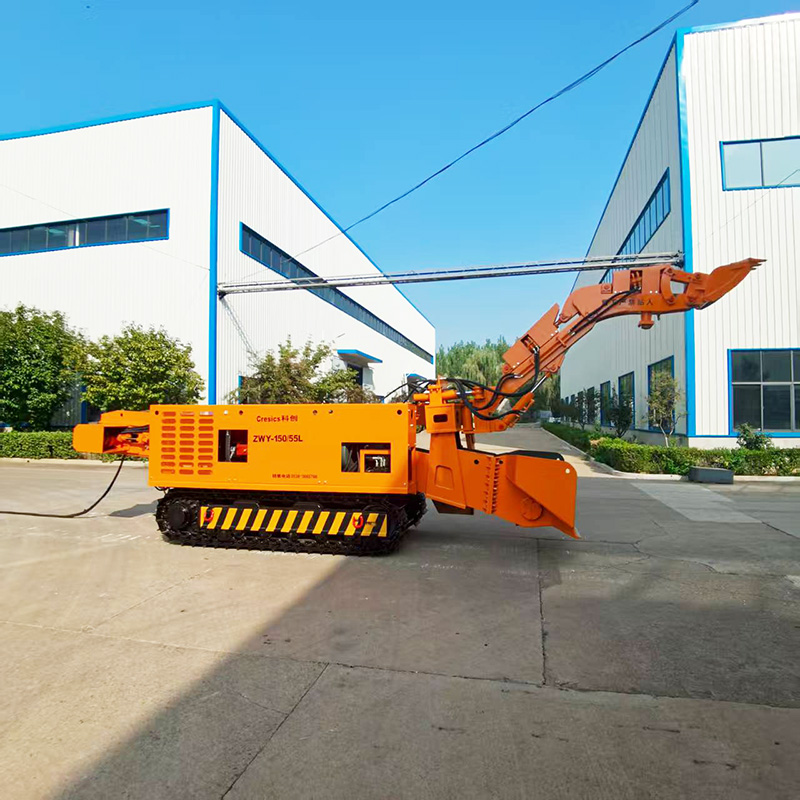

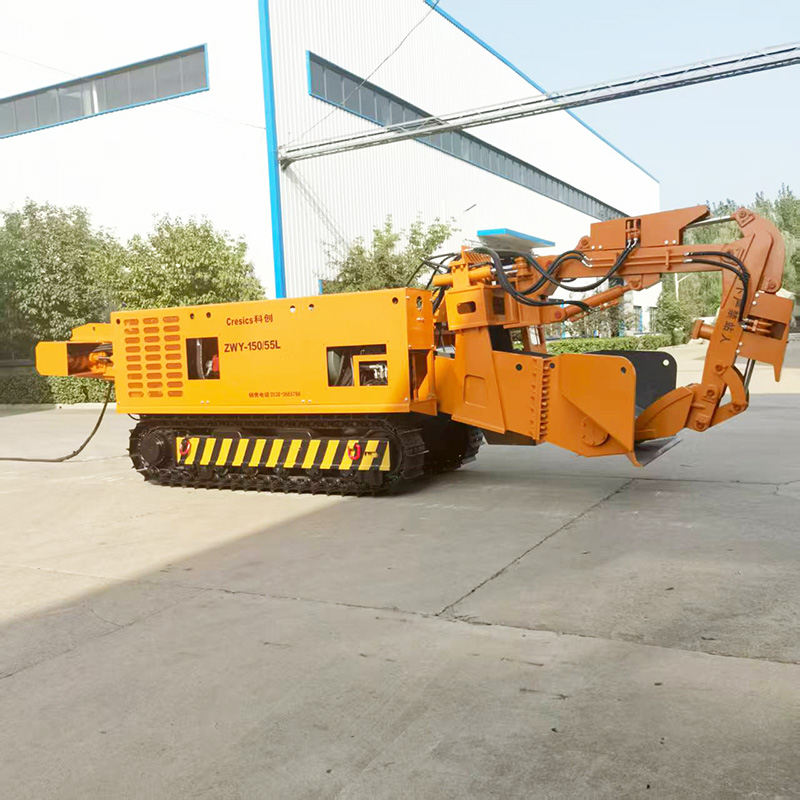

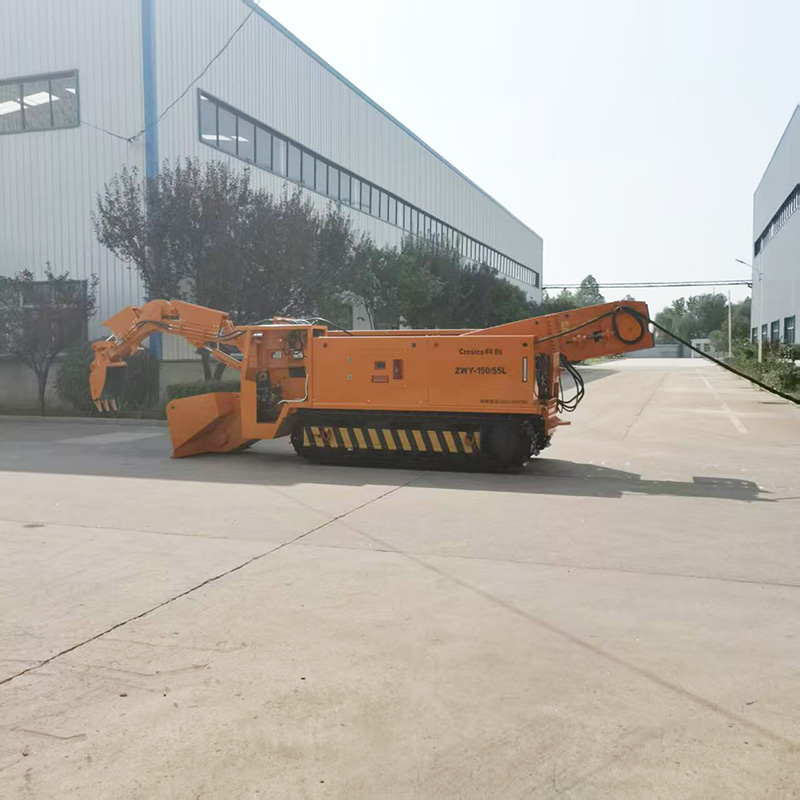

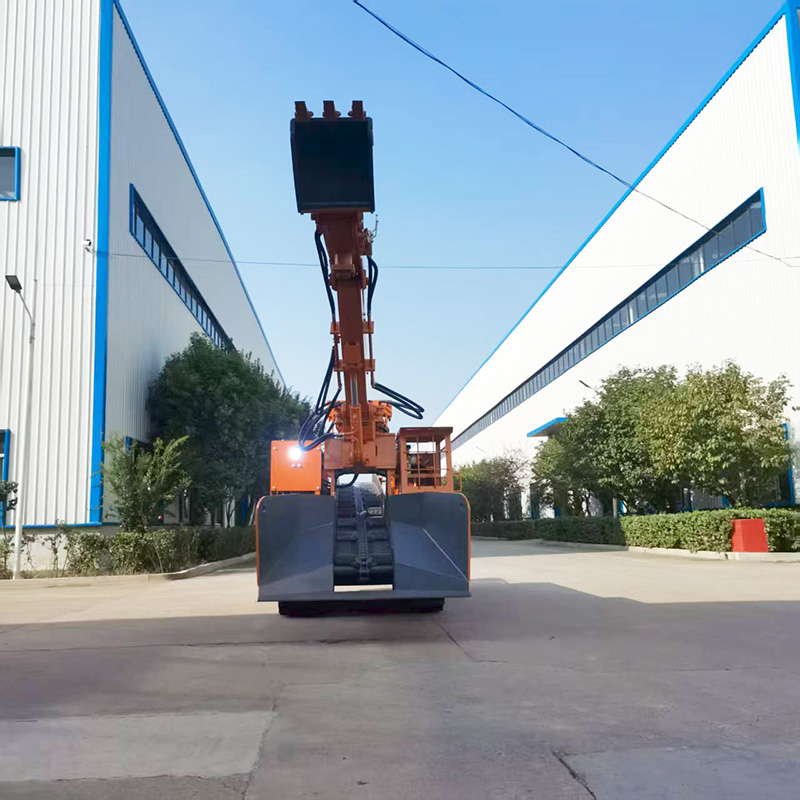

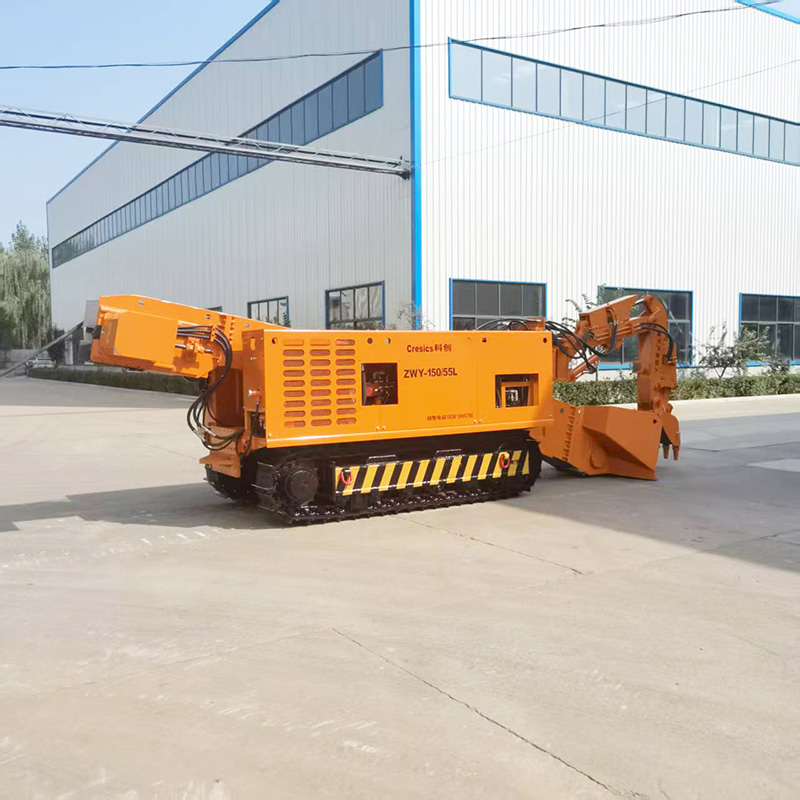

Large Mucking Loader
1. New paradigm of intelligent homework
Comprehensive integration speeds up work. Complete the entire chain operation of slag removal, loading, transportation and loading, and collect multiple machines to support the operation process. Its comprehensive rock loading performance can cover the entire operation area, leaving no missed areas, and tomatoes can be manually filled in, greatly improving production efficiency.
2. Prioritize quick equipment
Additional crushing devices, cable drums, conveying pipe systems, etc. can be replaced within 5 minutes through a quick change device; the support height, width and body width can be customized on site. The standard climbing capacity is ±20°, and the customized version can be ±30°.
3. Applicable to multiple scenarios, new standard for safe operation
The low ground contact pressure track design enhances passability and is suitable for complex terrains such as mud and sand. A variety of models are available, and the compact model can enter low tunnels to meet the needs of operations in narrow spaces. The overload alarm system monitors the load in real time to prevent equipment damage and ensure operational safety. The pilot valve control technology enables smooth and shock-free operation and reduces operating fatigue; the hydraulic system has a low failure rate and simple and efficient maintenance.
Slag scrapers, also known as backhoe loaders, can handle the slag removal work of small cross-sections of tunnels very well. It can be used for excavation and loading of various sections of mine inclined shafts and vertical shafts and tunnels, and is also suitable for mining and loading of various types of mines. It is widely used in tunnel projects such as railway and highway tunnels and water diversion tunnels. It consists of seven parts including hydraulic and electronic control. During blast excavation, the slag scraper is parked on the back side, and the drill truck moves forward to drill holes. Then the drill truck retreats for protection. After the blasting, the debris is scattered. The slag scraper is driven to discharge the slag head on, and the second transport belt conveyor can be connected to the rear.

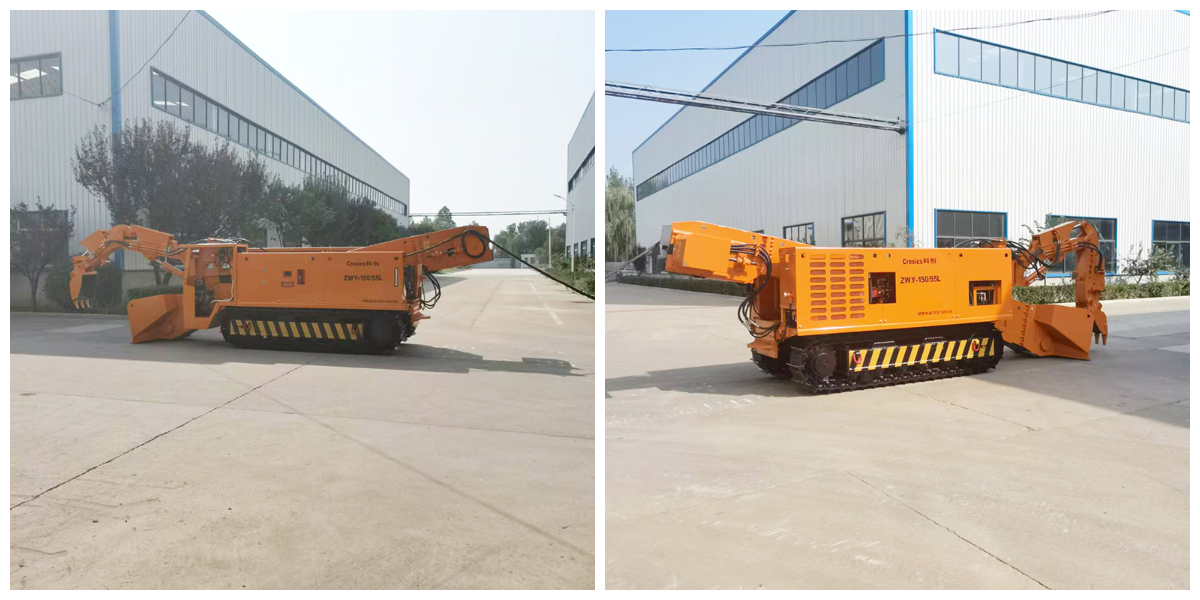

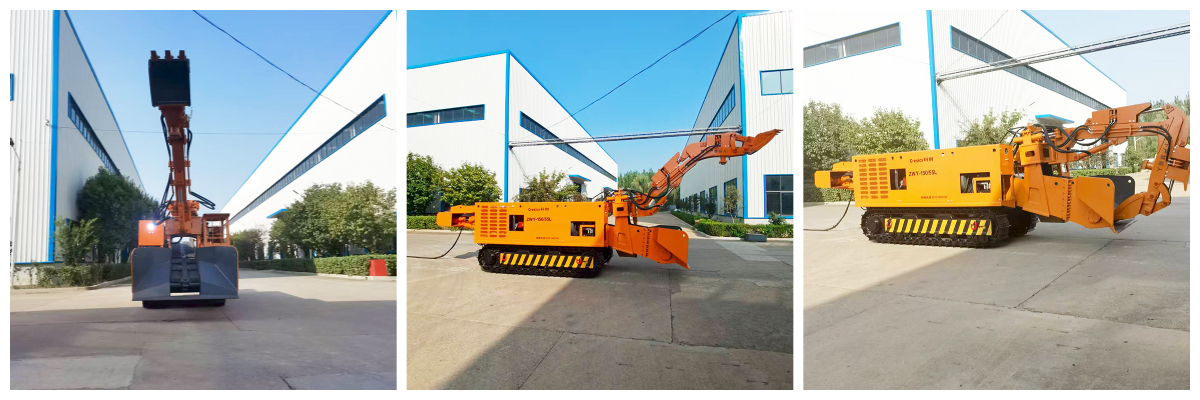

Product Details
Parameters
Item | ZWY-80/30L | ZWY-80/37L | ZWY-80/45L | ZWY-100/45L | ZWY-120/65L | ZWY-150/55L | ZWY-180/75L | ZWY-220/75L | |
Main Technical Parameters | |||||||||
Applicable Section (Width × Height) m | 3.2×2.2 | 3.5×2.5 | 4×2.5 | 4.8×3.2 | 5.4×4.0 | 5.8×4.5 | 6.2×5 | 7.5×5.5 | |
Applicable Axis Width* | (-16° ~ +16°) | (-20° ~ +20°) | ( -32° ~ +32°) | ||||||
Loading Capacity m³/h | 80 | 100 | 120 | 150 | 180 | 220 | |||
Control Mode | Hydraulic Pilot Control | ||||||||
Main Motor Power KW | 30 | 37 | 45 | 55 | 75 | ||||
Digging Width mm | 3200 | 3500 | 4000 | 4600 | 5400 | 5800 | 6200 | 7000 | |
Digging Distance mm | 1500 | 1600 | 1800 | 2150 | 2500 | 3300 | |||
Digging Height mm | 1800 | 2200 | 3000 | 3500 | 3800 | 4000 | 4300 | ||
Digging Depth mm | 400 | 500 | 800 | 990 | 1050 | ||||
Unloading Height (Adjustable) mm | 1200 | 1450 | 2000 | ||||||
Unloading Distance (Adjustable) mm | 1150 | ||||||||
Max. Rotation Angle* | ±36° | ±45° | ±55° | ||||||
Max. Transport Material Size mm | < φ500 | < φ580 | < φ625 | < φ780 | |||||
Boom Structure | Single Boom | Single Boom (or Double Boom) | Double Boom | ||||||
Hoisting Speed m/min | 44 | ||||||||
Track Gauge (Adjustable) mm | 890 | 890 | 900 | 1110 | 1190 | 1400 | |||
Travel Speed m/s | 0.5 | ||||||||
Ground Clearance mm | 300 | ||||||||
Min. Turning Radius m | ≥ 5 | ≥ 7 | ≥ 8 | ||||||
Ground Pressure MPa | ≤ 0.1 | ||||||||
Rated Working Pressure MPa | 23 | ||||||||
Max. Bucket Size | Length mm | 3350 | 4200 | ||||||
Width mm | 850 | 900 | 1000 | 1100 | 1200 | ||||
Height mm | 1200 | 1400 | 1500 | 1650 | |||||
Max. Bucket Weight Kg | 2300 | 3000 | 3500 | ||||||
Max. Overall Dimensions (Working) | Length mm | 6000 | 6500 | 6800 | 7000 | 7500 | 8800 | ||
Width mm | 1750 | 1800 | 2200 | 2350 | 2640 | ||||
Height mm | 1750 | 1750 | 1800 | 2900 | 3250 | 3600 | 3800 | 4200 | |
Machine Weight Kg | 7600 | 8000 | 8200 | 11200 | 13800 | 15200 | 17800 | 20000 | |
