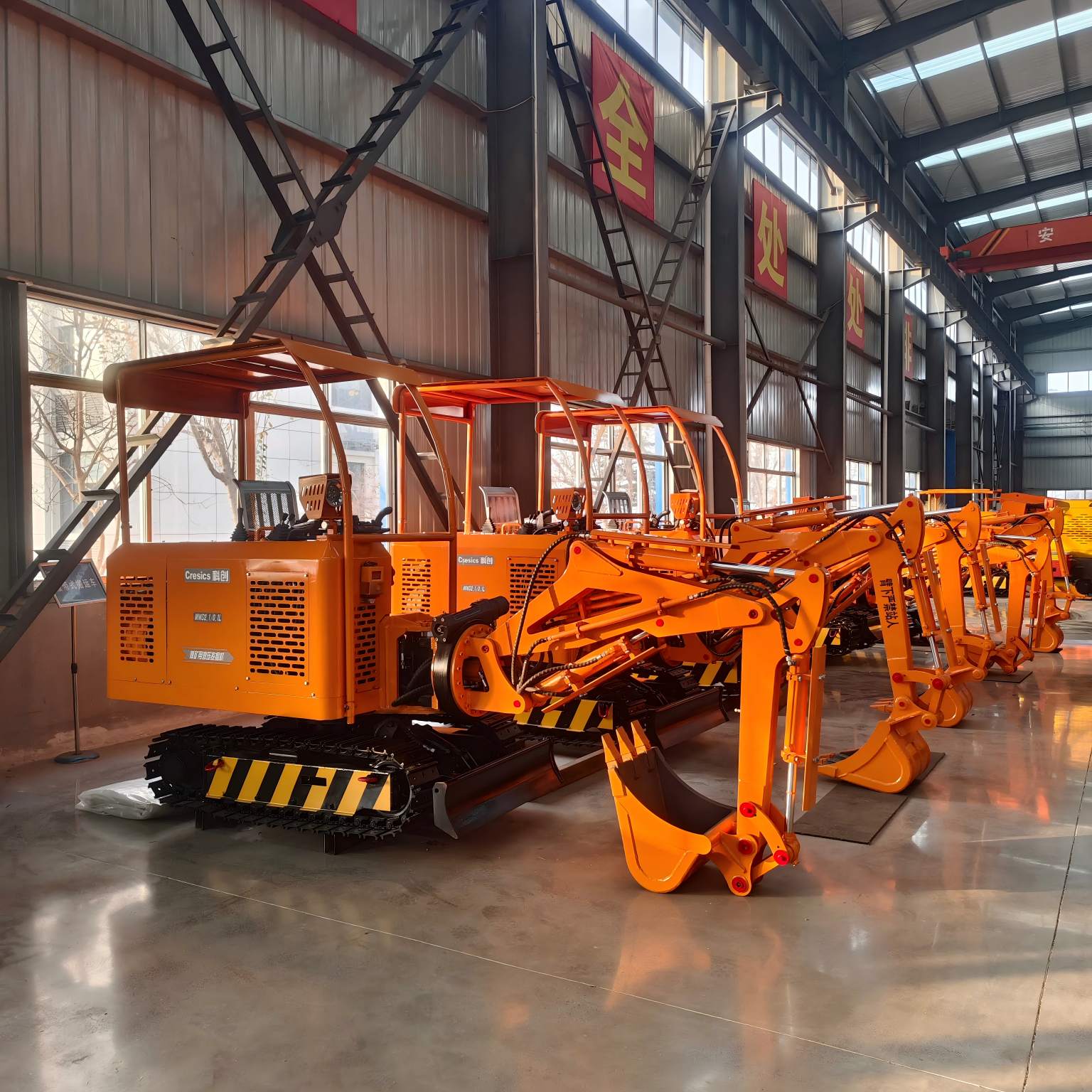

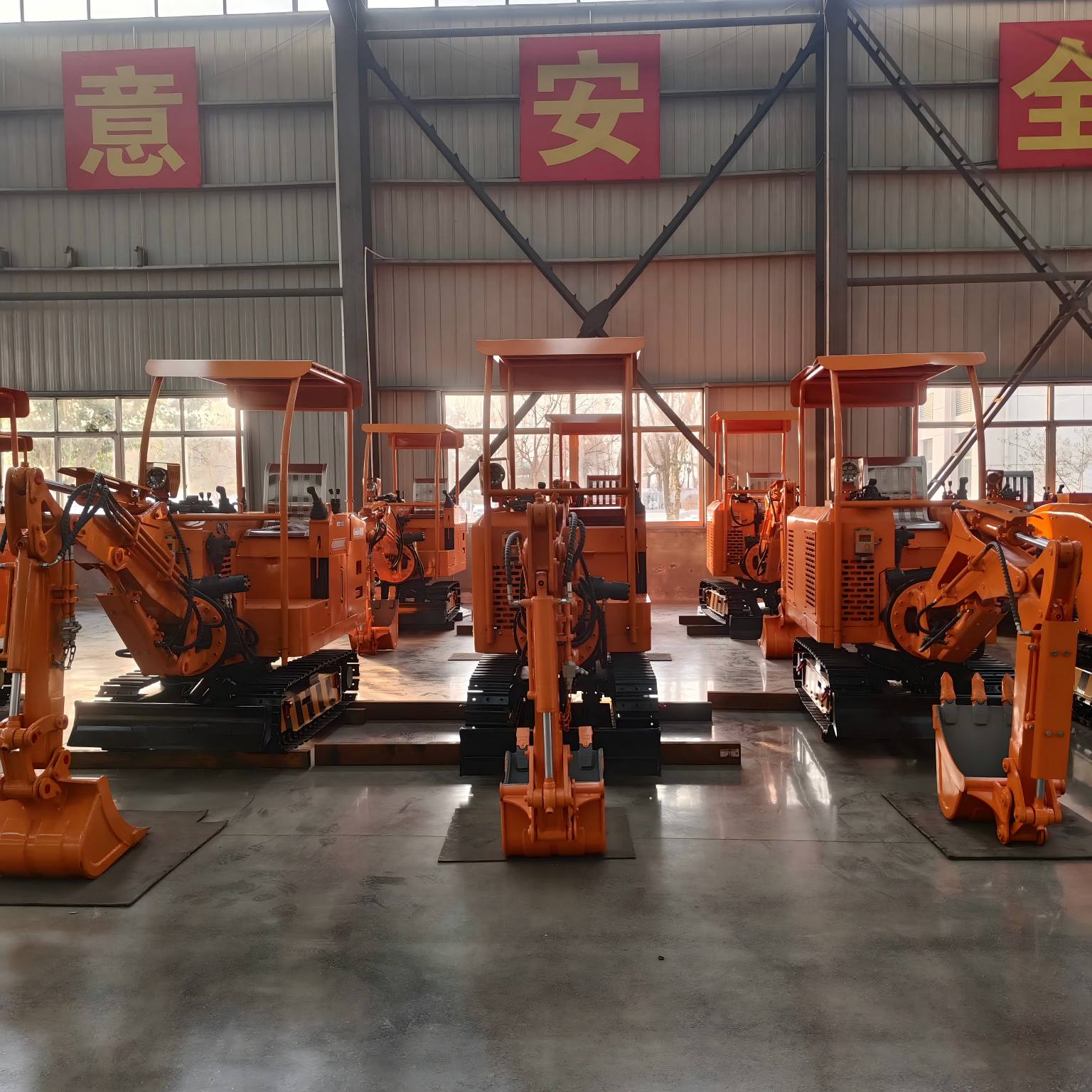

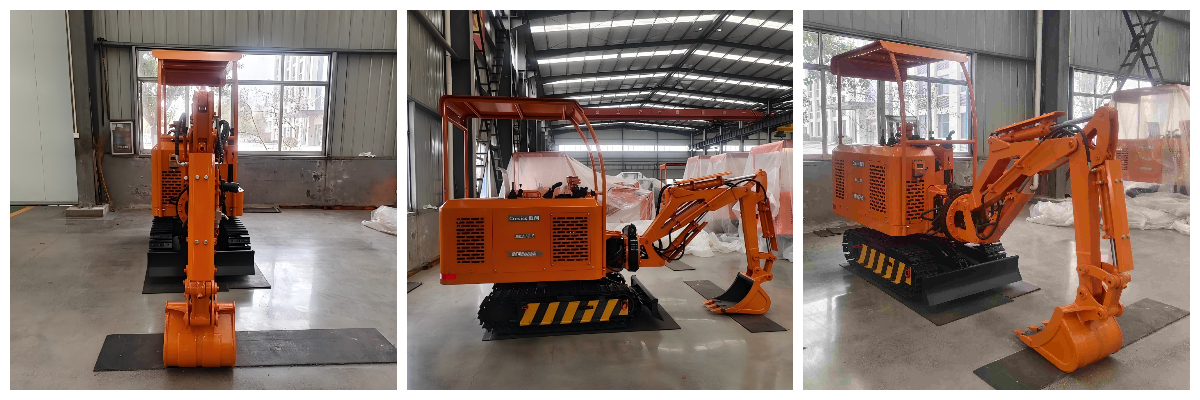

Underground Excavator
1.Ultra-flexible for narrow roadway operations
2.All-round underground performance with explosion-proof feature
3.Durable and sturdy with fewer breakdowns
4.Direct manufacturer for worry-free experience
Product Details
The Underground Excavator, designed and manufactured by Shandong Cresics Equipment Manufacturing Co., Ltd., is a dedicated digging machine for coal mine underground operations. It not only boasts standard excavation functions but can also be fitted with a hydraulic breaker to perform crushing tasks inside mine roadways. Unlike products from other manufacturers, this model offers the following exclusive advantages:
1.Ultra-flexible for narrow roadway operations: Compact body with a height of less than 2.4 meters and zero-tail 360° rotation capability. Easy to turn around and operate in narrow roadways, and adaptable to all types of underground roadway sections.
2.All-round & high-efficiency performance: Capable of excavation, slag removal, milling, and support operations. Realizes quick accessory replacement, completing multiple processes without changing equipment, and delivers much higher efficiency than similar models.
3.Durable & low failure rate: Equipped with well-known imported core components and high-strength steel for key parts. Built-in multiple safety protection systems, ensuring stable operation even under heavy-load conditions with minimal maintenance requirements.
4.Worry-free experience with direct manufacturer: Factory-direct sales eliminate middlemen, offering cost-effective prices and customized solutions. Sufficient spare parts in stock, 24-hour after-sales response, free operation training and maintenance guidance, guaranteeing hassle-free post-purchase usage.
4.Explosion-proof design: Adaptable to various complex underground working conditions, especially suitable for high-gas underground environments.
Parameters
Project | Unit | MWD2.1/0.1L | MWD3.3/0.16L | MWD5.5/0.2L | MWD6.8/0.28L | |
Basic Parameters | Standard Bucket Capacity | m³ | 0.1±0.01 | 0.16±0.016 | 0.2±0.02 | 0.28±0.028 |
Operating Mass | kg | 2100±105 | 3300±165 | 5500±275 | 6800±340 | |
MotorRated Power | kw | 22 | 30 | 37 | 55 | |
Hydraulic System Parameters | Rated Pressure | Mpa | 21.5 | 21.5 | 25 | 25 |
Maximum Flow Rate L/ | L/min | 70 | 90 | 110 | 135 | |
Excavation Parameters | Excavation Radius | mm | 3000 | 3500 | 4500 | 5200 |
Excavation Depth | mm | 1500 | 1800 | 2000 | 2400 | |
Excavation Heightmm | mm | 3200 | 3800 | 4700 | 5250 | |
Dumping Height(mm) | mm | 1800 | 2000 | 2500 | 2950 | |
Excavation Parameters | Walking Mode | / | Travel Motor with Built-in Spring Brake | Travel Motor with Built-in Spring Brake | Travel Motor with Built-in Spring Brake | Travel Motor with Built-in Spring Brake |
Travel Form | / | Caterpillar Track Traveling | Caterpillar Track Traveling | Caterpillar Track Traveling | Caterpillar Track Traveling | |
Ground Contact Pressure | Mpa | ≤ 0.1 | ≤ 0.1 | ≤ 0.1 | ≤ 0.1 | |
Travel Speed | m/min | 26.5 | 26.5 | 26.5 | 26.5 | |
Ground Clearance | mm | ≥ 250 | ≥ 250 | ≥ 250 | ≥ 280 | |
Gradeability | ° | ≥14(Applicable slope range: -14° to +14° ) | ≥ 14 (Applicable slope range: -14° to +14° ) | ≥ 14(Applicable slope range: -14° to +14° ) | ≥14(Applicable slope range: -14° to +14° ) | |
Minimum Turning Radius of Track | mm | ≤ 900 | ≤ 1100 | ≤ 1400 | ≤ 1600 | |
Overall Dimensions(Length × Width × Height) | mm | 2700×1000×2050 | 3200×1350×2250 | 3300×1450×2350 | 3350×1550×2600 | |

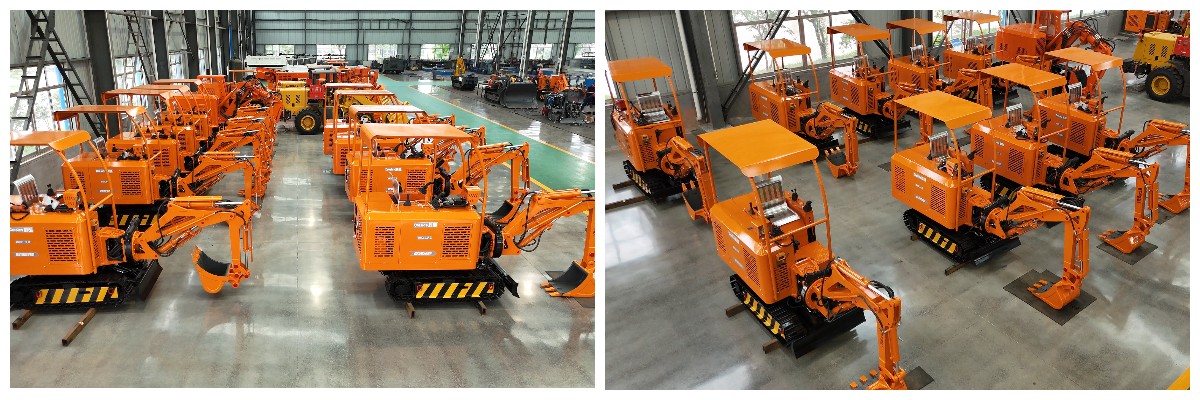

Company Actual Photos
About Us

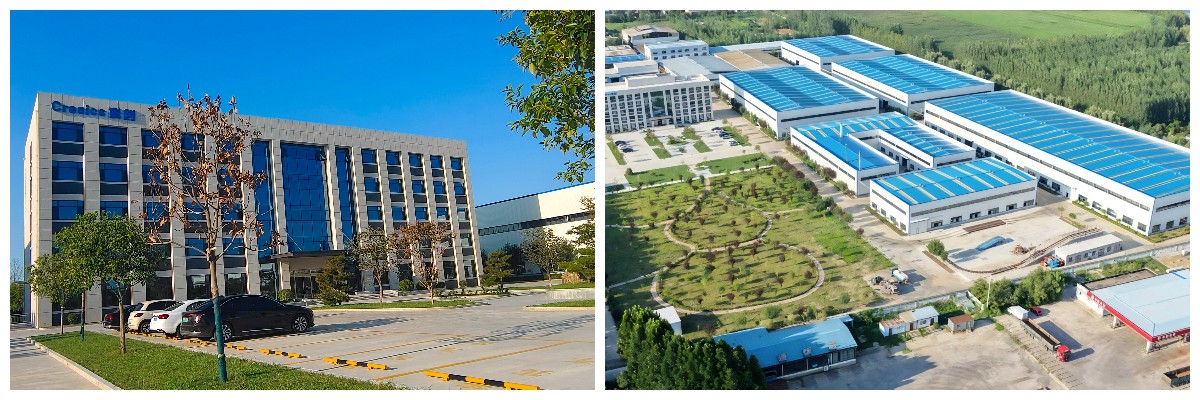

Shandong Cresics Equipment Manufacturing Co., Ltd. is located in the Industrial Park of Shichang Town, Feicheng City, Tai'an City, Shandong Province. As a core area for regional new industrialization, this location has a remarkable cluster effect, providing a complete industrial chain support for the company's development. The company's factory covers an area of 300 mu and has a scientifically reasonable layout, including R&D centers, production workshops, testing bases, and storage and logistics areas, forming an intensive and efficient production operation space.
As a source manufacturer specializing in mining equipment, the company has been deeply engaged in the industry for many years and has established a complete design and manufacturing system from product research and development, core component processing to complete machine assembly and quality inspection. Relying on the strong industrial foundation and technical resources of Feicheng, the company adheres to independent innovation, and all equipment components are independently designed and manufactured, fundamentally ensuring the consistency and reliability of the products, and effectively avoiding the compatibility risks brought by purchased components.
The company focuses on the actual needs of mining operations and, by leveraging the advantages of a full-chain autonomous production, can quickly respond to customers' customized requirements and flexibly adjust production plans. The mature production management system and strict quality control process ensure that each piece of equipment meets the high standards of the mining industry, providing global customers with mining equipment that is both stable and of high cost-effectiveness, demonstrating the strength and responsibility of a professional mining equipment manufacturer.
