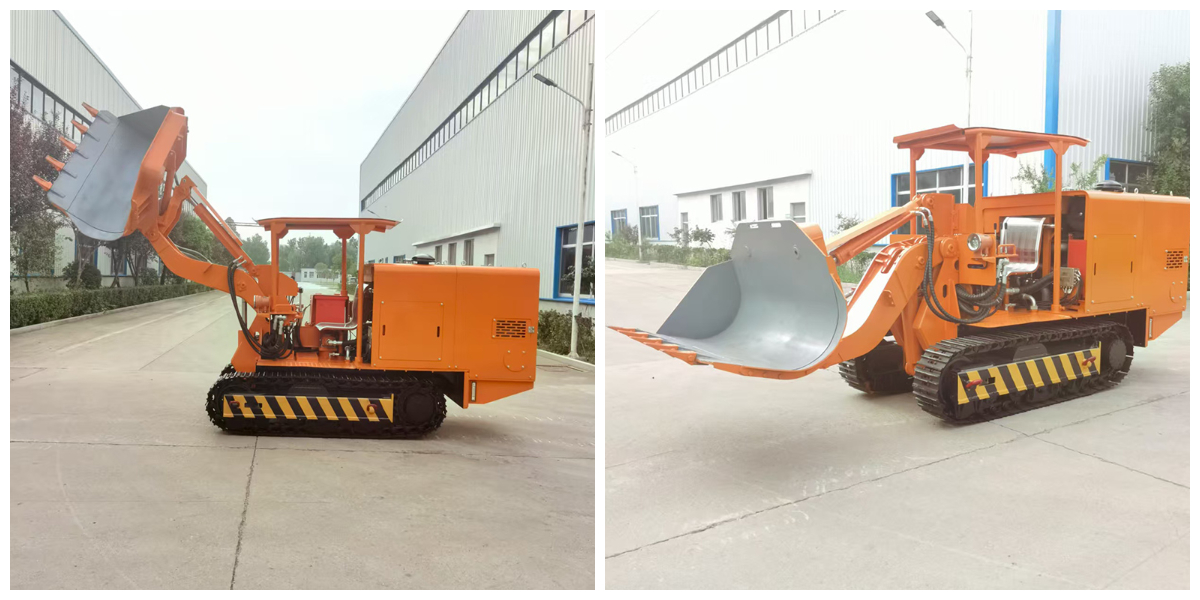

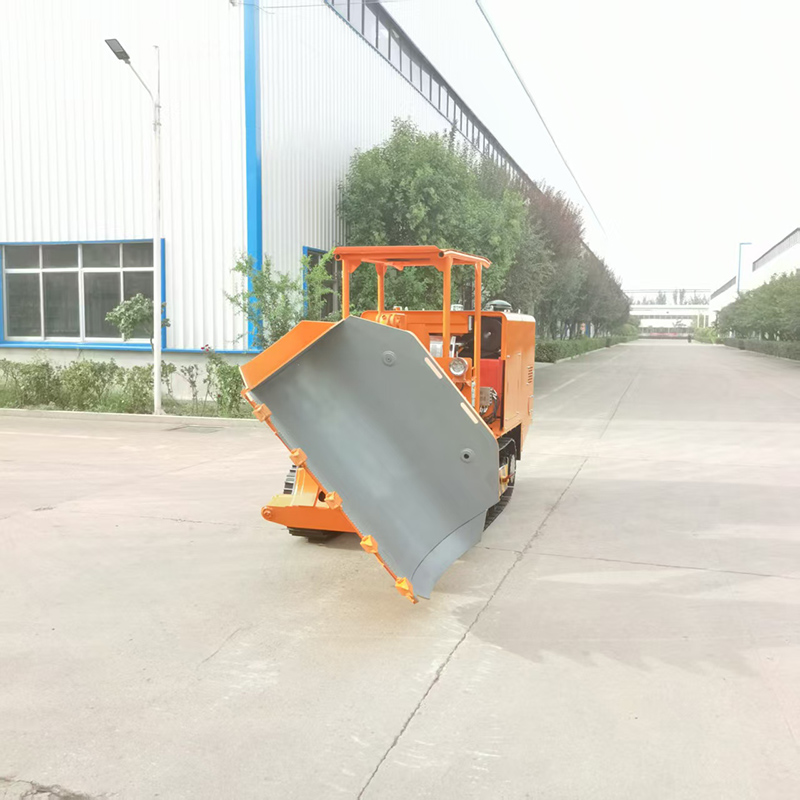

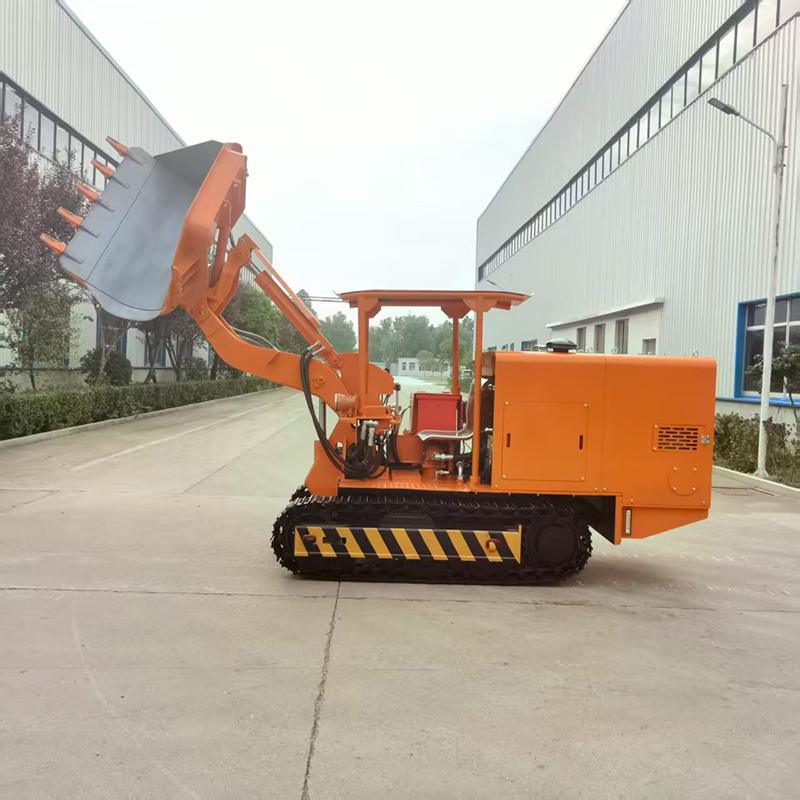

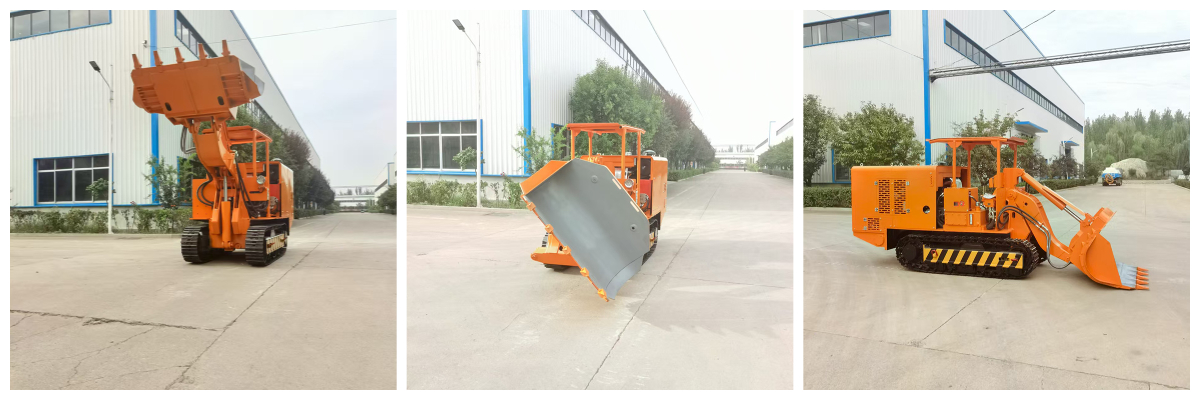

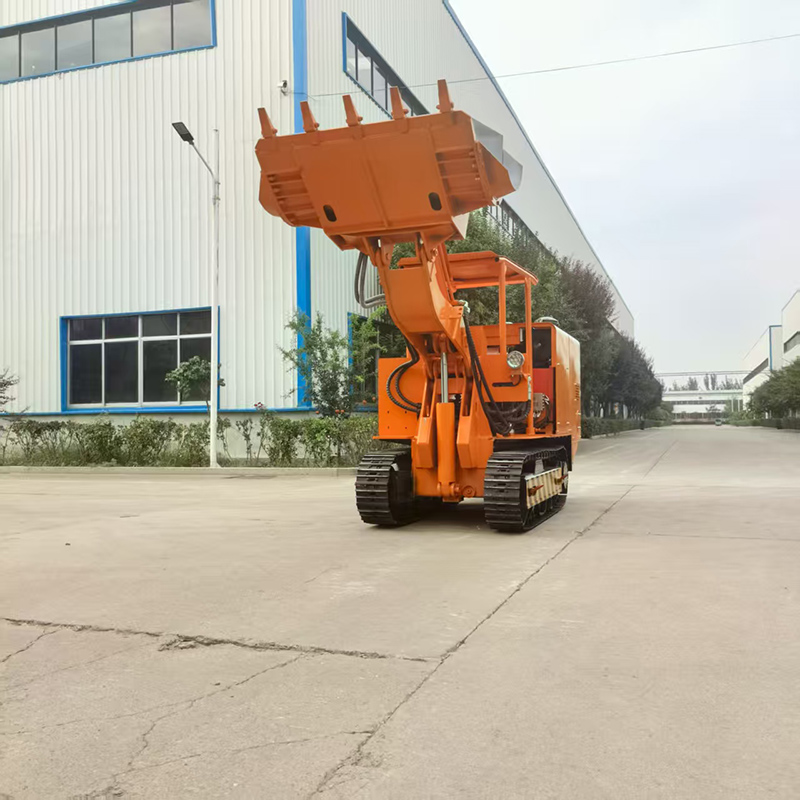

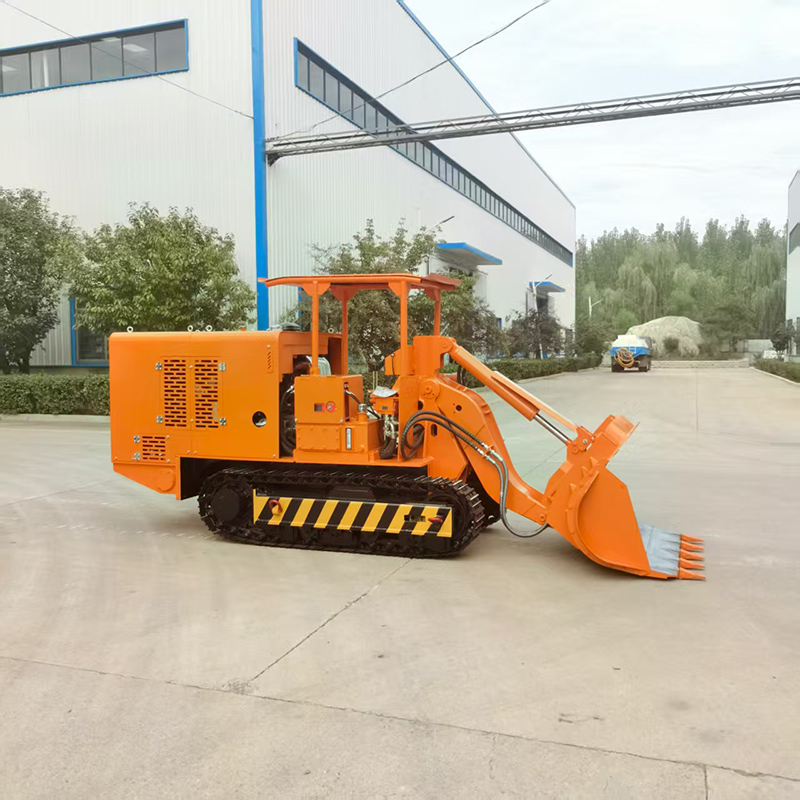

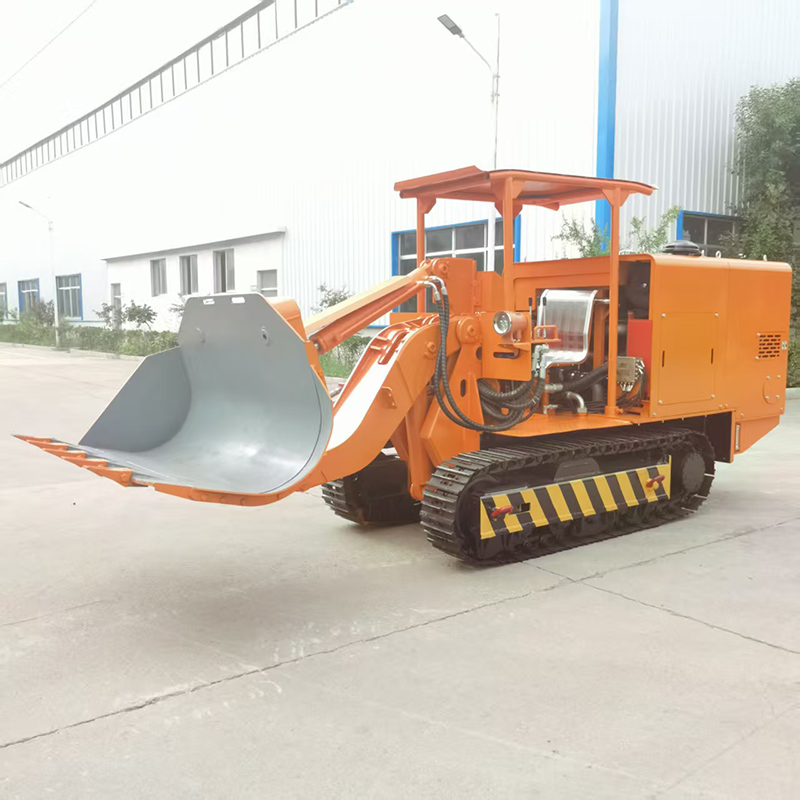

80 Side Unloading Rock Loader
Adaptable
The side-discharging rock loader is driven by a diesel engine, has stable performance, large load-bearing capacity, and a crawler structure, and can easily cope with various complex road surfaces;
Diesel engines have strong adaptability and can operate in extreme environments such as low temperature and high dust, and can meet various complex conditions.
There are various models of side discharge rock loaders, and users can choose the model according to their different needs for the size of the tunnel section, loading efficiency, and power form.
It is a front-loading side-discharging rock loading equipment with diesel engine power, crawler running, and hydraulic cylinder operating bucket. It is mainly used for efficient loading of loose rocks, ores, slag and other materials after blasting.
It can lift heavy objects such as metal brackets for support and serve as a temporary working platform; it can transport materials over short distances; it has undercover and gang cleaning functions to mechanize loading operations and reduce manual labor.
Product Details
Parameters
Product Model | ZCN60R | ZCN80R | ZCN100R | ZCN120R | ZCN150R | ZCN180R |
Overall Dimensions (L*W*H mm) | 4500*1510*2060 | 4585*1636*2088 | 4855*1636*2150 | 5200*1820*2150 | 5250*2120*2150 | 5380*2420*2200 |
Bucket Capacity (m³) | 0.6 | 0.8 | 1 | 1.2 | 1.5 | 1.8 |
Bucket Width (mm) | 1510 | 1636 | 1636 | 1820 | 2120 | 2420 |
Max. Dumping Height (mm) | 1700 | 1900 | 1900 | 1900 | 2000 | 2000 |
Max. Dumping Angle (°) | 55 | 55 | 55 | 55 | 55 | 55 |
Max. Traction Force (KN) | 25 | 40 | 40 | 50 | 50 | 50 |
Rated Traction Force (KN) | 20 | 30 | 30 | 45 | 45 | 45 |
Max. Travel Speed (m/min) | 30 | 30 | 30 | 30 | 30 | 30 |
Min. Ground Clearance (mm) | 180 | 180 | 200 | 200 | 200 | 200 |
Max. Undercutting Depth (mm) | 450 | 500 | 500 | 500 | 500 | 500 |
Gradeability (°) | ±16° | ±16° | ±16° | ±16° | ±16° | ±16° |
Track Shoe Width (mm) | 260 | 300 | 300 | 300 | 300 | 300 |
Track Ground Pressure (MPa) | 0.09 | 0.09 | 0.1 | 0.1 | 0.1 | 0.1 |
Center of Gravity Position (mm) | Xg=694 | Xg=763 | Xg=788 | Xg=815 | Xg=842 | Xg=850 |
Yg=30 | Yg=34 | Yg=35 | Yg=44 | Yg=85 | Yg=100 | |
Noise (dBA) | ≤90 | ≤90 | ≤90 | ≤90 | ≤90 | ≤90 |
Diesel Engine - Installed Power (kW) | 62 | |||||
Starting Method | Electric Start | |||||
Protection Type | Electric Protection | |||||
Engine Speed | 2200rpm | |||||
Travel Working Pressure (MPa) | 20 | 20 | 23 | 23 | 23 | 23 |
System Working Pressure (MPa) | 18 | 18 | 20 | 20 | 20 | 20 |
Operating Weight (without fuel) (kg) | 5200 | 6500 | 7500 | 7900 | 8200 | 9000 |
About us

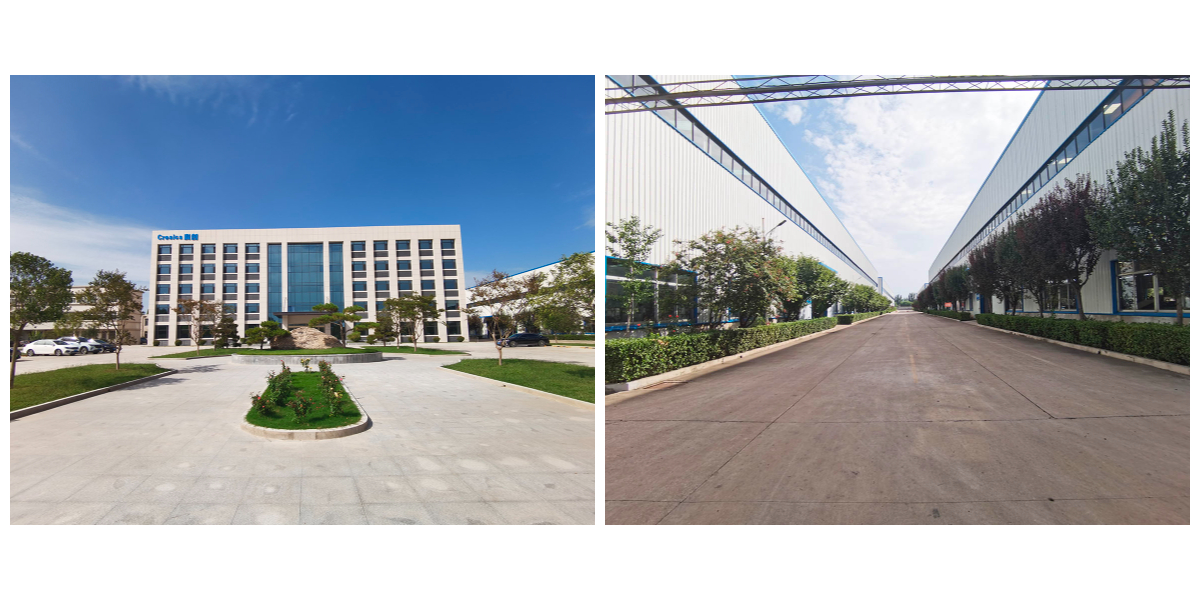

Shandong Cresics Equipment Manufacturing Co., Ltd., founded in 2004, is a specialized firm committed to the research, development, and manufacturing of mining equipment. Driven by a commitment to technological innovation, the company has garnered a plethora of accolades, such as being acknowledged as a National Specialized and Innovative "Little Giant" Enterprise, a Shandong Provincial Single Champion Enterprise, a Shandong Gazelle Enterprise, a Shandong Provincial Enterprise Technology Center, a Shandong Industrial Design Center, a National High-Tech Enterprise, and a Shandong Specialized and Innovative Enterprise.
