Large Side Unloading Rock Loader
1. Intelligent loading system
It adopts adaptive crawler walking technology to provide precise insertion force control and support full-section dynamic loading. It performs well in the construction of flat and inclined tunnels, and the efficiency of complex sections is significantly improved.
2. All-around adaptability features
The supporting design takes into account both versatility and professionalism. It can operate independently or be linked with drilling and transportation equipment, significantly improving efficiency in cross tunnel construction.
3. Performance doubling tool
Its outstanding features include: the bucket has both lifting and transporting capabilities, and can handle heavy support materials such as tires; the elevating working platform supports real-time maintenance of the roof; the integrated hydraulic system can power a variety of ancillary equipment; the revolutionary cleaning technology realizes the mechanization of the entire loading process for the first time, greatly improving operating efficiency.

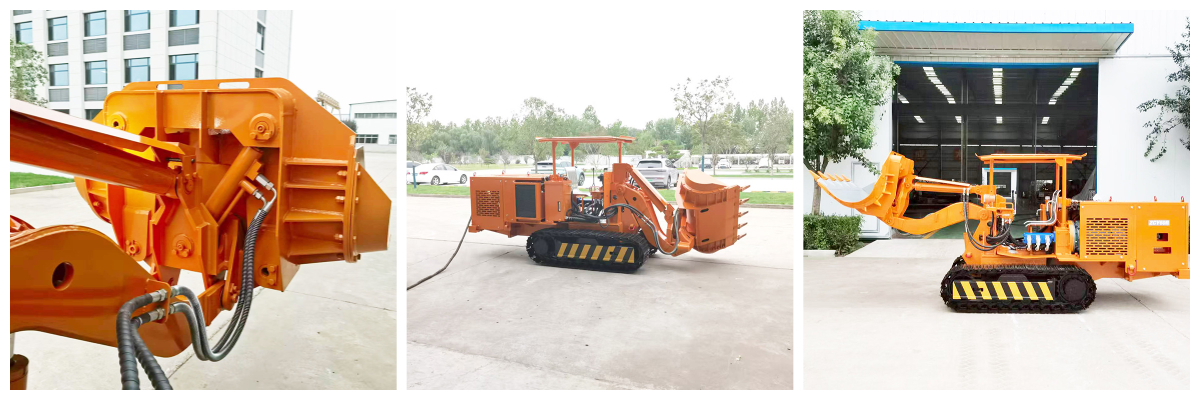

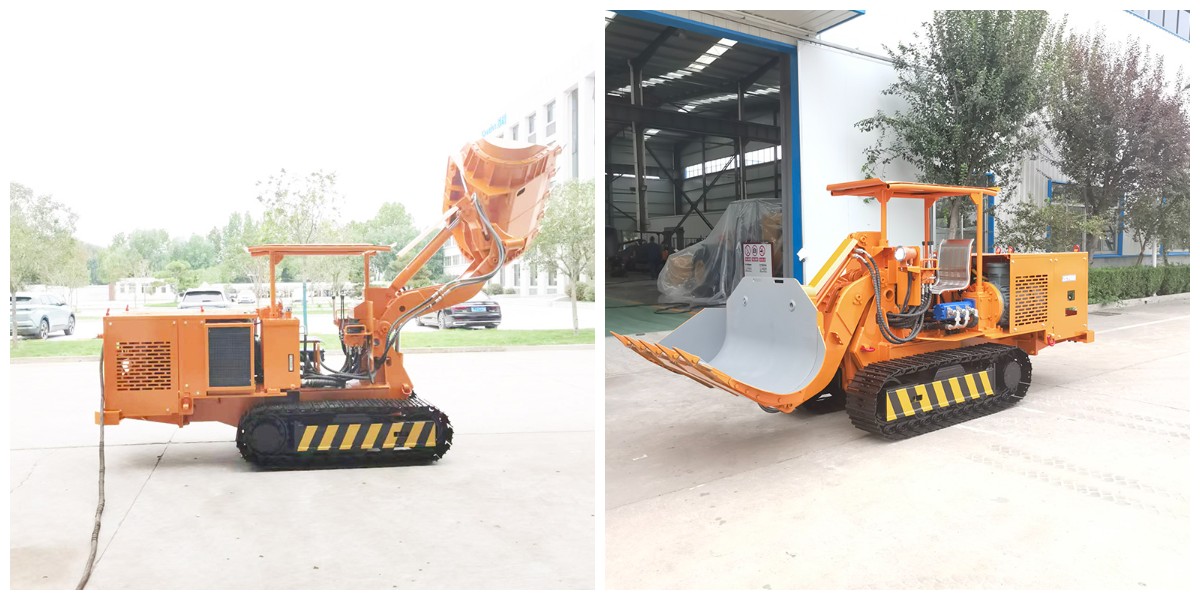

The side discharge rock loader is a new generation of crawler trackless loading equipment in the mining industry, providing an efficient solution for mining. It is mainly responsible for loading coal, rock and ore in tunnels of coal mines and other mines, and is also responsible for loading rocks in small-section full-rock tunnels. This equipment has distinctive features, strong insertion force, and can quickly cut into materials for loading; it has excellent maneuverability and can move flexibly in complex and changeable tunnel environments; it can realize full-section operations, expand the scope of operations, and improve work efficiency; it has good safety, providing reliable safety guarantee for operators; and it has the function of one machine with multiple uses.
It can not only complete loading tasks, but also provide power for hydraulic drilling tools, serve as a working platform during support operations, and complete short-distance transportation, undercover, and gang cleaning on the working surface. If a breaker is installed, it can crush large rocks and coal, speed up the excavation process, and create good economic benefits. It consists of key parts such as side-mounted shovel mechanism, crawler traveling assembly, frame assembly, hydraulic operating system, driving control system, and electrical system. Each part cooperates with each other to ensure the normal operation of the equipment. Users can choose suitable equipment based on the actual cross-section size of the tunnel and loading efficiency requirements.
Product Details
Parameters
Product Model | ZCY45R | ZCY60R | ZCY80R | ZCY100R | ZCY120R | |
Technical Bucket Capacity (m³) | 0.45 | 0.60 | 0.80 | 1.00 | 1.2 | |
Main Motor Power (kW) | 30 | 45 | 55 | |||
Voltage (V) | 660/1140 | 660/1140 | ||||
Bucket Width (mm) | 1370 | 1520 | 1696 | 1696 | 1876 | |
Maximum Dumping Height (mm) | ≥1460 | ≥1320 | ≥1600 | ≥1900 | ≥2000 | |
Maximum Digging Depth (mm) | ≥400 | ≥400 | ≥400 | ≥500 | ≥500 | |
Gradeability (°) | ≥16 | ≥16 | ≥16 | ≥16 | ≥16 | |
Traction Force (kN) | ≥20 | ≥20 | ≥40 | ≥40 | ≥40 | |
Minimum Ground Clearance (mm) | ≥180 | ≥180 | ≥200 | ≥200 | ≥200 | |
Maximum Travel Speed (m/s) | ≥0.5 | ≥0.5 | ≥0.81 | ≥0.81 | ≥0.81 | |
Working Mechanism Pressure (MPa) | 16±0.5 | 16±0.5 | 16±0.5 | 16±0.5 | 16±0.5 | |
Travel Motor Pressure (MPa) | 22±0.5 | 22±0.5 | 22±0.5 | 22±0.5 | 22±0.5 | |
External Oil Port Pressure (MPa) | 20±0.5 | |||||
Noise (Sound Pressure Level) (dB) | ≤90 | |||||
Center of Gravity Position | Xg=635 | Xg=650 | Xg=710 | Xg=750 | Xg=780 | |
Track Ground Pressure (MPa) | 0.09 | 0.1 | ||||
Overall Dimensions | Length (mm) | 4490 | 4580 | 5100 | 5330 | 5370 |
Width (mm) | 1425 | 1520 | 1696 | 1696 | 1876 | |
Height (mm) | 2046 | 2046 | 2100 | 2300 | 2300 | |
Dry Weight(kg) | 4500 | 4650 | 7350 | 8300 | 8500 | |
