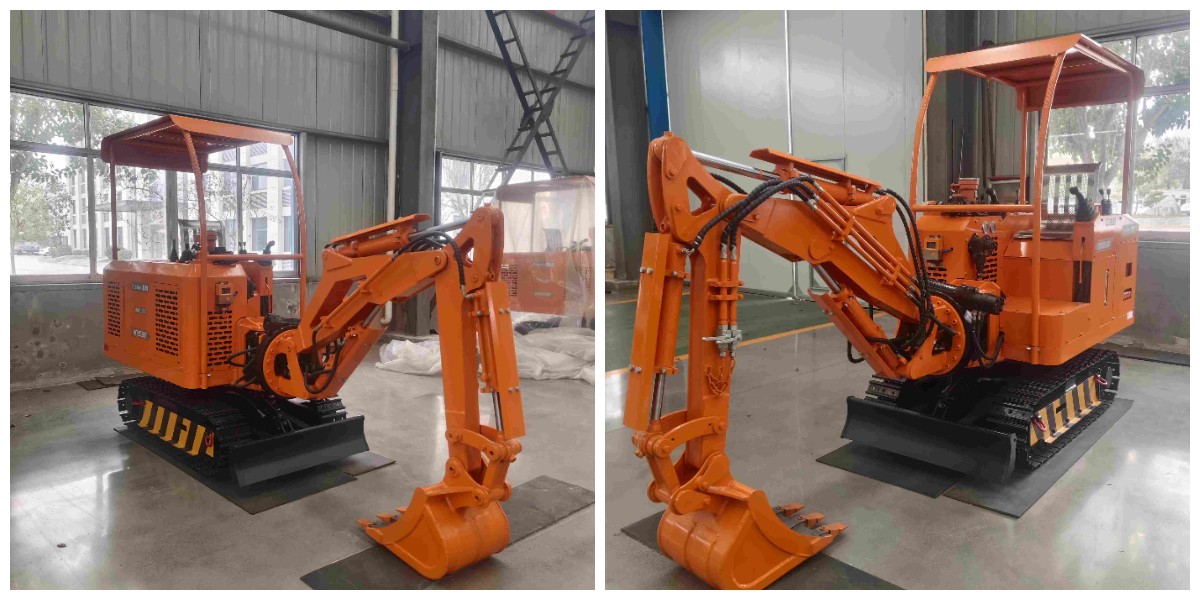

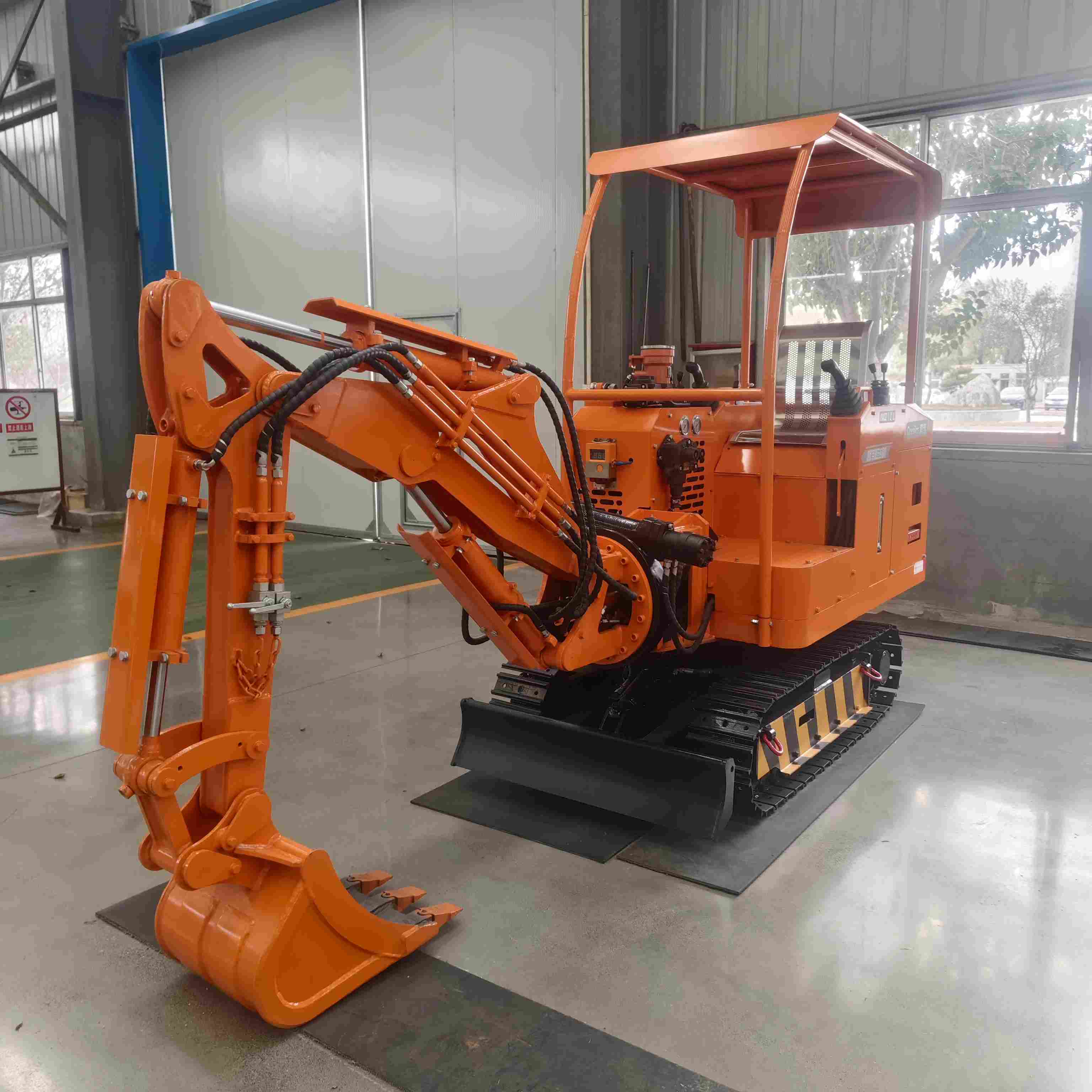

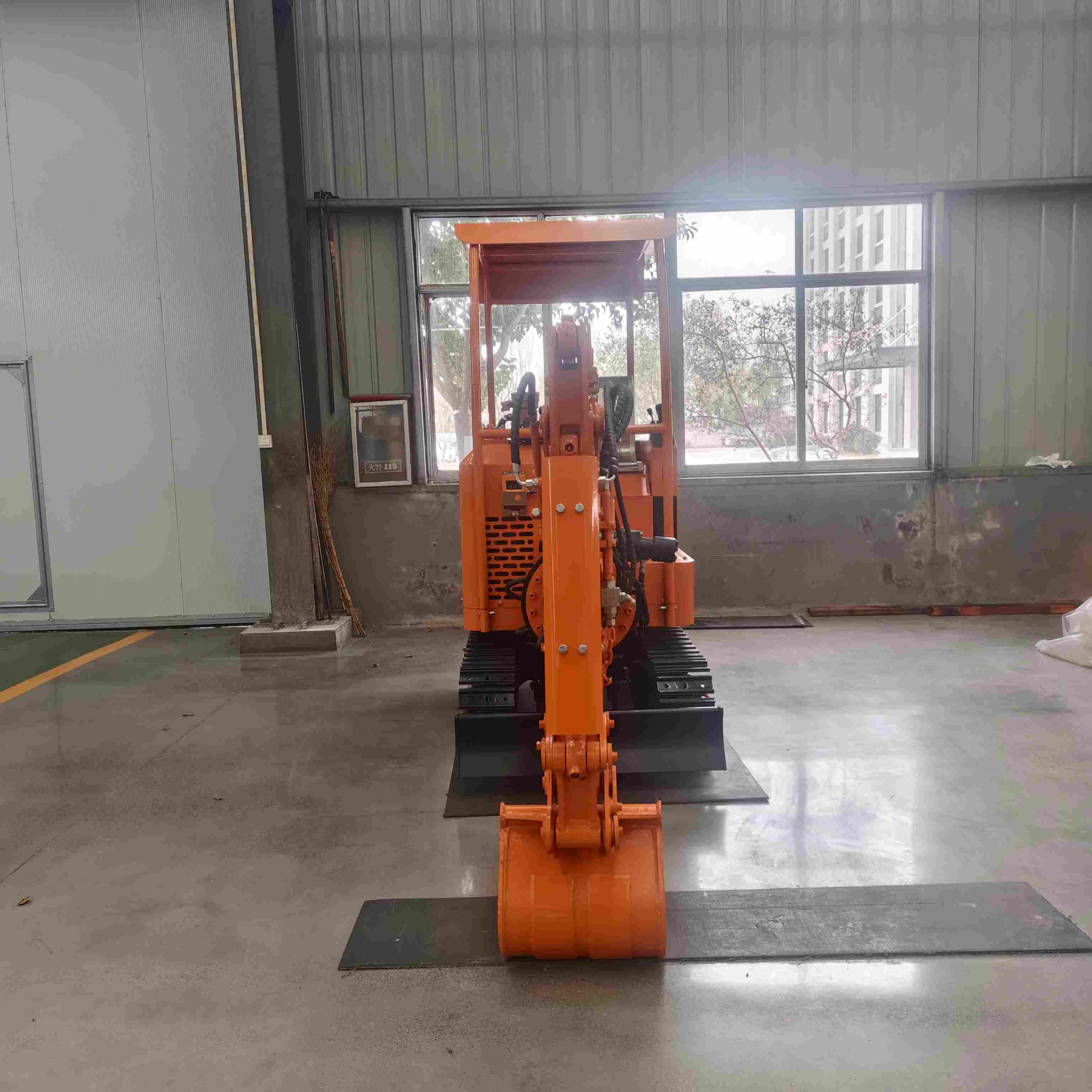

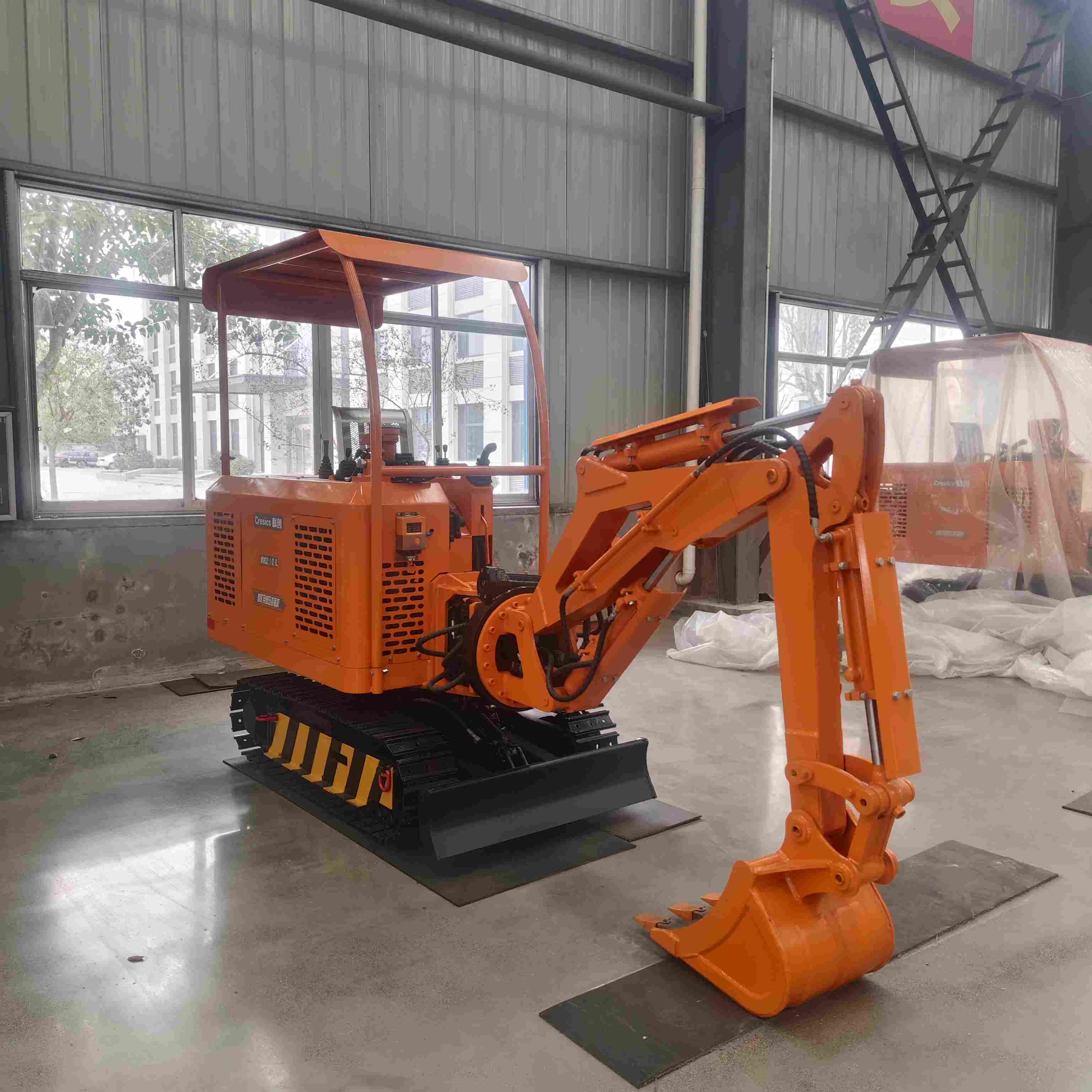

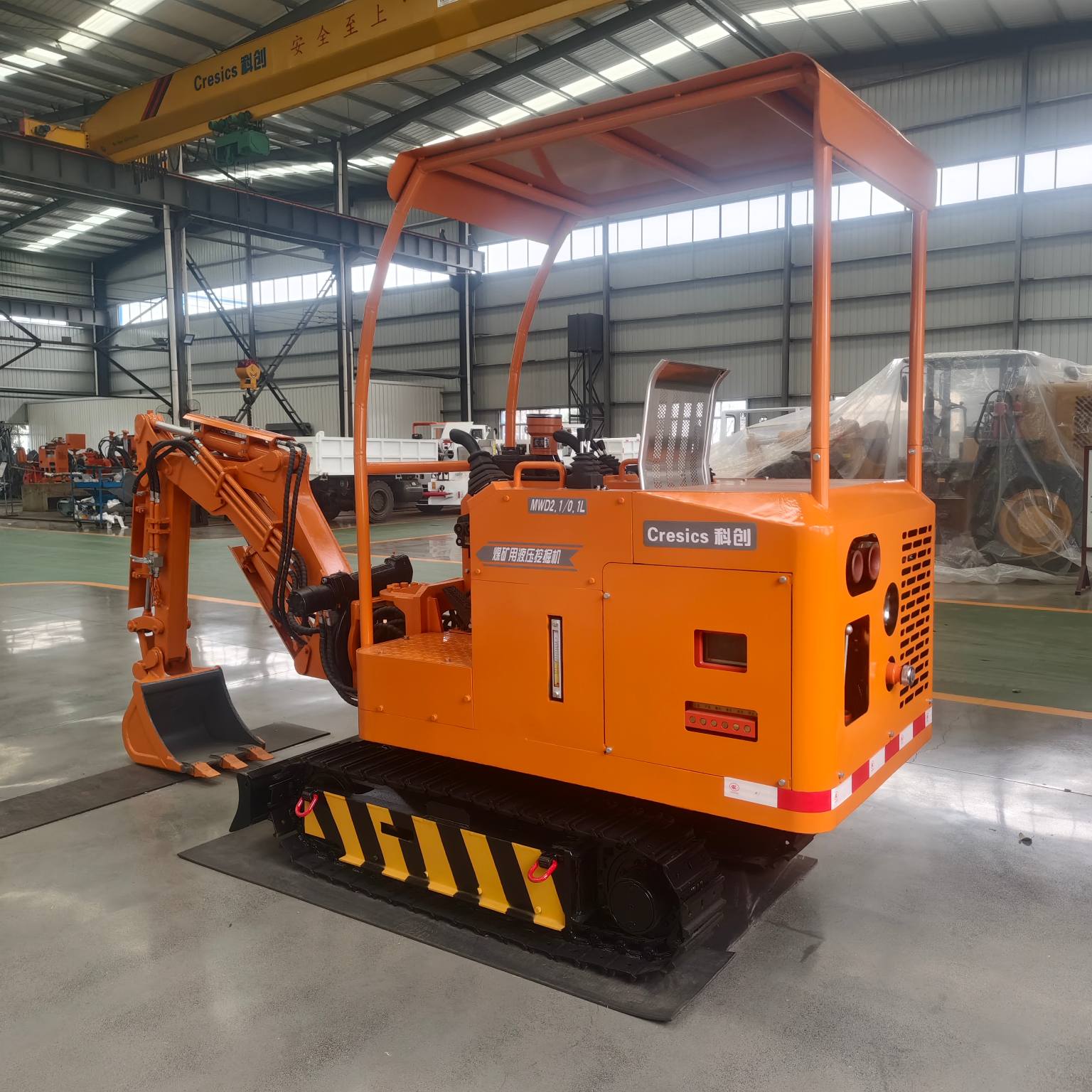

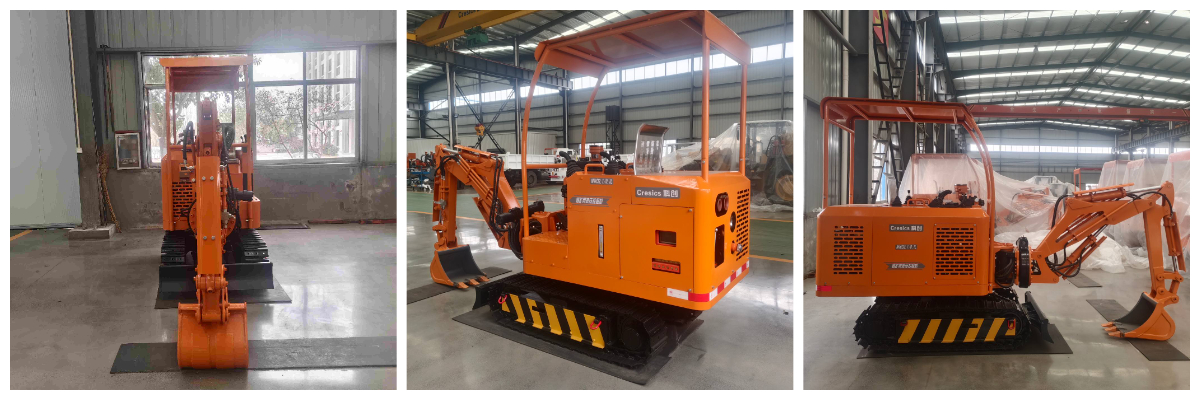

Electric Mining Excavator
1.Outstanding Features of the Multifunctional Working Platform
The working platform is capable of 360° horizontal rotation, and its boom adopts a three-section arm design, enabling ±90° rotational operation.
2.Adaptable to Various Types of Tunnel Operations
The height of the arm can be flexibly adjusted according to changes in tunnel size, effectively avoiding contact with anchor bolts, anchor cables and tunnel roofs, and allowing smooth operation in cross-sections of different heights.
The mining hydraulic excavator is capable of conducting excavation, rock loading, bottom cleaning, permafrost digging and other operations in various mines such as coal mines, metal mines and non-metallic mines, as well as in vertical shafts, inclined shafts and horizontal tunnels.
It integrates multiple functions including digging, bottoming, side expanding, lateral excavation, breaking, rock crushing, scraper conveying, belt conveyor bottom cleaning, loading and tunnel leveling, so as to meet diverse operational requirements.
Parameters
Project | Unit | MWD2.1/0.1L | MWD3.3/0.16L | MWD5.5/0.2L | MWD5.5/0.2L | |
Basic Parameters | Standard Bucket Capacity | m³ | 0.1±0.01 | 0.16±0.016 | 0.2±0.02 | 0.28±0.028 |
Operating Mass | kg | 2100±105 | 3300±165 | 5500±275 | 6800±340 | |
MotorRated Power | kw | 22 | 30 | 37 | 55 | |
Hydraulic System Parameters | Rated Pressure | Mpa | 21.5 | 21.5 | 25 | 25 |
Maximum Flow Rate L/ | L/min | 70 | 90 | 110 | 135 | |
Excavation Parameters | Excavation Radius | mm | 3000 | 3500 | 4500 | 5200 |
Excavation Depth | mm | 1500 | 1800 | 2000 | 2400 | |
Excavation Heightmm | mm | 3200 | 3800 | 4700 | 5250 | |
Dumping Height(mm) | mm | 1800 | 2000 | 2500 | 2950 | |
Excavation Parameters | Walking Mode | / | Travel Motor with Built-in Spring Brake | Travel Motor with Built-in Spring Brake | Travel Motor with Built-in Spring Brake | Travel Motor with Built-in Spring Brake |
Travel Form | / | Caterpillar Track Traveling | Caterpillar Track Traveling | Caterpillar Track Traveling | Caterpillar Track Traveling | |
Ground Contact Pressure | Mpa | ≤ 0.1 | ≤ 0.1 | ≤ 0.1 | ≤ 0.1 | |
Travel Speed | m/min | 26.5 | 26.5 | 26.5 | 26.5 | |
Ground Clearance | mm | ≥ 250 | ≥ 250 | ≥ 250 | ≥ 280 | |
Gradeability | ° | ≥14(Applicable slope range: -14° to +14° ) | ≥ 14 (Applicable slope range: -14° to +14° ) | ≥ 14(Applicable slope range: -14° to +14° ) | ≥14(Applicable slope range: -14° to +14° ) | |
Minimum Turning Radius of Track | mm | ≤ 900 | ≤ 1100 | ≤ 1400 | ≤ 1600 | |
Overall Dimensions(Length × Width × Height) | mm | 2700×1000×2050 | 3200×1350×2250 | 3300×1450×2350 | 3350×1550×2600 | |
About us

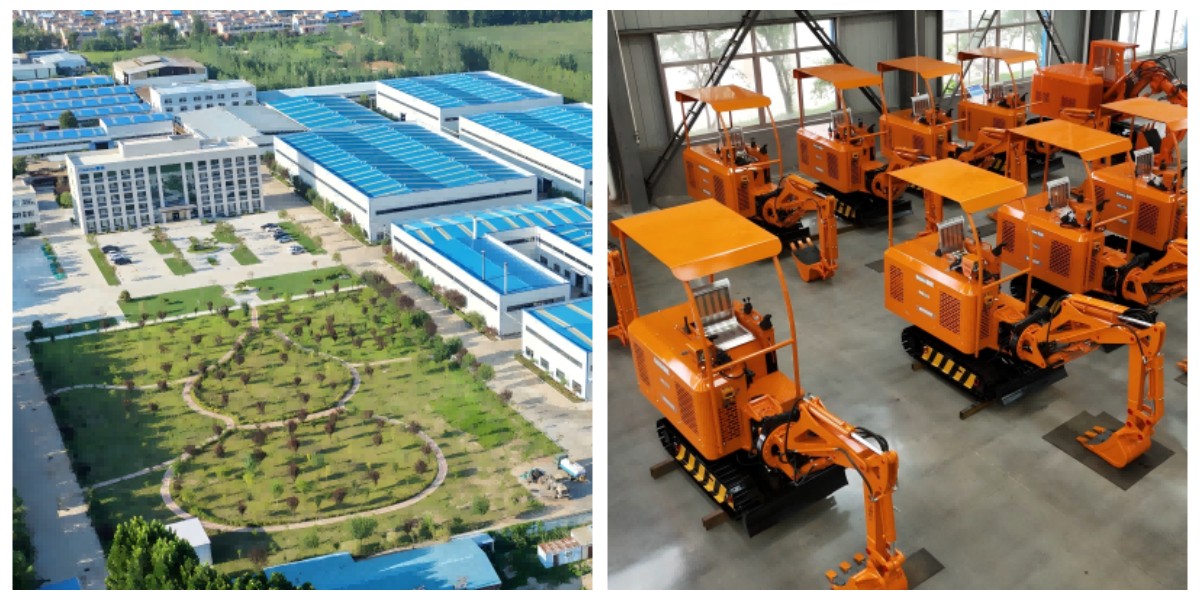

Shandong Kechuang Equipment Manufacturing Co., Ltd., founded in 2004, is a professional R&D and manufacturing enterprise specializing in mining electromechanical equipment. Our product portfolio covers three core areas: mining excavation-anchoring-exploration-transportation equipment, mining automated intelligent equipment, and mining auxiliary transportation equipment. We are capable of providing customers with complete sets of equipment solutions across these sectors.Through years of dedicated efforts, our products have been distributed in 32 provinces, autonomous regions, and municipalities directly under the Central Government nationwide, serving over 100 domestic mining groups. Additionally, our products are exported to more than a dozen countries including Vietnam, India, South Africa, and the Philippines, earning profound respect and widespread recognition from customers worldwide.
