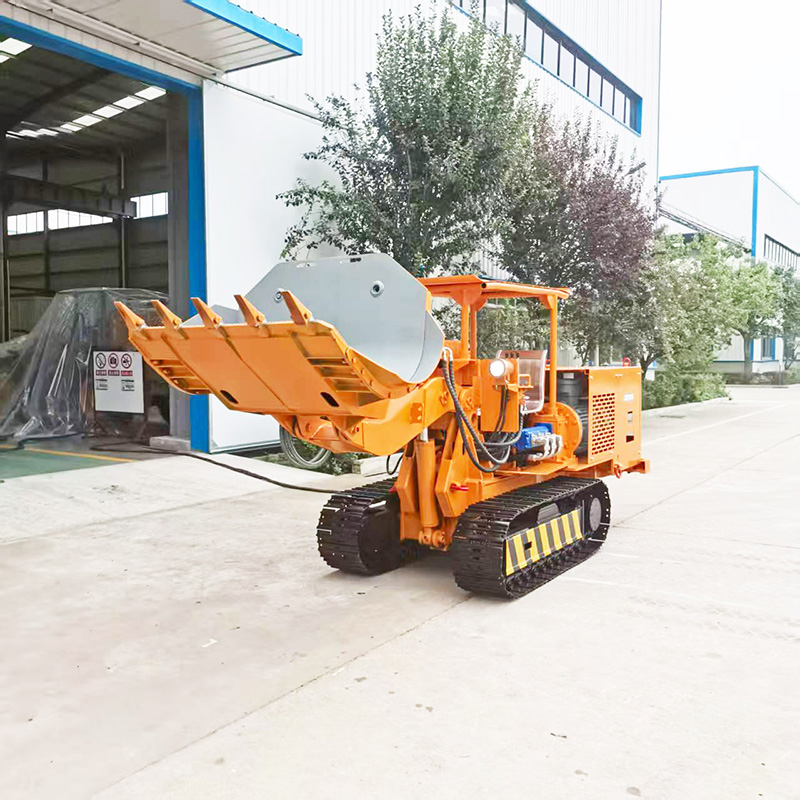

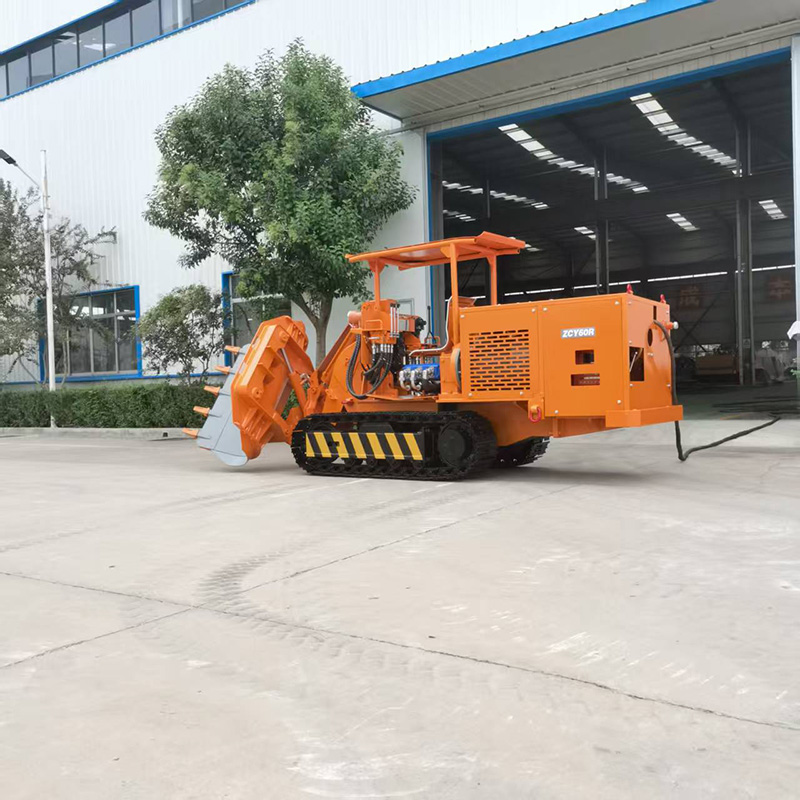

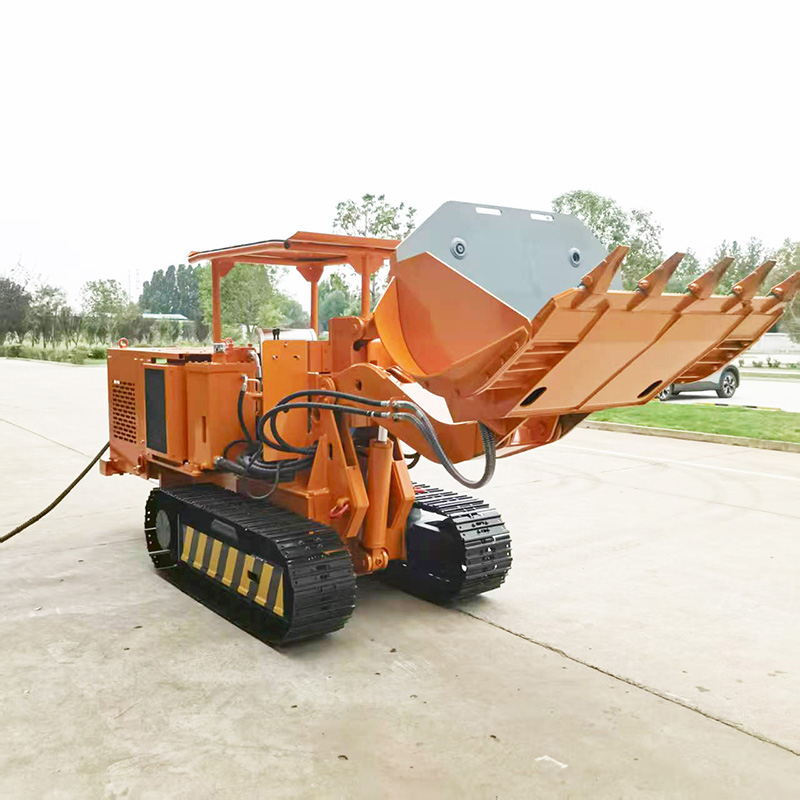

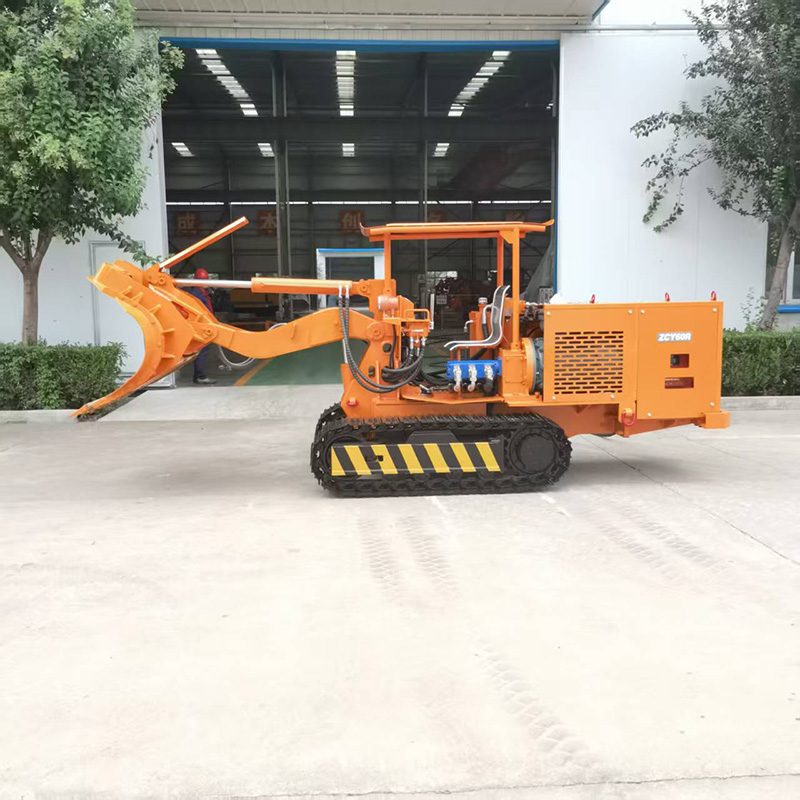

Side Dump Rock Loader Accessories
1. Professional-grade construction equipment
The intelligent crawler drive system provides precise insertion force control to achieve full-section synchronous and efficient loading. It can maintain stability and efficiency in the construction of various cross-section tunnels, and has excellent adaptability to complex working conditions.
2. Functional composite pioneer
This model achieves four core functions through innovative design: the bucket can lift heavy support components and complete short-distance bulk material transportation; after lifting, it forms a stable working platform to support roof maintenance; hydraulic power sharing technology provides the possibility for multi-equipment collaborative operations; the deep cleaning system realizes full automation of bottom-hole loading for the first time, completely changing the traditional operating mode.
In mining operations, side-discharging rock loaders are a new generation of crawler-type trackless loading equipment with significant comprehensive advantages. It is mainly used for loading coal, rock and ore in coal mines and other mine tunnels, and also has excellent performance in rock loading in small-section full-rock tunnels. The equipment has a strong insertion force and can easily cope with various hard geological conditions, quickly cutting into materials for efficient loading; it has good maneuverability and can freely shuttle and flexibly turn in narrow tunnels; it has full-section operation capabilities to improve the comprehensiveness and efficiency of operations; it is highly safe, providing a safe working environment for operators; and it is rich in functions, making one machine multi-purpose.
In addition to loading operations, it can also provide power for hydraulic drilling tools and serve as a working platform during support to complete short-distance transportation, undercover work, and gang cleaning on the working surface. If equipped with a breaker, it can break large rocks and coal, speed up the excavation, and improve overall economic benefits. It consists of a side-mounted shovel mechanism, crawler traveling assembly, frame assembly, hydraulic operating system, driving control system, electrical system and other parts. All parts work closely together to ensure stable and efficient operation of the equipment. Users can select appropriate equipment based on the actual tunnel section and loading efficiency requirements.

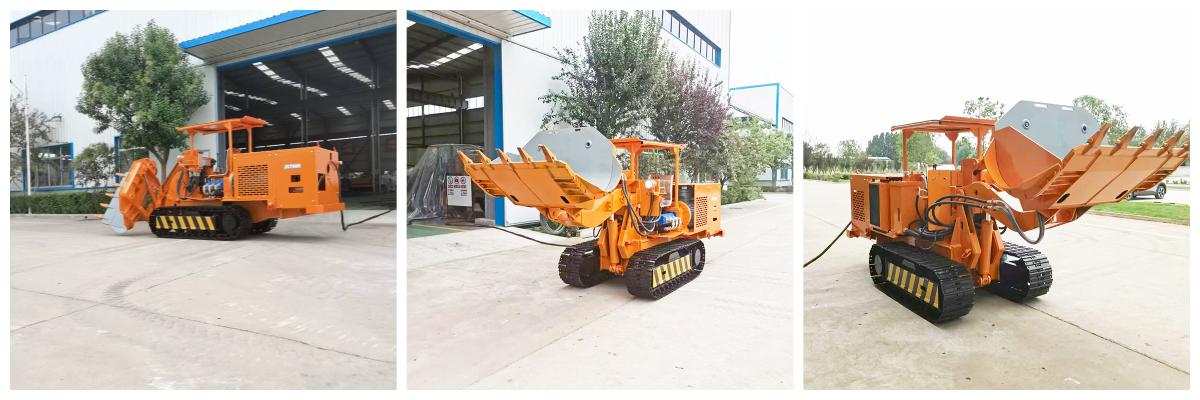

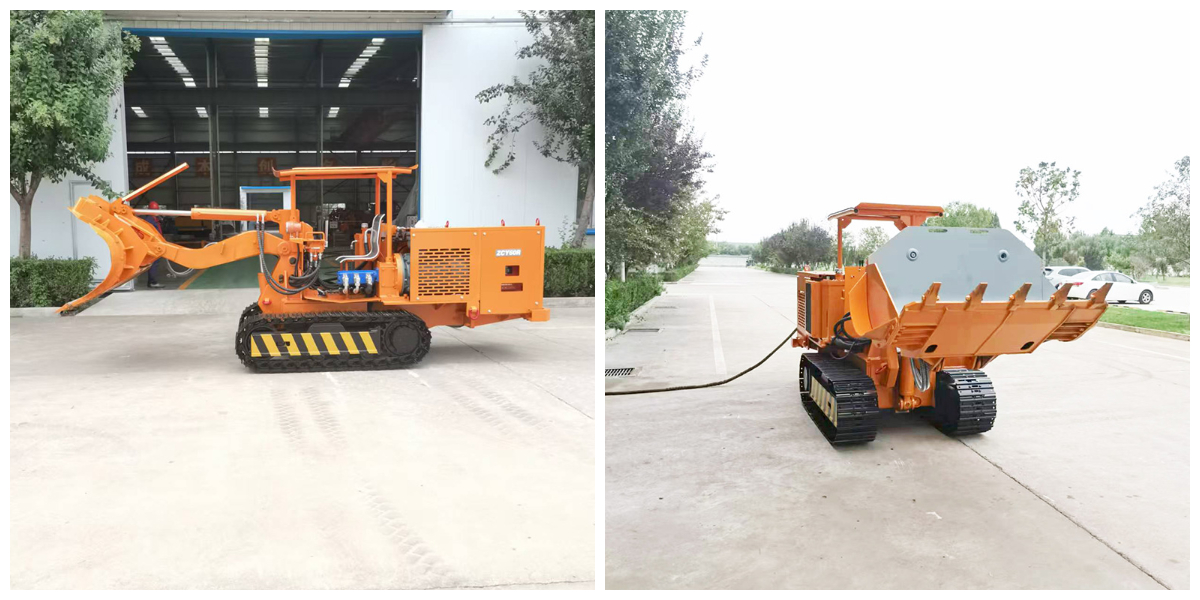

Product Details
Parameters
Product Model | ZCY45R | ZCY60R | ZCY80R | ZCY100R | ZCY120R | |
Technical Bucket Capacity (m³) | 0.45 | 0.60 | 0.80 | 1.00 | 1.2 | |
Main Motor Power (kW) | 30 | 45 | 55 | |||
Voltage (V) | 660/1140 | 660/1140 | ||||
Bucket Width (mm) | 1370 | 1520 | 1696 | 1696 | 1876 | |
Maximum Dumping Height (mm) | ≥1460 | ≥1320 | ≥1600 | ≥1900 | ≥2000 | |
Maximum Digging Depth (mm) | ≥400 | ≥400 | ≥400 | ≥500 | ≥500 | |
Gradeability (°) | ≥16 | ≥16 | ≥16 | ≥16 | ≥16 | |
Traction Force (kN) | ≥20 | ≥20 | ≥40 | ≥40 | ≥40 | |
Minimum Ground Clearance (mm) | ≥180 | ≥180 | ≥200 | ≥200 | ≥200 | |
Maximum Travel Speed (m/s) | ≥0.5 | ≥0.5 | ≥0.81 | ≥0.81 | ≥0.81 | |
Working Mechanism Pressure (MPa) | 16±0.5 | 16±0.5 | 16±0.5 | 16±0.5 | 16±0.5 | |
Travel Motor Pressure (MPa) | 22±0.5 | 22±0.5 | 22±0.5 | 22±0.5 | 22±0.5 | |
External Oil Port Pressure (MPa) | 20±0.5 | |||||
Noise (Sound Pressure Level) (dB) | ≤90 | |||||
Center of Gravity Position | Xg=635 | Xg=650 | Xg=710 | Xg=750 | Xg=780 | |
Track Ground Pressure (MPa) | 0.09 | 0.1 | ||||
Overall Dimensions | Length (mm) | 4490 | 4580 | 5100 | 5330 | 5370 |
Width (mm) | 1425 | 1520 | 1696 | 1696 | 1876 | |
Height (mm) | 2046 | 2046 | 2100 | 2300 | 2300 | |
Dry Weight(kg) | 4500 | 4650 | 7350 | 8300 | 8500 | |

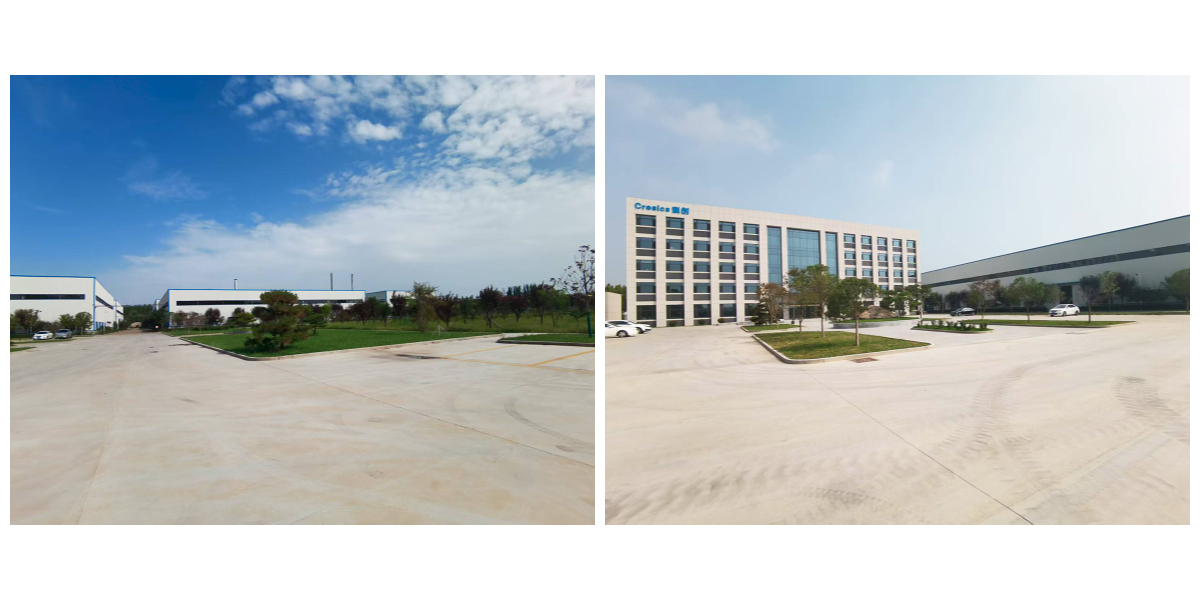

About us
Since its establishment in 2004, Shandong Cresics Equipment Manufacturing Co., Ltd. has always taken technological innovation in mining equipment as its development engine. The company has successively won the titles of national-level specialized and new "Little Giant" enterprise and Shandong Province single champion enterprise. It has built a provincial-level technology center and industrial design platform, and has been recognized as a national high-tech enterprise. By establishing joint laboratories with scientific research institutions such as China University of Mining and Technology, the company has established an interdisciplinary technical team. As of 2024, it has obtained a total of 38 technology patents and more than 300 coal safety certifications, forming a technology matrix covering the entire process of mining.
The company's business covers three major areas: intelligent mining equipment, automated transportation systems and exploration auxiliary equipment, providing customized solutions from working condition simulation to equipment debugging. By implementing ISO9001 quality management system, ISO14001 environmental management system and occupational health and safety standards, the company has built a three-in-one quality control network of "R&D-production-service", and its products have passed "AAA" level credit certification and 3C compulsory certification. At present, the company has provided services to mining customers in 32 provincial-level administrative regions across the country, established cooperation with more than 100 key enterprises, and its products are exported to India, Vietnam and other countries, setting industry benchmarks with innovative quality.
